WBK25
Ethernet Interface
For Connecting a WaveBook, DaqBook, WBK40, or WBK41 to the Ethernet
Features ...... 1
Description ...... 2
Specifications ...... 17
Ethernet CE Kit Installation Instructions

Features

The WBK25 is an Ethernet-to-parallel port interface, which provides high-speed Ethernet connectivity for
WaveBook, DaqBook, WBK40, and WBK41 systems. Connection to the Ethernet is made via an Ethernet
patch cable, which links the WBK25's 10/100BaseT Ethernet port to a PC's Ethernet jack or an Ethernet
network hub.
The WBK25 includes three parallel ports, labeled as expansion ports 1 through 3. Each of these parallel
ports can be attached to one of the designated acquisition devices via a parallel cable. The ports cannot be
used for auxiliary devices such as printers and scanners.
919896

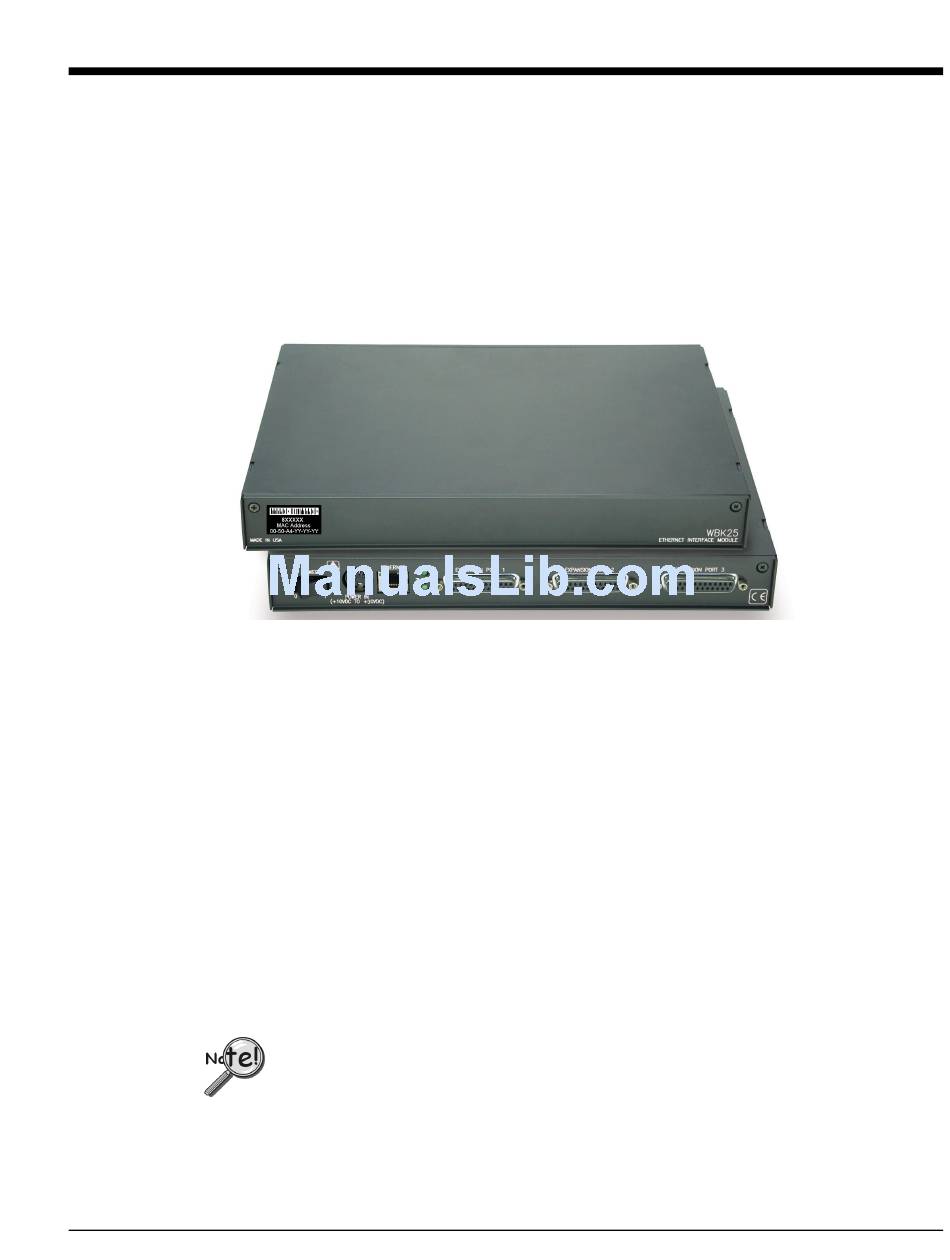

The WBK25 Ethernet-to-Parallel Port Interface
•
Provides 10/100BaseT Ethernet connection for up to three WaveBook/512A, /516, /516A,
DaqBook/2000A, DaqBook/2000X, WBK40, or WBK41 devices, in any combination
•
High-speed performance guarantees continuous data transfer to the PC without data loss
WBK25's three parallel ports are labeled as expansion ports 1 through 3. They are
used to connect to WaveBook, DaqBook, WBK40, and WBK41 systems via parallel
cables. The ports cannot be used for other parallel devices, such as printers and
scanners.
(p/n 1077-0901)
User's Guide
1087-0901, rev 2.0
p/n

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the WBK25 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for IOtech WBK25

Summary of Contents for IOtech WBK25

  • Page 1: Table Of Contents

    The WBK25 is an Ethernet-to-parallel port interface, which provides high-speed Ethernet connectivity for WaveBook, DaqBook, WBK40, and WBK41 systems. Connection to the Ethernet is made via an Ethernet patch cable, which links the WBK25’s 10/100BaseT Ethernet port to a PC’s Ethernet jack or an Ethernet network hub.

  • Page 2: Description

    Description Front Panel The left side of the WBK25 front panel will include a MAC (Media Access Control) Address Label. The label displays the device serial number in both barcode and base 10 formats. The label also provides the Ethernet address (MAC Address) which is derived from the serial number in hexadecimal.

  • Page 3: Operational Aspects

    Note: It is possible to attach multiple WBK25 units to a single PC that has more than one Ethernet port. It is also possible to attach several WBK25 units to a multi-port Ethernet hub. Performance under these conditions will be dependent on the PC’s ability to handle multiple networks.

  • Page 4: Connecting A Wbk25 To The Ethernet

    Connecting a WBK25 to the Ethernet Introduction The WBK25 connects directly to an Ethernet port on a PC or network hub via the unit’s built-in 10/100BaseT Ethernet interface. An Ethernet patch cable CA-242 (1.5 foot) or CA-242-7 (7 foot) cable is used to make the connection.
  • Page 5 Determine the type of Network Connection To properly connect a WBK25 you must determine the type of network that it will become part of. This is because the type of network used has a direct bearing on the IP address that will be assigned.
  • Page 6 Notes: ➣ Using the WBK25 on a typical LAN may affect the speed of the network and internet data transfer. Because of this we recommend adding a network card to the computer and using one of the two dedicated network configurations.
  • Page 7 Note: Various AC adapter models support power grids of USA, Europe, Japan, and Asia. How to make the connection: 1. Place the WBK25’s power switch in the “OFF” (0) position, if it is not already OFF. 2. Connect the DIN5 end of the adapter’s cable to the power in connector on the WBK25.
  • Page 8 Start Menu ⇒ Settings ⇒ Control Panel. 2. Double-click the “Network and Dial-up Connections” icon. Double-click the “Network Connection” icon for the network that the WBK25 is connected Local Area Connection Status 4. In the “Local Area Connection Status” box (previous figure), click on the <Properties>...
  • Page 9 Local Area Connection Properties 5. Double-click the “Internet Protocol (TCP/IP)” component (previous figure). The “Internet Protocol (TCP/IP) Properties” box will appear (following figure). Internet Protocol (TCP/IP) Properties WBK25 Ethernet Interface Module User’s Guide WBK25, pg. 9 919896...
  • Page 10 1. Locate the DaqIPConfig Applet. Locate the DaqIPConfig applet by navigating from the Windows’ Desktop as follows: DaqBook Users: Start Menu ⇒ Programs ⇒ IOtech DaqX Software ⇒ DaqIPConfig WaveBook Users: Start Menu ⇒ Programs ⇒ IOtech WaveBook Software ⇒ DaqIPConfig 2.
  • Page 11 DaqIPConfig 3. Select the device that is to have the address change. Note: In the above figure there is only one device to select, i.e., WBK25. 4. Set the internet protocol (TCP/IP) settings to be compatible with host computer. Select the radio button labeled “Use the following IP address.”...
  • Page 12 The first-level device is the device that will be connected directly to the Ethernet, via a host computer’s Ethernet jack or a jack on a network hub. The WBK25 is a first-level device. Select the Computer image in the Device Inventory configuration tree (following figure).
  • Page 13 Enter the Serial Number of the first-level device (WBK25). In the following screen shots the Serial Number is 800000. b. Select the “Auto IP Setting” radio button. Note that the IP Address of the WBK25 will automatically be calculated and displayed in the IP Address field as indicated in the following left-hand figure.
  • Page 14 Select the device that you want to test from the Device Inventory configuration tree. d. Click the <Properties> button. The Properties dialog box will open. Click the “Test Hardware” tab. Click the <TCP/IP Test> button. Results of a TCP/IP Test WBK25, pg. 14 WBK25 Ethernet Interface Module User’s Guide 919896...
  • Page 15 <Details> button to obtain possible causes and possible solutions. This completes the procedure for connecting a WBK25 to the Ethernet. At this point you should refer to the more detailed user documentation that applies to the other devices that are included in your data acquisition system, e.g., WaveBooks, WBK options, DaqBooks, and DBK options.

  • Page 16: Fuse Replacement

    Needle-nose pliers can be used to pull MINI ATO fuses; but should not be used to insert fuses. 1. If you have not already done so, turn OFF the power to, and UNPLUG the WBK25 module and all connected equipment. Remove all lines from the unit.

  • Page 17: Specifications

    5. Replace the cover plate and secure it to the chassis with the 4 screws that were removed in step 2. 6. Return the WBK25 Ethernet Interface Module to normal service. Should any problems be noted consult the factory. Specifications Environment Operating: 0 to 50°C (32°...
  • Page 18 WBK25, pg. 18 WBK25 Ethernet Interface Module User’s Guide 919896...

  • Page 19: Installation Instructions

    Ethernet CE Kit Installation Instructions Introduction The Ethernet CE Kit includes three ferrite clamp-on inductive collars to reduce EMI. It also includes a ground-line for safety. The kit is simple to install and consists of the following components. • 3 Ferrite Inductive Collars with Tie-wrap, p/n L-8-1 •...
  • Page 20 WBK25, pg. 20 WBK25 Ethernet Interface Module User’s Guide 919896...
