Summary of Contents for Morris MKG-64220

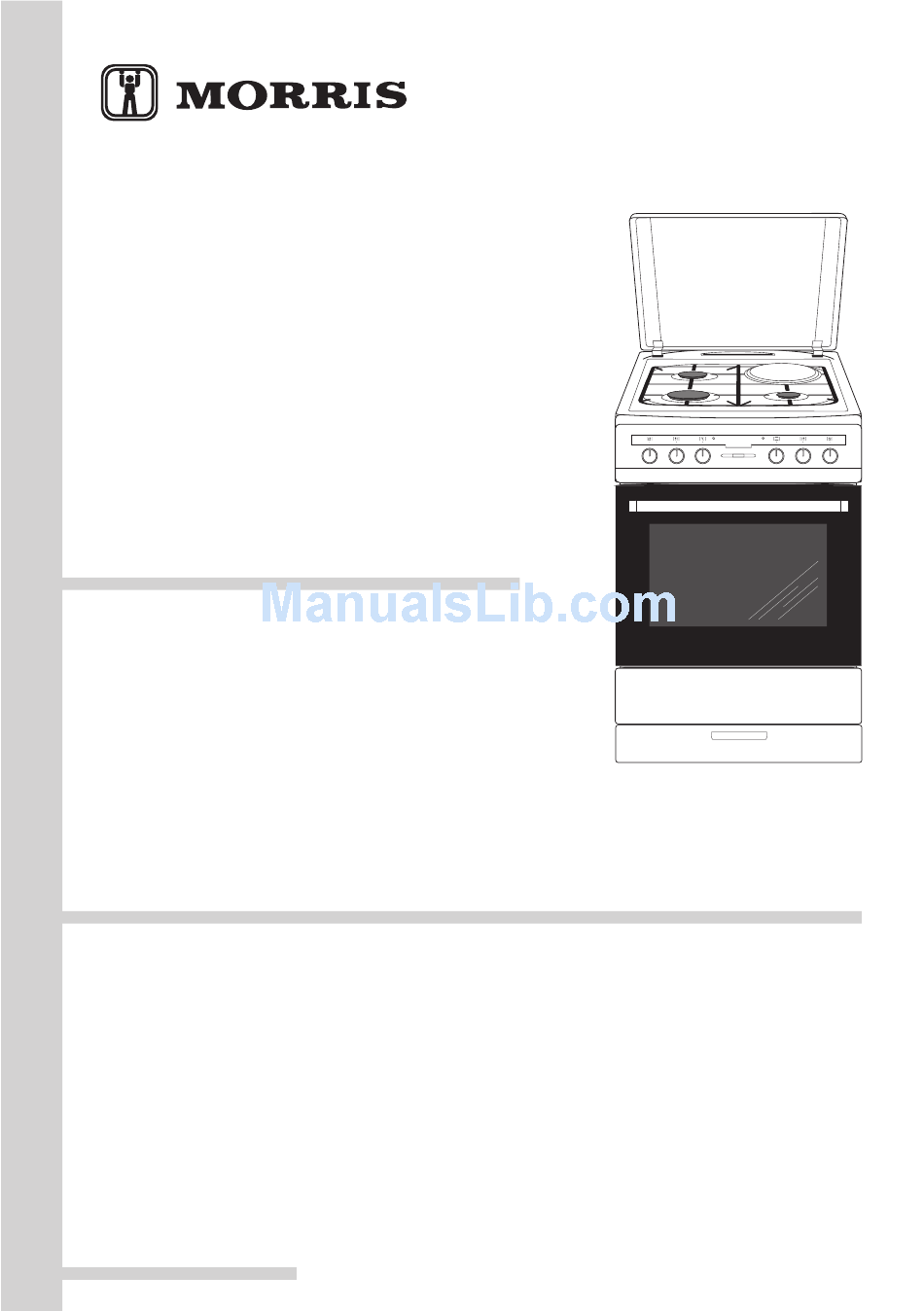

- Page 1 MKG-64220 INSTRUCTION MANUAL GAS COOKER IOAK-3120 / 8057512 (06.2014./1)
- Page 2 DEAR CUSTOMER, The cooker is exceptionally easy to use and extremely efficient. After reading the instruction manual, operating the cooker will be easy. Before being packaged and leaving the manufacturer, the cooker was thoroughly checked with regard to safety and functionality. Before using the appliance, please read the instruction manual carefully.
-
Page 3: Table Of Contents
TABLE Of CONTENTS Safety instructions ......................4 Description of the appliance ................... 10 Installation ......................... 12 Operation ........................... 19 Baking in the oven – practical hints ................29 Cleaning and maintenance ....................31 Technical data ........................37... -
Page 4: Safety Instructions
SAfETY INSTRUCTIONS Warning: The appliance and its accessible parts become hot during use. Care should be taken to avoid touching heating elements. Children less than 8 years of age shall be kept away unless continuously supervised. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or... - Page 5 SAfETY INSTRUCTIONS During use the appliance becomes hot. Care should be taken to avoid touching heating elements inside the oven. Accessible parts may become hot during use. Young children should be kept away. Warning: Do not use harsh abrasive cleaners or sharp metal scrapers to clean the oven door glass since they can scratch the surface, which may result in shattering of the glass.
- Page 6 SAfETY INSTRUCTIONS The appliance becomes hot during operation. Take care not to touch the hot parts inside the oven. Please pay attention to children whilst the cooker is in operation, as children do not know the rules of cooker use. In particular, the hot surface burners, the oven chamber, hob grids, the door pane, and pans containing hot liquids standing on the hob may cause burns to children.
- Page 7 SAfETY INSTRUCTIONS Do not make your own alterations to the cooker in order to adapt it to a different type of gas, move the cooker to another place or make changes to the power supply. These operations may only be carried out by an authorised electrician or fitter. ...
- Page 8 HOW TO SAVE ENERGY Using energy in a respon- Make sure the oven door is properly sible way not only saves closed. money but also helps the Heat can leak through spillages on the door environment. So let us save seals.
- Page 9 DISPOSAL Of THE APPLIANCE UNPACKING During transportation, protec- Old appliances should not sim- tive packaging was used to ply be disposed of with normal protect the appliance against household waste, but should any damage. After unpack- be delivered to a collection and ing, please dispose of all recycling centre for electric and elements of packaging in a...
-
Page 10: Description Of The Appliance
DESCRIPTION Of THE APPLIANCE 5, 6 3, 4 1 Temperature control knob 2 Oven function selection knob 3, 4, 5, 6 Gas burner control knobs 7 Temperatureregulatorsignal light red 8 Cooker operation signal light yellow 9 Oven door handle 10 Drawer 11 Large burner 12 Medium burner Burner safety valve... - Page 11 SPECIfICATIONS Of THE APPLIANCE Oven fittings: Grill grate (drying rack) Roasting tray Fork and rotisserie frame* Baking tray* *optional...
-
Page 12: Installation
INSTALLATION The following instructions are addressed to If the appliance is used intensively and for the qualified specialist installing the cooker. a long time, it may be necessary to open a These instructions aim at ensuring that window in order to improve ventilation. installation and maintenance activities are ... -
Page 13: Gas Connection
INSTALLATION Mounting the overturning prevention Gas connection bracket. Caution! The bracket is mounted to prevent overtur- The cooker should be connected to a ning of the cooker. When the overturning gas supply of the particular type of gas prevention bracket is installed, a child who that the appliance is manufactured to climbs on the oven door will not overturn the function with. - Page 14 INSTALLATION Caution! The cooker may only be connected to a liquid gas cylinder or the existing gas supply by an authorised fitter, observing all safety rules. The cooker has threaded 1/2” pipe connec- tor. The connector must be screwed in with a dy- namometric spanner with a maximum torque of 20 Nm.
-
Page 15: Electrical Connection
INSTALLATION INSTALLATION Electrical connection Warning! All electrical work should be carried out by a suitably qualified and authorised electrician. No alterations or wilful changes in the electric- ity supply should be carried out. fitting guidelines The cooker is manufactured to work with three–phase alternating current (400V 3N~50Hz). - Page 16 INSTALLATION CONNECTION DIAgRAM Recommen- Caution! Voltage of heating elements 230V type of connection Caution! In the event of any connection the safety lead wire must be connected to the PE terminal For 230 V earthed one–phase connection, bridges connect 1–2–3 H05VV-f3G4 terminals and 4–5 terminals, safety wire to...
- Page 17 INSTALLATION Adapting the cooker to another type of gas. In order to adapt the cooker to burn a different type of gas, you should: This operation may only be carried out by an exchange nozzles (see tables below), appropriately authorised fitter. ...
- Page 18 INSTALLATION Surface burners supplied do not require gas supply to surface burners is opened and adjustment of primary air. A correct flame set by knobs, see figure below Knobs should has distinct internal cones of blue and green be adjusted with the burner switched on and colour.
-
Page 19: Operation
OPERATION Before first use The oven chamber should only be washed with warm water and a small amount of remove packaging elements, washing-up liquid. gently remove the labels from the oven door, trying not to break the glue tape. ... - Page 20 OPERATION Ignition without an igniter How to use surface burners light the match, Choice of cookware press in the knob to the end and turn it left to the “large flame” position Make sure that the diameter of a pan base is ...
- Page 21 OPERATION Caution! Operation of the burner protection valve In cooker models equipped with a surface burner safety valve, hold the Some models are equipped with an automatic knob pressed down to the end when system that cuts off gas supply to a burner igniting for 10 seconds at the “large when the flame has disappeared.
-
Page 22: Before First Use
OPERATION Before first use Remove packaging, empty the drawer, clean the interior of the oven and the hob. Take out and wash the oven fittings with warm water and a little washing–up liquid. Switch on the ventillation in the room or open a window. Heat the oven (to a temperature of 250°C, for approx. - Page 23 OPERATION Electronic programmer Timer The timer can be activated at any time, re- functions gardless of the status of other functions. The timer can be set for from 1 minute to up to 23 OK – function selection button hours and 59 minutes. <...
- Page 24 OPERATION Semi–automatic operation Automatic operation If the oven is to be switched off at a given If the oven is to be switched on for a specified time, then you should: period of time and switched off at a fixed hour then you should set the operation time and Set the oven function knob and the tem- the operation end time:...
- Page 25 OPERATION Cancel settings The signal lights by are now on; the oven will start operating from the point when Timer and automatic function settings may the difference between the set operation end be cancelled at any time. time and the operation duration time occurs (e.g.
- Page 26 OPERATION Oven with automatic air Oven is off circulation Independent oven lighting (including fan) Set the knob in this position to light up the oven interior. The oven can be warmed up using the bottom and top heaters, as well as the grill. Operation Rapid Preheating of the oven is controlled by the oven function Top heater, roaster and fan on.
- Page 27 OPERATION Bottom heater on When the knob is set to this position the oven is heated using only the bottom heater. Baking of cakes from the bottom until done (moist cakes Switching on the oven is indicated by two with fruit stuffing). signal lights, R, L, turning on.
- Page 28 OPERATION Use of the grill Use of the rotisserie The grilling process operates through infrared The rotisserie enables rotating grilling in the rays emitted onto the dish by the incandes- oven. It is intended for grilling poultry, kebabs, cent grill heater. sausages and similar dishes.
-
Page 29: Baking In The Oven - Practical Hints
BAKING IN THE OVEN – PRACTICAL HINTS Baking we recommend using the baking trays which were provided with your cooker; it is also possible to bake in cake tins and trays bought elsewhere which should be put on the drying rack; for baking it is better to use black trays which conduct heat better and shorten the baking time;... - Page 30 BAKING IN THE OVEN – PRACTICAL HINTS Oven with automatic air circulation (including fan) Type Oven Temperature Level Time in minutes functions dish 160 - 200 2 - 3 30 - 50 25 - 35 160 - 180 20 - 40* 65 - 70 220 - 240 10 - 15...
-
Page 31: Cleaning And Maintenance
CLEANING AND MAINTENANCE Important: By ensuring proper cleaning and mainte- The burner caps and leads must be reposi- nance of your cooker you can have a sig- tioned correctly so that they sit squarely onto nificant influence on the continuing fault-free the hob as shown. - Page 32 CLEANING AND MAINTENANCE Replacement of the oven light Oven bulb The oven should be cleaned after every In order to avoid the possibility of an use. When cleaning the oven the lighting electric shock ensure that the appliance is should be switched on to enable you to switched off before replacing the bulb.
- Page 33 CLEANING AND MAINTENANCE Removing the inner panel Door removal 1. Using a flat screwdriver unhook the up- per door slat, prying it gently on the sides In order to obtain easier access to the oven (fig. B). chamber for cleaning, it is possible to remove 2.
- Page 34 CLEANING AND MAINTENANCE 3. Pull the inner glass panel from its seat (in the lower section of the door). Fig. D, D1. 4. Clean the panel with warm water with some cleaning agent added. Carry out the same in reverse order to reassemble the inner glass panel.
- Page 35 CLEANING AND MAINTENANCE Dismounting the side racks Ovens marked with the letter D are equipped with easily removable wire guides (side racks) of oven inserts. To remove them for washing purposes, pull the front catch (Z1), then tilt the guide and remove it from the rear catch (Z2).
- Page 36 OPERATION IN CASE Of EMERGENCY In the event of an emergency, you should: switch off all the working units of the cooker disconnect the mains plug call the service centre some minor faults can be fixed by referring to the instructions given in the table below.
-
Page 37: Technical Data
TECHNICAL DATA Voltage rating 230/400V~50 Hz Power rating max. 4,1 kW Appliance category gR II2H3+ Cooker dimensions H/W/D 85/60/60 cm Usable capacity of the oven* 65-72 litres Energy rating on the energy label Weight approx. 45 kg Safety certificate Complies with EU regulations EN 50304, EN 60335-1, EN 60335-2-6 standards * according to EN 50304 the capacity depends on the oven fittings –...
