Summary of Contents for MSI MS-IO36

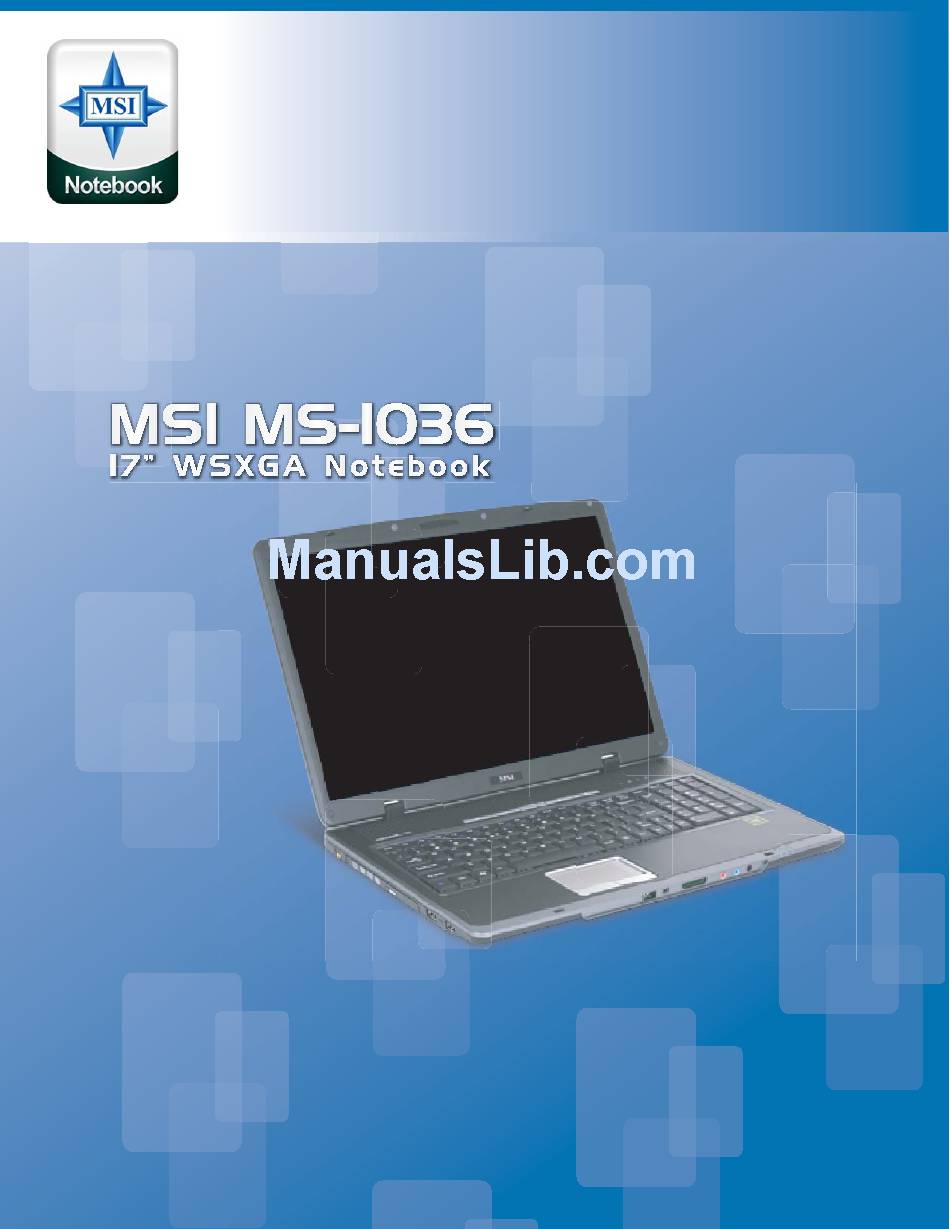

  • Page 1 Installation Guide Copyright © 2006 MSI Computer Corp.
  • Page 2 Overview: MS-1036 is shipped out as a bare bone. Some of the components are equipped while some are not. This installation guide provides you with the information of notebook hardware setup. Before assembling your Notebook, please prepare the installation tools and appropriate items. If you are not clear about the items, please contact your dealer for more information.
  • Page 3 Rear View Right view Left view Open View...
  • Page 4 Step 1: Installing CPU 1-1 Lift the metal lever up until it can go no further. 1-2 a.b. Locate the golden cut edge on the CPU’s lower left-hand corner. Then insert the CPU into the Socket !!!The CPU will only fit in the correct orientation!!! 1-3 a.b.
  • Page 5 Step 2: Installing CPU Heat Sink and Fan 2-1 Use the Heat Sink and Fan that is provided. 2-2a.b. Plug the CPU fan connector before positioning the fan. !!! Connect the wires correctly. There is only one way to connect. DO NOT force in. !!! !!! Warning: failure to connect the fan may cause damage to the CPU or the notebook!!! 2-3 Slide the CPU Heat Sink and Fan over the CPU.
  • Page 6 2-3a.b.c. Align the three screws with the screw holes next to the CPU. May need to slide the Heat Sink to the side to align. Tighten the three screws in 1-3-2 order. !!! Improper connection of the CPU heat sink will damage the notebook and CPU!!!
  • Page 7 Step 3: Installing Notebook Memory 3-1a.b. Align the memory module to the DIMM socket 1. !!! Memory module can only fit in one direction due to the keyed notch. Wrong orientation will cause improper installation and may damage the memory modules or DIMM sockets!!! 3-2 Push down the memory module gently until the metal-locking levers aside from the DIMM socket 1 is fastened.
  • Page 8 Step 4: Installing Mini PCI WLAN Card 4-1a.b. Align the Mini PCI Card to the Mini PCI socket. 4-2 Adjust the attached antennas and push down the Mini PCI Card gently until the metal-locking levers aside from the Mini PCI socket is fastened. !!! Mini PCI Card can only fit in one direction due to the keyed notch.
  • Page 9 4-4a.b. After connecting the black wire, connect the Gray wire to the AUX connector. 4-5a.b. After connecting both the black wire and gray wire, connect the short black wire to the Bluetooth connector.
  • Page 10 4-5a.b.c.d.e. After installing the CPU, Memory, and Mini PCI Card, gently slide the cover until it locks into position. Lock down the cover by applying 4 screws.
  • Page 11 Step 5: Installing Notebook Hard Drive (HDD) 5-1a.b. Please use the given HDD shielding tray. !!! Hard Drive may not be included !!! 5-2a.b. Insert the HDD into the given HDD shielding tray. !!! Make sure that the screw holes to attach HDD to Notebook are on the opposite side of the HDD Pins!!! !!! Improper alignment will cause damage to the HDD and the Notebook!!!
  • Page 12 5-3a.b.c.d. After inserting the shield over the HDD, fasten with the screws that are provided. 5-4 After installing the shield, slide the HDD into the HDD bay. Gently push the HDD towards the side until HDD can go no further. !!! Be sure to have HDD Plastic puller face up!!!
  • Page 13 5-5a.b. Push HDD down into the HDD Bay. Tighten the two screws that are provides to secure the HDD in place. !!! Failure to apply 2 screws may cause HDD assembly to fall off in Notebook HDD area and will damage the HDD and Notebook!!! 5-6 a.b.c.
  • Page 14 Step 6: Installing the Battery 6-1a.b.c. Align battery to the battery slot and push down the battery gently. Hint: If you wish to remove the battery, make sure the battery locking mechanism is in “Unlock” position. Step 7: Final Check 7-1 Check all steps and make sure to fasten all the components and screws before powering on your Notebook.
  • Page 15 Step 8: Entering BIOS Before powering on the Notebook, plug in Notebook power adapter into the Notebook. After pressing the power button, press <Del> immediately which will take you to the BIOS CMOS Setup Screen. 8-1 Adjust proper TIME by pressing <Enter>. Use <+> or <-> to configure System time.
  • Page 16 8-2 Under “BOOT” menu in the BIOS Setup Utility, press <Enter> to select the first boot device. Have the first boot device as “CD/DVD.” 8-3 Insert a Bootable OS CD into the OSD tray.
  • Page 17 8-4 To save/exit the BIOS Setup Screen, go under the “Exit” menu press <Enter> under “Save Changes and Exit.” Press <Enter> under the window that pops up to save/exit. 8-5 After seeing the Intel Logo, immediately press “Enter” in order to install OS and follow the given setup messages.
