Ahuja AWM-490V2 Operation Manual

®
ON

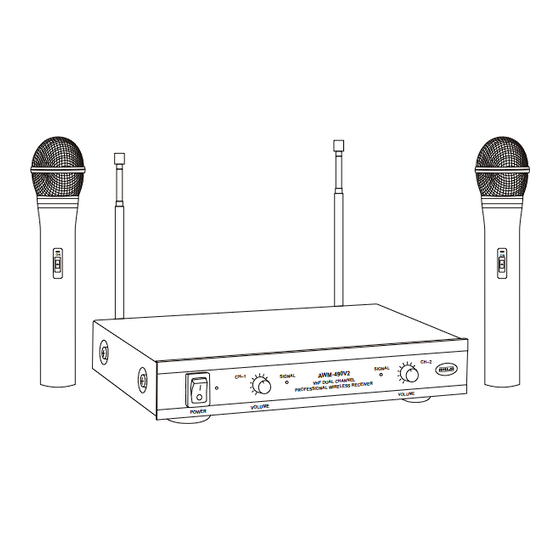

AHUJA introduces AWM-490V2 as an affordable high performance VHF Wireless Microphone System. It consists
of two wireless microphones and a highly sensitive dual channel non-diversity receiver. This ensures an effective
long distance coverage of more than 150 feet, under ideal working conditions.
FEATURES
Compact, lightweight, Dual Channel VHF Wireless Microphone System available in 5 different frequencies.
Operates at Quartz Crystal Locked VHF High Band frequency. Two microphones with separate frequencies and
one non-diversity receiver.
Internal Antennas in the Microphones and two telescopic Antennas in the Receiver for clear and distortion free
reception.
Receiver operates on 9V DC through an AC Adaptor supplied along with the system. Microphone operates with
a 9V Dry Battery.
Microphone with 3-position slide switch for 'Audio On' - 'Audio Mute' - 'Off' positions.
Green LEDs for Channel-1 & Channel-2 signal indication on receiver.
Audio output from receiver available at OUT 1 & OUT 2 individually and as mixed output at OUT (1+2).
Thank you for purchasing the AHUJA Professional PA Wireless Microphones.
Please read this manual thoroughly before making connections and turning on the power. Following the instructions in this
manual will enable you to obtain optimum performance from your new AHUJA Professional PA Wireless Microphones.
Please retain this manual for future reference.
Professional PA Wireless Microphones
AWM-490V2
AW M- 490 V2
CH– 1 SIG NAL
VH DUA CHA
F
A WI EL
ES ON L
SI
PR OF
OL ME U
V
P W R O E
ON
2
CH–
SIG NAL
N NE L
L
EI ER
EC V
ESS R
R
LU ME
VO
2
CHANNEL
CARDIOID
RECEIVER
DYNAMIC
