B&B Giga-McBasic II Quick Start Manual

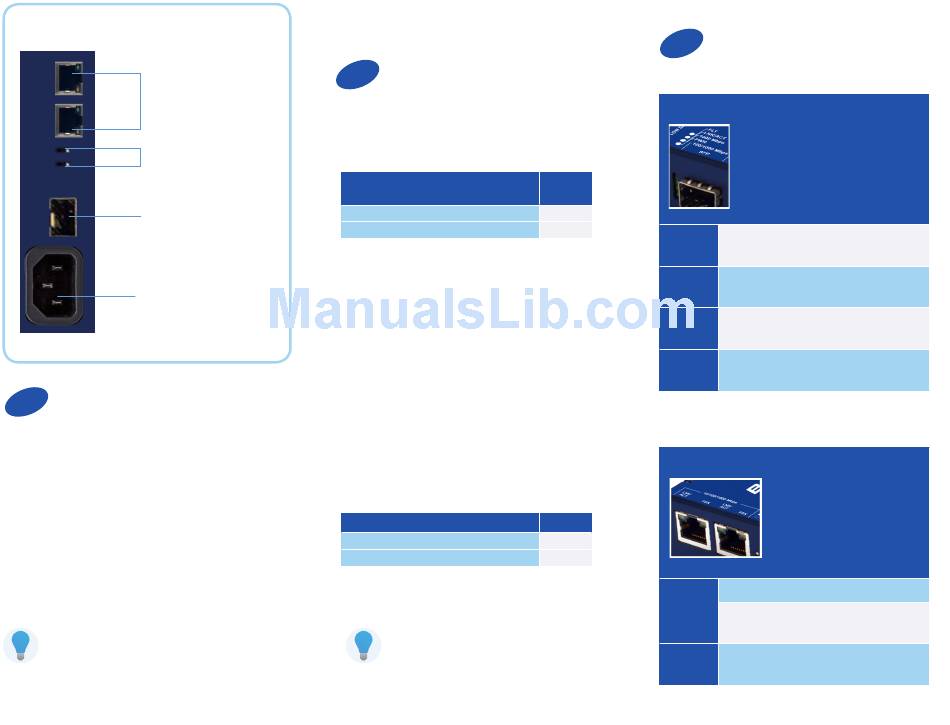

Product Overview

10/100/1000
RJ-45 copper
ports
DIP switches
Fiber port, gigabit
1X9 supports gigabit
SFP supports 100 Mbps or
1000 Mbps
Internal power
supply
Connect Your Converter
1
Copper ports (RJ-45 port) The media converter can
handle CAT 5 or better.
FX: (Fiber Port) if using a duplex fiber cable, connect
transmit port of one unit to receive port on the other.
Make sure the fiber types match on both sides of the
link.
LNK/ACT: (Above RJ45s) Glows green with a valid
Link. Blinks Green when activity is detected.
LNK:(FX LED Stack) Glows green with a valid Link.
SSF (Single Strand Fiber) requires one
strand of fiber but two mated products.
2
Set the DIP Switches
The SFP version of the Giga-McBasic II
supports a LOW SPD dip switch
located on the front on the unit.
LOW SPD SWITCH ON THE SFP
VERSION
SFP forced to 100 Mbps
SFP recognizes 1000 Mbps
The Giga-McBasic II includes a Link Fault
Pass-Through (LFPT) DIP Switch, located on
the front of the unit.
Link Fault Pass-Through (LFPT) is a troubleshooting
feature that combines TX and FX LinkLoss from both the
local and remote Giga-McBasic II, TX-FX/SFP modules.
LFPT is enabled by setting the DIP Switch to ON. This
feature allows either end of the conversion to detect
a link fault occurring at the other end of the media
conversion chain.
On the Giga-McBasic II LFPT is supported
on the connector closest to the dip switch.
LFPT
LFPT ON
LFPT OFF
Modules can be connected to
other B&B Media converters
3
Fiber LEDs
Switch
UP
DOWN
Glows red when a fault has
FLT
been detected on the unit
Glows green with a valid fiber
LNK
link
1000 Glows green when running at
Mbps 1000 Mbps
Glows green when unit is
PWR
powered
RJ-45 LEDs
Switch
UP
DOWN
Glows green with a valid link
LNK/
ACT
Blinks green when activity is
detected
Glows amber when port is
FDX
running full duplex
LED Operation
The fiber LED stack is
located on top of the
device.
The RJ-45 LEDs are
located on the
RJ-45 connectors.
