Rosewill RNX-AC1200UB User Manual

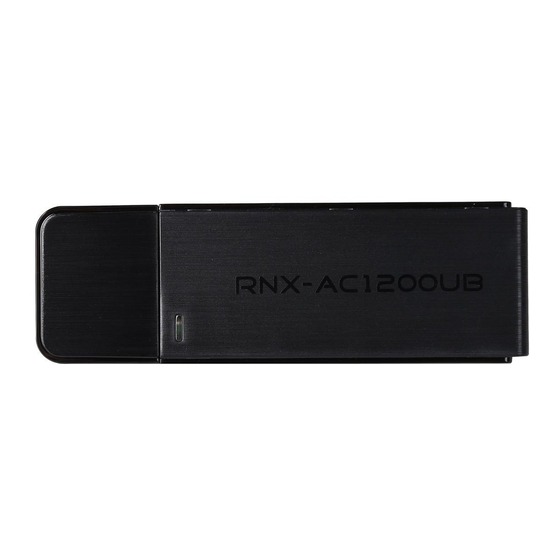

Ac1200 wireless dual band usb adapter
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
RNX-AC1200UB
AC1200 Wireless Dual Band USB Adapter
1910020742 REV1.0.0

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the RNX-AC1200UB and is the answer not in the manual?

Questions and answers

Related Manuals for Rosewill RNX-AC1200UB

Summary of Contents for Rosewill RNX-AC1200UB

  • Page 1 RNX-AC1200UB AC1200 Wireless Dual Band USB Adapter 1910020742 REV1.0.0...

  • Page 2: Fcc Statement

    FCC STATEMENT This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.

  • Page 3: Ce Mark Warning

    CE Mark Warning This is a class B product. In a domestic environment, this product may cause radio interference, in which case the user may be required to take adequate measures. National Restrictions This device is intended for home and office use in all EU countries (and other countries following the EU directive 1999/5/EC) without any limitation except for the countries mentioned below: Country...
  • Page 4 General authorization required for network and service Luxembourg None supply (not for spectrum) Russian Federation No info 5250-5350 MHz Country Restriction Reason/remark Bulgaria Not implemented Planned Croatia License required General authorization required if used outside own Italy premises General authorization required for network and service Luxembourg None supply (not for spectrum)

  • Page 5: Table Of Contents

    Hardware Installation ......................4 Software Installation ......................5 Chapter 3 Connect to a Wireless Network.............. 10 To connect using Rosewill Wireless Configuration Utility ..........10 To connect using WPS ..................... 13 To connect using Windows built-in wireless utility ............17 Chapter 4 Management ....................

  • Page 6: Package Contents

    Make sure that the above items are contained in the package. If any of the above items is damaged or missing, please contact your distributor.  Note: The ‘adapter’ mentioned in this User Guide stands for RNX-AC1200UB AC1200 Wireless Dual Band USB Adapter without any explanation.

  • Page 7: Chapter 1 Product Overview

    With unmatched wireless performance, reception, and security protection, the RNX-AC1200UB is the best choice for easily adding or upgrading wireless connectivity to your desktop.

  • Page 8: Hardware Overview

    RNX-AC1200UB AC1200 Wireless Dual Band USB Adapter User Guide 1.3 Hardware Overview LED status: Status Working Status The driver has not been installed; The adapter's radio has been disabled. Flashing Slowly The driver has been installed but no data is being transmitted or received.

  • Page 9: Chapter 2 Installation

    RNX-AC1200UB AC1200 Wireless Dual Band USB Adapter User Guide Chapter 2 Installation Please install the adapter into your computer before installing the driver and utility software from the Resource CD. Hardware Installation There are two methods: Method One: Plug the adapter into an available USB interface on your computer directly.

  • Page 10: Software Installation

    Windows 7 as an example. Insert the Resource CD into your CD-ROM drive and then go to My Computer. Double-click CD-ROM RNX-AC1200UB, and you will see the window as shown in Figure 2-2. Double-click Setup.exe to start the installation.
  • Page 11 The InstallShield Wizard window will appear. Click Next to continue. Figure 2-3 Choose a setup type. It is recommended to select Install Rosewill Wireless Configuration Utility and Driver. Selecting Install Driver Only can only install driver. Click Next to continue.
  • Page 12 RNX-AC1200UB AC1200 Wireless Dual Band USB Adapter User Guide Click Change to specify the destination location for the software or you can leave it default. Click Next in the screen below to continue. Figure 2-5 Click Install to continue the setup.
  • Page 13 RNX-AC1200UB AC1200 Wireless Dual Band USB Adapter User Guide The utility and driver will install. It may take 1-2 minutes. Figure 2-7 After all the steps above, you will see the screen below. Click Finish to complete the setup. Figure 2-8...
  • Page 14 RNX-AC1200UB AC1200 Wireless Dual Band USB Adapter User Guide After installation, the utility configuration page will automatically pop up as shown in the following figure and the icon will appear in your system tray. To connect to a network, please refer to Chapter 3 Connect to a Wireless Network.

  • Page 15: Chapter 3 Connect To A Wireless Network

    Method One: To connect using Rosewill Wireless Configuration Utility  RNX-AC1200UB uses the Rosewill Wireless Configuration Utility as the management software. The utility provides you an easy interface to connect to a network and to change any settings related to the wireless adapter. For specific operations, please go to Section 3.1 To connect...
  • Page 16 RNX-AC1200UB AC1200 Wireless Dual Band USB Adapter User Guide Figure 3-2 You will be prompted different windows when you choose wireless network of different security types. Wireless network of WPA/WPA2-Personal If you select a wireless network of the security type WPA/WPA2-Personal, you will be prompted to enter the password in the security key field, as shown in Figure 3-3.
  • Page 17 RNX-AC1200UB AC1200 Wireless Dual Band USB Adapter User Guide Certificate as your authentication, you need to select one specific certificate from the drop-down list, as shown in Figure 3-4. With Password as your authentication, you should enter the right user name and password in the corresponding field, as shown in Figure 3-5.

  • Page 18: To Connect Using Wps

    RNX-AC1200UB AC1200 Wireless Dual Band USB Adapter User Guide Please wait a few minutes for the connection process. Figure 3-6 You have now successfully connected to your network. Click Close to enjoy the Internet. Figure 3-7 To view more information about the network currently connected, click Status in the tools section and the page will display information such as the network type, channel, rate, etc.
  • Page 19 1) Press and hold the WPS button on the adapter directly for 2~3 seconds until Figure 3-9 appears. 2) Open Rosewill Wireless Configuration Utility and click WPS tab. Select Push the button on my access point or wireless router and then click Connect.

  • Page 20: Pin Method

    3.2.2.1. Enter the PIN from your Router or Access Point Open Rosewill Wireless Configuration Utility and click WPS tab. Select Enter the PIN of my access point or wireless router. In the empty field beside PIN, enter the PIN labeled on the bottom of the router (here takes 13492564 for example).
  • Page 21 When Figure 3-10 appears, you have successfully connected to the network. 3.2.2.2. Enter a PIN into your Access Point Open Rosewill Wireless Configuration Utility and click WPS tab. Select Enter the PIN of this device into my access point or wireless router. In the field beside PIN, you will see the PIN value of the adapter which is randomly generated.

  • Page 22: To Connect Using Windows Built-In Wireless Utility

    RNX-AC1200UB AC1200 Wireless Dual Band USB Adapter User Guide Figure 3-14 To connect using Windows built-in wireless utility 3.3.1 In Windows XP Windows XP users may use the built-in wireless utility. Follow the steps below. Right-click on the utility icon in your system tray (lower-right corner). Select Switch to Windows wireless configuration tool.
  • Page 23 RNX-AC1200UB AC1200 Wireless Dual Band USB Adapter User Guide Figure 3-16 Figure 3-17 Right-click on the wireless computer icon in your system tray (lower-right corner). Select View Available Wireless Networks. Figure 3-18 The utility will display any available wireless networks in your area. Click on a network (displayed using the SSID) and click the Connect button.
  • Page 24 RNX-AC1200UB AC1200 Wireless Dual Band USB Adapter User Guide Figure 3-19 3.3.2 In Windows 7 Windows 7 users may use the built-in wireless utility. Follow the steps below. Left-click the wireless icon in your system tray (lower-right corner). The utility will display any available wireless networks in your area.
  • Page 25 RNX-AC1200UB AC1200 Wireless Dual Band USB Adapter User Guide 3.3.3 In Windows 8 Windows 8 users may use the built-in wireless utility. Follow the steps below. Click the icon at the bottom of your screen, and a network list will appear at the right side of your screen.
  • Page 26 RNX-AC1200UB AC1200 Wireless Dual Band USB Adapter User Guide When Connected appears behind the SSID (as shown below), you have successfully connected to the target network. Figure 3-23  Note: If the adapter is connected to the network for the first time, you will be asked whether to turn on sharing or connect to devices.

  • Page 27: Chapter 4 Management

    RNX-AC1200UB AC1200 Wireless Dual Band USB Adapter User Guide Chapter 4 Management This section will show you how to configure your RNX-AC1200UB adapter using Rosewill Wireless Configuration Utility. The RNX-AC1200UB adapter uses Rosewill Wireless Configuration Utility as the management software. The utility provides users with an easy interface to change any settings related to the adapter.
  • Page 28 RNX-AC1200UB AC1200 Wireless Dual Band USB Adapter User Guide Figure 4-2 Figure 4-3 The following items can be found on the screen. Profile Name: Enter a name for your profile (e.g. Home, Office, Coffee Shop). The same  name is not allowed. Please also note that no space is allowed between words.
  • Page 29 RNX-AC1200UB AC1200 Wireless Dual Band USB Adapter User Guide  Note: You will see Figure 4-2 if you selected the security type WPA-PSK/WPA2-PSK; while, if you selected the security type WPA/WPA2, Figure 4-3 will be displayed. Encryption Type: From the drop-down menu, select the encryption type that is the same ...
  • Page 30 RNX-AC1200UB AC1200 Wireless Dual Band USB Adapter User Guide Figure 4-5 4.1.1.2. Add a profile in ad hoc mode If you are connecting to another wireless client such as an adapter, select ad hoc as the Network Type in the screen that appears and follow the instructions below to finish the setting.
  • Page 31 RNX-AC1200UB AC1200 Wireless Dual Band USB Adapter User Guide Security Type: Select the security type from the list. Two options are available: WEP and  None. None stands for no security. It is recommended that you select WEP to secure your wireless network.

  • Page 32: Modify A Profile

    RNX-AC1200UB AC1200 Wireless Dual Band USB Adapter User Guide Figure 4-8 4.1.2 Modify a profile You may edit an existing profile by clicking the Modify button from the Profile page. For instance, you may like to change the profile name from Home to Home1 or you may want to specify another SSID for profile Home.

  • Page 33: Advanced

    The following configurations can be made on the Advanced page: To select wireless configuration tool. Here you can decide which tool to use, either the Rosewill Wireless Configuration Utility or the Windows wireless configuration tool. (This option is available only in Windows XP.)

  • Page 34: Chapter 5 Softap Mode

    RNX-AC1200UB AC1200 Wireless Dual Band USB Adapter User Guide Chapter 5 SoftAP Mode In SoftAP mode, the adapter will work as an AP. Suppose that only one computer in your house can access the Internet for various reasons like only one LAN port is available on your wired broadband Router, however, other wireless-capable devices also want to share the Internet.
  • Page 35 RNX-AC1200UB AC1200 Wireless Dual Band USB Adapter User Guide AC1200 Wireless Dual Band USB Adapter User Guide The SoftAP icon then will appear beside Advanced icon in the utility. Figure 5-3 Figure 5-4 SoftAP mode: Select to enable or disable the function.

  • Page 36: Chapter 6 Uninstall Software

    The software uninstall steps are similar in Windows XP and Windows 7, here we take Windows 7 as an example. 6.1.1 Uninstall the utility software from your PC On the Windows taskbar, click the Start button, click All programsRosewill, and then click Uninstall - Rosewill Wireless Configuration Utility. Figure 6-1 Follow the InstallShield Wizard to uninstall the utility software from your PC.

  • Page 37: In Windows 8

    Figure 6-2 Follow the InstallShield Wizard to uninstall the driver software from your PC. In Windows 8 6.2.1 Uninstall the utility software from your PC Enter the Apps interface, and find the Rosewill application, then click Uninstall- Rosewill Wireless Configuration Utility.

  • Page 38: Uninstall The Driver Software From Your Pc

    Figure 6-3 Follow the InstallShield Wizard to uninstall the utility software from your PC. 6.2.2 Uninstall the driver software from your PC Enter the Apps interface, and find the Rosewill application, then click Uninstall - RNX-AC1200UB Driver. Figure 6-4 Follow the InstallShield Wizard to uninstall the driver software from your PC.

  • Page 39: Appendix A: Specifications

    RNX-AC1200UB AC1200 Wireless Dual Band USB Adapter User Guide AC1200 Wireless Dual Band USB Adapter User Guide Appendix A: Specifications Normal Interface USB 3.0 Interface Standards IEEE802.11a; IEEE802.11b; IEEE802.11g; IEEE802.11n; IEEE802.1x, IEEE802.11ac Operating System Windows XP, Windows 7, Windows 8 Throughput 2.4GHz:300Mbps (Maximal)

  • Page 40: Appendix B: Glossary

    RNX-AC1200UB AC1200 Wireless Dual Band USB Adapter User Guide AC1200 Wireless Dual Band USB Adapter User Guide Appendix B: Glossary 802.11ac - IEEE 802.11ac is a wireless computer networking standard of 802.11.This  specification will enable multi-station WLAN throughput of at least 1 gigabit per second .This is accomplished by extending the air interface concepts embraced by...
  • Page 41 RNX-AC1200UB AC1200 Wireless Dual Band USB Adapter User Guide AC1200 Wireless Dual Band USB Adapter User Guide Infrastructure Network - An infrastructure network is a group of computers or other devices,  each with a Wireless Adapter, connected as an 802.11 wireless LAN. In infrastructure mode, the wireless devices communicate with each other and to a wired network by first going through an access point.
