Installation

BUILT-IN INSTALLATION

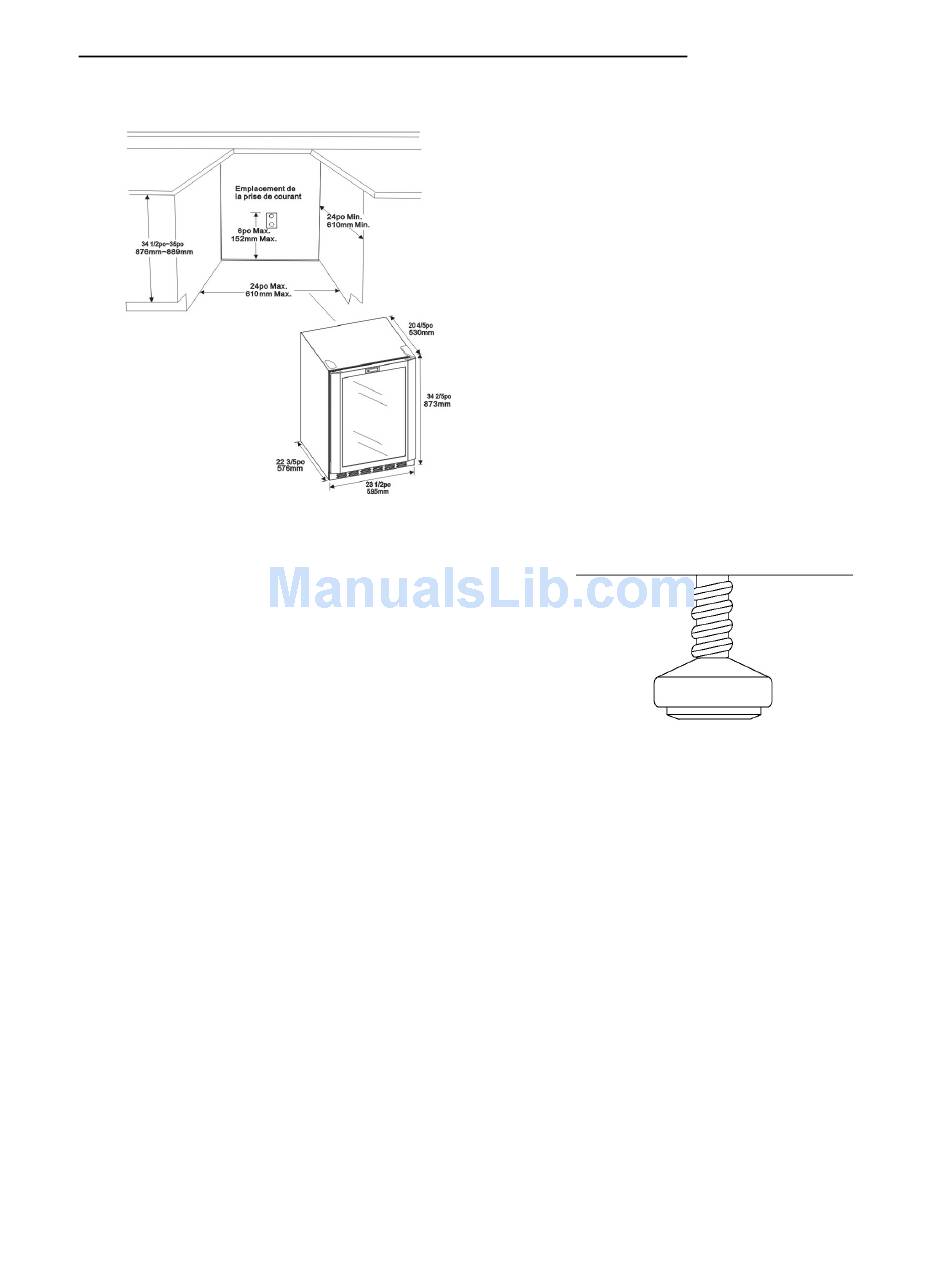

The cutout depth must be 24".
The cutout dimensions shown allows for a full door
swing and access to the pull-out racks when installed
as a built-in.
The appliance can be installed freestanding.
.
If installing between frameless cabinets, a 1/2" wide
.
filler strip or side panel may be needed on hinge
side. The filler strip will act as a spacer between the
appliance case and adjacent cabinet door swing.
The width of the opening must include the filler
panels. Note: The door should protrude 1" beyond
the surrounding cabinets.
Additional Specifications
A 120 volt 60Hz., 15 or 20 amp power supply is
.
required. An individual properly grounded branch
circuit or circuit breaker is recommended. Install a
properly grounded 3-prong electrical receptacle
recessed into the back wall as shown. Electrical must
be located on rear wall as shown. Note: GFI (ground
fault interrupter) is not recommended.
Consult a qualified electrician or serviceman if the
wiring instructions are not clearly understood, or if
doubt exists as to whether the appliance is properly
grounded.
FREE STANDING INSTALLATION
Choose the location
Be sure the front of the appliance is unobstructed
.
for air circulation and proper access to the door.
Do not install the appliance where the temperature
.
will go below 55°F or above 90°F.
Do not install where it will be subject to direct
.
sunlight, heat or moisture.
Allow sufficient space for door swing.
.
.
This unit is not designed for use in garage or any
other outside installation.
Adjustable Feet
Some appliances have adjustable feet on the front
side; use them to level the appliance.
Note: If you want to change door swing, change it
before installation.
