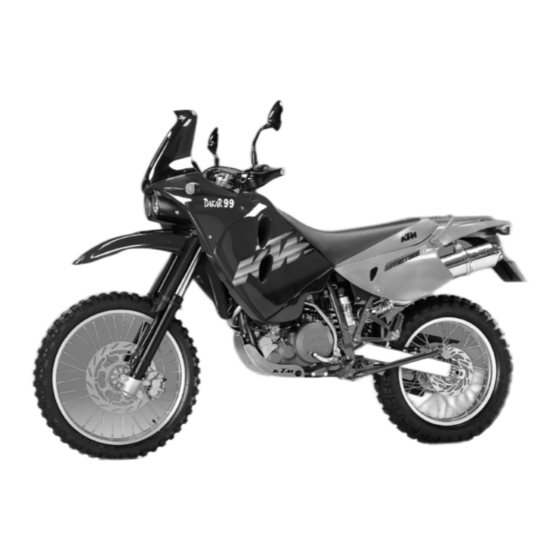

KTM 640 ADVENTURE1999 Supplement To The Owner's Handbook

KTM 640 ADVENTURE1999 Supplement To The Owner's Handbook

With mikuni carburetor
Hide thumbs
Table of Contents

Advertisement

Quick Links

640 ADVENTURE
mit MIKUNI Vergaser
with MIKUNI carburetor
Ergänzungen zur BEDIENUNGSANLEITUNG
Supplement to the OWNER'S HANDBOOK
1.99
Art.Nr. 3.205.56
Art.Nr. 3.205.56
'99
Art.Nr. 3.205.70

Advertisement

Table of Contents
loading

Related Manuals for KTM 640 ADVENTURE1999

Summary of Contents for KTM 640 ADVENTURE1999

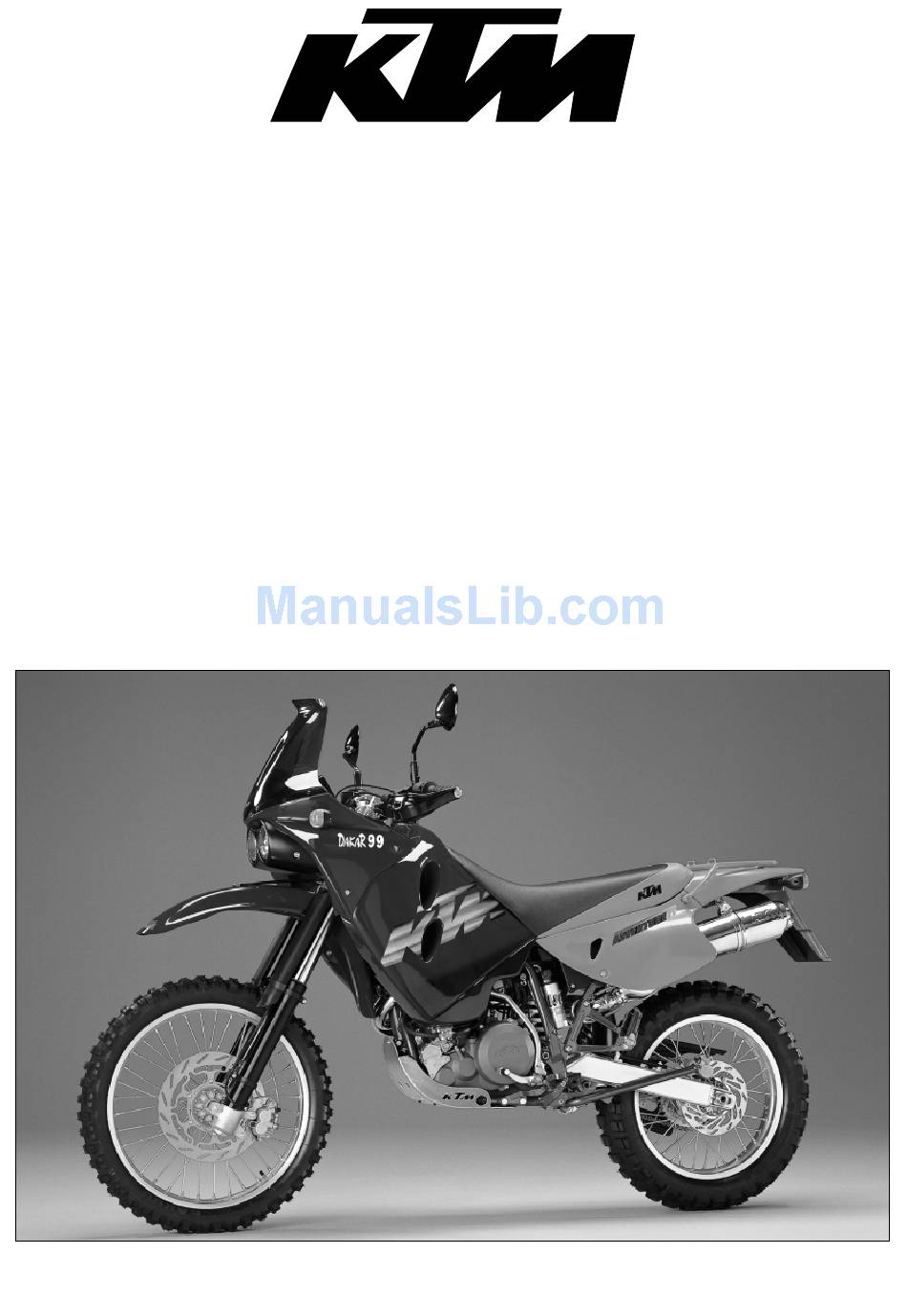

  • Page 1 640 ADVENTURE ’99 mit MIKUNI Vergaser with MIKUNI carburetor Ergänzungen zur BEDIENUNGSANLEITUNG Art.Nr. 3.205.56 Supplement to the OWNER’S HANDBOOK Art.Nr. 3.205.56 1.99 Art.Nr. 3.205.70...

  • Page 3: Operation Instruments

    CHANGES AND SUPPLEMENTATION OF OWNERS HANDBOOK 3.205.56 FOR 640 ADVENTURE WITH MIKUNI CARBURETOR OPERATION INSTRUMENTS Page 5: Ignition lock with 4 switch positions Switch positions of ignition lock Ignition off, light off (engine can't be started) Ignition on, light off (engine can be started) Ignition on, light on (engine can be started) Ignition off, light off, handlebar blocked To switch the ignition to position...

  • Page 4: Driving Instructions

    – Pay attention to running in instructions. brake pads. Arrange for the braking system to be checked by a KTM specialist garage, as complete failure of the bra- king system can be expected. Also check the state of the brake hoses and the thickness of the brake linings.
  • Page 5 – If this is not the case, refill the tank – if sufficient fuel is in the tank, proceed as described in the „Trouble- shooting“ section or contact a KTM dealer. NOTE: HIS MOTORCYCLE IS EQUIPPED WITH A SAFETY STARTER SYSTEM...

  • Page 6: Kickstart Instructions

    AND CHECK THE COOLING LIQUID LEVEL – D O NOT DRIVE ON UNTIL THERE IS SUFFICIENT LIQUID IN THE COO KTM’ LING SYSTEM OWEVER CALL ON ONE OF S DEALERS AS SOON AS POSSIBLE IN ORDER TO HAVE THE DEFECT REMEDIED...
  • Page 7 NOTE REGARDING THE CENTER STAND: We advice the following procedure to place the motorcycle on the center stand as effortlessly as possible: a) press main stand to ground using foot, b) swing out kickstarter and pull motocycle backwards at an angle as illustrated (see illustration).

  • Page 8: Maintenance Work On Chassis And Engine

    Replace a blown fuse only with an equivalent one. If a new fuse that has just been set in gets blown again, you are strongly advised to have it inspected by a KTM dealer. CAUTION NDER NO CIRCUMSTANCES IS A STRONGER FUSE ALLOWED TO BE SET IN OR A FUSE “...

  • Page 9: Troubleshooting

    We would like to point out that many operations cannot be performed by oneself. In case of uncertainty, please contact a KTM-dealer.
  • Page 10 Check vacuum hose and venting hose of carburetor for cor- rect position (no kinks) Air filter very dirty Clean or replace air filter, contact a KTM dealer Valve clearance to small Have valve clearance adjusted Loss of compression because hand...
  • Page 11 The battery isn’t charged by the Remove seat and check voltage regulator connections; voltage generator because regulator and generator should be checked by a KTM dealer. No values are visible in the The contrast potentiometer is set Turn the contrast potentiometer until the display can be easily Tripmaster display.
  • Page 12 TECHNICAL DATA – ENGINE 640 ADVENTURE R ‘99 Mikuni carburetor BASIC CARBURETOR SETTING 640 Adventure 640 Adventure 25 kW 37 kW Carburetor BST40-225 BST40-225 Carburetor setting number 080298 080298 Main jet 142,5 142,5 Needle jet 689 X-6 689 X-6 Idling jet Jet needle Needle position from top 3 rd...
  • Page 13 K T M - S P O R T M O T O R C Y C L E A-5230 Mattighofen • Postfach 91 • Austria I n t e r n e t : h t t p : / / w w w . k t m . c o . a t FN 102019 d - Landesgericht Ried im Innkreis...
