Page 2: Installation Instructions

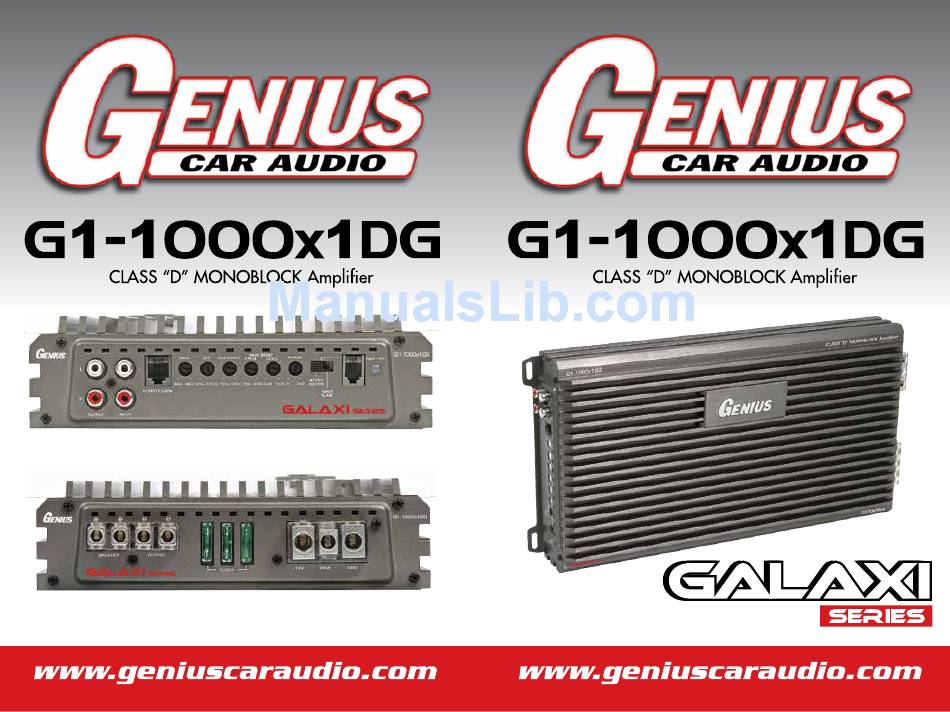

Thank you for purchasing our car Class-D Mono Block Amplifier Digital Technology. These power amplifier has been designed to provide high quality performance with a minimum of maintenance. However, it's performance will only be as good as the care and G1-1000x1DG BASS BOOST GAIN... -
Page 3: Wiring Instructions
PRECAUTIONS WIRING INSTRUCTIONS This unit is designed for negative ground 12V DC operation only. POWER CONNECTION The battery terminal (+12V) must be connected directly to the positive terminal of the Use speakers with an impedance of 4 or 1 Ohms. vehicle battery to provide an adequate voltage source and minimize noise. -
Page 4: Input Wiring Diagram
INPUT WIRING DIAGRAM STEREO MODE SPEAKER SPEAKER 2~4 Ohm 2~4 Ohm G1-1000x1DG SPEAKER OUTPUT +12V FUSES G1-1000x1DG BASS BOOST GAIN SUB SONIC FREQ LEVEL PHASE PWR/PRT SPEAKER OUTPUT 1~4 Ohm MAX 50Hz 250Hz 20Hz 50Hz 30Hz 80Hz 0dB 12dB MASTER... -
Page 5: Power Connection Leads
POWER CONNECTION LEADS OPERATION After the amplifier has been installed and all connections have been made carefully and securely, turn the radio on so that the amplifier is switched on automatically. After a short power-on period, the amplifier reaches its full performance. POWER Now turn up the volume slowly using the volume control of the radio. - Page 6 OPERATION INTERFERENCE GND(-) = GROUND CONNECTION All cables are sources of interference or gather them. The power cable and Cinch/RCA Connect the GND terminal to the chassis ground of your car and take care of best electric audio cable are very prone to interference; the remote cables are less prone. There is and mechanic contact.
