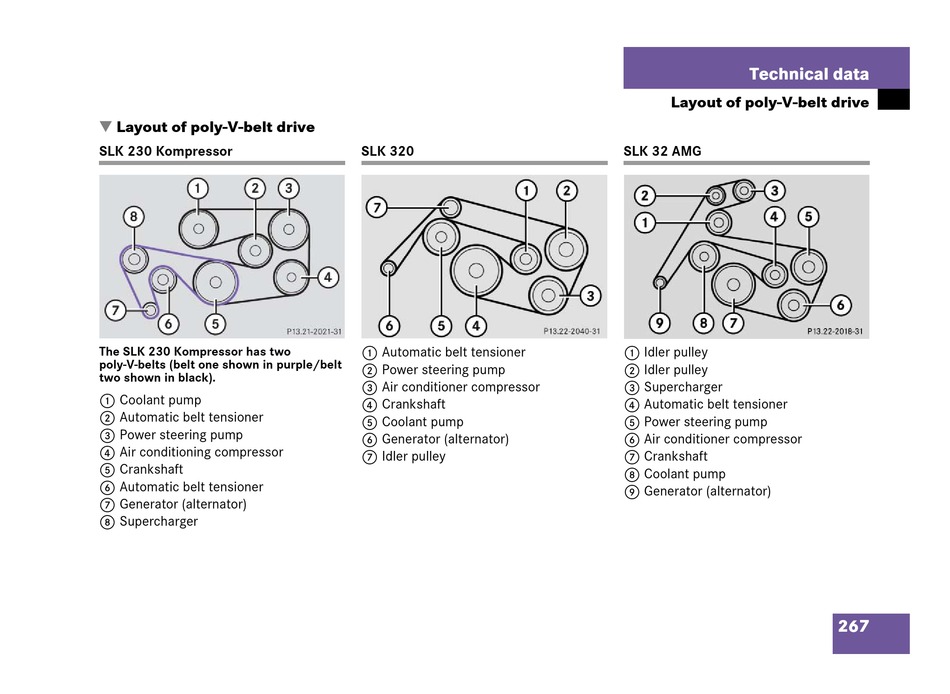

Layout of poly-V-belt drive

SLK 230 Kompressor

The SLK 230 Kompressor has two
poly-V-belts (belt one shown in purple/belt
two shown in black).
1 Coolant pump
2 Automatic belt tensioner
3 Power steering pump
4 Air conditioning compressor
5 Crankshaft
6 Automatic belt tensioner
7 Generator (alternator)
8 Supercharger

SLK 320

1 Automatic belt tensioner
2 Power steering pump
3 Air conditioner compressor
4 Crankshaft
5 Coolant pump
6 Generator (alternator)
7 Idler pulley
Technical data
Layout of poly-V-belt drive

SLK 32 AMG

1 Idler pulley
2 Idler pulley
3 Supercharger
4 Automatic belt tensioner
5 Power steering pump
6 Air conditioner compressor
7 Crankshaft
8 Coolant pump
9 Generator (alternator)
267
