TELTONIKA T-ModemPCI (TMP-102)
User Manual V1.0

Advertisement

Table of Contents
loading

Summary of Contents for Teltonika TMP-102

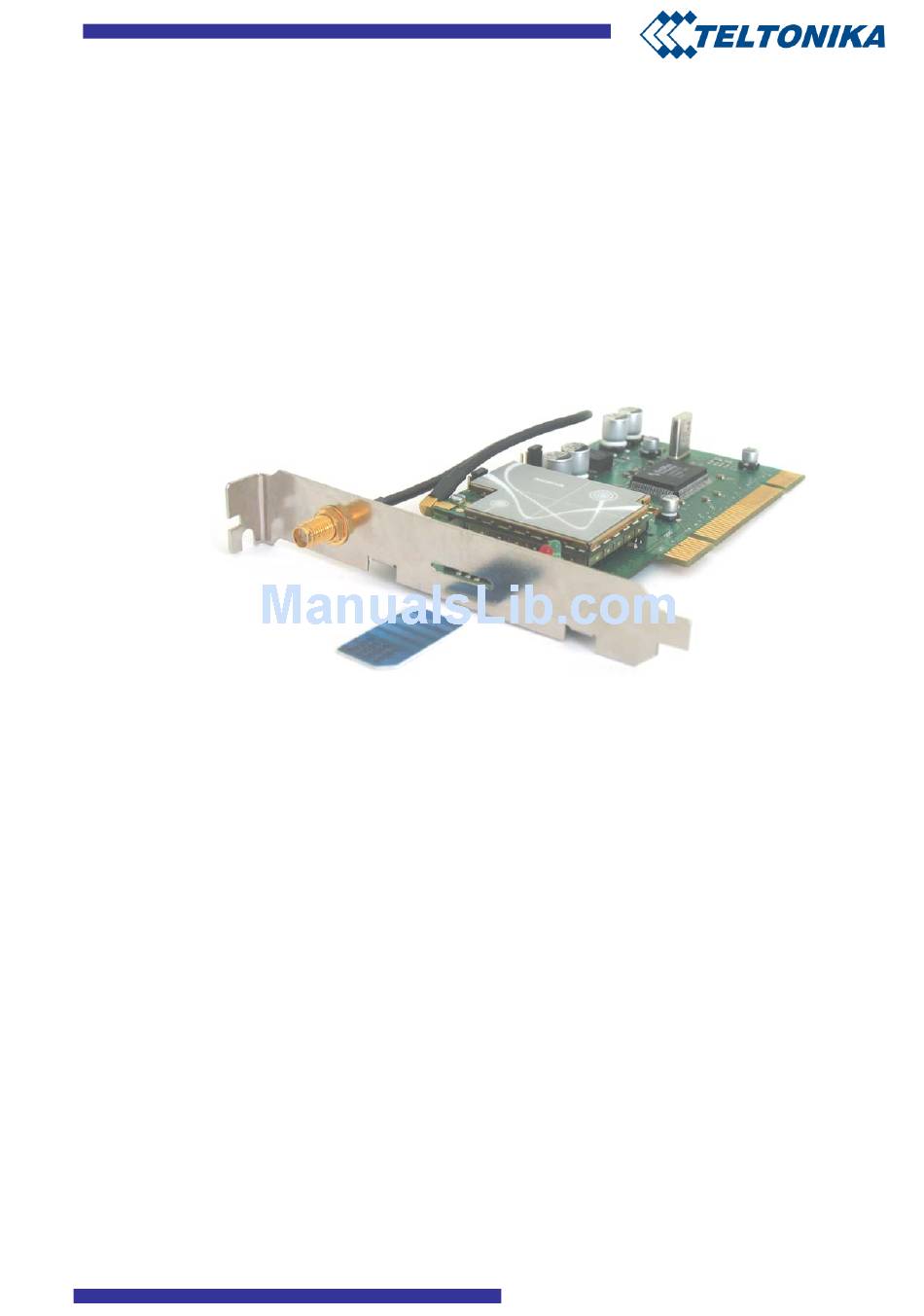

  • Page 1 TELTONIKA T-ModemPCI (TMP-102) User Manual V1.0...
  • Page 2: Table Of Contents

    Contents Introduction..............................3 1. Package contents ..........................4 2. Technical specifications........................5 2.1. Data transferring..........................5 2.2. Mechanical specifications ......................5 2.3. Electrical and operating specifications ..................6 2.4. Indication ............................7 3. Modem instalation and setup......................8 3.1. Connecting to PC ........................8 3.2. Installing of Modem driver ......................8 3.3.
  • Page 3: Introduction

    INTRODUCTION In this document you will find a detailed description how to install and to use the “T- ModemPCI” modem as well as software to operate it. “T-ModemPCI” device is a modem for data transfer via GSM network. The Modem is designed to be mounted into motherboard of a PC.
  • Page 4: Package Contents

    1. PACKAGE CONTENTS ‘T-ModemPCI” is supplied to clients in carton with all contents, which are needed for connection to PC and normal work: Carton, “T-ModemPCI” modem, A CD with User’s Guide and drivers, An external GSM antenna (just upon special orders of customers), Notice: the producer does not provide a SIM card among other items of a package, which is necessary for connection to GSM Network! You can obtain a SIM card from your local GSM service provider! If any of the components is missing please contact your local distributor.
  • Page 5: Technical Specifications

    2. TECHNICAL SPECIFICATIONS 2.1. Data transferring “T-ModemPCI” supports all bearers of GSM Network. Which data channel is used depends on GSM operator and data transfer capacity in the chosen GSM Network. • EDGE 2 class (up to 118,4 kbps), • GPRS 6 class (up to 56-114 kbps), •...
  • Page 6: Electrical And Operating Specifications

    2.3. Electrical and operating specifications The MODEM is supplied from Motherboard’s PCI connector of a PC. The supply voltage is +5V. A PC to which the “T-ModemPCI” modem is going to be connected must have PCI interface. Electrical parameters of the device are shown in Table 1. Table 1.
  • Page 7: Indication

    2.4. Indication “T-ModemPCI” has 2 LEDs for indication. They are located at the top part of the device. Due to these indicating LEDs we can determine in which mode is the device operating, are there any shortcuts in its functionality or not. The indication status of the modem is given in the Table 3. Table 3.
  • Page 8: Modem Instalation And Setup

    3. MODEM INSTALATION AND SETUP 3.1. Connecting to PC 1) Turn Off your PC; 2) Insert SIM card into the mode. Follow the instructions on the device sticker. Make sure, the SIM card is pushed inside till it fixes; 3) Mount the “T-ModemPCI” modem into the Motherboard of a PC; 4) Connect an external GSM antenna to the “T-ModemPCI”...
  • Page 9 5. “Found New Hardware Wizard” dialog box will appear. A successful „NetMos 9835 PCI Multi-I/O Controller” installation message will appear; 6. Further in the same way install a parallel port (“NetMos PCI ECP Parallel Port”) and two serial ports (“NetMos PCI Serial Port”); 7.
  • Page 10: Installation Of "T-Modem Control Tool

    Windows 2000 OS: Make Windows XP installation steps (1 – 9) 3.3. Installation of “T-Modem Control Tool” 1. The installation program should start automatically. If it is not the case, so find a catalogue “Software” in the CD and start “setup.exe” file. The first “T-Modem Setup”...
  • Page 11: Changing Of Security Setting

    7. A new „T-Modem Setup“ dialog box will state a successful „T-Modem Control Tool“ installation process. Press „Finish” button. 3.4. Changing of security setting For SIM security a unique PIN (Personal Identification Number) is used. Before starting using GSM network services, it is necessary to enter a PIN code. “T-ModemPCI” supports two main GSM security modes: “PIN code enabled”, “PIN code disabled”.
  • Page 12 T-ModemPCI Administratoriaus telefonas Serveris Administratoriaus AK Internet The admin istrator himself can restart a serve r. In order to make this following steps should be performed: 1. Install a Nokia 12 Configurator driver: 1) Click “Nokia12Configurator” drive r installation file on the CD; 2) Once the file has been started, the first “Install Shield Wizard”...
  • Page 13 4) Press ‘Next”. The forth “InstallShield Wizard” dialog box will show up; 5) Then press “Next” button. The fifth “InstallShield Wizard” dialog box will be opened; 6) Press “Next” button. The sixth “InstallShield Wizard” dialog box will appear, stating that the drivers has been successfully installed;...
  • Page 14 3. Select “User Control Module” in the main window “Nokia12Configurator”. “User Control Module” window will show up; 4. Press “Re ad parameters” button on the sheet (option) “Ini tialize” in the opened window. Once this has been done, in the “Message Identifier” field “Identifier”...
  • Page 15: Getting Connected To The Internet

    8. Once the setting-up is finished, in order to rebo ot a server, it is necessary to send two SMS. The contents of the first SMS should provide: an identification name (“Identifier”), password (“Password”) and port activation command. (f.e. “opa opa Turn on 1”) or (f.e.
  • Page 16: Internet Connection Settings

    T-ModemPCI supports two different types of data transferring: • GPRS, EDGE packet data transfer. In this case you have to know APN, user name and password • CSD, HSCSD data transfer. You have to know a phone number of a dial-up server;...
  • Page 17 3.8. Se nding Short Text Messages (SMS) 1. Using “T-ModemUSB” it is possible to send and receive short text m s es ages (SMS). Before starting using that “T-ModemUS B” function it is obligatory to isconnect from the Internet. This will be performed ile clicking on “Disconnect”...
  • Page 18: Technical Support

    If you have faced some problems using the device, which you are not able to solve by yourself, you are always welcome to address our technical support by the email: supp ort@teltonika.lt. We would be glad to help you.
