Connecting to the Network

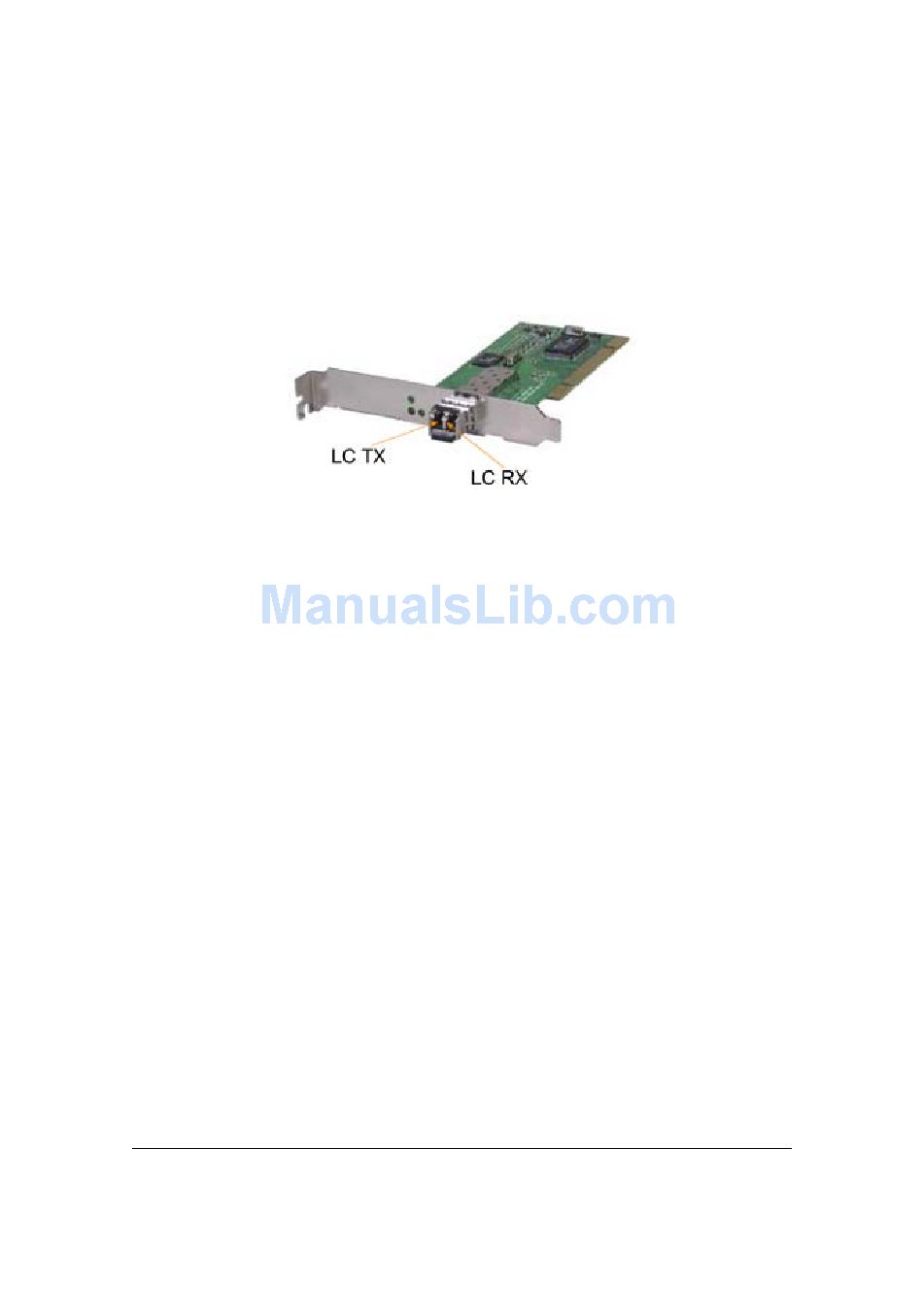

The rear bracket of the PCI adapter contains two fiber connectors.
The TX connector is used for transmission and the RX is used for
reception. When connecting to a device using fiber cable, make sure
the TX connector of the adapter is connected to the RX connector
of the device and RX connector is connected to the TX connector of
the device.
In order to have a reliable communication between two ends, the
speed and duplex configuration of the adapter's fiber port and the
device at the remote end must be same. Configure the driver of the
adapter as follows: Auto, 1000Mbps, Full-duplex.
