Summary of Contents for ArtFox Lightning FLEX BEAM V8

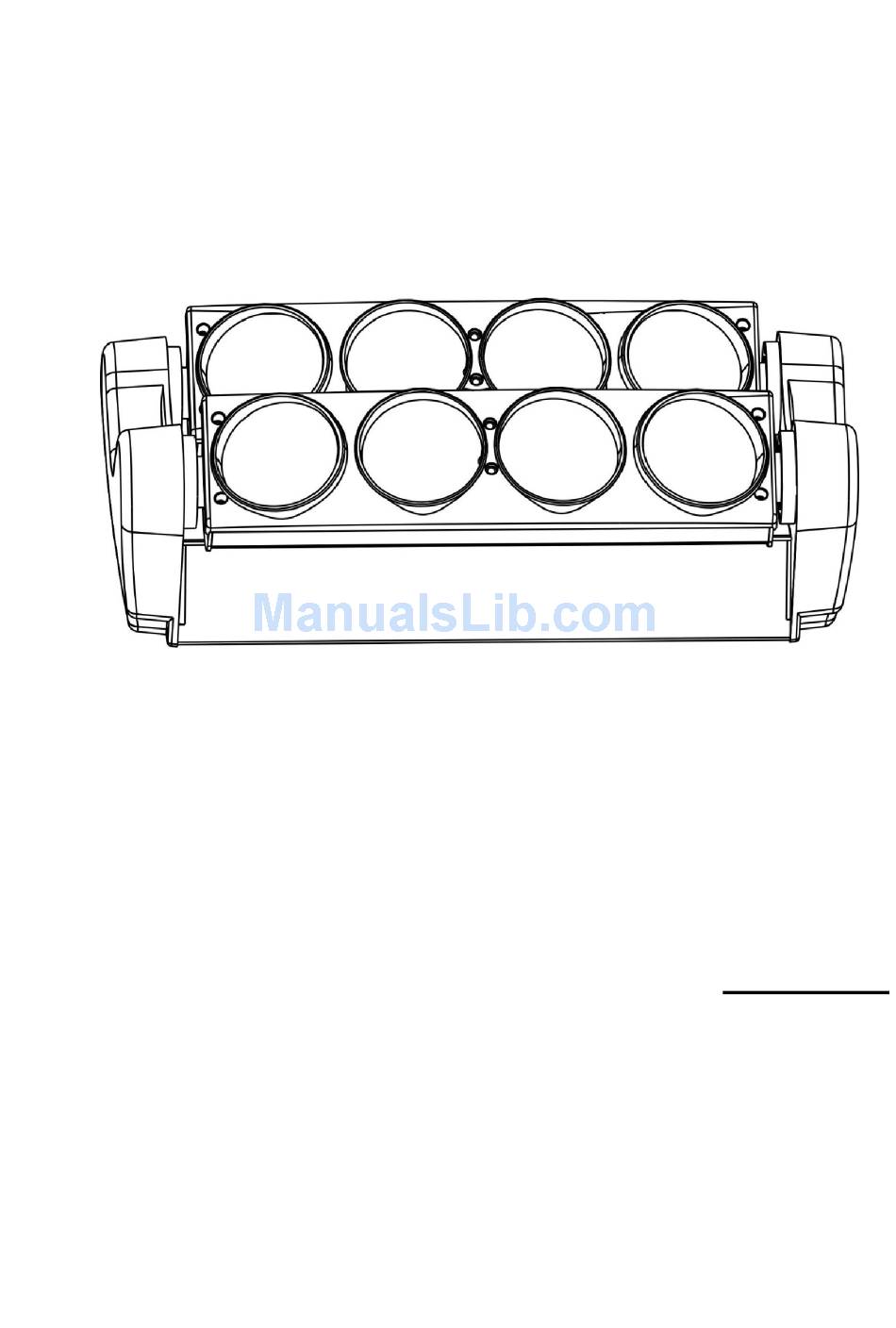

  • Page 1 FLEX BEAM V8 User Manual Please read the instruction carefully before use...
  • Page 2: Table Of Contents

    CONTENTS 1. Safety Instructions ....................3 2. Technical Specifications ................... 4 3. How To Set The Unit ....................5 3.1 Rear Panel ....................... 5 3.2 Main Function ...................... 5 4. How to Control the Unit ................... 6 4.1 Master/Slave Built In Preprogrammed Function ..........7 4.2 DMX Controller ....................
  • Page 3: Safety Instructions

    1. Safety Instructions Please read the instructions carefully which includes important information about the installation, operation and maintenance. • PLEASE keep this User Manual for future consultation. If you sell the fixture to another user, make sure that they also receive this instruction booklet. •...
  • Page 4: Technical Specifications

    Caution: For 230V 50Hz power supply, maximum fixtures that can be connected together from the same mains outlet is 8; For 120V 60Hz power supply, maximum fixtures that can be connected together from the same mains outlet is 4; Installation: The unit should be mounted via its screw holes on the bracket.
  • Page 5: How To Set The Unit

    • Weight: 4kgs 3. How To Set The Units 3.1 Rear Panel...
  • Page 6: Main Function

    1. Button: FUNCTION return to the upper menu one by one DOWN / UP To browse or change through the various Setup Options and change values (Add or subtract). ENTER To select the functions, save your settings or enter the next menu 2.
  • Page 7 Reset Reset Reset =YES Manual Manual Tilt 1 Tilt 1 =000 Manual Tilt 2 Tilt 2 =000 Manual Dimmer Dimmer =000 Manual Strobe Strobe =000 Mode Mode = DMX Mode Short DMX Mode Standard DMX Mode Extended Mode = Auto Auto Alone Auto...
  • Page 8: How To Control The Unit

    Adjust Dimmer 1 Dimmer 1 =+000 Adjust Dimmer 2 Dimmer 2 =+000 Adjust Dimmer 3 Dimmer 3 =+000 Adjust Dimmer 4 Dimmer 4 =+000 Adjust Dimmer 5 Dimmer 5 =+000 Adjust Dimmer 6 Dimmer 6 =+000 Adjust Dimmer 7 Dimmer 7 =+000 Adjust Dimmer 8...
  • Page 9: Master/Slave Built In Preprogrammed Function

    4.1 Master/Slave Built In Preprogrammed Preprogrammed Function By linking the units in master/slave master/slave connection, the first unit will control the other the other units to give an automatic, sound activated, synchronized activated, synchronized light show. This function is good when when you want an instant show.
  • Page 10 Blackout Chase 1 Chase 2 Chase 3 Chase 4 Chase 5 Chase 6 Chase 7 Chase 8 Led chase Chase 9 Chase 10 Chase 11 Chase 12 Chase 13 Chase 14 Chase 15 Chase 16 Full on Chase speed Speed from slow to fast EXTENTED MODE(13 CHs)...
  • Page 11: Dmx Connection

    6. DMX Connection 1. Connect the fixture together in a “daisy chain” by XLR plug cable from the output of the fixture to the input of the next fixture. The cable cannot be branched or split to a “Y” cable. Inadequate or damaged cables, soldered joints or corroded connectors can easily distort the signal and shut down the system 2.
  • Page 12: Troubleshooting

    7. Troubleshooting Following are a few common problems that may occur during operation. Here are some suggestions for easy troubleshooting: A. The fixture does not work, no light 1. Check the connection of power and main fuse. 2. Measure the mains voltage on the main connector. B.
  • Page 13: Fixture Cleaning

    8. Fixture Cleaning The cleaning must be carried out periodically to optimize light output. Cleaning frequency depends on the environment in which the fixture operates: damp, smoky or particularly dirty surrounding can cause greater accumulation of dirt on the unit’s optics.
