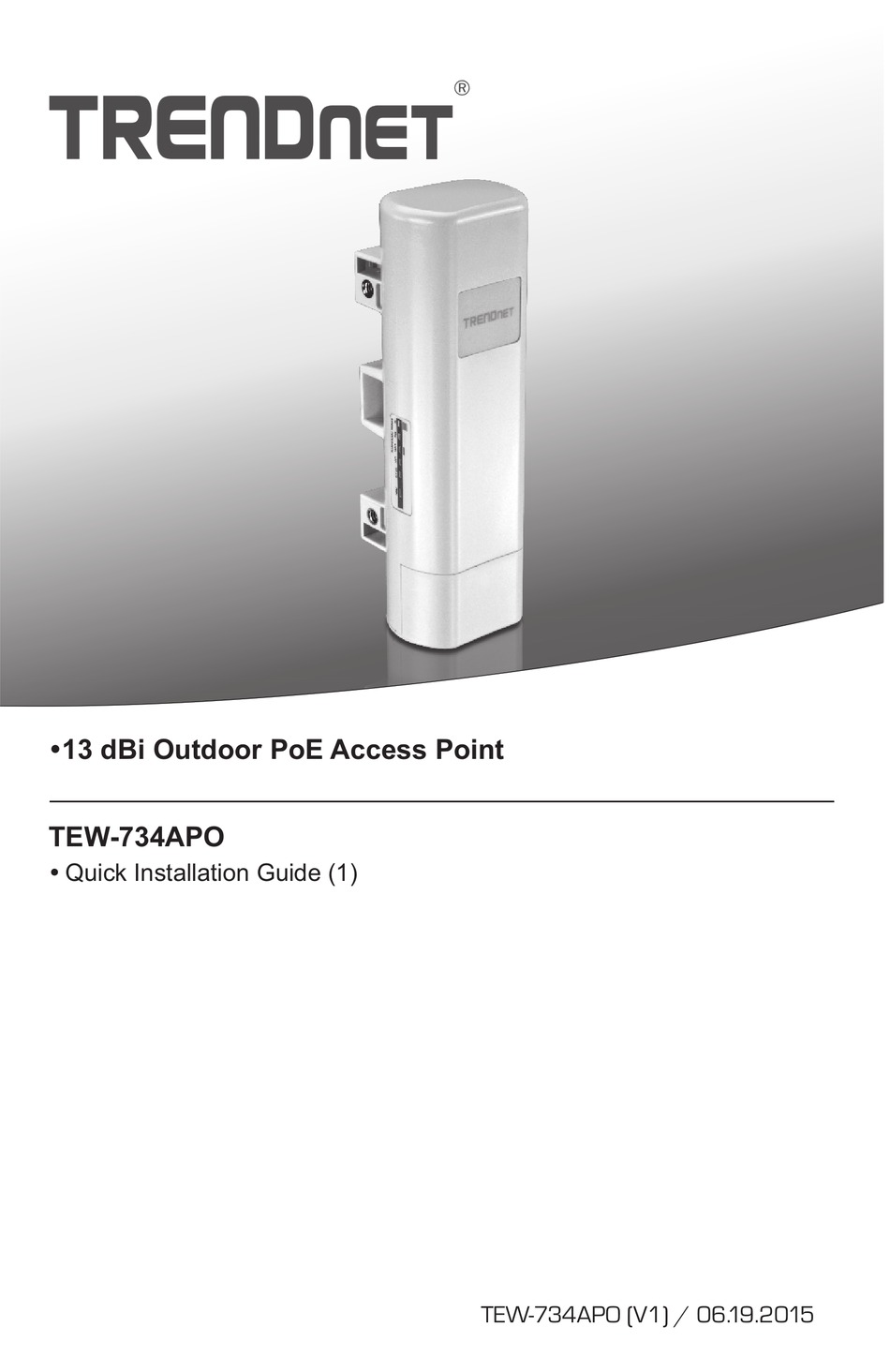

- Page 1 Ÿ13 dBi Outdoor PoE Access Point TEW-734APO Ÿ Quick Installation Guide (1) TEW-734APO (V1) / 06. 1 9.2015...
-
Page 2: Before You Start
Ÿ Computer with an Ethernet port and Web Browser Ÿ Network switch or router with an available network port Ÿ 2 x network cables Note: The TEW-734APO does not support IEEE 802.3af. You must use the included proprietary Power over Ethernet (PoE) injector. 2. Configuring a WDS connection Note: Ÿ... - Page 3 192.168.10.XX (192.168.10.00 – 192.168.10.255). For this example we will assign our computer with 192.168.10.30. Note: The default IP address of the TEW-734APO is 192.168.10.100. Do not set your computer's network adapter to this address. 9. Set the subnet mask to 255.255.255.0.
- Page 4 11. Enter the username and password, then click Login. Passwords are case- sensitive. The default username and password are: User Name: admin Password: admin 12. Click Wireless and then click Basic Settings. 13. Change the Operation Mode setting to Bridge.
- Page 5 14. Click Apply to save your settings. 15. Click OK. 16. Click Wireless, then WDS Settings. 17. In the field WDS MAC Address 1, enter the MAC address of the TEW-734APO or other devices that you are connecting to. 18. Click Apply.
- Page 6 19. Click OK. 20. Click System, then Network Settings. System 21. Change the Network Mode setting to Bridge, and under IP Address Assignment select Static IP. System Bridge Static IP...
- Page 7 22. Configure the TEW-734APO's IP address to a valid IP address, using the subnet defined by the router. Each TEW-734APO must have a unique IP address. Avoid using an IP address within the DHCP pool of your router. In this example, we will assume the following: Router IP Address: 192.168.10.1...
- Page 8 3. In the Security Setting section, select the authentication type you want to use. We recommend WPA2-PSK. No matter which protocol you choose, both TEW-734APO devices must have the same encryption protocol to establish a connection. 4. Under the WPA Passphrase enter your WiFi password.
-
Page 9: Confirm Connectivity
Confirm Connectivity 1. Leave the TEW-734APO (#2) connected to your computer. 2. Connect the TEW-734APO (#1) to the LAN port of a router on your network. 3. To verify connectivity, bring up your computer's command prompt, and ping the TEW-734APO (#1) using the IP address you assigned to the device. -
Page 10: Hardware Installation
3. Hardware Installation 5 Ghz WiFi Internet Modem Router Building 1 Building 2... - Page 11 Note: For this section, refer to the diagram above. 1. Mount the TEW-734APO devices in the desired locations. For instruction on mounting the TEW-734APO to a pole, refer to the Pole Mounting the TEW-734APO section below. 2. Connect each TEW-734APO to their respective networks.
- Page 12 2. Insert the clamp through the slots on the TEW-734APO. 3. Wrap the clamp around the pole. 4. Secure the TEW-734APO to the pole by turning the screw clockwise to tighten the clamp. Installation is now complete. For detailed information on configuring the TEW-734APO and advanced settings, please refer to the User's Guide on the CD-ROM that came with the device.
- Page 13 13 dBi Outdoor PoE Access Point Product Name: Trade Name: TRENDnet TRENDnet hereby declare that the product is in compliance with the essential requirements and other relevant provisions under our sole responsibility. Safety EN 60950-1: 2006 + A11: 2009: +A1: 2010 + A12: 2011...
- Page 14 Point d’accès PoE extérieur 13 dBi Nom du produit: Nom Commercial: TRENDnet TRENDnet déclare par la présente que le produit est conforme aux exigences essentielles et aux autres dispositions pertinantes de la Directive en vertu de notre seule responsabilité. Sécurité...
- Page 15 20675 Manhattan Place, Torrance, CA 90501, USA. Tel: +1-310-961-5500 Fax: +1-310-961-5511 Informations générales GPL/LGPL Ce produit TRENDnet comprend un logiciel libre gratuit par des programmeurs tiers. Ces codes sont sujet à la GNU General Public License ("GPL" Licence publique générale GNU) ou à la GNU Lesser General Public License ("LGPL"...
- Page 16 (GNU General Public License) ou ao LGPL (GNU Lesser General Public License). Estes códigos são distribuídos SEM GARANTIA e estão sujeitos aos direitos autorais dos desenvolvedores. TRENDnet não presta suporte técnico a estes códigos. Os detalhes do GNU GPL e do LGPL estão no CD-ROM do produto. Favor acessar http://www.gnu.org/licenses/gpl.txt ou http://www.gnu.org/licenses/lgpl.txt para os termos específicos de cada licença.
- Page 17 Garantiebedingungen, Rechte und Einschränkungen für dieses Produkt finden Sie auf TRENDnet.com. Garantía Limitada TRENDnet garantiza sus productos contra defectos en los materiales y mano de obra, bajo uso y servicio normales, durante el siguiente periodo de tiempo a partir de la fecha de compra. Garantía: 3 años (Cuando proceda: 1 año de garantía para componentes de adaptadores de corriente, fuente de alimentación y...
- Page 18 TEW-734APO Гарантія компанії Гарантія компанії TRENDnet поширюється на дефекти, що виникли з вини виробника, при дотриманні умов експлуатації та обслуговування протягом встановленого періоду з моменту придбання. (Продукт: Обмежена гарантія: 3 роки обмеженої гарантії (Поширюється: Протягом 1 року на силові адаптери, джерела живлення і компоненти вентилятора охолодження) Повну версію...
