Owner's Operation and Instruction Manual
2015
MODEL
SAFETY TESTED TO UL 1482 and ULC-S627
MOBILE HOME APPROVED (U.S. Installations Only)
US ENVIRONMENTAL PROTECTION AGENCY PHASE II CERTIFIED WOODSTOVE
CAUTION!
SAFETY NOTICE:
Read All Instructions Carefully
If this heater is not properly installed, a house fire
Before Starting The Installation
may result. For your safety, follow the installation
or Operating This Heater.
instructions. Contact local building or fire officials
about obtaining permits, restrictions and installation
Improper Installation Could
requirements in your area.
Void Your Warranty!
SAVE THESE INSTRUCTIONS FOR FUTURE REFERENCE
THIS MANUAL WILL HELP YOU TO OBTAIN EFFICIENT, DEPENDABLE SERVICE FROM THE HEATER, AND ENABLE YOU
TO ORDER REPAIR PARTS CORRECTLY. KEEP IN A SAFE PLACE FOR FUTURE REFERENCE.
United States Stove Company
S
C
U
S
227 Industrial Park Road
P.O. Box 151
South Pittsburg, TN 37380
851573 rev G
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for USSC Magnolia 2015
Summary of Contents for USSC Magnolia 2015
- Page 1 Owner’s Operation and Instruction Manual 2015 MODEL SAFETY TESTED TO UL 1482 and ULC-S627 MOBILE HOME APPROVED (U.S. Installations Only) US ENVIRONMENTAL PROTECTION AGENCY PHASE II CERTIFIED WOODSTOVE CAUTION! SAFETY NOTICE: Read All Instructions Carefully If this heater is not properly installed, a house fire Before Starting The Installation may result.
- Page 2 OR MOTOR OIL. • DO NOT CONNECT TO ANY AIR DISTRIBUTION DUCT OR SYSTEM. • ALWAYS CLOSE THE DOOR AFTER THE IGNITION. • NEVER USE MAKE-SHIFT COMPROMISES DURING THE INSTALLATION. DAMAGES TO THE UNIT OR YOUR HOME MAY RESULT. Ussc...
- Page 3 You may register online by going to www.usstove.com All information submitted will be kept strictly confidential. Information provided will not be sold for advertising purposes. Contact information will be used solely for the purpose of product notifications. Ussc...
- Page 4 Ê É Fold Here Fold Here Fold Here PlACE STAMP HERE United States Stove Company P.O. Box 151 South Pittsburg, TN 37380 Ussc...
- Page 5 1. Locate the ash pan supports welded underneath the unit, then simply slide the ash pan in place. Firebrick Configuration: 1. Replace the Firebrick as shown in the illustration below. 5/16-18 x 1-1/2 Side view of flue collar BOLT mount to heater top HEATER WELD Ash Plug Brick Configuration Ussc...
-
Page 6: Blower Assembly
If you are replacing/installing all legs, prop the stove up from the side, under the bottom, be- tween the legs. It should be raised high enough to install the legs, approximately 11 inches. Again, ensure the stove is sturdy enough to perform this operation. Ussc... -
Page 7: Installation
The wood stove must not be hooked up to a hot air distribution system since an excessive accumulation of heat may occur. A wood stove must never be installed in a hallway or near a staircase, since it may block the way in case of fire or fail to respect required clearances. Ussc... -
Page 8: Floor Protector
Total R = Rbrick + Rmineral = 0.8 + 0.431 = 1.231 Total R is greater than 1.2, the system is acceptable. The floor protector should exceed the stove as follows: FRONT SIDES REAR 18” 8” 8” (457mm) (203mm) (203mm) Ussc... -
Page 9: Clearances To Combustibles
The chimney connector shall not pass through an attic or roof space,closet or similar concealed space, or a floor, or ceiling. • A flue pipe crossing a combustible wall must have a minimum clearance of 18”(457mm). • To reduce flue clearances from combustible materials, contact your local safety department. Ussc... -
Page 10: Reduced Clearances (Canada Only)
7/8” (21 mm) by non-combustible spacers. Brick spaced out at least 7/8” (21 mm) by noncombustible spacers. Brick with a minimum of 0,013” (0,33 mm) sheet metal backing spaced out at least 7/8” (21 mm) by noncombustible spacers. Ussc... - Page 11 7. Using a fire screen at the extremity of the chimney requires regular inspection in order to insure that it is not obstructed thus blocking the draft, and it should be cleaned when regularly. 8. The chimney and chimney connector must be kept clean and in good condition for opti- mum performance. Ussc...
-
Page 12: Chimney Connector (Stove Pipe)
Installation of a “barometric draft stabilizer” (fireplace register) on a smoke exhaust system is prohibited. Furthermore, installation of a draft damper is not recommended. Indeed, with a controlled combustion wood stove, the draft is regulated upon intake of the combustion air in the stove and not at the exhaust. Ussc... -
Page 13: Typical Installations
TYPICAL INSTALLATIONS FACTORY BUILT CHIMNEY : Wall Installation Vertical Installation Ussc... -
Page 14: Masonry Chimney
TYPICAL INSTALLATIONS continued... MASONRY CHIMNEY : Ussc... - Page 15 TYPICAL INSTALLATIONS continued... FACTORY BUILT THIMBLE : BUILT THIMBLE : Ussc...
-
Page 16: Outside Combustion Air
THE FIXATION HOLES ON THE BACK OF THE UNIT. • INSTALL IN ACCORDANCE WITH 24 CFR, PART 3280 (HUD). • USE A FACTORY BUILT CHIMNEY THAT COMPLY WITH UL 103 STANDARDS; THERE- FORE IT MUST BE A TYPE HT (2100°F). Ussc... - Page 17 The upper layer of wood should be protected from the element but not the sides. Never place the wood within the stove’s installation clearances or within the space required for reloading or ash removal. Ussc...
-
Page 18: Testing Your Wood
The opening size of the combustion air intake shall not be modified in any way. Doing so could result in damages to the heater or your home and ill void your warranty. Ussc... -
Page 19: Creosote Formation And Need For Removal
• Leave the air control full open for about 5 min. every time you reload the stove to bring it back to proper operating temperatures. The secondary combustion can only take place if the firebox is hot enough. • Always check for creosote deposit once every two months and have your chimney cleaned at least once a year. Ussc... -
Page 20: Ash Disposal
1200° F heat resistant paint. For this purpose, simply scrub the surface to be repainted with fine sand paper, clean it properly, and apply thin coats (2) of paint successively. Ussc... -
Page 21: Repair Parts
Spring Handle (SM-Nickel) 89954 Spring Handle (SM-Brass) 69470 Damper 83261 ¼-20 Lock Nut 83136 Washer 83897 10-24 Lock Nut 83278 Washer 69408B Ash Pan 25523 Cast Iron Leg 89066 Firebrick (4½ x 9) 24103 Half Firebrick (4½ x 4½) Ussc... - Page 22 NOTES Ussc...
- Page 23 NOTES Ussc...
- Page 24 HOW TO ORDER REPAIR PARTS THIS MANUAL WILL HELP YOU OBTAIN EFFICIENT, DEPENDABLE SERVICE FROM YOUR 2015 HEATER, AND ENABLE YOU TO ORDER REPAIR PARTS CORRECTLY. KEEP THIS MANUAL IN A SAFE PLACE FOR FUTURE REFERENCE. WHEN WRITING, ALWAYS GIVE THE FULL MODEL NUMBER WHICH IS ON THE NAMEPLATE ATTACHED TO THE HEATER.
Need help?
Do you have a question about the Magnolia 2015 and is the answer not in the manual?
Questions and answers
Damper is not working
To fix a non-working damper on a USSC Magnolia 2015 stove, follow these steps:
1. Inspect the Damper – Check if the damper (part #69470) is obstructed or damaged.
2. Check the Damper Control Rod – Ensure the damper control rod (part #69410) moves freely and is properly connected.
3. Examine Lock Nuts and Washers – Verify that the ¼-20 lock nut (part #83261) and washers (parts #83136 and #83278) are secure.
4. Look for Debris or Blockages – Clean any accumulated ash or soot that may be interfering with the damper’s movement.
5. Test Operation – Manually move the damper to see if it opens and closes properly.
6. Replace Damaged Parts – If any components are broken, order replacement parts using the part number and description.
If problems persist, consult the manual for additional troubleshooting.
This answer is automatically generated

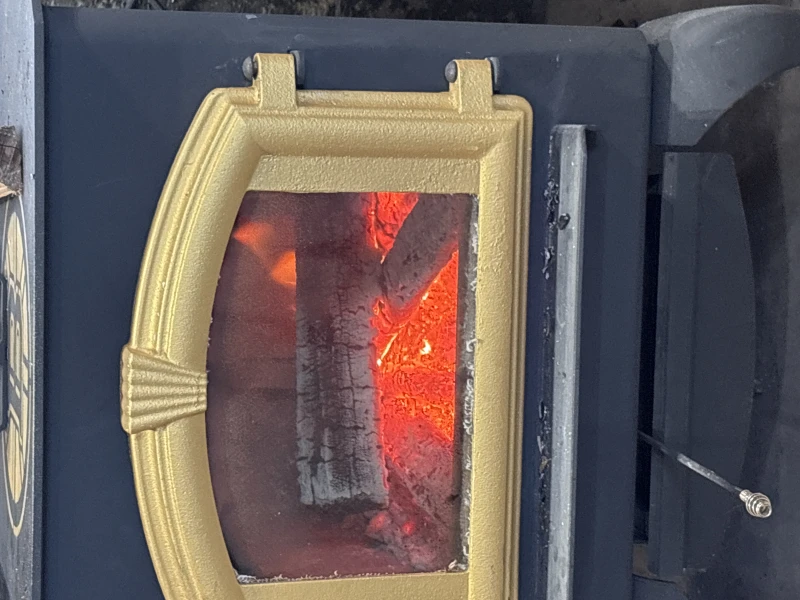

How thick of a gasket do I need for my door serial number 2149
