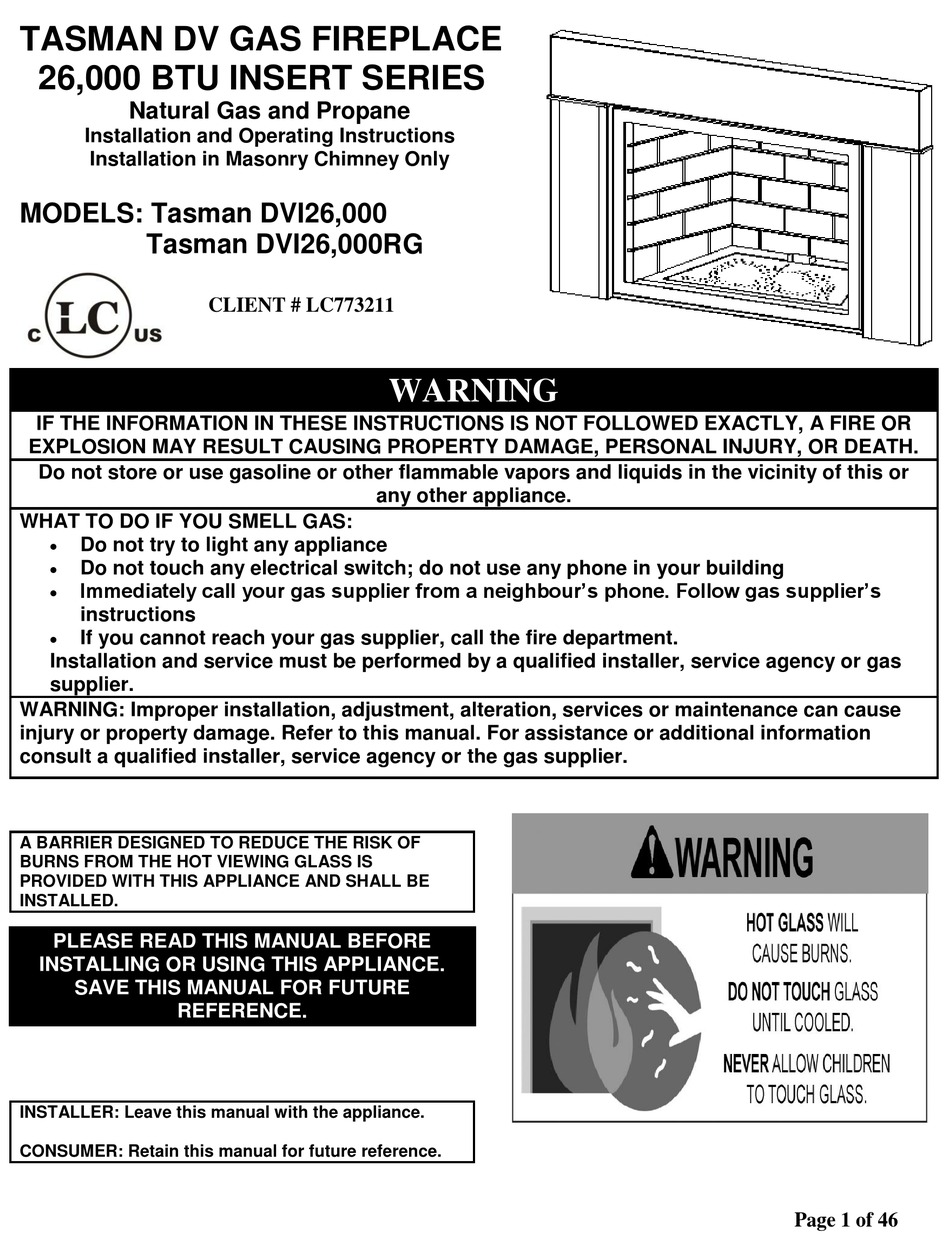

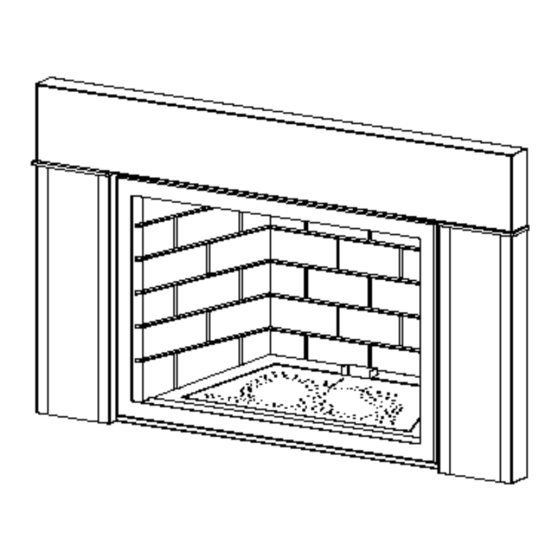

TASMAN DV GAS FIREPLACE
26,000 BTU INSERT SERIES
Natural Gas and Propane
Installation and Operating Instructions
Installation in Masonry Chimney Only
MODELS: Tasman DVI26,000
Tasman DVI26,000RG
IF THE INFORMATION IN THESE INSTRUCTIONS IS NOT FOLLOWED EXACTLY, A FIRE OR
EXPLOSION MAY RESULT CAUSING PROPERTY DAMAGE, PERSONAL INJURY, OR DEATH.
Do not store or use gasoline or other flammable vapors and liquids in the vicinity of this or
WHAT TO DO IF YOU SMELL GAS:
Do not try to light any appliance
Do not touch any electrical switch; do not use any phone in your building
Immediately call your gas supplier from a neighbour's phone. Follow gas supplier's
instructions
If you cannot reach your gas supplier, call the fire department.
Installation and service must be performed by a qualified installer, service agency or gas
supplier.
WARNING: Improper installation, adjustment, alteration, services or maintenance can cause
injury or property damage. Refer to this manual. For assistance or additional information
consult a qualified installer, service agency or the gas supplier.
A BARRIER DESIGNED TO REDUCE THE RISK OF
BURNS FROM THE HOT VIEWING GLASS IS
PROVIDED WITH THIS APPLIANCE AND SHALL BE
INSTALLED.
PLEASE READ THIS MANUAL BEFORE
INSTALLING OR USING THIS APPLIANCE.
SAVE THIS MANUAL FOR FUTURE
REFERENCE.
INSTALLER: Leave this manual with the appliance.
CONSUMER: Retain this manual for future reference.
CLIENT # LC773211
any other appliance.
WARNING
Page 1 of 46

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Tasman DVI26,000 and is the answer not in the manual?

Questions and answers

Related Manuals for Savannah Tasman DVI26,000

Summary of Contents for Savannah Tasman DVI26,000

  • Page 1 TASMAN DV GAS FIREPLACE 26,000 BTU INSERT SERIES Natural Gas and Propane Installation and Operating Instructions Installation in Masonry Chimney Only MODELS: Tasman DVI26,000 Tasman DVI26,000RG CLIENT # LC773211 WARNING IF THE INFORMATION IN THESE INSTRUCTIONS IS NOT FOLLOWED EXACTLY, A FIRE OR EXPLOSION MAY RESULT CAUSING PROPERTY DAMAGE, PERSONAL INJURY, OR DEATH.
  • Page 2 Manuel D’installation et Guide de l’utilisateur Installation dans la cheminée en maçonnerie CLIENT # LC773211 Tasman DVI26,000RG MODELS: Tasman DVI26,000 AVERTISSEMENT ASSUREZ-VOUS DE BIEN SUIVRE LES INSTRUCTIONS DONNÉES DANS CETTE NOTICE POUR RÉDUIRE AU MINIMUM LE RISQUE D'INCENDIE OU D'EXPLOSION OU POUR ÉVITER TOUT DOMMAGE MATÉRIEL, TOUTE BLESSURE OU LA MORT.

  • Page 3: Table Of Contents

    Table of Contents IMPORTANT SAFETY INFORMATION …………………………………………………………….. 4 - 5 INTRODUCTION ........................Specifications, Appliance Dimensions & Installation Codes ......... 6 - 7 Features, Remote Control Functions ..............8 - 10 Intended Use ......................11 General Safety ....................11 - 12 OPERATION ...........................

  • Page 4: Important Safety Information

    WARNING  Read this owner’s manual carefully and completely before trying to assemble, operate or service this fireplace. Follow instructions for proper installation  Failure to install this appliance per the manufacturer’s instructions or failure to use only parts specifically approved with this appliance may result in property damage or personal injury.
  • Page 5 WARNING AVERTISSEMENT Ne pas utiliser cet appareil s’il a été plongé, Do not use this appliance if any part has meme partiellement, dans l’eau. Appeler un been under water. Immediately call a technician qualifié pour inspecter l’appareil et qualified service technician to inspect the appliance and to replace any part of the remplacer toute partie du système de control system and any gas control which...

  • Page 6: Introduction

    1.0 INTRODUCTION 1.1 SPECIFICATIONS TABLE 1 ITEM NATURAL GAS (NG) PROPANE (LP) DVI26000 INPUT: Hi 26,000 Btu/hr (7.62 kW) 23,000 Btu/hr (6.74 kW) DVI26000 INPUT: Lo 20,000 Btu/hr (4.69 kW) 16,500 Btu/hr (4.84 kW) MANIFOLD PRESSURE: Hi 3.5” w.c. (0.87 kPa) 10.0”...
  • Page 7 APPLIANCE DIMENSIONS Figure 1 RIGHT SIDE LEFT SIDE FRONT INSTALLATION CODES This appliance is a Direct Vent appliance which draws all combustion air from outside the building through an intake vent pipe. Installation must conform to local codes. In the absence of local codes, installation must conform to the National Fuel Gas Code, ANSI Z223.1, or the current Natural Gas &...

  • Page 8: Features, Remote Control Functions

    1.2 FEATURES Electronic Valve: Automatic DC valve with AC power adapter. Hand held remote control. Fan control Variable speed control: For units equipped with a fan control, adjust speed by remote control settings 1-6 Supreme Remote Control Functional Operation Matrix Initial Setup Installation of (2) AAA-size batteries will activate the setup mode.
  • Page 9 Press the UP or DOWN button to change the setting of P1 OFF. Press and release the SET button. Press the UP or DOWN button to change the setting of P2 ON. Press and release the SET button. Press the UP or DOWN button to change the setting of P2 OFF. Press and release the SET button. Press the UP or DOWN button to change the setting of the weekend (SS) P1 ON.
  • Page 10 The fan will run for 12 minutes after the unit is shut off in any mode. The fan may not be controlled during this period. Continuous Pilot The unit can be changed from Intermittent Pilot Ignition (IPI), to Continuous, or standing, pilot. To place the unit in continuous pilot mode, press and release the PROG/TIME and the FLAME MAIN buttons simultaneously.

  • Page 11: Intended Use

    1.3 INTENDED USE / USAGE PROPOSÉ This appliance is for use in a masonry chimney only. Cet appareil est utilisé dans une cheminée en maçonnerie. 1.4 GENERAL SAFETY / SÉCURITÉ GÉNÉRALE  Maintain adequate clearances around air openings into the combustion chamber. ...
  • Page 12 WARNING Hot while in operation. Do Not Touch. Severe burns may result. Keep children, clothing, furniture, gasoline and other liquids having flammable vapors away. Toddlers, young children and others may be susceptible to accidental contact burns. A physical barrier is recommended if there are at risk individuals in the house. To restrict access to a fireplace or stove install an adjustable safety gate to keep toddlers , young children and at risk individuals out of the room and away from hot surfaces.

  • Page 13: Operation

    2.0 OPERATION LIGHTING INSTRUCTIONS - for Intermittent Pilot FOR YOUR SAFETY, READ BEFORE LIGHTING WARNING: If you do not follow these instructions exactly, a fire or explosion may result causing property damage, personal injury or loss of life. This appliance is equipped with an ignition device which automatically lights the pilot. Do not try to light the pilot by hand. BEFORE LIGHTING smell all around the appliance area for gas.
  • Page 14 INSTRUCTIONS LIGHTING - Pilote intermittent POUR PLUS DE SÉCURITÉ, LIRE AVANT D’ALLUMER AVERTISSEMENT: Quiconque ne respecte pas à la letter les instructions dans la présente notice risqué de déclencher un incendie ou une explosion entraînant des dommages, des blessures ou la mort. Cet appareil est équipé...

  • Page 15: Installation

    3.0 INSTALLATION 3.1 INSTALLATION & SAFETY NOTES / NOTES D'INSTALLATION ET DE SECURITE Read all instructions before starting installation and follow them carefully during installation to ensure maximum benefit and safety. Failure to follow these instructions will void your warranty and may present a fire hazard.

  • Page 16: Minimum Clearances

    3.3.1 MINIMUM CLEARANCES / DÉGAGEMENTS Figure 2 SEE BELOW MANTEL Minimum clearance from bottom front of fireplace to combustibles 12”(305mm) Distance minimale de l’avant en bas de la cheminée à combustibles 12” (305mm) Figure 3 Mantle Height Mantle Depth (X) from Floor (Y) 40"...

  • Page 17: Gas Line Installation

    Clearances are in accordance with local installation codes and the requirements of the gas supplier. **The mantel placement chart on the previous page illustrates the allowable mantel sizes and placements. The 1” incremental grid can be used to determine the allowable mantel size based on the elevation above the units upper trim.

  • Page 18: Digital On/Off Remote

    3.3.3 DIGITAL ON/OFF REMOTE INSTALLATION This appliance comes with a remote hand held control unit only, see 1.2 Features section 3.3.4 DIRECT VENT INFORMATION The unit must be connected to listed 2-ply aluminium venting, 3” flex vent on the exhaust side and listed 3”...

  • Page 19: Masonry Fireplace

    TYPICAL FLEX VENT INSTALLATIONS Terminal Vent Cap must be sealed to the Chimney top to prevent Figure 4 Use silicon to seal inlet leakage. pipe to terminal vent. Use mill pak to seal Terminal vent must be secured to the inlet exhaust to terminal vent.
  • Page 20 Figure 5 Reattach firmly with lock-in screws 3/. From the roof, pull the liners and fit the roof flashing in place. 4/. Fit the termination cap making sure that the exhaust liner is connected to the exhaust vent collar. Make sure the termination and venting are sealed from water penetration with an approved sealant. REMOVAL AND REINSTALLATION If the fireplace is removed at any time by disconnecting the slider on the top holding the intake and exhaust pipes, the gasket between the fireplace and the slider must be replaced with a new gasket #...
  • Page 21 USE OF SEALANT Sealant is required on vent system joints. On longer vent runs, especially vertical runs, sealant will ensure that the combustion air enters from outdoors, and not through the vent joints. Use high temperature sealant, available from local suppliers, on the inner pipe joint, applying the sealant around the outside of the male part of the vent.

  • Page 22: Ceramic Log Installation

    Burn positions moyennes sont critiques pour le fonctionnement sûr et propre de cet appareil. Ne jamais ajouter d'autres matériaux dans le foyer. Utilisez uniquement graver moyen fourni avec cet appareil. For use with Tasman DVI26,000 Model only Tease out and place ceramic wool around burner pan as shown below these can be placed over the burner pan holes and will glow and disperse the flames for an aesthetically pleasing appearance.
  • Page 23 Place log number 3 at right side of fireplace parallel with right side firebricks Place log number 4 onto placement pins in left side of firebox Place log number 5 onto placement pins in right side of firebox with cutout portion towards the front Page 23 of 46...
  • Page 24 Place log number 6 on top of logs 2 and 4, angled as shown below Place log number 7 from right back firebox corner down onto pin in log 5 with cutout in log towards front of firebox Place log number 8 diagonally from pin in rear log 1 to bottom front of log 6 Place log number 9 diagonally across log 8 and down onto cutout in log 7 Page 24 of 46...

  • Page 25: Rock & Glass Installation

    Your fireplace logs are now in position and after door installation (see 3.3.7 page 26 - 27) your fireplace can be lit. 3.3.6 Rock & Glass Installation / Rock & Installation de verre For use with Tasman DVI26,000RG Model only Sprinkle burner pan with river glass.

  • Page 26: Door Installation And Safety Screen

    Place the ceramic rocks in a pattern that is pleasing to you. Install the door (see 3.3.7 page 26 - 27) Turn your fireplace on and wait approximately 10-15 minutes until the flames are a nice yellow colour. Note the flame pattern and in any low or high areas adjust the amount of river glass to correct gas flow, also move the ceramic rocks around so that they are not interfering with the flame pattern.
  • Page 27 Door Lock Bracket Door Bracket Door Latch Tool DOOR LATCH TOOL Line up the Door Latch Tool with the bracket on the top of the door as shown above and align with Door Lock Bracket in top of firebox area. Door Latch Tool and Door Lock Bracket, shown for illustration purposes only.

  • Page 28: Initial Firing & Manifold Pressure

    This unit comes with a mandatory safety screen which is mechanically attached to the fireplace 3.3.8 INITIAL FIRING When lit for the first few times, the appliance may emit an odor resulting from evaporation of paint and lubricants used in the manufacturing process. Open a door or window for ventilation. Anyone with a respiratory condition may need to leave the room during the initial firings.

  • Page 29: Primary Air Adjustment

    PRIMARY AIR ADJUSTMENT Aeration is factory set but may need adjustment for altitude or movement during shipping. To adjust the air shutter: 1/. Turn off the gas 2/. Remove the door 3/. Remove the logs 4/. Remove the brick panels by sliding the two side panels forward then lift the back panel up and over the pilot assembly and then down and out.

  • Page 30: Fan & Gas Valve Access

    All valves have been pre-set and certified for installation at elevations from 0 – 4500 feet (1 – 1372m) above sea level. When installing this unit at higher elevations, it is necessary to decrease the input rating by replacing the existing burner orifice with a smaller size for installations over 4500 feet (1372m). For the USA, de-rate the unit from sea level according to the gas installation code.
  • Page 31 3/. Once the insert is removed from the fireplace cavity you have easy access to the gas shut off, the gas valve, the electronic ignition system on the side of the insert and the fan on the back of the unit. / Une fois l'insert est retiré...

  • Page 32: Maintenance

    4.0 MAINTENANCE 4.1 MAINTENANCE SAFETY WARNING AVERTISSEMENT TURN OFF THE GAS TO THE MAIN BURNER AND ALLOW THE HEATER TO COOL FOR UP TO 30 MINUTES BEFORE SERVICING. COUPEZ LE GAZ AU BRÛLEUR PRINCIPAL ET LAISSEZ L'APPAREIL REFROIDIR PENDANT JUSQU'À 30 MINUTES AVANT L'ENTRETIEN. Turn off the gas to the main burner and allow the heater to cool for up to 30 minutes before servicing.

  • Page 33: Burner & Pilot Cleaning

    4.4 BURNER & PILOT CLEANING Periodic cleaning is necessary for proper operation. Refer to section 4.7, remove the burner, and check that the burner orifice is clean. Visually inspect the pilot. Brush or blow away any dust, lint, or foreign debris. If the pilot orifice is plugged, disassembly may be required to remove any foreign material from the orifice or tubing.
  • Page 34 3. Gas lines may not be 3. Connect all gas lines connected 4. Low pressure may be caused 4. Check for a kinked line by bent line II. Pilot will not stay lit after A. Thermocouple / Valve following the lighting instructions 1.

  • Page 35: Replacement Parts

    6.0 REPLACEMENT PARTS When requesting service or replacement parts for your unit, please provide model name and serial number. All parts listed below may be ordered from an authorized dealer. Description Part# Door IMC121 Burner (Log Set) IMC113L Burner (Rock & Glass Set) IMC113R IMC001 Door Glass...

  • Page 36: Warranty

    7.0 INCA METAL CUTTING’S WARRANTY PROTECTION FOR ALL INCA METAL CUTTING GAS FIREPLACE PRODUCTS Inca Metal Cutting’s products are designed with superior components and materials, assembled by trained craftsmen who take great pride in their work. The burner and valve assembly are leak tested and test fired at a quality control test station.
  • Page 37 CONDITIONS AND LIMITATIONS (continued) Notwithstanding any provisions contained in this warranty, Inca Metal Cutting’s responsibility under this warranty is defined as above and it shall not in any event extend to any incidental, consequential or indirect damages. This warranty defines the obligations and liability of Inca Metal Cutting with respect to the Inca Metal Cutting gas fireplace and any other warranties expressed or implied with respect to this product, its components or accessories are excluded.
  • Page 38 CONDITIONS ET LIMITES (SUITE) doit être faite en conformité avec les instructions d'installation incluses avec le produit et toutes les capacités locales et nationales et de prévention des incend Cette garantie limitée ne couvre pas les dommages causés par une mauvaise utilisation, manque d'entretien, accident, des altérations, des abus ou de négligence.

  • Page 39: Label Information

    8.0 LABEL INFORMATION Page 39 of 46...
  • Page 40 8.0 LABEL INFORMATION (continued) Sections of the venting system have not been installed. WARNING – Do not operate the appliance until all sections have been assembled and installed in accordance with the manufacturer’s instructions. Des sections du système d’évacuation n’ont pas été installées. AVERTISSEMENT - Ne pas utiliser l’appareil tant que toutes les sections n’ont pas été...

  • Page 41: Appendix A (Intermittent Pilot & Valve Kit)

    APPENDIX A (AMERICAN FLAME VALVE INFORMATION) Page 41 of 46...
  • Page 42 APPENDIX A (Continued) Page 42 of 46...
  • Page 43 APPENDIX A (Continued) Special Features on the AF-4000 System The AF-4000 Module can be powered two different ways. The first is a standard 110 volt AC to 6.0 volt DC adaptor. This adapter is connected to the AF-4000 Module by connecting the two 1/4” female terminals from the adapter to the two 1/4”...

  • Page 44: Appendix B (Ng - Lp Conversion Kits)

    APPENDIX A (Continued) AF-4000 Wiring Diagram APPENDIX B (NG – LP CONVERSION KITS) This kit will convert the fireplace to Natural Gas / Propane (as applicable). / Ce kit vous permet de convertir la cheminée au gaz naturel / propane (le cas échéant). The DVI26000 models are designed to burn either natural gas or propane.
  • Page 45 8). Apply BL21-LP label plate over existing natural gas label plate and notify Savannah Heating of the serial numbers of both plates. (Original plate and replacement plate) / Appliquer plaque d'étiquette BL21-LP-dessus de la plaque d'étiquettes existante de gaz naturel et de notifier savane chauffage des...
  • Page 46 CONVERSION INSTALLATION / INSTALLATION DE CONVERSION ORIGINAL SERIAL PLATE #_____________________ REPLACEMENT SERIAL PLATE #____________________ This appliance was converted on DATE :_______________________________________ from NG / LP to LP / NG BY _____________________________________________________________________________________________ with the conversion kit NGCKDVI or LPCKDVI by the above named qualified service ageny/technician which accepts the responsibility that the conversion has been completed properly as per instructions in this manual.
