TECHNICAL MANU
TECHNICAL MANU AL
TECHNICAL MANU
TECHNICAL MANU
TECHNICAL MANU
•
Refer to Service Manual RS6612009 for installation, operation, and troubleshooting information.
•
Refer to the appropriate Parts Catalog for part number information.
•
Models listed on page 3.
This manual is to be used by qualified, professionally trained HVAC technicians only. Goodman does
not assume any responsibility for property damage or personal injury due to improper service
procedures performed by an unqualified person.
TM

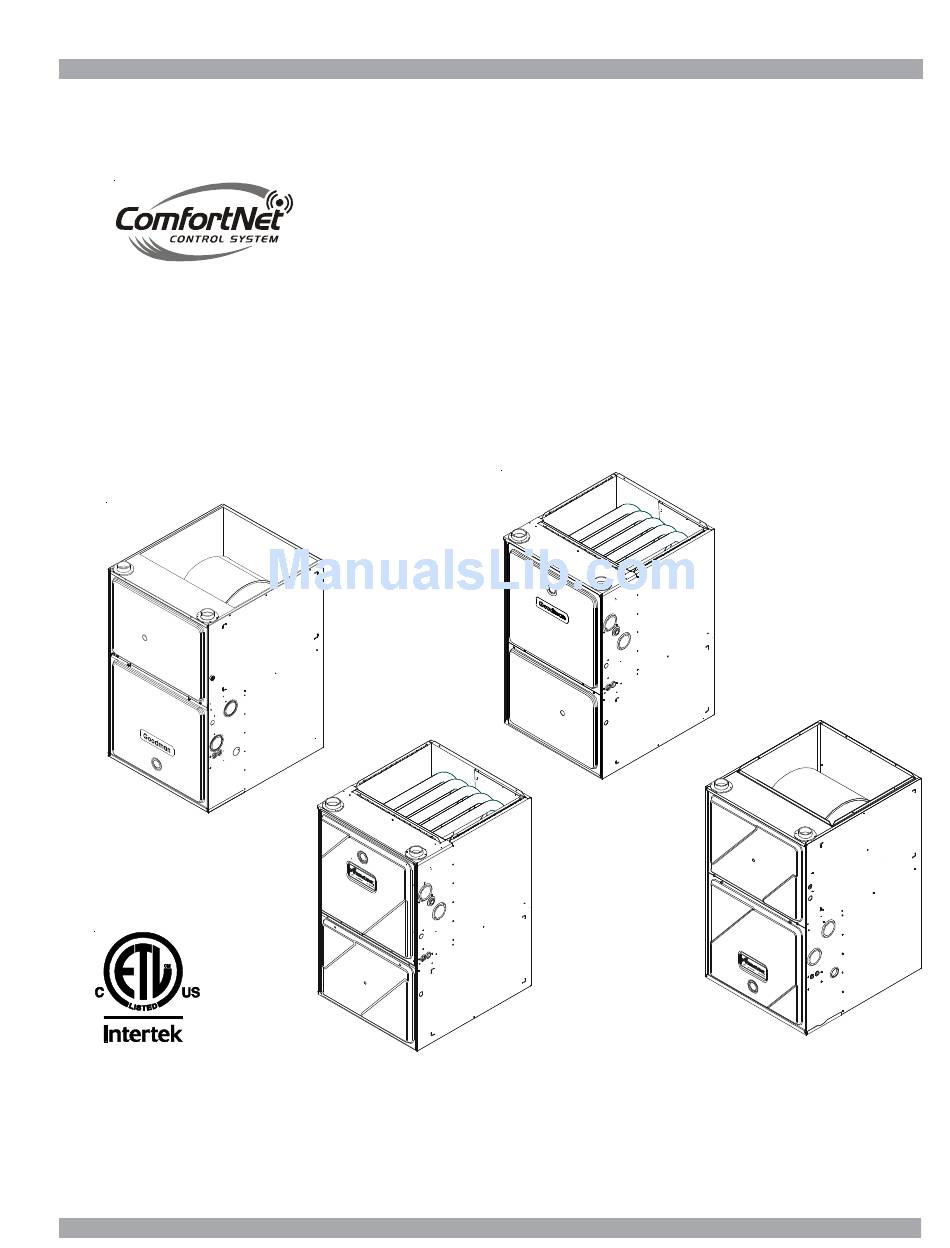

*CVC97/*MVC97
97% Gas Furnace Units
Copyright ©2014 Goodman Manufacturing
AL
AL
AL
AL
Company, L.P.
RT6612031
September 2014
Advertisement
Table of Contents
Related Manuals for ComfortNET *CVM970603BNA*
Summary of Contents for ComfortNET *CVM970603BNA*
- Page 1 TECHNICAL MANU TECHNICAL MANU AL TECHNICAL MANU TECHNICAL MANU TECHNICAL MANU *CVC97/*MVC97 97% Gas Furnace Units • Refer to Service Manual RS6612009 for installation, operation, and troubleshooting information. • Refer to the appropriate Parts Catalog for part number information. • Models listed on page 3.
-
Page 2: Product Identification
A - Initial Release K - Dedicated Upflow B - 1st Revision D - Dedicated Downflow Motor N - Low Nox V - Variable Speed ECM /ComfortNet E - Multi-Speed ECM S - Single Speed Gas Valve Cabinet Width M - Modulating A - 14"... - Page 3 PRODUCT IDENTIFICATION The model and manufacturing number are used for positive identification of component parts used in manufacturing. Please use these numbers when requesting service or parts information. *CVM970603BNA* *CVM970803BNA* *CVM970804CNA* *CVM971005CNA* *MVM970603BNA* *MVM970803BNA* *MVM970804CNA* *MVM971005CNA* *MVM971205DNA* DANGER CARBON MONOXIDE POISONING HAZARD Special warning for installation of furnaces or air handling units in enclosed areas such as garages, utility rooms or parking areas.
-
Page 4: Furnace Specifications
FURNACE SPECIFICATIONS *MVM97 *MVM97 *MVM97 *MVM97 *MVM97 0603BNA 0803BNA 0804CNA 1005CNA 1205DNA Heating Data Hi gh Fi re Input¹ 60,000 80,000 80,000 100,000 120,000 Hi gh Fi re Output¹ 58,200 77,600 77,600 97,000 116,400 Low-Fi re Stea dy-Sta te Input¹ 30,000 40,000 40,000... - Page 5 FURNACE SPECIFICATIONS *CVM97 *CVM97 *CVM97 *CVM97 0603BNA 0803BNA 0804CNA 1005CNA Heating Data High Fi re Input¹ 60,000 80,000 80,000 100,000 High Fi re Output¹ 58,200 77,600 77,600 97,000 Low-Fi re Stea dy-Sta te Input¹ 30,000 40,000 40,000 50,000 Low-Fi re Stea dy-Sta te Output¹ 29,100 38,800 38,800...
-
Page 6: Product Dimensions
PRODUCT DIMENSIONS DISCHARGE DISCHARG E 28 ¾ DIMB ¾ 6½ DISCHARG E 2¾ 6½ ¾ AIR INTAKE 2 ⅝ 1⅞ 2" PIPE 19½ CENTER DIMPL E VENT/FLUE PIPE LEFT SIDE FOR ALTERNATE ALTERNATE 2" PVC DRAIN TRAP AIR INTAKE PIP E VENT/FLU E ¾... - Page 7 PRODUCT DIMENSIONS TOP VIEW FRONT VIEW RIGHT SIDE VIEW 6½ 2⅝ 2½ 1⅝ 1⅞ 1⅜ 1 ⅞ ALTERNATE VENT/ FLUE LOCATION 1½ LOW VOLTAGE ELECTRICAL OUTLET LOW VOLTAGE ELECTRICAL OUTLET SIDE CUT-OU T SIDE CUT-OU T ALTERNATE GAS ALTERNATE SUPPLY LOCATION GAS SUPPLY LOCATIO N HIGH VOLTAG E...
-
Page 8: Blower Performance Specifications
BLOWER PERFORMANCE SPECIFICATIONS *MVM970603BNA *MVM970603BNA Cooling Speed Heating Speed (@ .1" - .8" w.c. ESP) (@ .1" - .5" w.c. ESP; Rise Range: 20 - 50°F) High-Stage Low-Stage High-Stage Rise Adjust Adjust (°F) Minus 10% Minus 10% Normal Normal Plus 10% Plus 10% 1,048 Minus 10%... - Page 9 BLOWER PERFORMANCE SPECIFICATIONS *MVM971005CNA *MVM971005CNA Cooling Speed Heating Speed (@ .1" - .8" w.c. ESP) (@ .1" - .5" w.c. ESP; Rise Range: 35 - 65°F) High-Stage Low-Stage High-Stage Rise Adjust Adjust (°F) Minus 10% Minus 10% 1,636 Normal Normal 1,818 Plus 10% Plus 10%...
- Page 10 BLOWER PERFORMANCE SPECIFICATIONS *CVM970603BNA *CVM970603BNA Cooling Speed Heating Speed (@ .1" - .8" w.c. ESP) (@ .1" - .5" w.c. ESP; Rise Range: 35 - 65°F) High-Stage Low-Stage High-Stage Rise Adjust Adjust (°F) Minus 10% Minus 10% Normal Normal Plus 10% Plus 10% 1,032 Minus 10%...
- Page 11 BLOWER PERFORMANCE SPECIFICATIONS *CVM970804CNA *CVM970804CNA Cooling Speed Heating Speed (@ .1" - .8" w.c. ESP) (@ .1" - .5" w.c. ESP; Rise Range: 35 - 65°F) High-Stage Low-Stage High-Stage Rise Adjust Adjust (°F) Minus 10% Minus 10% 1,111 Normal Normal 1,234 Plus 10% Plus 10%...
-
Page 12: Wiring Diagrams
WIRING DIAGRAMS HIGH VOLTAGE! DISCONNECT ALL POWER BEFORE SERVICING OR INSTALLING THIS UNIT. MULTIPLE POWER SOURCES MAY BE PRESENT. FAILURE TO DO SO MAY CAUSE PROPERTY DAMAGE, PERSONAL INJURY OR DEATH. 115 VAC/1 Ø /60 POWERSUPPLY WITH OVERCURREN T ID BLOWERMODULATING PRESS URE PROTECTION SWITCH ASSEMB LY SUR FACE...
