Manual
(UK)

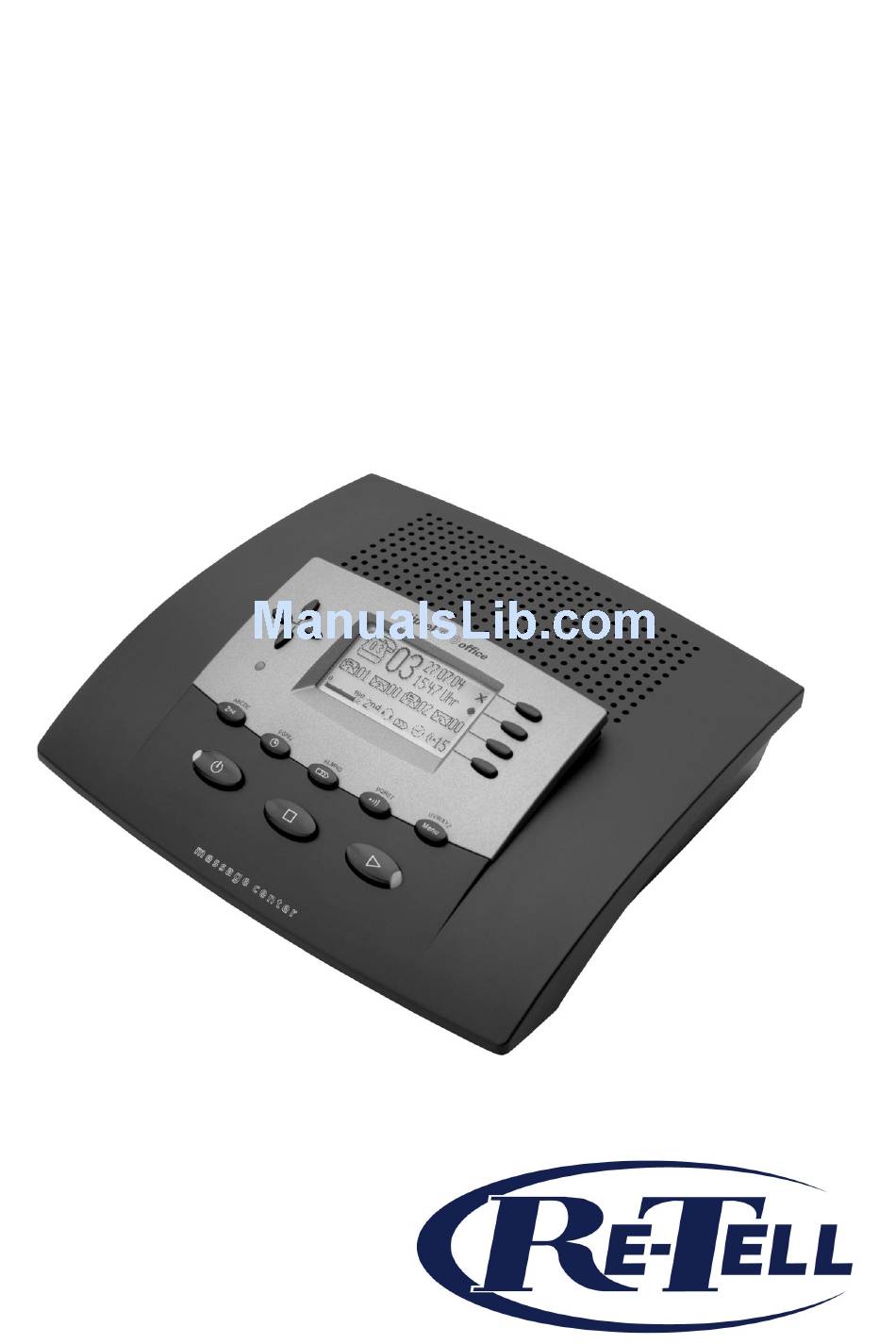

Professional answering machine
with USB interface, alarm input,
connection for headset and foot pedal
Retell 570 office

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 570 office and is the answer not in the manual?

Questions and answers

Related Manuals for Retell 570 office

Summary of Contents for Retell 570 office

  • Page 1 Manual (UK) Professional answering machine with USB interface, alarm input, connection for headset and foot pedal Retell 570 office...

  • Page 3: Safety Instructions

    Safety instructions Safety instructions When installing, connecting and operating the Retell 570 office please observe the following instructions: • Connect the connection cable to the appropriate sockets. • Make sure the cables are laid in such a way that accidents cannot occur.

  • Page 4: Button Allocation

    Button allocation Button allocation Playback: Starts playback of incoming messages that have not yet been listened to. If pressed during playback lets you repeat the last 3 seconds. Stop: Ends the current function; is used to close open menus. Answering mode: Switches answering mode on or off. Menu: Opens the menu.
  • Page 5 Button allocation Secondary function and playback can be pressed in succession: Starts playback for all incoming messages. Playback starts with the oldest and ends with the newest recording. Secondary function and Control button (down) pressed in succession: Opens the entry field for the telephone book. Secondary function followed by pressing and holding message: Starts recording the outgoing message via the audio input.

  • Page 6: User Elements

    User elements User elements SMS-LED Flashes when there are new, unread short messages. Flashes quickly if the mail inbox is full and there is no more memory for new short messages. LED in the answering Is lit when answering mode is switched on (answering machine active). mode button LED in the playback Flashes when there are new, unread incoming messages.

  • Page 7: Table Of Contents

    Contents Contents Safety instructions..................3 Button allocation .................... 4 User elements....................6 Contents......................7 Display symbols ..................... 11 Getting started ....................13 Parts supplied....................13 Installation ....................13 Connecting ....................13 Outgoing messages ..................16 General ......................16 Sample outgoing messages ...............16 Recording an outgoing message ...............17 Recording OGMs from an external signal source ........18 Checking OGMs..................19 Deleting OGMs ....................19...
  • Page 8 Contents Entering and saving entries ................31 Summary of possible characters ..............34 Search entries .....................34 Checking and changing entries..............35 Personal OGM (call filter) ................36 Vocal clip .....................37 Dialling from the telephone book..............38 Holding a call....................39 Automatic redialling /Automatic call back when engaged (CCBS)....40 Message function ...................
  • Page 9 Contents Automatic monitoring..................72 Setting options for automatic monitoring ...........72 Settings for automatic monitoring...............73 Appointments....................74 Entering and managing appointments ............74 Appointment notification ................76 Security lock ....................77 Locking the device/Changing PIN ..............77 Unlocking device..................79 Alarm dialer..................... 80 Setting options for alarm dialer..............80 Settings for alarm dialer ................81 Alarm by SMS....................83 Sample call number entries ................84...
  • Page 10 Contents Index........................ 106 Brief operating instructions ................109 Operating card for remote control..............110...

  • Page 11: Display Symbols

    Display symbols Display symbols Answering mode switched on, A> A> Answering mode switched on. new incoming messages available. Caller's number, telephone Playback answering mode. Recording taking place, Call forwarding microphone on. " Monitoring active Volume Remaining incoming message General recording capacity Timer on, switching time, time Secondary function...
  • Page 12 Display symbols Headset connected Outgoing call Answer call (only with End call (only with headset) headset) Alarm dialer switched on Enter date Entry (text) possible Notes on errors and operation Switch on/off basic settings, Send/receive short message software update, call forwarding Appointment, absence manager Automatic answering, line busy active...

  • Page 13: Getting Started

    Therefore use a non-slip underlay especially for new or freshly treated furniture. Connecting Before you can use your Retell 570 office you first need to connect all the necessary cables. Fit the small connector of the mains plug into the "POWER" jack and the plug into a 230 V socket outlet.
  • Page 14 Getting started If you want to transfer the telephone book from one different Retell 570 office to another use the transfer cable with two jack plugs. Fit the plugs to the "OUT" socket on one device and the "IN" socket on the other.
  • Page 15 Getting started...

  • Page 16: Outgoing Messages

    Outgoing messages General Your Retell 570 office has 14 individual outgoing messages (OGM 1-14) and one pre-configured outgoing message (OGM 15). You can select the OGMs via the selection button next to the OGM symbol. OGM 15 cannot be personalised. A distinction is made between two types of outgoing message: OGMs with and without the option to record an incoming message.

  • Page 17: Recording An Outgoing Message

    OGM does not give the option of recording you will hear two beeps at the end. If you record OGM 14 without the option to record (OGM only) when the incoming message capacity is full your Retell 570 office switches to this OGM automatically.

  • Page 18: Recording Ogms From An External Signal Source

    Outgoing messages Recording OGMs from an external signal source You can also record professional outgoing messages via the audio input from an external signal source (e.g. cassette recorder). Select the desired OGM using the The selected OGM is displayed next to selection button next to the OGM the symbol on the bottom right of the symbol.

  • Page 19: Checking Ogms

    Outgoing messages Checking OGMs Select the desired OGM using the The selected OGM is displayed next to selection button next to the OGM the symbol at the bottom right of the symbol. display. Press OGM briefly. The OGM is played back. The playback symbol, the time that you have already heard and the number of the current OGM are displayed.

  • Page 20: Answering Mode

    Answering mode Answering mode Ensure that sufficient incoming message capacity is available. If necessary delete individual or all incoming messages. If required select the OGM using the The selected OGM is displayed next to selection button next to the OGM the symbol on the bottom right of the symbol.
  • Page 21 If you record OGM 14 without the option to record (OGM only) when the incoming message capacity is full your Retell 570 office switches to this OGM automatically. Otherwise the device leaves the answering mode and does not respond to further calls.

  • Page 22: Playing Back And Deleting Incoming Messages

    Playing back and deleting incoming messages Playing back and deleting incoming messages Playing back new incoming messages Press playback. Starts playback of unheard incoming messages. The current number, remaining playback time and date and The volume can be set using the time of the incoming message are control buttons (left/right).

  • Page 23: Repeating

    Playing back and deleting incoming messages Repeating Press playback during playback. The last three seconds are repeated. Pausing playback Press stop. Playback is paused. Press playback. Playback continues. Skip Press the selection button next to The incoming message you are listening the go backwards or forwards to is skipped or repeated.

  • Page 24: Deleting All Incoming Messages

    Playing back and deleting incoming messages Deleting all incoming messages Press stop. The display shows standby and answering mode. Press the selection button next to All incoming messages are deleted. the delete symbol for 2 seconds. Dialling the caller directly Press the selection button next to The device starts dialling the selected the displayed telephone number or...

  • Page 25: Monitoring/Personal Info (Memo)

    Monitoring/Personal info (memo) Monitoring/Personal info (memo) Monitoring telephone calls You can record the content of important calls. Press the selection button next to The device starts to record. A lifted the record symbol speed during a telephone receiver is displayed so as to call.

  • Page 26: Personal Info (Playback)

    Monitoring/Personal info (memo) Personal info (playback) You can record personal information via the in-built microphone. Press the selection button next to Wait, you will hear a short tone, a the record symbol. microphone is displayed to signal ongoing recording. Start speaking (maintain approx. 15 The display shows the minutes and cm distance from the microphone).

  • Page 27: Absence Manager

    Absence manager Absence manager If you leave your office for a while, for example to attend a meeting, your Retell 570 office can inform your callers as to when you will be available again. Callers will hear this message: "Hello, the person you are trying to call will be available again from … I repeat [time] …...
  • Page 28 Absence manager Press stop. The setting is complete, the LED in the answering mode button lights up and the display shows the absence time. Calls are answered and the caller hears the absence message. Press Answer mode to end the The display changes and returns to the absence manager ahead of time.

  • Page 29: Call List

    Call list Call list The last 50 calls received are saved in call list with their date and time. If the caller's telephone number is transferred during a call then this is also displayed. If the telephone number matches one from the telephone book, the caller's name is displayed.
  • Page 30 Call list To delete an entry press the The entry is deleted. selection button next to the delete symbol. 2s To delete the whole call list press The entire call list is deleted. the selection button next to the delete symbol for 2 seconds. To exit the list press stop.

  • Page 31: Telephone Book

    Telephone book Telephone book General The telephone book manages the names and telephone numbers of your business partners. You can save up to 200 entries. An entry comprises the name (search term) and the telephone number. The name must begin with a letter and the telephone number should begin with an area code so that the corresponding name can be displayed later when the call number is received.
  • Page 32 Telephone book Enter name. You reach the The entry location flashes. individual letters by pressing the individual entry button once or more. Example: You require "M". Press forwarding button three times (the "M" is in the third position on this button).
  • Page 33 Telephone book overwrite a character. You can insert a character by An empty space is inserted to the left of pressing secondary function and the cursor. the control button (down). To delete an entry move the cursor The character under the cursor is to the location and press the deleted.

  • Page 34: Summary Of Possible Characters

    Telephone book Summary of possible characters Button Occupancy (ABC) Occupancy (abc) Occupancy (12!?) A B C D E Ä É a b c d e ä é è , . ? ! : ‘ ; “ F G H I J f g h i j ì...

  • Page 35: Checking And Changing Entries

    Telephone book You can enter (up to 5) other letters The corresponding entries are displayed for the search using the control for selection. button (right) and the corresponding entry keys. Checking and changing entries Search for names as described under "Search entries". Press the selection button next to The entry field for the name and the the desired name for 2 seconds.

  • Page 36: Personal Ogm (Call Filter)

    Telephone book Personal OGM (call filter) You can assign each entry in the telephone book to one of the fourteen individual, recordable OGMs. If the telephone number calling matches the entry the caller hears an OGM that is specially recorded for him. You can also switch the answering machine off for certain callers.

  • Page 37: Vocal Clip

    You can assign each entry in the telephone book to one of the fourteen individual ringing tones. If the telephone number calling matches the entry you hear an individual ringing tone from the Tiptel 570 office loudspeaker. Open entry field.

  • Page 38: Dialling From The Telephone Book

    Telephone book Dialling from the telephone book Each telephone number from the telephone book can be dialled directly from your Tiptel 570 office. Search for names as described under "Search entries", 34. Press the selection button next to The device starts dialling the selected the desired name.

  • Page 39: Holding A Call

    Telephone book Holding a call During a call it is possible to hold a caller so that he can not hear what is discussed in the room. The telephone is switched to mute and the caller hears "Please hold the line" followed by a hold tune. There is also the option of assigning one of the 14 individual OGMs to the holding loop (refer to Page 90 Settings/Queue message).

  • Page 40: Automatic Redialling /Automatic Call Back When Engaged (Ccbs)

    Automatic redialling /Automatic call back when engaged (CCBS) If the person you are trying to call is constantly engaged your Tiptel 570 office can take over by repeatedly trying to call the other person. For automatic re-dialling if the caller is engaged there is a pause and the device repeats the dialling up to 10 times.

  • Page 41: Message Function

    The message function enables a caller that knows the message code to leave a message even if your Tiptel 570 office plays an OGM with no option to leave an incoming message. The message function enables the caller to skip the OGM for OGMs that give the option of leaving an ICM.

  • Page 42: Remote Access

    Remote access Remote access You can access your Tiptel 570 office remotely from anywhere in the world using the keypad on a tone-enabled (DTMF) telephone. You need a personal remote access code to access the phone remotely. You can set your personal remote access code as described in "Settings"...

  • Page 43: Remote Access Functions

    Room monitoring/intercom The microphone switches on and you can Press 1. listen to what is happening in the surroundings of your Retell 570 office. Press 1 again. The device switches to intercom. People located there can hear your voice from the...
  • Page 44 The message is played back again for checking after you change or modify it. Your Retell 570 office will then ask whether you are still on the line with the "Please quit" voice message. You must respond to this quit request within 8...
  • Page 45 Remote access Message transfer function Changing the 1st call number for The first current call number is message transfer (only the first announced. Next comes the request to number can be changed) enter a new call number. Press * and 9 in succession. Enter new call number.

  • Page 46: Remote Activation Of The Answer Mode

    To accept the target call number and After ending the remote access your Retell execute the function press * and # in 570 office switches call forwarding on. All succession. new calls are forwarded to the new target call number.

  • Page 47: Short Messages (Sms)

    To do so, please ask your network operator if these features are available for your connection. If you have the Retell 570 office connected to an analogue extension off a PABX then the SMS function will not work.

  • Page 48: Entry Options For Short Messages

    Short messages (SMS) messages. Once the SMS message has been sent then the device can send and receive SMS messages. As of: January 2005 Entry options for short messages Inbox ........This is where you find all the short messages you have received and can scroll through, read, delete or copy them to templates.
  • Page 49 Short messages (SMS) Press menu. The main menu is displayed. Press the selection button next to The messages menu is displayed. "Messages (SMS)". Press the selection button next to The inbox is displayed. "Inbox". You can scroll through individual New, unread messages are marked with entries using the control buttons an arrow.
  • Page 50 The device must be in standby for you to receive a message (SMS). Your Retell 570 office will not respond if you are currently scrolling through the menu or changing settings. This ensures that you cannot be disturbed (for...

  • Page 51: Outbox

    Short messages (SMS) Outbox Press menu. The main menu is displayed. Press the selection button next to The messages menu is displayed. "Messages (SMS"). Press the selection button next to The display changes and displays the "Outbox". outbox. You can scroll through the existing messages using the control buttons (up/down).
  • Page 52 Short messages (SMS) If required change the occupancy The display shows the possible of the entry buttons by pressing the occupancies: control button (up) (refer to ↑(ABC) = Capital letters "Summary of possible symbols" ↑(abc) = Small letters table in the "Telephone book" ↑(12!?) = Numbers and special chapter).

  • Page 53: Sending A Message (Sms)

    Short messages (SMS) Sending a message (SMS) For a message (SMS) to be sent it is essential that something is in the outbox and that a message centre has been entered. Open the message menu as The messages menu is displayed. described in "Inbox"...
  • Page 54 Short messages (SMS) button next to the "Insert" symbol. Search for names as described under "Search entries" ("Telephone book" chapter Page 34). You can insert a character by An empty space is inserted to the left of pressing secondary function and the cursor.

  • Page 55: Templates

    Short messages (SMS) Templates Here you can save up to 5 templates that you can edit, delete or copy to the outbox individually. Open the message menu as The messages menu is displayed. described in "Inbox" and "Outbox". Press the selection button next to The display switches to the templates.

  • Page 56: Message Center

    Short messages (SMS) Message center Enter the telephone number for your message centre here (e.g. BT). If you are using the device on a BT telephone network then there are two numbers which have to be entered – one for the sending of SMS messages and one for the receiving.

  • Page 57: Timer

    Timer Timer The timer function contains up to 10 switching times during which answering mode, outgoing messages, message transfer and call forwarding can be switched on/off or changed. Setting options for timer Switching time ....... You set the times here for when the function should be switched on, off or changed.

  • Page 58: Programming Timer

    Timer Programming timer Press menu. The main menu is displayed. Press the selection button next to The entry field for the first switching time timer. is displayed. You can search the individual The display switches between the 10 switching times using the control possible switching times.

  • Page 59: Sample Programming For Timer

    Sample programming for timer You want your Retell 570 office to switch on OGM 1 on Mondays to Fridays at 17.00 and switch off at 08.00. When the office closes on Friday and over the weekend the answering machine should use OGM 2 throughout. This requires 3 switching times.

  • Page 60: Switching On Timer

    Timer Switching on timer Press timer. The display shows a clock as the symbol for activated timer. The timer sets the current functional status. Press timer again to switch off The clock symbol disappears. timer.

  • Page 61: Message Transfer

    (5 – 60 minutes) the device dials the complete call number sequence again as a reminder. If there is no remote control your Retell 570 office makes no, one or two repetitions depending on the setting you have chosen.

  • Page 62: Settings For Message Transfer

    Message transfer Settings for message transfer Press menu. The main menu is displayed. Press the selection button next to The message transfer menu is shown in message transfer. the display. Search for the desired setting All setting options are displayed. option using the control buttons (up/down).
  • Page 63 Message transfer When entering the call numbers The entry location flashes. press the selection button next to Digits and special symbols are "Call number" and make the desired displayed. The special symbols have the settings using the control buttons following meanings: (up/down).

  • Page 64: Message Transfer By Sms

    Example: You would like to receive an SMS to your mobile phone when you have new messages on your Retell 570 office. When you enter your mobile phone call number in the "Forwarding/call number" menu, enter an "S" before it.

  • Page 65: Sample Call Number Entries

    Message transfer Sample call number entries For PABX the prefix for the public telephone network is dialled before each call number (refer also to Page 92 "Settings, PABX/prefix"). To suppress this enter "i" before internal call numbers. If you would like message transfer by short message (SMS) you must enter an "S" before the call number.

  • Page 66: Individual Ringing Tone

    15 because it is pre-configured. Choose the ringing tone for your telephone and your Retell 570 office will play it back. Please note that your individual ringing tone is only played back on the second call signal. During playback it is not possible to receive a new call number (CLIP).
  • Page 67 Individual ringing tone Press the selection button next to The numbers 1 to 15 and "-" appear in "Ringing tone" and select it using the display. The individual ringing tone is the control buttons (up/down). switched off using the "-". Set the desired volume using the The volume bar indicates the set volume control buttons (left/right).

  • Page 68: Call Forwarding

    Call forwarding Call forwarding If your telephone network or PABX supports the "call forwarding" function you can enter the required settings here. Then you only have to enter the times for which you want to activate call forwarding in the "timer". For example at 6 pm you can switch calls automatically to your private line and then switch them back again to your business line at 8 am the following day (day/night switching).
  • Page 69 Call forwarding Press menu. The main menu is displayed. Search for the "Call forwarding" entry using the control buttons (up/down). Press the selection button next to The call forwarding menu is shown in the "Call forwarding". display. Press the selection button next to The cursor is located at the entry point.
  • Page 70 Call forwarding Press control button (right) to The cursor to the next entry location. change to the next entry location and enter other digits. Use the control button (left) to The cursor moves to the left. move the cursor once place backwards, for example to overwrite a character.

  • Page 71: Sample Call Forwarding Entries

    Target call number ....i 21 Example 3: You have a Retell 1/8 fax clip PABX, are connected with it to "Deutsche Telekom" and you have activated the "call forwarding" service. You want to forward all external calls to your private connection.

  • Page 72: Automatic Monitoring

    Automatic monitoring Automatic monitoring If you have activated "automatic monitoring" the recording starts as soon as the handset is lifted. The recording stops automatically when you replace the receiver. You can decide whether to record all calls or only incoming calls (recording threatening calls).

  • Page 73: Settings For Automatic Monitoring

    Automatic monitoring Settings for automatic monitoring Press menu. The main menu is displayed. Search for the "Automatic monitoring" entry using the control buttons (up/down). Press the selection button next to The entry field for automatic monitoring "Automatic monitoring". is displayed. Search for the desired setting All setting options are displayed.

  • Page 74: Appointments

    Appointments Appointments Your Retell 570 office can manage up to 20 appointments conveniently. You can choose between one-off and repeat appointments. Additional information on each appointment facilitates assignment. If an appointment is due this is indicated via the display and notified by an acoustic signal.
  • Page 75 Appointments Press the selection button next to The cursor is at hours. the time/date for the desired appointment. Set the desired appointment time The date shows: using the control buttons (up/down, --.--.-- = daily appointments left/right). When setting the date 03.--.-- = monthly appointments you can distinguish between one- 15.09.-- = annual appointments...

  • Page 76: Appointment Notification

    Appointments Press control button (right) to The cursor to the next entry location. change to the next entry location. Use the control button (left) to The cursor moves to the left. move the cursor once place backwards, for example to overwrite a character.

  • Page 77: Security Lock

    Security lock Security lock In order to protect your Retell 570 office from unauthorised use you can lock the device with a PIN (personal identification number). The PIN is number containing 1 to 4 digits. You must enter this PIN to unlock the device. In the factory pre-set, the PIN code is "0000".
  • Page 78 "Lock unit". small key shows that the device is locked. Press the selection button next to The Retell 570 office requests you to "Change PIN". enter a new PIN. Use the control buttons to enter a The display shows the current entry.

  • Page 79: Unlocking Device

    Security lock Unlocking device Use the control buttons to enter the The display shows the current setting. PIN. After entry press the selection The small key is no longer displayed. button next to PIN. The device can now be used.

  • Page 80: Alarm Dialer

    - 180 seconds). If no confirmation is made during the repeat time (5 – 60 minutes) the device dials the complete call number sequence again as a reminder. If the alarm is not quit your Retell 570 office makes no, one or two repetitions depending on the setting you have chosen.

  • Page 81: Settings For Alarm Dialer

    Alarm dialer Settings for alarm dialer Press menu. The main menu is displayed. Search for the "Alarm dialer" entry using the control buttons (up/down). Press the selection button next to The alarm dialer menu is shown in the alarm dialer. display.
  • Page 82 Alarm dialer Using the quit code, if necessary, The cursor moves to the next entry change to the next entry location location. using the control button (right) and enter other digits. When entering the call numbers The entry location flashes. press the selection button next to Digits and special symbols are "Call number"...

  • Page 83: Alarm By Sms

    Alarm dialer 2s To delete the whole call number The entire call number is deleted. press the selection button next to the delete symbol for 2 seconds. To make further settings press The settings are confirmed. stop. To stop the entry press stop several The initial state is again displayed.

  • Page 84: Sample Call Number Entries

    Alarm dialer Sample call number entries For PABX the prefix for the public telephone network is dialled before each call number (refer also to Page 92 "Settings, PABX/prefix"). To suppress this enter "i" before internal call numbers. If you would like alarm by short message (SMS) you must enter an "S" before the call number.

  • Page 85: Mailboxes

    4 mailboxes. Each mailbox has its own OGM, remote control code and its own target call number for message transfer. If your Retell 570 office is used by several people the caller can leave a message in the relevant mailbox. You should mention this function in the OGM.

  • Page 86: Setting Up Mailboxes

    Mailboxes Extension ....... If you want to use the "Automatic call forwarding to mailbox" function you can enter the relevant extension number here. Target call number ....If you want to use the mailboxes and the "message transfer" function you must enter the target call number here.
  • Page 87 Mailboxes Select the desired mailbox using The settings menu for the selected the selection button. mailbox is displayed. Search for the desired setting All setting options are displayed. option using the control buttons (up/down). Press the selection button next to The display shows the current setting.

  • Page 88: Using The Mailboxes

    Mailboxes Using the mailboxes The corresponding symbols are displayed when you have set up mailboxes. In answering mode the number of ICMs in the mailbox is indicated to the right of the symbol. The mailboxes include playback and delete ICMs, monitoring/personal info (memo) and OGM functions.

  • Page 89: Remote Access To Mailboxes

    (for example as with the Retell 31 home or Retell 4011XT PABX). Connect your Retell 570 office to a free extension (analogue port) on your PABX. Set the mailboxes up and enter the call numbers of the corresponding extensions.

  • Page 90: Settings

    PABX (the year is not transferred and must be set manually). BST ......Yes or no. Select "Yes" if you want your Retell 570 office to change automatically to summer time on the last Sunday in March and to winter time on the last Sunday in October.
  • Page 91 "Hold a call" function. My number Area ......Enter your area code here Number ....... If you enter your own call number your Retell 570 office announces this call number for internal OGM texts. Remote control....... >>...
  • Page 92 Settings Redial ........Every 5 to 60 seconds. You can set the pause between the dialling attempts for automatic redialling here. Call-back code ...... You enter the call-back code of your network operator (for Deutsche Telekom network e.g. H*37#). The "H" refers to the request key with hook flash- function.

  • Page 93: Settings Menu

    Settings Settings menu Press menu. The main menu is displayed. Search for the "Settings" entry using the control buttons (up/down). Press the selection button next to The settings menu is displayed. settings. Search for the desired setting All setting options are displayed. option using the control buttons (up/down).

  • Page 94: Adjusting The Volume

    Settings When entering digits press the The entry location flashes. selection button next to the desired line. Change the settings using the The display counts up or down. control buttons (up/down). For settings with several digits The selected entry location flashes. move the entry location to the required location using the control buttons (left/right).

  • Page 95: Service Menu

    There is also the option of transferring the telephone book from one Retell 570 office to another via the audio sockets. To do this first set one device to "Receive a telephone book" and the other to "Send a telephone book".
  • Page 96 Service menu Search for the desired function All service menu functions are displayed. using the control buttons (up/down). Press the selection button next to the desired function and follow the displayed instructions. To carry out the software update, enter the phone number of the update server.

  • Page 97: Accessories

    Accessories Accessories Headset You can use the headset to listen to messages without disturbing other people in the room. At the same time you have the option of recording OGMs and information using the integrated microphone. You can also make calls with the headset. After inserting the plug into the rear of the device the headset is detected automatically and the corresponding symbol is displayed.

  • Page 98: Foot Pedal

    Accessories Foot pedal You can use the foot pedal to operate the playback functions using your feet; your hands are free for example to enter orders directly into your PC. The following functions are available: Playback/stop, rewind and fast forward.

  • Page 99: Appendix

    1999/5/EC. Retell declares that your Retell 570 office meets the requirements of Class 1 of the R&TTE directive and so is designed as not to adversely affect the operation of the telecommunications network.

  • Page 100: Legality Of Recording

    CONSEQUENCES OF ANY SUCH LOSS If a defect occurs, the equipment should be returned prepaid to Retell. Retell cannot be held responsible for damage in transit for goods sent to them. We suggest sending goods by Recorded Delivery to prove receipt.

  • Page 101: Ce Sign

    Due to technical deviations in individual countries, we cannot grant an unlimited guarantee for the successful operation at all types of telephone accesses. Retell Ltd hereby declares that the device complies with all fundamental requirements of the European directive 1999/5/EC. This conformity is confirmed by the CE sign on the device.
  • Page 102 Appendix activated so if there is speaking eg Please Hang up, then the unit will keep on recording. You need to contact your telephone provider to get the hang up tone changed. No response in PABX. No call signal switched on. Check PABX programming.

  • Page 103: Delivery Status

    Appendix Delivery status The following list states the default settings for your Retell 570 office. You can change these default settings individually. You can return to the delivery status at any time by opening the service menu. Language English Network time...

  • Page 104: Technical Data

    Contact control Appointments 0000 Alarm dialer Mailboxes Technical data Dimensions (W x H x D) Retell 570 office 220 x 50 x 190 mm Mains plug 53 x 68 x 44 mm Weight Retell 570 office 540 g Mains plug...
  • Page 105 Appendix SMS inbox 20 short messages CLIP Call number display Dual mode DTMF / FSK Data retained after power failure > 10 years Time Network synchronous Display Graphics LCD 64 x 128 pixels, backlit "OUT" output level 150 mV / 10 kΩ "IN"...

  • Page 106: Index

    Index Index Absence manager ......27 Day/night switching ......68 Access code........85 Default status........95 Accessories ........97 Deleting all incoming messages ..24 Alarm by SMS........83 Deleting individual incoming Alarm dialer ........80 messages ........23 Alarm input ........14 Deleting OGMs .........19 Delivery status ........103 Answering mode ......
  • Page 107 Index Locking the device ......77 Receive telephone book....95 Recipient's call number ....53 Mailboxes ......... 85 Recording an outgoing message..17 Mains plug........13 Recording quality......90 Message center......48, 56 Recording threatening calls....72 Message code......41, 91 Redialling ..........92 Message forwarding......61 Remote access.........42 Message forwarding by SMS ...
  • Page 108 Index USB cable.........13 User elements........6 Technical Data........ 104 Using the mailboxes ......88 Telephone book ....... 31 Telephone connection cable..3, 13 Templates......... 48 Vocal Clip..........37 Text entry .......... 31 Time control........57 Transfer cables......... 13 Waiting period......61, 80 Troubleshooting ......101 Weekday ...........57 Unlocking device......

  • Page 109: Brief Operating Instructions

    Brief operating instructions Record an outgoing message Select OGM using Press and hold Start speaking. Release OGM. Select type of OGM selection button OGM. using selection button Checking OGMs Select OGM using Press OGM briefly. Adjust volume Press selection button selection button to delete.

  • Page 110: Operating Card For Remote Control

    Operating card for remote control...
