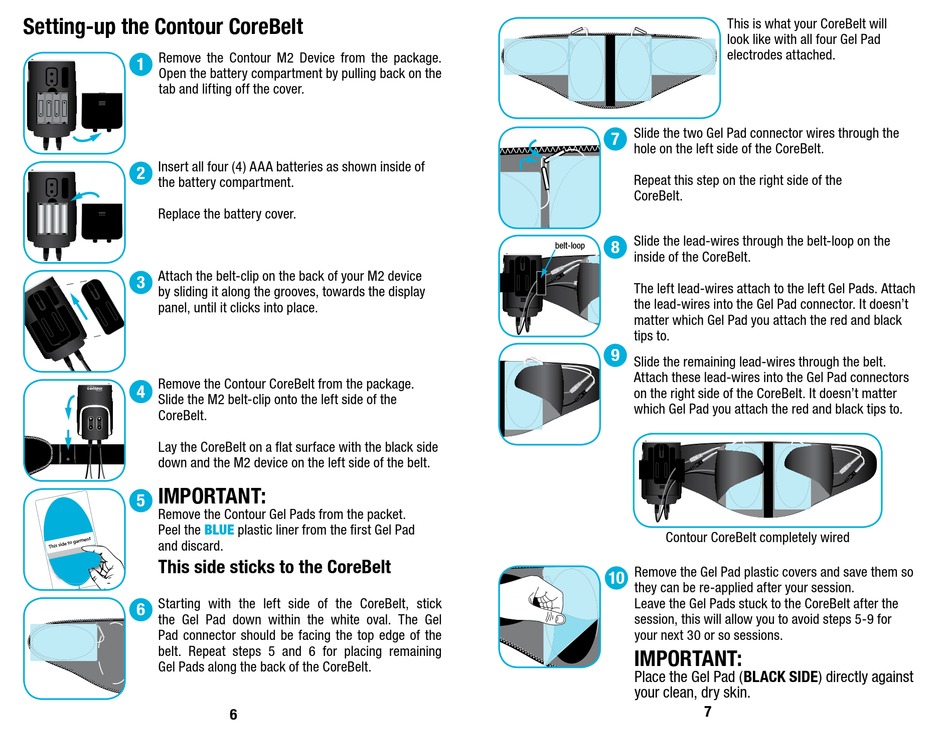

Setting-up the Contour CoreBelt

Remove the Contour M2 Device from the package.
1
Open the battery compartment by pulling back on the
tab and lifting off the cover.
Insert all four (4) AAA batteries as shown inside of
2
the battery compartment.
Replace the battery cover.
Attach the belt-clip on the back of your M2 device
3
by sliding it along the grooves, towards the display
panel, until it clicks into place.
Remove the Contour CoreBelt from the package.
4
Slide the M2 belt-clip onto the left side of the
CoreBelt.
+ +
+ +
+ +
+ +
- -
- -
- -
- -
Lay the CoreBelt on a flat surface with the black side
down and the M2 device on the left side of the belt.
IMPORTANT:
5
Remove the Contour Gel Pads from the packet.
Peel the
and discard.
This side sticks to the CoreBelt
+ +
- -
Starting with the left side of the CoreBelt, stick
6
the Gel Pad down within the white oval. The Gel
Pad connector should be facing the top edge of the
belt. Repeat steps 5 and 6 for placing remaining
Gel Pads along the back of the CoreBelt.
+ +
- -
+ +
- -
left side of the CoreBelt.
left side of the CoreBelt.
left side of the CoreBelt.
blue
plastic liner from the first Gel Pad
6
^
^
ABS ABS
ABS ABS
belt-loop
belt-loop
belt-loop
left side of the CoreBelt.
left side of the CoreBelt.
left side of the CoreBelt.
left side of the CoreBelt.
left side of the CoreBelt.
belt-loop
belt-loop
This is what your CoreBelt will
look like with all four Gel Pad
electrodes attached.
belt-loop
left side of the CoreBelt.
belt-loop
belt-loop
belt-loop
left side of the CoreBelt.
Slide the two Gel Pad connector wires through the
7
hole on the left side of the CoreBelt.
Repeat this step on the right side of the
CoreBelt.
belt-loop
Slide the lead-wires through the belt-loop on the
8
inside of the CoreBelt.
The left lead-wires attach to the left Gel Pads. Attach
the lead-wires into the Gel Pad connector. It doesn't
matter which Gel Pad you attach the red and black
tips to.
9
Slide the remaining lead-wires through the belt.
Attach these lead-wires into the Gel Pad connectors
on the right side of the CoreBelt. It doesn't matter
which Gel Pad you attach the red and black tips to.
Contour CoreBelt completely wired
Remove the Gel Pad plastic covers and save them so
10
they can be re-applied after your session.
Leave the Gel Pads stuck to the CoreBelt after the
session, this will allow you to avoid steps 5-9 for
your next 30 or so sessions.
IMPORTANT:
Place the Gel Pad (BlACK SIdE) directly against
your clean, dry skin.
7
