5.9
Using accessories and other options on your wheelchair

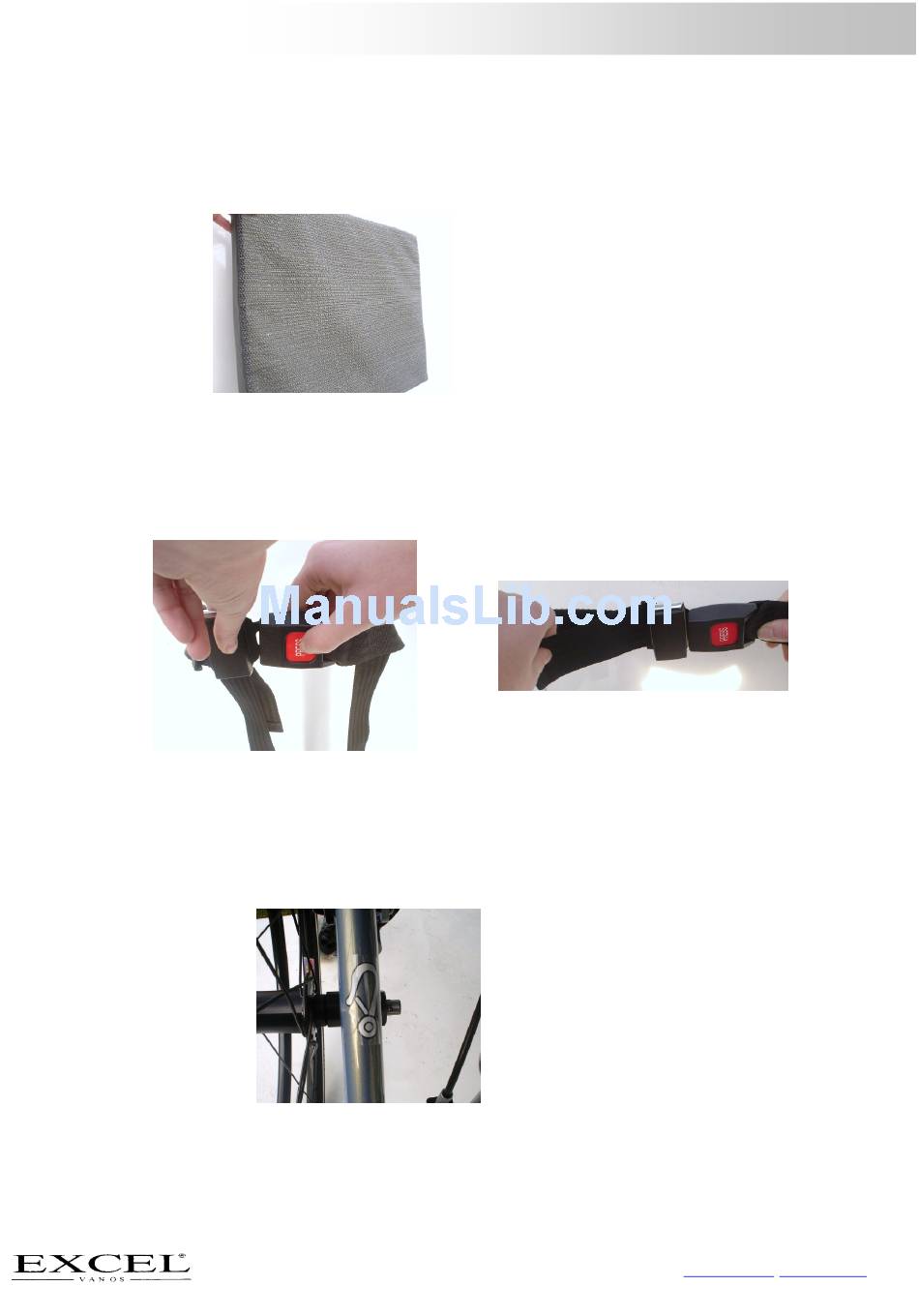

The seat cushion
Your wheelchair is equipped with a 5 cm thick, nylon seat cushion. This seat cushion is equipped with an anti-skid
layer, see figure 17. You need to place the seat cushion with the anti-slip side down on your wheelchair. When you
are going to sit in the wheelchair the seat cushion will not move.
Seat Belt (optional item)
Your wheelchair is equipped with a seat belt which you can use the following way:
-
When in the wheelchair, you can fasten the belt by clicking the two loose ends together, see figure 18;
-
If the belt too loose or too tight you can make it more secure or looser, see figure 19;
-
To release the seat belt, you press the red button with 'press' printed on.
Taxi Fixation Points
On your wheelchair, you will find taxi fixation indication points, see figure 20. You should be familiar with these
items before transporting your wheelchair in a car or on a mini bus. We advise you to make contact with the
carrier, your supplier and/or an approved manufacturer of taxi fixation systems for advice on an adequate system if
you want to transport your wheelchair
Figure 18
~ 17 ~
Figure 17
Figure 19
Figure 20
Tel. +44(0)1757 701177, Fax +44(0)1757 706011, E-mail: sales@vanosmedical.com,
Overall user manual
© 2009 VAN OS MEDICAL UK LTD.
www.vanosmedical.com
