5.8 Using the rear wheels (tire table) and anti-tip wheels

Removal of the rear wheel
You can remove the rear wheels using the quick release system in the following way:
- Stand next to the wheelchair;
- Tilt your wheelchair slightly so the wheel you wish to remove is slightly off the ground;

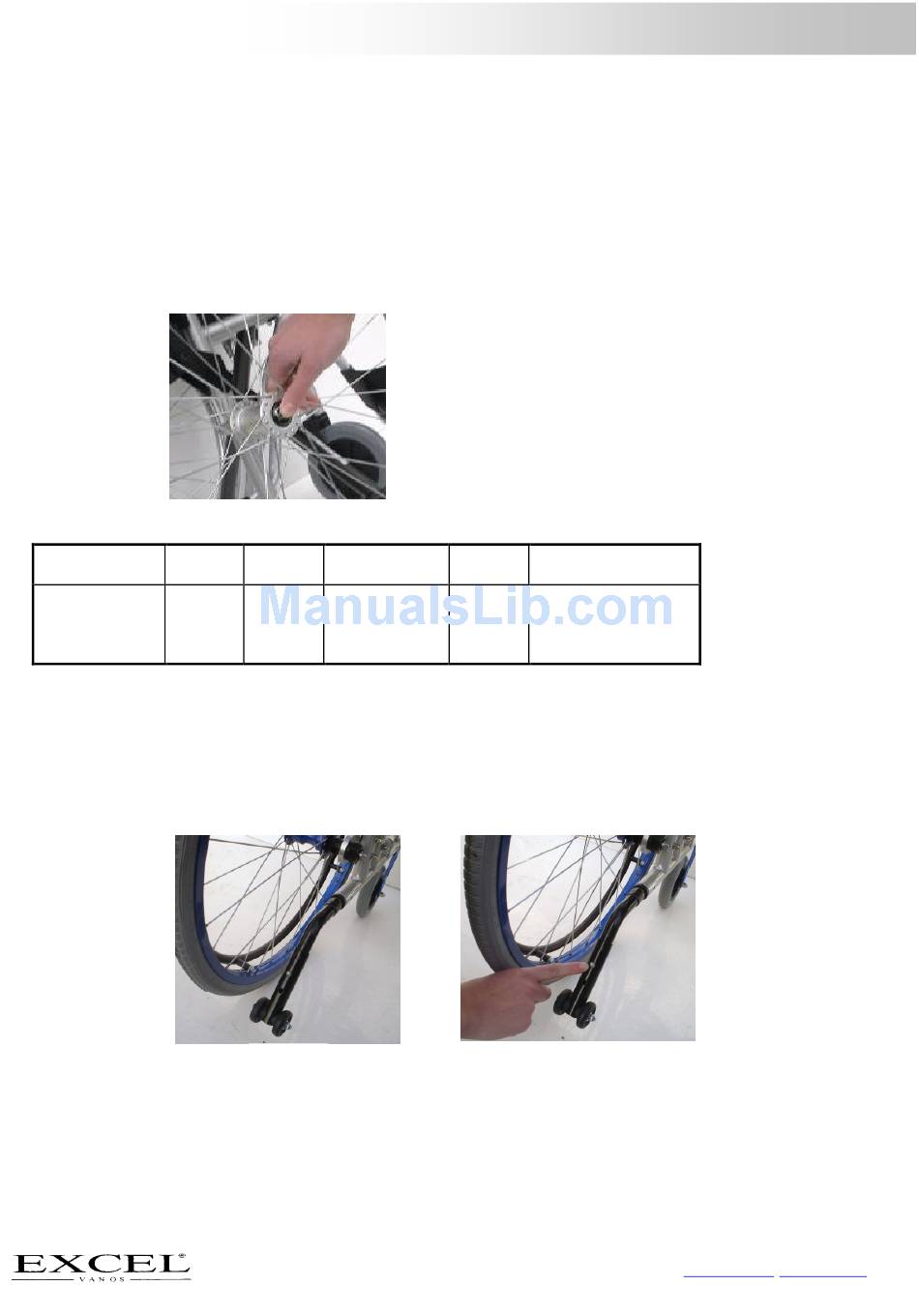

- Press the black button in the centre of the wheel (figure 14) and remove the axle and wheel from the
frame. Make sure the black button is completely pressed in otherwise the ball bearing safety system that
stops the wheel from being removed at the opposite side of the axle will do exactly that;
To put the rear wheel back in place you must reverse the above steps. In order to ensure your safety please make
sure the axle is fully in place and the ball bearing system is engaged so the wheel does not come loose during use.
Tire table
Type aanduiding Type
rolstoel
EXCEL® Zelfvoort
G6 'High Active' beweger
Using the anti-tip wheels (swing-away)
Go to the back of the wheelchair;
- When you get down to your knees you will see the operating system of the anti-tip wheels, see figure 15;
- Press the two silver buttons (figure 16) on the anti-tip wheel to slide anti-tippers in and out;
- When the anti-tip wheel touches the ground it is in the correct position;
- Make sure the anti-tip wheel is correctly in place;
- When you do not want to use the anti-tip wheel, push the silver buttons and turn the anti-tipper upside
down, see figure 46.
Figure 14
Bandmaat Maximale banden
voorwiel spanning voorwiel
6" X 1 ¼" 2,5 bar / 36 psi
4" x1"
Figure 15
~ 16 ~
Bandmaat Maximale bandenspanning
achterwiel achterwiel
24" x 1 7,5 bar / 110 psi
Figure 16
