INSTRUCTION MANUAL
4 Channel (POE)

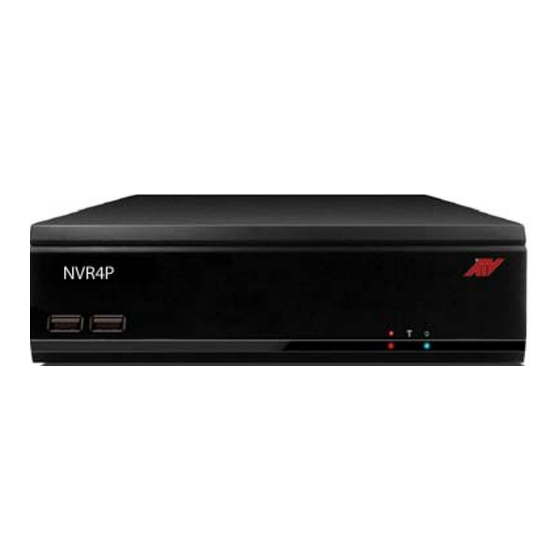

Network Video Recorder
Model : NVR4P

Please read this manual thoroughly before use, and keep it handy for future reference.

Advertisement

Table of Contents
loading

Related Manuals for ATV NVR4P

Summary of Contents for ATV NVR4P

  • Page 1 INSTRUCTION MANUAL 4 Channel (POE) Network Video Recorder Model : NVR4P    Please read this manual thoroughly before use, and keep it handy for future reference.
  • Page 2 WARNING TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS PROCUCT TO RAIN OR MOISTURE. DO NOT INSERT ANY METALLIC OBJECT THROUGH THE VENTILATION GRILLS OR OTHER OPENNINGS ON THE EQUIPMENT. CAUTION EXPLANATION OF GRAPHICAL SYMBOLS The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated "dangerous voltage"...
  • Page 3 FCC COMPLIANCE STATEMENT INFORMATION TO THE USER THIS EQUIPMENT HAS BEEN TESTED AND FOUND TO COMPLY WITH THE LIMITS FOR A CLASS A DIGITAL DEVICE, PURSUANT TO PART 15 OF THE FCC RULES. THESE LIMITS ARE DESIGNED TO PROVIDE REASONABLE PROTECTION AGAINST HARMFUL INTERFERENCE WHEN THE EQUIPMENT IS OPERATED IN A COMMERCIAL ENVIRONMENT.

  • Page 4: Important Safety Instructions

    IMPORTANT SAFETY INSTRUCTIONS 1. Read these instructions. 2. Keep these instructions. 3. Heed all warnings. 4. Follow all instructions. 5. Do not use this apparatus near water. 6. Clean only with dry cloth. 7. Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions.

  • Page 5: Table Of Contents

    Contents Chapter 1. Introduction ..........................9 1.1. Description............................9 1.2. Components ............................. 9 1.3. Key Features ............................ 9 1.4. Basic Security System Configuration ....................11 1.5. Front Panel View ..........................12 1.6. Rear Panel View..........................12 1.7. IR Remote Control.......................... 13 Chapter 2.
  • Page 6 3.4.3. Config ............................43 3.4.4. Log Information..........................44 3.4.5. Authorization Management......................44 3.4.5.1. Admin............................44 3.4.5.2. Group............................45 3.4.5.3. User ............................46 3.4.5.4. Setup ............................46 3.5. Network Setup ..........................46 3.5.1. Connection ..........................47 3.5.2. Port / Connection Test ......................... 49 3.5.3.
  • Page 7 5.3.2. Playback (P) and Trap Mode (Pause / FF/ REW / Frame Advance)........... 73 5.4. PTZ CONTROL ..........................74 Chapter 6. Protect Video/Audio File ...................... 77 6.1. Protect Registration ........................77 6.2. Playback and Remove Protected File .................... 77 6.3. Protected File Backup ........................78 Chapter 7.
  • Page 8 9.1.5.2. Port ............................95 9.1.5.3. ID & Password.......................... 96 9.1.5.4. DDNS ............................96 9.1.5.5. FTP File Transfer........................96 9.1.5.6. Email/SNS ..........................97 9.1.5.6.1 Email/SNS: SMTP ........................97 9.1.5.6.2. Email/SNS: Event ........................97 9.1.5.6.3. Email/SNS: Schedule ......................98 9.1.5.6.4. Email/SNS: Recipient ......................98 PRODUCT SPECIFICATIONS ......................

  • Page 9: Chapter 1. Introduction

    Chapter 1. Introduction 1.1. Description This manual applies to the 4 channel PoE network video recorder model NVR4P. The network video recorder supports up to 4 network cameras. The NVR can record high quality Full HD images onto the maximum capacity of hard disk drives.
  • Page 10 ► Multiple NVRs and multiple clients support for CMS application ► PTZ camera control by RS-485 and via network ► Independent color adjustment for each camera input and VGA output ► USB Mouse and IR remote control unit for user interface ►...

  • Page 11: Basic Security System Configuration

    1.4. Basic Security System Configuration Keyboard-Controller Alarm Out Sensor Inputs NO Devices NC/NO Devices scalable DC 30V 1A max TTL Level Input AC 125V 0.5A max Smartphone Power Switch Amplified Speaker VGA Monitor LOCAL NETWORK OR DC Power INTERNET Adapter HDMI Monitor Client Software Web Browser...

  • Page 12: Front Panel View

    1.5. Front Panel View ○ ○ ○ ○ USB 2.0 Port (x2): Connect USB mouse or USB memory device for file backup or firmware ○ upgrade. REC LED: Recording indicator. ○ IR REMOTE CONTROL SENSOR: Receives all incoming signals from the remote control ○...

  • Page 13: Ir Remote Control

    1.7. IR Remote Control 1. Audio: ON/ OFF function. 2. REC (Record): Start/stop manual recording. 3. Number Buttons: Select camera (channel) number. 4. ID SEL: Allows you to select ID setting. 5. ID: Displays current ID. 6. Info: It will display system information. 7.

  • Page 14: Chapter 2. Installation

    Chapter 2. Installation 2.1. HDD Installation Before Installation We recommend setting the current time on your NVR before HDD Installation. Please make sure that the power of NVR is switched off before starting installation. Step 1. Make sure the NVR power is switched OFF Step 2.

  • Page 15: Using A Dynamic Ip Address

    2.2.2. Using a Dynamic IP Address You can use a router with your Dynamic IP broadband modem. In this case, you should set the configuration of a router properly for network connection between NVR and Net/Web Viewer. Please follow the instructions in next section to configure your router correctly. Home/Office Network ...

  • Page 16: Dhcp & Ip Address Setting

    2.2.3.2. DHCP & IP Address Setting To assign a unique private IP address to your intranet environment automatically, you can enable DHCP option in the Network Setup menu of your NVR and your Router. In this case, you can skip the procedures described on this page.

  • Page 17: Starting The System

    STARTING THE SYSTEM When power is turned on, you will see the initializing screen and it may take up to one minute to complete. After initializing is complete, an Easy Setup screen will appear. EASY SETUP An Easy Setup screen of 5 steps will appear. If you don’t like to setup all at this point and like to skip the steps, please click the Exit button.
  • Page 18 [3/5] Connection Mode setup The user can set the Network and IP camera connection mode properly according to the network connection. ** For detailed information, please refer to the 3.5. Network Setup page of this manual [4/5] IP Camera Registration The user can check the IP camera listing and register the desired IP cameras automatically or manually by click the Auto/Manual button.
  • Page 19 [5/5] Schedule recording The user can set the schedule recording as continuous, event and both (continuous and event) by drag the desired date and time. After Easy Setup is completed or exited from Easy Setup menu, a live screen will appear. When the user does not log-in the system and click to any menu, it will prompt you to the login dialog.

  • Page 20: Live Menu Description

    Live Menu Description Screen Mode Can select how you would like to view screen PTZ control Can activate PTZ window to control the PTZ function. Zoom In Can zoom in for the desired area. Audio On/Off Option to have the audio on or off Freeze Can freeze Playback or Live scene Stop Alarm...

  • Page 21: System Information

    System Information When the user clicks the right click menu on the live screen and select Information menu, the system information will appear with overall system info. When there’s an exclamation , this indicates that the NVR has not been registered in our DDVRLS server Password will only show half of the registered password.

  • Page 22: Live Menu Navigating Using The Mouse

    Live Menu navigating using the mouse Navigating to the different channels by using the mouse. By using the mouse, move the mouse to the far right in the middle of the screen and an arrow button will appear on the screen to navigate to different channels. You can only navigate from one channel to another when viewing in a single screen/channel.

  • Page 23: Navigating To Different Channels By Using The Remote Control

    Navigating to different channels by using the remote control. To navigate from one channel to another channel, you must first select the channel and it must be on a single full screen view. By pressing the direction button on the remote control ▶, it will take you to the next channel in sequential order.

  • Page 24: Chapter 3. Main Menu Setup

    Chapter 3. Main Menu Setup Go to Main Menu Window using: • Remote control – Press MENU, Mouse – Right click and click Main MENU. To go to desired sub menu: • Use direction keys and press ENTER (remote control) or click on sub menu with the mouse. To go to the higher level menu: •...

  • Page 25: Video/Audio Setup

    3.1. Video/Audio Setup There are 5 sub menus under Video/Audio. To exit to main menu, press MENU key again (or right click on the mouse). 3.1.1. Camera In the Camera menu, you will be able to set up your camera to a desired setting. Click the Camera menu and it will route you to a Camera setup page 1) VIDEO: You may select the video ON, OFF, COVERT 1 or COVERT 2.

  • Page 26: Ip Camera Registration

    For desired IP camera use, you must first register the IP cameras in the IP Camera Registration menu. ** For ATV IP cameras, you do not need to register. It will automatically register. For Samsung, Axis and other brand IP cameras, you must perform these two tasks, time sync and then register.
  • Page 27 Camera search: - Quick search: the user can quickly search the IP cameras connected to the NVR. In this case, the user should enter each ID and Password for connecting camera. Check the “Quick” box to click the “Search” button. - Detail search: if the user selects the Detail search, it will take more search time comparing to quick search, however the system checks all IP...
  • Page 28 And then IP Camera Registration window will appear. Enter the camera ID and PW to click the TEST button to see if the connection is successful. If all the information is correct, you will see “SUCCESS” indicating that the camera is ready for operation. If the connection has failed, double check the information entered.

  • Page 29: Ip Camera Setup

    3.1.3. IP Camera Setup In this menu, you will be able to setup your IP camera to desired setting. By clicking the IP Camera Setup tab, you will have five (5) different settings to work with. -PROFILE -RESOLTUION -FPS -QUALITY -GOP (Group of Pictures) - Audio - KHz...
  • Page 30 FPS: To select desired FPS, click on the FPS bar and scroll down. Maximum FPS allowed is 30. The NVR does not support FPS 60. Quality: For desired quality setting, click on the bar next to Quality. Once the bar has been clicked, a virtual keyboard will appear in the middle of the screen.

  • Page 31: Monitor

    camera. Also, when it’s in ON position, the NVR will allow the user to use event recording. **If you would like to use MOTION recording, you MUST have the EVENT in ON position at all times. The NVR will automatically set the motion area (whole screen) but if the user wants to set their own motion area, they will need to set the area from the IP camera.

  • Page 32: Sequence / Event Display

    Resolution tap to scroll down bar and select the setting. To adjust the brightness/contrast/hue/color for monitor, click the “Monitor” button on the bottom left corner. 3.1.5. Sequence / Event Display The NVR can display each live video channel in full screen (or a group of channels) in sequence mode. Select the interval, Channel Setup and Duration.

  • Page 33: Osd / Display Position

    3.1.6. OSD / Display Position You can configure each parameter for on-screen-display using direction keys and ENTER button. To save and exit from this menu, press MENU. 1) Camera ID Mode [OFF/Title/Number] You can display a number or title of your camera on the screen. Select OFF not to display any. 2) Border Color [WHITE / BLACK] Select the color of border line on multiple channel display mode.

  • Page 34: Record Setup

    3.2. Record Setup With this menu, you can set all parameters (see the picture as below) related to recording for each camera independently. Use direction keys and ENTER button to select the camera (channel) and change the setup value. 3.2.1. Policy NVR can record a live video by manual, schedule, event (motion detection and/or external sensor) and by network user’s command.

  • Page 35: Recording Schedule Setup

    3.2.3. Recording Schedule Setup This menu allows you to create your own recording schedule and trigger type. To enable this feature, schedule recording feature at RECORD->POLICY->SCHEDULE menu must be turned “ON”. Using direction keys and ENTER button, choose preferred record types (such as Continuous, Event, Both (Cont&Evnt) on the selected time and date.

  • Page 36: Holiday

    3.2.4. Holiday You can set specific dates to Holidays according to your preferences. Holidays are applied to <Record Schedule> and < Alarm Schedule> as well. 1) Select Record in Main Menu and click Holiday. 2) A calendar for Holiday setup will appear. 3) By using your mouse or buttons, select year or month and.

  • Page 37: Record Option (Overwrite)

    3.2.6. Record Option (Overwrite) You can enable/disable HDD overwriting feature and set warning method when HDD is full and overwriting is disabled. 1) HDD Overwrite Mode [ON / OFF] If you select “ON”, NVR will delete the old recorded files (from the oldest file) and will record the new video file when the HDD is full.

  • Page 38: Storage

    3.3.1. Storage HDD: HDD size and percentage used will be shown. HDD: 2nd HDD size and percentage used will be shown (if installed). You can have up to 2 internal HDDs. Flash: If the flash capacity exceeds 2TB or more, it will appear as INVALID USB DEVICE. A pop-up window will appear with a message stating: Does not support USB devices that...

  • Page 39: Sensor / Video Loss Detection Setup

    If the USB device exceeds 2TB capacity, it will not allow you to select the check box to format HDD Info: HDD will use the S.M.A.R.T function to display HDD status. If there are many bad blocks, compromised therefore you may need to change the HDD. 3.3.2.

  • Page 40: Alarm Schedule

    3) Cam: means the camera channel which the sensor is synchronized (connected) with when the alarm is triggered. Once the camera is selected, “Cam channel and Preset Setup” window will appear. Select a channel and setup the preset number. (ex, PTZ functional camera).

  • Page 41: Ptz

    3.3.4. PTZ NVR supports Pan, Tilt, Zoom and Focus control for PTZ cameras. The NVR supports most industrial common protocols. Once the IP PTZ camera is connected, the system scans the PTZ camera to register to them automatically. 1) ID: You can select an ID number (0-255) for each PTZ camera.

  • Page 42: Video Analysis

    1) Mode ON: Video Analysis will be activated. Mode OFF: Video Analysis will be deactivated. 2) Protocol: Select device/Protocol. (currently only have ATV / Hitron). Once the Video Analysis is set and complete, you will be able to view events if an action has taken place.

  • Page 43: Language / Signal / Device Name

    1) Auto Time Set: Time Sync. By using Time Server. The default of Auto Time Sync. Is time1.google.com. For using the Auto time sync, the NVR should be connected to the internet. 2) Date: Sets the date that will appear on the screen. You can select the date format. 2) Time: Sets the time and its format that will appear on the Screen.

  • Page 44: Log Information

    file from other NVR(s) and clone the configuration from other NVR(s). 4) Reset: You can restore all configurations including the IP camera and network settings to factory default values by check-marking “Include Network Settings (IP Camera)” in the box. (Except current time) 3.4.4.

  • Page 45: Group

    3.4.5.2. Group 1) If you select Group Menu, window for Add, Delete, Rename and Group Authority setup appears. 2) Click to a desired item and set the value. - Add, Delete, Rename: You can add, delete, rename a group or modify permissions given to the group.

  • Page 46: User

    3.4.5.3. User ! Users can be added only if a Group has already been established. 1) When selecting “Add” from the window, a window for “Add User” will appear. You can configure the Network Viewer setting including Name, ID, Select Group and Password (include Confirm PW). Result of the user setup appears in the User window.

  • Page 47: Connection

    You should complete your network setup to control and manage the NVR through the internet or local network just like you are next to the NVR. 3.5.1. Connection LAN Port: There are two selections in LAN port, Network and IP camera. * You can set the network connection route and protocol.
  • Page 48 At this stage, make the local PC’s windows network configurations to the below example: ‐ EX.) IP:192.168.1.2 Subnet Mask: 255.255.255.0 Gateway: 192.168.1.1 Once connected to the IP router, it prompts with password. While entering nothing to the User ‐ Name field, enter, “admin” into the password field and press <OK> to access the router configuration Access the router’s DHCP configuration menu and its DHCP server activation and provide the ‐...

  • Page 49: Port / Connection Test

    3.5.2. Port / Connection Test 1) Port (TCP): Initially, 9350-9351 is set. It can increase/decrease by TCP: It has better stability and lower speed when compared to UDP and recommended for internet environments. 2) WebViewer Port: Enter the port number for the Web Viewer. Initially, it is set to 80. It can increase/decrease as well.

  • Page 50: Ddvrls Registration

    3.5.3.1. DDVRLS Registration DDVRLS Register: To use the manufacturer’s Net-Viewer service the NVR must be registered to the manufacturer’s DDVRLS server. By registering the NVR with this service it will allow connection to the NVR via the secure h264viewer.com web site. From this web site the primary and secondary stream from the NVR can be selected to be decoded and viewed.

  • Page 51: Setup/Registration

    3.5.4.1. Setup/Registration Dashboard Setup by New Account: For Dashboard setup, you’ll first need to enter important information and register. Scroll down and select New Account. Once you have selected the New Account, you’ll need to enter your ID and Password. To enter your ID and Password, use the virtual keyboard that’s provided.

  • Page 52: Dashboard Starting

    3.5.4.2. Dashboard Starting To start your Dashboard, you will need to type in: http://h264viewer.com/dashbord in the browser address bar. After entering , click the enter button and Welcome To Dashboard page will appear. To gain access, enter your Username and Password. Your username/ID and Password will be same as the one that you entered when you first registered on Dashboard Setup page.

  • Page 53: Dvr/Nvr Search

    3.5.4.4. DVR/NVR Search In your Dashboard, type in the Network ID of your desired NVR and it directly connect to your NVR’s webpage. Network ID: Once you have entered the Network ID for desired NVR, click the GO button. After clicking the GO button, it will route you to the web page login.

  • Page 54: Ddns

    To access your Web Viewer for Live monitoring and Playback, you will need to enter your ID and Password 3.5.5. DDNS You can set the DDNS site for a remote user’s network connection 1) A virtual keyboard will appear for user input. 2) Once the DDNS setup is complete, click OK.

  • Page 55: Nat Traversal

    DDNS Setting: DDNS is a short form of Dynamic Domain Naming Systems. DNS (Domain Name System) is a service that routes a Domain name consisting of user friendly characters to an IP consisting of numbers (64.233.189.104). DDNS (Dynamic DNS) is a service that registers a domain name and the floating IP address with the DDNS server so that the domain name can be routed to the IP address even if the IP is changed in a dynamic IP system.

  • Page 56: Ftp File Transfer

    3.5.7. FTP File Transfer This menu allows the user to transfer the FTP file to a specific server when event is triggered. For the detail information, please refer to the description by click the Help button. The Help description is as follows; FTP Server IP Address/URL –...

  • Page 57: Email /Sns: Smtp

    3.5.8.1. Email /SNS: SMTP SMTP mail server: 1) Server Type: Displays the connected server type. 2) Server: Enters a server to connect to. 3) Port: Sets the communication port. 4) User Authentication: Click the check box next to User Authentication if the SMTP server requires user authentication.

  • Page 58: Email /Sns: Recipient

    3.5.8.4 Email /SNS: Recipient You can add recipients to the email/SNS service. You can add up 100 recipients maximum. Click on the ADD button and an Add Recipient window will appear. Select Type, Email or Twitter. If email is selected, proceed to Name and Email. By using the virtual keyboard, enter name and email information and click OK If Twitter is selected, you will need to type in the Email by using the virtual keyboard and click the SEND button.

  • Page 59: Backup Setup

    3.6. Backup Setup You can check the backup device and set the backup schedule by channel or by time. You can only backup your data with either a USB Drive or external CD/DVD Writer. 1) Backup Range: Sets the Start and End time for the backup. 2) Overlap: Shows a list of overlapping data on a same time according to the number data.

  • Page 60: Chapter 4: Search Menu

    CHAPTER 4: Search Menu To use search menu, the user may right-click mouse on the live screen to select Search Menu or click the Search icon on the launcher. 4.1. Time Search There are 6 options to choose from to retrieve recorded data. You can choose to search one at a time, multiple at a time or by all.

  • Page 61: Event Search

    You can search for recorded data of a desired time. 1) Select a date to search. 2) Recorded data on that date and time will be listed. The display bar is different according to the data type so check the data type for the color in the left pane. 3) Using mouse, drag the time bar to the desired search criteria and select the desired channels.

  • Page 62: Protect

    4.3. Protect How to retrieve Protected files: Any recorded files (video/audio) you set as protected will be stored under this list and will no longer be available by regular CALENDAR/TIME search. You can search, playback, backup, remove files using this menu. Click SEARCH ->...

  • Page 63: Pos/Atm Device

    4.5. POS/ATM Device You can search for data in the POS device that is connected to the NVR. 1) Click Search -> POS/ATM to set the search criteria. You can enter specific text to refine your ‐ search. 2) Keyword: Use the virtual keyboard to enter a keyword.

  • Page 64: Chapter 5. General Operation

    CHAPTER 5. General Operation 5.1. General Menu To navigate by using your mouse, right click your mouse anywhere on the screen and you will be given options to choose from. 1) Screen Mode 2) Audio On/Off 3) Freeze 4) Stop Alarm 5) Record Start/Stop 6) Play 7) Search...

  • Page 65: General Menu: Screen Mode

    5.1 .1 .General Menu: Screen Mode When selecting Scene Mode, you will be given three (3) options: 4-Slpit, PIP and Auto. Auto Sequence If you activate Auto Display Mode (Sequence Display Mode), live channels (cameras) will be displayed on the monitor screen in accordance with your sequence setup.

  • Page 66: General Menu: Audio Off

    5.1.2. General Menu: Audio OFF You can turn the sound on/off corresponding to the channel in Live Mode. 5.1.3. General Menu: Zoom In Select Zoom-in and click the selected portion (as yellow colored) to enlarge. You can use the direction keys or the mouse to enlarge desired area.

  • Page 67: General Menu: Freeze

    5.1.4. General Menu: Freeze This is only available in Live Mode and will temporarily pause Live feeds. 5.1.5. General Menu: Stop Alarm Stops the alarm output and the event monitoring. 5.1.6. General Menu: Record Start/Stop Will start and stop Manual recording. However, if the schedule or event recording is set, even the user clicks the Record Stop menu, it will not be applied to the Schedule recording or Event...

  • Page 68: General Menu: Play

    5.1.7. General Menu: Play You can playback data stored in the HDD. Also you can playback with quick play for 30sec ~ 10min, which is very critical time search. 5.1.8. General Menu: Search You can perform search for recorded data by Time, Event, Protect, Capture, POS/ATM and Video Analysis.

  • Page 69: General Menu: Main Menu

    5.1.10. General Menu: Main Menu By clicking the Main Menu on the General Menu, it will direct you to the Main Menu. 5.1.11. General Menu: Information This menu will display overall system information. 5.1.12. General Menu: IP Cam INFO This menu will display your IP camera information. ! For full IP camera information, please refer to your IP Camera Setup in the Main Menu under Video Audio.

  • Page 70: General Menu: Easy Setup

    5.1.13. General Menu: Easy Setup This menu will allow you to set your NVR with 10 easy steps. 5.1.14. General Menu: Shut Down This menu will allow you to completely shut down your NVR unit. When the user clicks this menu, a warning message window will appear to confirm the user to proceed.

  • Page 71: General Menu: Logout

    5.1.16. General Menu: Logout This menu allows you to logout by clicking the Logout button. A logout window will appear to confirm you to logout. 5.2. Live Launcher The Live Launcher menu appears at the bottom of the live screen. Some of the menu buttons will appear in the Live Launcher, General Menu and Playback Launcher for the convenience of not having to go back and forth to navigate to the desired action.

  • Page 72: Live Launcher Control Button Description

    5.2.1. Live Launcher Control Button Description ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ Scene Mode Zoom In Printer ○ ○ ○ Resume Play Capture Freeze ○ ○ ○ Record Audio Alarm Off ○ ○ ○ Search Backup ○...

  • Page 73: Play Launcher Control Button Description

    5.3.1. Play Launcher Control Button Description ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ Playbar: Displays the time of recorded Playback control button: Allows user to data in the selected channel for the past ○ ○ control playback of desired function. 24 hours Playback display mode: Allows user to Capture: You can capture video image...

  • Page 74: Ptz Control

    5.4. PTZ CONTROL The NVR enables you to adjust the settings of a PTZ camera as well as an ordinary one according to your preference. The PTZ device can be activated only if a channel in connection with the PTZ camera is selected.
  • Page 75 7) Scan: The camera moves to the preset points in the specified sequence. If multiple presets are specified, the PTZ camera will automatically move to all of the preset points sequentially. (some PTZ model may not support this function) 8) Pattern: Makes the PTZ camera remember and follow the past route. (some PTZ model may not support this function) 9) <Setup-Preset>...
  • Page 76 TOUR SETTING Firstly select the Tour menu and click Setup-Preset button , the Tour setting window will appear. Tour Number: you can set 1 ~ 8. Dwell Time: Dwell time of one Preset. (0 ~ 99 sec). Tour program setting: max. 50 tour set per tour number can be set.

  • Page 77: Chapter 6. Protect Video/Audio File

    Chapter 6. Protect Video/Audio File 6.1. Protect Registration You can protect important recorded files from HDD overwriting. Register important files to protect list. How to protect important files from HDD overwriting? During the playback of recorded file, you can transfer current retrieving file to PROTECT LIST. This file will not be erased while it is under PROTECT LIST, which is a safe space on your HDD.

  • Page 78: Protected File Backup

    6.3. Protected File Backup Protected files are very important and are valuable evidences for any incidents. You can make a copy of protected files on to USB memory same as the ordinary backup function of your NVR. How to backup protected files? Go to PROTECT LIST menu.

  • Page 79: Chapter 7. Capture Video Still Image

    Chapter 7. Capture Video Still Image 7.1. Still Image Capture You can capture and save up to 100 still images and retrieve, delete, or back them up easily. You can capture videos instantly using a mouse or remote control. How to capture video images? During playback mode (including FF, REW and Pause) or live display, you can capture current video image using a mouse or remote control.

  • Page 80: Remove Captured Image

    7.3. Remove Captured Image You can save up to 100 captured images into our HDD. You should erase some saved images to save new captured images. How to remove captured image files? IMPORTANT: If there are 100 captured images in your HDD and you try to capture new video images, the oldest image will be erased automatically to save new images.

  • Page 81: Chapter 8. Web Viewer - Connection Via Internet Explorer

    Chapter 8. Web Viewer – Connection via Internet Explorer 8.1. System Requirement - Pentium 4 or above recommended - O/S: Microsoft Windows XP, Vista, Windows 7 - 2GB RAM or above recommended - Super VGA 512M or above (1GB recommended) - 10/100 Base T network card for LAN operation 8.1.1.

  • Page 82: General Web Viewer Operation

    2. Security Warning will ask you if you accept to run the application. Click on the box indicating that you accept the risk and want to run this application and click the RUN button. 8.2.2. General Web Viewer Operation When you connect to your NVR, you will see a screen as below. Connect/Disconnect Button: Connect to NVR which is designated in Login pop-up window.

  • Page 83: Calendar And Time Search Button

    8.2.3. Calendar and Time Search Button: You can search data from Calendar Search or by Time Search. Click on the Search button at the menu bar. Once you have clicked the Search button, a Calendar Search will appear. The dates that are marked in red color indicates that there are data on that date.

  • Page 84: Ptz Control

    8.2.4. PTZ Control You will be able to control your PTZ camera that’s connected to your NVR. Keep in mind that PTZ control function can only be performed in LIVE mode. First select a specific channel to control the PTZ camera, then simply click on the PTZ icon/button on the menu bar.

  • Page 85: Chapter 9. Web Viewer - Setup/Web Configuration

    Chapter 9. Web Viewer – Setup/Web Configuration 9.1. Web Configuration You can remotely control and manage the NVR from your Internet. We strongly recommend not using this function in normal operation. If you change the configuration of the NVR to a wrong value, the NVR may not work properly and can cause unexpected problems.

  • Page 86: Ip Camera Registration

    9.1.1.2. IP Camera Registration You may register/add IP Cameras. Simply by clicking the ADD button, it will automatically add the IP Camera. ** For detailed information, please refer to the Main Menu under Video/Audio 9.1.1.3. IP Camera Setup You will be able to setup your IP camera and select from six different setup menus.

  • Page 87: Monitor

    9.1.1.4. Monitor You may adjust the resolution of main video output. ** For detailed information, please refer to the Main Menu under Video/Audio 9.1.1.5. Sequence/Event Display The NVR can display each live video channel in full screen (or a group of channels) in sequence mode.

  • Page 88: Record

    9.1.2. RECORD You can set all parameters related to recording for each camera independently. 9.1.2.1. Policy NVR can record a live video by manual, schedule, event (motion detection and/or external sensor) and by network user’s command. You can set the recording policy for each camera independently. ** For detailed information, please refer to the Main Menu under Record 9.1.2.2.

  • Page 89: Holiday

    ** For detailed information, please refer to the Main Menu under Record 9.1.2.4. Holiday You can set specific dates to Holidays according to your preferences. Holidays are applied to <Record Schedule> and < Alarm Schedule> as well. ** For detailed information, please refer to the Main Menu under Record.

  • Page 90: Device

    9.1.3. Device You can configure the peripherals in your NVR such as PTZ control and printer 9.1.3.1. Sensor Detection Select the right type of your external sensors connected to the NVR. There are two different types of sensors, (N.O. - Normal Open and N.C. - Normal Close).

  • Page 91: Ptz

    9.1.3.4. PTZ NVR supports PAN, TILT, ZOOM and FOCUS control for PTZF cameras or servers. It has RS485 port to connect to PTZ camera and supports most industrial common protocols. ** For detailed information, please refer to the Main Menu under Device 9.1.3.5.

  • Page 92: System

    9.1.4. System The menu will help you to configure DVR for basic operation. 9.1.4.1. Date/Time You can set up the current date and time manually. ** For detailed information, please refer to the Main Menu under System 9.1.4.2. Time Synchronization Setup Auto Time Set (Time Sync.): By clicking the Time Sync.

  • Page 93: Config

    9.1.4.4. Config This menu allows the user to reboot the NVR system remotely. For NVR rebooting, it will take about 2 minutes. 9.1.4.4. System Information This menu will display overall system information 9.1.4.5. Authorization Management You can set permissions of each user over the NVR’s specific function and settings.

  • Page 94: Authorization Management: Admin

    9.1.4.5.1. Authorization Management: Admin 1) Under Permission Management Admin, you can change Admin ID and Password. By clicking on the ID, a virtual keyboard will appear to type in ID. This also applies to Password and Confirm PW. Once you have entered your ID and PW, click OK.

  • Page 95: Authorization Management: Setup

    9.1.4.4.4. Authorization Management: Setup You can set restricted access for all general users. Items with restrictions will require logging in for use ** For detailed information, please refer to the Main Menu under System 9.1.5. Network With this menu, you can setup the network for NVR. Before starting this setup, the NVR must be connected to the router by LAN cable.

  • Page 96: Id & Password

    9.1.5.3. ID & Password You can set the network ID and Password for DDVRLS access, and for Dashboard connection. ** For detailed information, please refer to the Main Menu under Network 9.1.5.4. DDNS You can set the DDNS site for a remote user’s network connection.

  • Page 97: Email/Sns

    9.1.5.6. Email/SNS Receive event notifications by either Email or SNS (Social Networking Service) ** For detailed information, please refer to the Main Menu under Network 9.1.5.6.1 Email/SNS: SMTP You can send e-mail to a registered NVR user at a specific time interval or if an event occurs. ** For detailed information, please refer to the Main Menu under Network 9.1.5.6.2.

  • Page 98: Email/Sns: Schedule

    9.1.5.6.3. Email/SNS: Schedule Schedule menu will allow one to set schedule to receive notification. You may choose email, SNS or both (Email & SNS). Each notification will have different color association. You may select specific channel for notification or simply click Apply to All CH tab.

  • Page 99: Product Specifications

    PRODUCT SPECIFICATIONS CATEGORY 4 CH (NVR4P) Input 4 x RJ45 camera input port, 1 x IP CAM Port Embedded PoE Switch IEEE 802.3at Camera Resolution VGA/D1/720p/960p/1080p/1536p Input ONVIF Support Specification 2.3 HD Video Output VGA, HDMI Main Video Resolution Up to 1920x1080p...
  • Page 100 CATEGORY 4 CH (NVR4P) Event Log & Pre-Alarm System/Event Log management, Pre-recording for Record Motion/Sensor Auto Deletion Setup Recording Duration Per Channel Languages 3 Languages Support Power Supply DV 48V / 2.5A Power Consumption Max. 120W Operating Temperature 0°C ~ +45°C (+32°F ~ +113°F)

  • Page 101: Installing System Keyboard With Standalone Nvr Series

    INSTALLING SYSTEM KEYBOARD WITH STANDALONE NVR SERIES When user wants to connect with NVR, proceed as the following order. 1. Connect RS232 cable between RS-232 Port of NVR and RS232 of the Keyboard. (This connection enables NVR control remotely from KBD controller) 2.
  • Page 102 KBD controller Keys for NVR [DVR1] Function Key Label Descriptions Id Selection DVR ID Selection. (e.g.:1 or 2 + DVR). Enter the Quick Setup screen. You will need to enter the administrator password to access the Quick Setup. MENU Pressing the button also closes the current menu or MACRO setup dialog box.
  • Page 103 The Shuttle Ring operates in the Playback mode only. Shuttle Turning the ring clockwise plays video forward. Turning the ring counterclockwise plays video backward. The Jog Dial operates only when playback video has been paused. By turning the jog dial clockwise, you can play video forward image-by-image.

  • Page 104: Pos Configuration

    KBD Controller Keys in USB (DVR/NVR-LIVE) Function Key Label Descriptions Macro Enter the Quick Setup screen. You will need to enter the administrator password to access the Quick Setup. Menu Pressing the button also closes the current menu or setup dialog box.
  • Page 105 Typical Configuration using AVE interface device for multi-POS Black: Video from the camera goes to the NVR. Red: Data from each VSI-PRO-MAX is daisy chained to a master VSI-PRO-MAX or Hydra, this data is then consolidated and transmitted to a compatible NVR in an addressable format. Optional: The optional EX function gives you 2 hard alarm outputs to trigger alarming VCR’s, Quads, or other alarming devices for Exception reporting allowing easy review of exceptional sales, or Instant reviewing on NVR’s.
  • Page 106 VSI-Pro Max Networking The VSI-Pro Max as a slave allows the connection of multiple cash register terminals to a master unit for the purpose of transaction logging. You can connect the NVR with POS or Keyboard through the RS232. With POS systems, the NVR can communicate through RS232 and network.

  • Page 107: Atm Configuration

    ATM Configuration Typical configuration with AVE interface device This is a basic system drawing for the ATM to video interface using AVE device.
  • Page 108 POS/ATM Setup Right click on the live screen to select Main Menu > Device menu > POS/ATM Device section. For point to point connection, click the check box of POS/ATM USE at the bottom and select VSI-Pro (ASCII). “All POS/ATM data will be lost” message will appear to ask if you wish to continue. Click OK. For multi-POS/ATM connection, select the VSI-Pro Max(VSI-ADD).
  • Page 109 POS/ATM Data Search Right click on the live screen to select Search > POS/ATM and enter POS/ATM Search. Select the desired date and time and click Search button. Text recording data list will appear along with thumbnail image. Click the desired number and click Play button.

  • Page 110: Network Troubleshooting

    NETWORK TROUBLESHOOTING You must set your network environment properly to use remote control software (Net Viewer or Web Viewer). 1.Ping Test through your Router Ping is a command-line tool used to check whether another computer is reachable from your own. You can use the command either from the Windows Command Prompt or from a Linux terminal.
  • Page 111 Set IP address, Subnet mask, and Gateway address of your PC - Open Network Connections - Select Properties of Local Area Connection - Select Internet Protocol (TCP/IP) - Select Properties - Click on Use the following IP address - Type in Subnet mask and Gateway address of NVR into these fields.

  • Page 112: Terms / Icons Glossary

    TERMS / ICONS GLOSSARY Composite Video - A format of an analog television (picture only) signal before it is combined with a sound signal. DHCP - Dynamic Host Configuration Protocol. A network application protocol used by devices to obtain configuration into for operation in an internet protocol network. Also a source of IP addresses. DSL - Internet connection that can be used at the same time and on the same telephone line with a regular telephone.

  • Page 113: Nvr Icon Reference

    NVR Icon Reference REGULAR RECORDING Icon PTZ SET - Icon indicates PTZ function indicates manual recording is set is available SCHEDULE RECORDING Icon PTZ- Icon indicates that PTZ function indicates recording is set to record has been activated according to schedule EVENT RECORDING Icon indicates SENSOR EVENT (ALARM IN)-Icon that...
  • Page 114 4 Channel (PoE) Network Video Recorder...

This manual is also suitable for:

Nvr8pNvr16p

Table of Contents
