- Page 1 D-BOX ® Dangerous Music’s Greatest Hits U S E R G U I D E...
- Page 2 Dangerous Music Incorporated reserves the right to change the specifications or modify the designs of its equipment. Sending in the registration card is our way of keeping in touch with users of our equipment should this become necessary. Registration information is always kept confidential and never disclosed to third parties for any reason.
-
Page 3: Thank You
This is made possible through careful design, construction, and component choices by recording industry veterans. The Dangerous Music D-Box is designed to improve your quality of life by allowing you to hear on a different level. There are many features packed into this product, so don’t skip the read. -
Page 4: Table Of Contents
| DANGEROUS MUSIC TABLE OF CONTENTS Overview D-BOX Front Panel Features & Benefits D-BOX Rear Panel Features, Benefits & Connection Connection Scenarios Appendix Specifications Warranty... -
Page 5: Overview

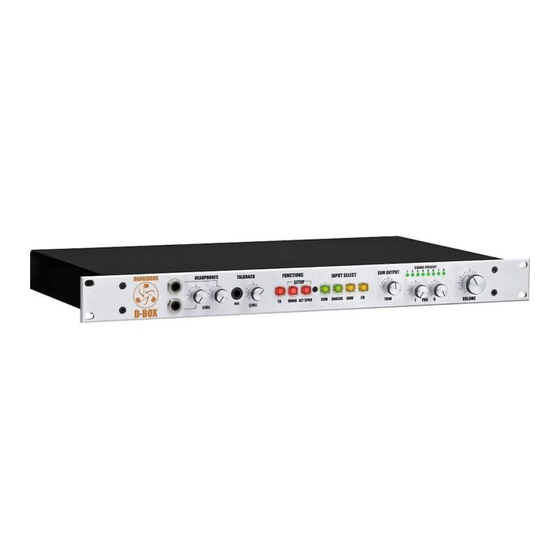

OVERVIEW The D-Box is Dangerous Music’s Greatest Hits Box. In other words, it incorporates some of the finest features and functionality from other products in the line with ZERO audio compromise. Analog summing, headphone amplification, speaker selection, talkback and monitoring functions are all neatly tucked away into this powerful single rack space. -
Page 6: D-Box Front Panel Features & Benefits
(3) allows the engineer to switch between two sets of monitors. alt spkr Benefit: Every studio should have at least two points of reference. Not all switchers are equal! The D-Box achieves this noiselessly, without drop outs or phase shift. Remember... every decision you make while tracking and mixing is affected by your monitor management system. - Page 7 . To exit press input selection mode analog input gain setup mode one of the flashing switches. The D-Box is now reset and any and/or mode input selection mode analog input gain changes will be saved. Sum Switch: To monitor from up to three sources simultaneously (instead of the default single source), enter...
- Page 8 For example, assign both the bass and vocal track to a mono output in the computer software. Now patch their signals into your favorite outboard gear like a BAX EQ and then on into the D-Box’s sum inputs 7 and 8. Pan these up the center and you’re summing with analog outboard.
-
Page 9: D-Box Rear Panel Features, Benefits & Connection
Tip: Utilize a TRS balanced 1/4” plug for this jack. Closing the ring to the tip activates the Talkback function of D-Box. Ask for a “normally open, momentary footswitch” at your local audio dealer. 10. ANALOG INPuT Feature: The provides an alternative analog input source. - Page 10 Feature: These jacks allow connection with two pairs of studio monitors. Benefit: Every studio should have at least two points of reference. Not all switchers are equal! The D-Box achieves this noiselessly, without dropouts or phase shift. Remember... every decision you make while tracking and mixing is affected by your monitor management system.
-
Page 11: Connection Scenarios
D-BOX |... - Page 12 10 | DANGEROUS MUSIC...
- Page 13 D-BOX | 11...
- Page 14 12 | DANGEROUS MUSIC...
- Page 15 D-BOX | 13...
- Page 16 14 | DANGEROUS MUSIC...
- Page 17 D-BOX | 15...
-
Page 18: Appendix
16 | DANGEROUS MUSIC APPENDIX ANALOG 8 CHANNEL DB25 (TASCAM PROTOCOL) H = HOT C = COLD G = GROUND PIN OUT WIRING FOR DB25 CONNECTOR... - Page 19 D-BOX | 17 APPENDIX CONTINUED... EXTERNAL TALKBACK KEY WIRING PIN OUT AES TO S/PDIF WIRING DIAGRAM...
-
Page 20: Specifications
18 | DANGEROUS MUSIC SPECIFICATIONS SuMMING SECTION Frequency Response 1Hz-100kHz within 0.1dB THD+N < 0.003% IMD < 0.0035% Crosstalk < -97dB Noise < -89dBu total energy in audio band Maximum Input +27dBu MONITOR SECTION Frequency Response 1Hz-100kHz within 0.1dB THD+N < 0.002% IMD <... -
Page 21: Warranty
