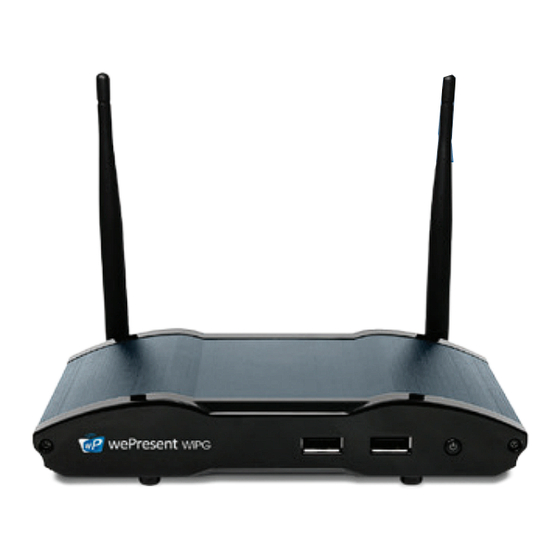

WePresent WiPG-2000 User Manual

Hide thumbs Also See for WiPG-2000:
Table of Contents

Advertisement

Quick Links

For more information
P)0$.) 0 /$1 ' <)0 . &+1) ' $
www.wePresentWiFi.com
!! ! "!#$ % #&#'() * +* " , - .
wePresent WiPG-2000
US, Canada, South America:
Europe, UK, Middle East:
+1 214 935 2416
+31 (0)10 2293495
WiPG-2000 User's Manual
South Africa:
+27 (0) 21 871 1545
(Model Name: WiPG-2000)
DATE: FEBRUARY 1, 2013
Asia Pacific:
-H1&$D&21<12
3
+886 2 2227 0099
4AA;$6$666=$??88
VERSION: 0.3
© WP Technologies, Inc. 2015
WP1000-Manual
