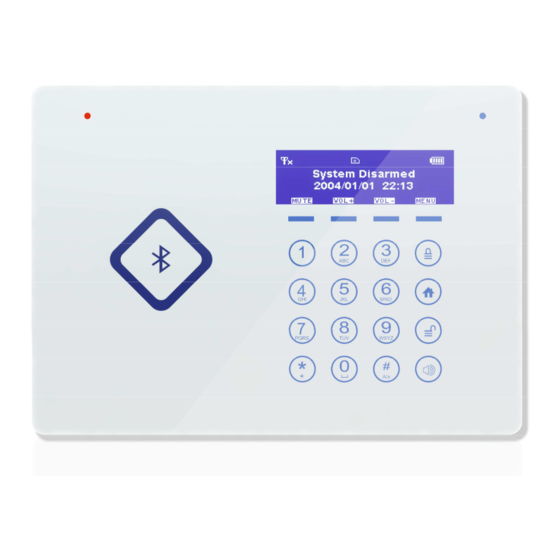

DyGSM G66A User Manual

Home alarm system
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

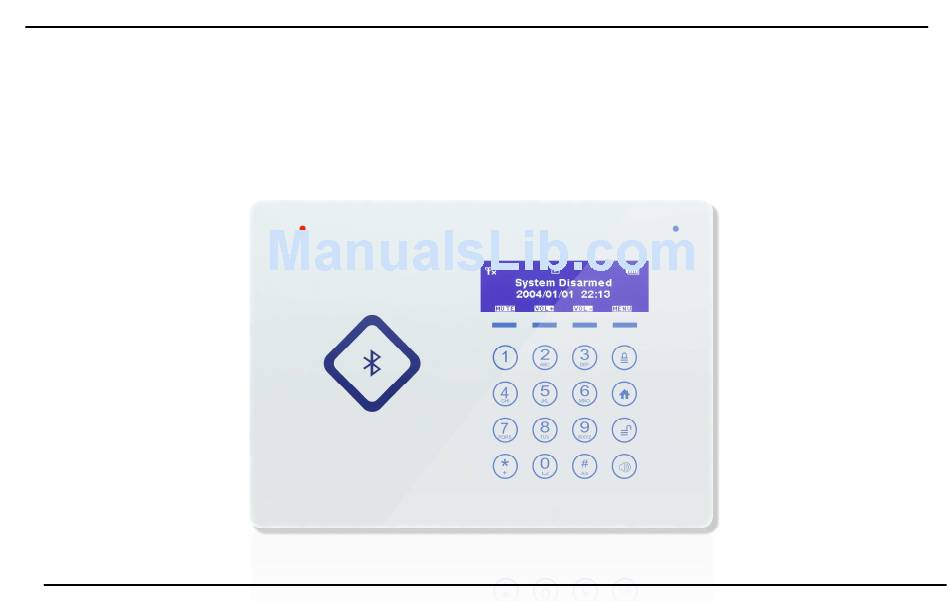

Home Alarm System User Manual
Home Alarm System
User's Manual
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the G66A and is the answer not in the manual?

Questions and answers

Related Manuals for DyGSM G66A

Summary of Contents for DyGSM G66A

  • Page 1 Home Alarm System User Manual Home Alarm System User’s Manual...
  • Page 2 Home Alarm System User Manual Dear Clients, Thank you for using our GSM Alarm System. We are committed to giving you the best home security available today and ensure the safety of your home and family seriously. Our system allows you to instantly arm and disarm your home properly, instantly change your system settings and find out your system status and etc.
  • Page 3 Home Alarm System User Manual Cautions To avoid personal inquiry and the damage to the product, please take the following preventive measures. ·Input voltage : DC5V 2.1A. Do not use power adapter with different specifications. ·Use the professional tools for assembling to avoid the damage to the main panel ·Press the touch keypad lightly ·Keep it away from the moist environment and flammable explosive environment ·Keep the product dry and clean...
  • Page 4 Home Alarm System User Manual Features 1: Ultra-thin design ,14mm thickness, Menu user interface ,easy and comfortable 2: SMS/Bluetooth communication, RFID function 3: Easy to operate with in-built input systems. 4. Mute, Volume up /down 5: Up to 50 Defense Zones，each defense zone can be coded with Remote Controller or other sensors/detectors, also they Can be named individually.

  • Page 5: Alarm Host Diagram

    Home Alarm System User Manual 11: New feature of Voice Prompt: The music goes on from the Main Panel when someone opens the door. 12: In-built USB Slot: Easy to update the software for the latest functions and services. 13: In-built Engineering model：Easy for the malfunction examination & better maintenance. Alarm Host Diagram...
  • Page 6 Home Alarm System User Manual 【GSM Signal Indicator】 ：No SIM card or searching network: flashes once per second ;GSM Signal in normal: Flashes once per 3 seconds 【RF Signal Indicator】 ： Flashes while sending or receiving RF signals 【LCD Screen】 ：Display System Menu & Information. 【RFID Card Reader】...
  • Page 7 Home Alarm System User Manual Manufacturer as well. 【Battery Case】: For the back-up batteries. 【Upgrading switch】 ：Turn on the switch before updating the alarm system. 【Power switch】: Power on / off the back-up batteries. 【USB Slot】: For A/C adapter and upgrading system as well. 【Interface for the wired Defense Zones】:2 inputs for wired sensors.(2 Wired Defense Zones) 【Loudspeaker】: Host sound Important Notice : This alarm system cannot work with a wired siren .

  • Page 8: Chapter 1:Daily Operation

    Home Alarm System User Manual Chapter 1:Daily Operation System Arm In “ARM” status, any instruction signal will be sent to alarm controlling panel and alarm panel will trigger the siren immediately. There are 6 methods to arm the system. ① Press “Arm” on remote control:...
  • Page 9 Home Alarm System User Manual ② Click “Arm” by APP: ③ “Arm” by swiping RFID card: ④ Send message with content “8888881” to alarm panel. 8888881 :888888 represents six digits password . If you have changed the password, please use your own password . For example ,if new password is 112233, the message to alarm panel phone number should be 1122331.

  • Page 10: System Disarm

    Home Alarm System User Manual ⑤ Use preset phone number (already add into system ) to dial your alarm panel phone number , input operate password as your alarm asks, and then press number key “1”. ⑥ “Arm” by using Bluetooth（After the successful match of phone and system host, it can be used. Please operate as the instruction of "Bluetooth Setting".
  • Page 11 Home Alarm System User Manual ② Click “Disarm” by APP: ③ “Disarm” by Swiping RFID card ④ Send message with content “8888882” to alarm panel. 8888882 :888888 represents six digits password . If you have changed the password, please use your own password . For example ,if new password is 112233,the message to alarm panel phone number should be 1122332.
  • Page 12 Home Alarm System User Manual ⑤ Use preset phone number (already add into system ) to dial your alarm panel phone number , input operate password as your alarm asks, and press number key “2”. ⑥ “Disarm” by using Bluetooth（After the successful match of phone and system host, it can be used.
  • Page 13 Home Alarm System User Manual ② Click “Home Arm” by APP: ③ Send message with content “8888883” to alarm panel. 8888883 :888888 represents six digits password . If you have changed the password, please use your own password . For example ,if new password is 112233,then message to alarm panel phone number should be 1122333.

  • Page 14: Doorbell Function

    Home Alarm System User Manual No matter what status the control panel is in, once SOS button on the remote control is pressed, the system immediately goes into emergent alarming state. Press the SOS button on remote control and the panel will trigger SOS alarm. Doorbell Function Doorbell function.

  • Page 15: System Status

    Home Alarm System User Manual After the successful setting in the system, the defense zone which need to open the doorbell function will work.（Please check the "Edit" of the "Sensor" to start the "Chime Zone"） System Status When you are not clear of the system status, you could use the query function There are 3 methods to start Home Mode ①...
  • Page 16 Home Alarm System User Manual ② Send message with content “8888884” to alarm panel 8888884: 888888 represents six digits operate password .Please type your own password if you have renewed . ③ “System Status” by using Bluetooth（After the successful pair of phone and system host, it can be used.
  • Page 17 Note: You could make the intercom for 30 seconds. If you need to continue the intercom, press the key “4” again to prolong the intercom. Use the host calling After installing the 2G SIM card, you could use the G66A as a telephone. You could talk with anyone by dial the phone number directly via host.

  • Page 18: Insert A Sim Card

    Home Alarm System User Manual Chapter 2： ： ： ： System Settings Insert a SIM card Insert a SIM card in the right direction as the following picture indicates .Push until you hear a click. Do not insert or take out the SIM card when the main panel is powered on...
  • Page 19 Home Alarm System User Manual Connect wired accessories with Panel There is a cable in the package with one side connecting panel ,and another side having 3 wires in different color and connecting 2 wired accessories.: Wired Zone 1 Blue wire Wired Zone 2 Yellow wire Grounding...
  • Page 20 Home Alarm System User Manual “Wired Zone Test”→ ENTER → “Please Trigger Wired Zone” (Please touch two lines) → If you touch the right, the system will prompt: Z1 or Z2. NO:4 NO:5 NO:6 NO:7...
  • Page 21 Home Alarm System User Manual Power on Connect the power adapter. To POWER port on back of the console; Route the power adapter (5V 2.1A) cord through the channel toward the side of the console; Plug the power adapter into nearby electrical wall outlet that is not controlled by a switch;...
  • Page 22 Home Alarm System User Manual Start to Set Before doing any settings, we need enter into setting status or enter into “Program” menu .Please follow those steps . Each step in this manual has to be followed with “Enter” to confirm your operation . Disarm the system ..Press “Menu”...

  • Page 23: Remote Controllers

    Home Alarm System User Manual 1. Remote Controllers 1.1 Add a remote control into system This system can register with 8 remote controllers and each of them can be renamed . Besides the name of remote control can be recorded. Here are the steps. Disarm the system and enter into “Program”→...
  • Page 24 Home Alarm System User Manual 1.2 Delete a remote control Disarm the system and enter into “Program” → “Remote controllers”→“ENTER ”→“Delete” →Select a remote controller --Select “Yes” and press “Delete” 1.3 Rename a remote control Disarm the system and enter into “Program” → “Remote controllers”→ “Edit”--Select one remote control you want to edit →Select “Edit Owner Name”...
  • Page 25 Home Alarm System User Manual 1.5 Remote control Delayed Arm Disarm the system and enter into “Program” → “Remote controllers”→ “Delayed Arm” →Select “Yes”/ “No” 2. Sensors 2.1 Add a sensor into system , Re-name & Record The system is able to connect with 50 wireless accessories which don’t include the remote control, RFID card and wireless siren.
  • Page 26 Home Alarm System User Manual 2.2 Wireless sensors Auto-Search The system can identify the sensor name and location automatically, which brings great convenience when the accessories need to be replaced. Enter into “Program”→ “Sensors” → “Edit” → “Auto Search Sensors” →Trigger the sensor and the system will display the sensor name on screen .
  • Page 27 Home Alarm System User Manual 2.4 Delete a sensor Disarm the system and enter into “Program”→ “Sensors” → “ENTER” → “Delete” →Select a sensor--Select “Yes” and press “Delete” 2.5 Defense Zone Attribute Setting Enter into “Program” → “Sensors”→ “Edit”→ “Auto Search Sensors” or “Manual Search Sensors” →Select a sensor(Select the zone to be set, you can set the following): 【Edit Zone Name】: Edit the name of the sensor (easy to remember) 【Record Zone Name】: to Make the voice Record of the sensor...
  • Page 28 Home Alarm System User Manual 3. RFID 3.1 Add a RFID tag into your system The system can accept up to 8 RFID tags Enter into “Program” and press “Enter” →Select “RFID” and press “Enter”--Select “Add” →Hold your RFID tag and make it close to RFID reading area as bellowing photo . The system will generate a code automatically .At this time ,press “Enter”...

  • Page 29: Wireless Sirens

    Home Alarm System User Manual 3.3 Rename a RFID tag Change a name for your RFID tags . Disarm the system and enter into “Program” → “Edit”→ Select one RFID tag listed on your system from Card 01 to Card 08 and press “Enter”→ Input a new name and “Save” 3.4 Arm /Disarm Send SMS 【...
  • Page 30 Home Alarm System User Manual setting Mode)→ “ENTER”→ Send signal to siren(The Siren emits a Long Beep )→ “SET Successful” displays on screen, which indicates the pairing successfully. Notice: the wireless siren exit “Siren In setting Mode” 4.2 Rename a wireless siren Enter into "Program"...
  • Page 31 Home Alarm System User Manual 4.5 Siren Sound Duration Siren sound duration can be set from 1~180 seconds. “Program”→ “Wireless Sirens” → “Duration” →Input a number between 1 to 180 and “Save”. 4.6 Arm/Disarm wireless siren notification “Program”→ “Wireless Sirens” → “Arm/Disarm Tone”--Select “Yes” to turn on the notification long beep, then users will be well informed when the wireless siren is arm or disarmed, or Select “...

  • Page 32: Phone Numbers

    Home Alarm System User Manual 5. Phone Numbers 5.1 Add a phone number into system Enter into “program” menu..Select “Phone Numbers” and Enter...Select “Add” and press Enter ...Input numbers on the keyboard and press “Save” .The system can store 6 phone numbers and each phone number is equal and no longer than 22 digits.

  • Page 33: Sms Numbers

    Home Alarm System User Manual 6. SMS Numbers 6.1 Add a SMS number into system Disarm the system and enter into “Program” menu → “SMS Numbers”→ “Add”→-Select “Phone #”→→Input numbers and press “Save”. The system can store 3 SMS numbers and each SMS number is equal and shorter than 22 digits. 6.2 Delete a SMS number from system “Program”→...

  • Page 34: Outgoing Message

    Home Alarm System User Manual Here are the operation steps: Disarm the system and enter into “Program”→ “SMS numbers”→ “Arm /Disarm notification”→ “Enable”. 7. Outgoing Message In event of intrusion, this message will be sent to preset SMS numbers . If you also record the message ,the record will be played to preset Phone Numbers before the emergency call is answered.
  • Page 35 Home Alarm System User Manual 7.2 Record the message Disarm the system and enter into “Menu”→ “Program” → “Outgoing message” → “Record” .The record should control within 10 seconds. The system will count down from 10 when doing the record.

  • Page 36: Monitoring Center

    Home Alarm System User Manual 7.3 Delete the message Disarm the system and enter into “Menu”→ “Program” → “outgoing Message” → “Delete” 8. Monitoring Center The Standard ADMECO Contact ID Protocol was used in the Alarm System. Firstly, You need to get a telephone number & User ID from your Service Provider .And input them into the Alarm Host.
  • Page 37 Home Alarm System User Manual In setup state →"Monitoring Center" →"ENTER” → “Monitoring Center Number” →"ENTER" → "Add" →"ENTER"→"[Phone#1] or [Phone#2]" →"ENTER" →Input the Monitoring Center Phone number →"SAVE"→ “SET Successful” 8.2 ADEMCO Contact ID It is composed of 4 digits numbers, which is authorized and designated by the monitoring service provider.
  • Page 38 Home Alarm System User Manual 8.3 Upload Alarm Data Select “YES” and then the system alarm setting will be uploaded to the monitoring service provider. Here are the operation steps. In setup state →"Monitoring Center" → "ENTER" →"Upload Alarm Data" →"ENTER"→"YES" →"SAVE"→...
  • Page 39 Home Alarm System User Manual 8.4 Upload Arm/Disarm Data Select “YES”, the system ARM/DISARM data will be sent to monitoring service provider automatically. Here are the operation steps. In setup state →"Monitoring Center" →"ENTER" →"Upload Arm/Disarm Data" →"ENTER"→"Y ES"→"SAVE"→ "SET Successful”...
  • Page 40 Home Alarm System User Manual 9． ． ． ． Timely Arm/Disarm How to set the automatic system arm /disarm time ? The menu can realize system automatically arm/disarm itself on a setting time. Enter into “Menu”→ “Program” → “Timely Arm/Disarm” → “Enable”→ “Set Arm Time” →Input an automatic system arming time in 24 hour format (HH:MM) And press “Save”.

  • Page 41: Bluetooth Settings

    Home Alarm System User Manual 10. Bluetooth Settings Bluetooth Communication between panel and cell There are two ways to connect the cell with system via APP, Bluetooth and GSM network. Within Bluetooth range ,we can use Bluetooth to realize basic control of the system. Out of Bluetooth range ,App will choose GSM network automatically .
  • Page 42 Home Alarm System User Manual 【Bluetooth on /off】 : make sure it’s on, or the cell cannot detect it . 【Name】 : we can change a name for Bluetooth, one easy to remember. 【Visible】 :choose “YES”, the device can be detected. In avoid of malicious pairing , choose “No” after you finish pairing with your own mobile .
  • Page 43 Home Alarm System User Manual Add Host name ,host phone number ,and Bluetooth Address as APP indicates on Cell phone .
  • Page 44 Home Alarm System User Manual 10.3 How to find out Bluetooth Address of your alarm panel ? Enter into “Program” →”System About” →“Bluetooth Mac” Press “Enter” and then the system will generate a Bluetooth /Mac/Address automatically as bellowing picture . The Bluetooth Mac is random and unique . Input the same address on Cell phone and save .
  • Page 45 Home Alarm System User Manual 10.4 pairing the cell with alarm panel via Bluetooth Initiate the search of Bluetooth Device on the cell. You will see “66A” Bluetooth device on your searching results .Select it and the cell will pop up a dialogue with Device name and Passkey . At the same time ,panel will pop up a dialogue with the same Passkey and your cell brand, select “Accept”...
  • Page 46 Home Alarm System User Manual 11.System Settings 【Password】: To set up the password to the System 【Arm Delay Time】: To set up the delay-time to Arm the System, which means that the system will not Arm until the delay time’s up. 【Alarm Delay Time】: To set up the Delay time for Alarming, which means that the System will not alarm until the Delay time’s up 【Door/Window Open Tip】: To set up to skip the Function of Door/Window-Open-Reminding or Not...

  • Page 47: System About

    Home Alarm System User Manual Remote Controller, Sensors/Detectors, Wireless Sirens, RFID Cards, Bluetooth Mobiles. 【Format system】 :Enable [Yes] to Delete all settings. 12. System About 【Version】:System Version 【Production Date】: The date of Manufacture。 【Manufacture Buy】: Manufacturer Buy 【IMEI】 : IMEI Numbers(15 Digitals) for CID Service 【Bluetooth Mac】: Bluetooth Address...

  • Page 48: Hardware Test

    Home Alarm System User Manual 13. Hardware Test 【LCD Test 】: To test whether the LCD screen can work normally 【Led Test】: To test whether the Led Lights including the backlights can work normally 【Key Test】: To test whether the every button can work normally 【RFID Test】:To Test whether the RFID Reader can work normally 【Voice Test】: To test whether the Voice Prompts is Accurate &...

  • Page 49: Chapter 3: Accessories

    Home Alarm System User Manual Chapter 3: Accessories 1. Wireless Door/Window detector 1.1 Features It is a Door/Window detector that can be installed on doors, windows, and any other objects that open and close. The sensor transmits signals to the control panel when a magnet mounted near the sensor is moved away.
  • Page 50 Home Alarm System User Manual 1.2 Appearance / PCB Layout / Installation & Notice 1.3 LED Indication LED flashes once: Door/window is opened and transmitter sends signal to the control panel. LED lights on: Low battery. Please replace the battery immediately.

  • Page 51: Wireless Pir Motion Detector

    Home Alarm System User Manual 2. Wireless PIR Motion Detector 2.1 Features PIR is a high performance wireless P.I.R. motion detector. It consists of digital dual-core fuzzy logic infrared control chip and intelligent analysis which effectively identify interference signals from body movement signals and reduce false alarm rate. With automatic temperature compensation and anti-air turbulence technology, it easily adapts to environmental changes.
  • Page 52 Home Alarm System User Manual 2.2 Appearance / PCB Layout / Installation & Notice 2.3 LED Indication Flash continuously: Under the self-testing state. Flash once: Intruder is detected. Flash twice: Self-testing is finished, enters the working mode. Normally on: Under voltage indication, please change the batteries immediately.

  • Page 53: Technical Parameters

    Home Alarm System User Manual Technical parameters ■Input voltage:AC100-240V 50/60Hz ■Output voltage:DC5.1V 2.1A ■Backup Battery:3.7V Lithium battery ■Static current:≤55mA ■Alarm current:≤300mA ■Radio frequency:315/433MHz（±75KHz） ，2262 / 4.7M 1527/300K ■Bluetooth control distance:≥60 m ■GSM working frequency:850/900/1800/1900 MHz ■Internal siren volume:80dB ■Maximum Stored Phone No.: 6 alarm Phone No. and 3 SMS No. ■Maximum Remote Controls :8pcs ■Maximum Sensors:50pcs wireless and 2 wired Sensors ■Maximum RFID Tags:50pcs...

  • Page 54: Warranty Certificate

    Home Alarm System User Manual Warranty Certificate Customer Name： ： ： ： Customer Name Date Date ： ： ： ： Customer Name Customer Name Date Date C C C C ontact Tel Number ontact Tel Number： ： ： ： ontact Tel Number ontact Tel Number Address Address：...
