Sequential Split-Eight Operation Manual page 2

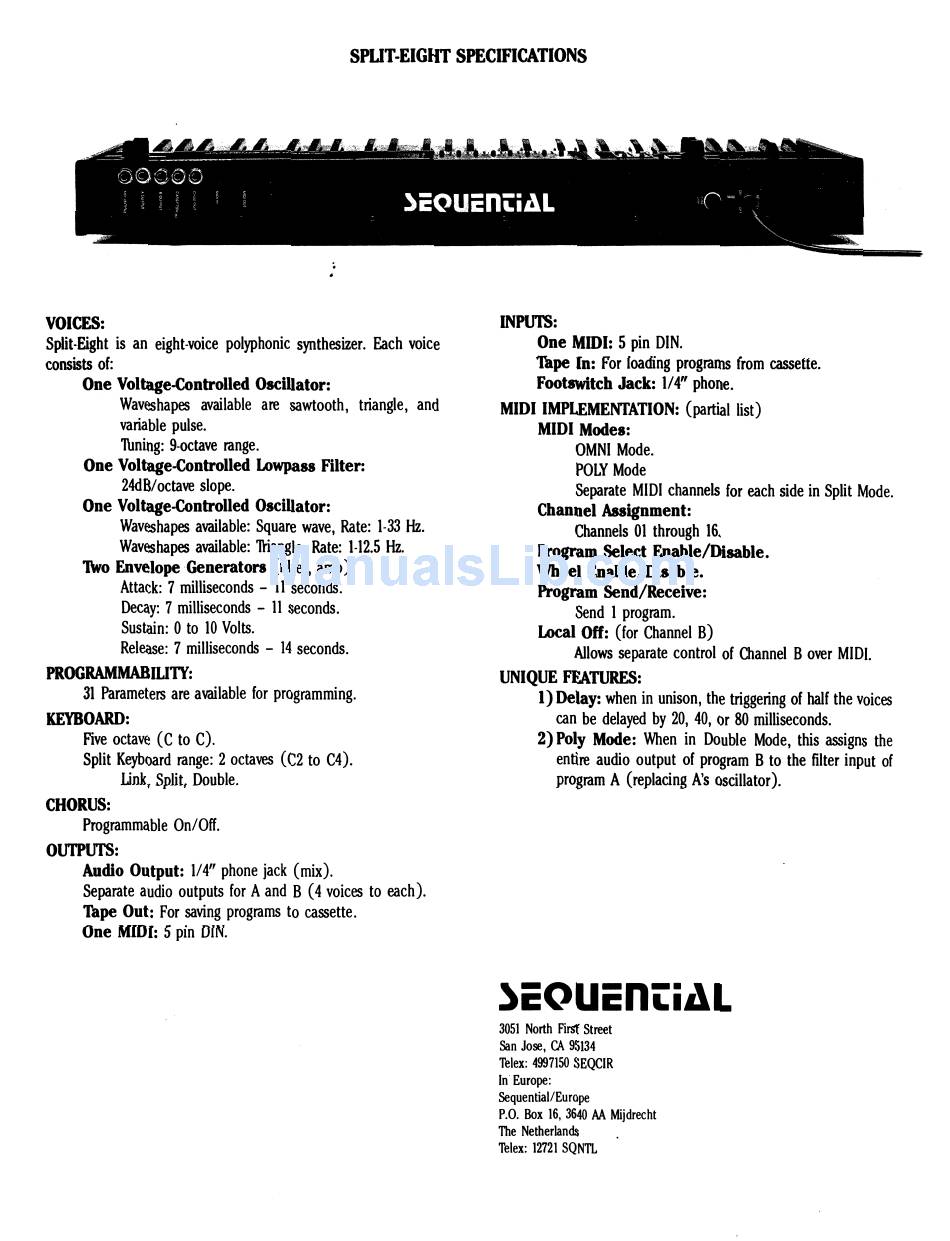

SPLIT-EIGHT SPECIFICATIONS
VOICES:
Split-Eight is an eight-voice polyphonic synthesizer. Each voice
consists of:
One Voltage-Controlled Oscillator:
Waveshapes available are sawtooth, triangle, and
variable pulse.
Timing: 9-octave range.
One Voltage-Controlled Lowpass Filter:
24dB/octave slope.
One Voltage-Controlled Oscillator:
Waveshapes available: Square wave, Rate: 1-33 Hz.
Waveshapes available: Triangle, Rate: 1-12.5 Hz.
IWo Envelope Generators (filter, amp):
Attack: 7 milliseconds - 11 seconds.
Decay: 7 milliseconds - 11 seconds.
Sustain: 0 to 10 Volts.
Release: 7 milliseconds - 14 seconds.
PROGRAMMABILITT:
31 Parameters are available for programming.
KEYBOARD:
Five octave (C to C).
Split Keyboard range: 2 octaves (C2 to C4).
Link, Split, Double.
CHORUS:
Programmable On/Off.
OUTPUTS:
Audio Output: 1/4" phone jack (mix).
Separate audio outputs for A and B (4 voices to each).
Tape Out: For saving programs to cassette.
One MIDI: 5 pin DIN.
INPUTS:
One MIDI: 5 pin DIN.
Tape In: For loading programs from cassette.
Footswitch Jack: 1/4" phone.
MIDI IMPLEMENTATION: (partial list)
MIDI Modes:
OMNI Mode.
POLY Mode
Separate MIDI channels for each side in Split Mode.
Channel Assignment:
Channels 01 through 16.
Program Select Enable/Disable.
Wheel Enable/Disable.
Program Send/Receive:
Send 1 program.
Local Off: (for Channel B)
Allows separate control of Channel B over MIDI.
UNIQUE FEATURES:
1) Delay: when in unison, the triggering of half the voices
can be delayed by 20, 40, or 80 milliseconds.
2) Poly Mode: When in Double Mode, this assigns the
entire audio output of program B to the filter input of
program A (replacing A's oscillator).
3051 North First Street
San Jose, CA 95134
Telex: 4997150 SEQC1R
In Europe:
Sequential/Europe
P.O. Box 16, 3640 AA Mijdrecht
The Netherlands
Telex: 12721 SQNTL
