Sytech SY-1290 User Manual

SYS TEM
AKE R
EDI A SPE
MU LTIM
2.1 CH
1.Before attaching the cables to the subwoofer, place the two front satellite speakers on either side of
your monitor. Depending on where you place your speakers, adjust them to direct the sound towards
tou. For the best sound quality, place the subwoofer on the floor beneath your desk. Be sure to
maintain at least 6 inches of spacing around the subwoofer to allow for adequate ventilation.
PLAYBACK
Insert the USB pendrive & SD card and the unit will play the songs automatically
(the songs must be stored in mp3 format)
Press the buttons PLAY/PAUSE/NEXT or PREVIOUS on the remote control to
select the desired function.
(usb and sd card shift,support mp3
playing,support mp3 wma format)
NOTES:
The number button on the remote control from 0~9 are used to jump to a particular
song directly, press the song number & key to listen that song.
For example : In USB/SD/MMC card has 100 songs and you want to jump on song
number 51, please press 5 & 1 and , similarly if you want to listen to jump to song
on 9 position, simply press 9 number button and
SY-1290
DEAR CUSTOMER

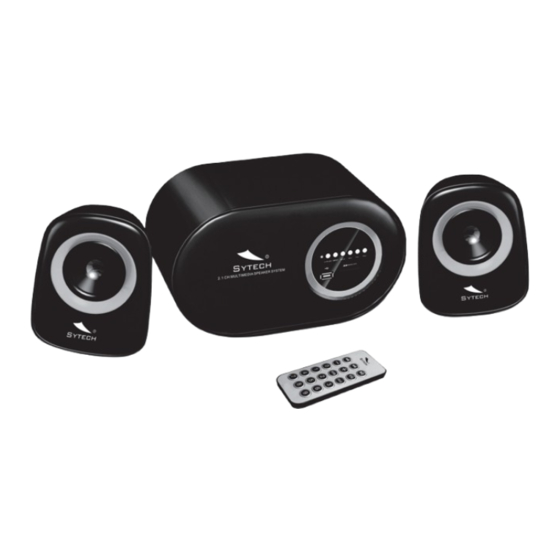

Congratulations on the purchase of your new 2.1 Multimedia
Speaker System SY-1290.
CONTENT IN THE PACKAGE:
EQ
0
MODE USB/SD
1 2 3
4 5 6
7 8 9
SPECIFICATION:
Total system power: RMS 10 watts
Subwoofer power: RMS 6 watts
Satellites power: RMS 2 watts x2
P.M.P.O:800 Watts
THD: 0.05%(1W)
Frequency response:50-60Hz~20Khz(±3dB)
Speaker unit:Subwoofer 3 6Ohm
to jump
2.1 CH MULTIMEDIA SPEAKER SYSTEM
This symbol indicates that there are
important operating & maintenance
instructions in the literature
accompanying this unit.
This symbol indicates that dangerous
voltage constituting a risk of electric
shock is present within this unit.
Power Supply
230V/50Hz
CAUTION
SETUP DIAGRAM
Subwoofer
Satellite Speakers
Remote distance:6 meter
Material of the cones:plastic
Weight:1.7kg
Subwoofer driver: 3"
Satellite driver: 2" x 2
Subwoofer dimensions:W217XH127x130mm
Satellite dimensions:W84xH107xD82mm
Satellite 2 4Ohm

USER MANUAL

AUDIO OUTPUT AUDIO OUTPUT
RIGHT CHANNEL LEFT CHANNEL
AUDIO INPUT
MENU
PC / iPod / CD / MP3 / MP4
Select Input
USB/SD card selection
Sound field effort
Previous & Vol - (Press once to skip to the previous
Next & Vol + (Press once to skip to the next track,
PLAY
Remote control signal receiving window,Power LED indicator
SD Card Socket
USB Socket
