Summary of Contents for Spear & Jackson TA-COMP70

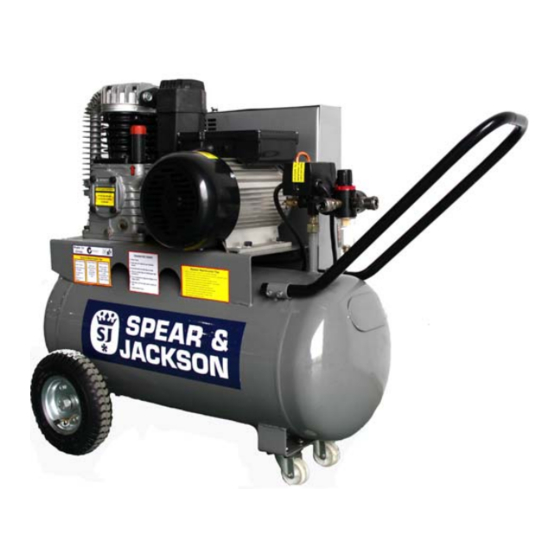

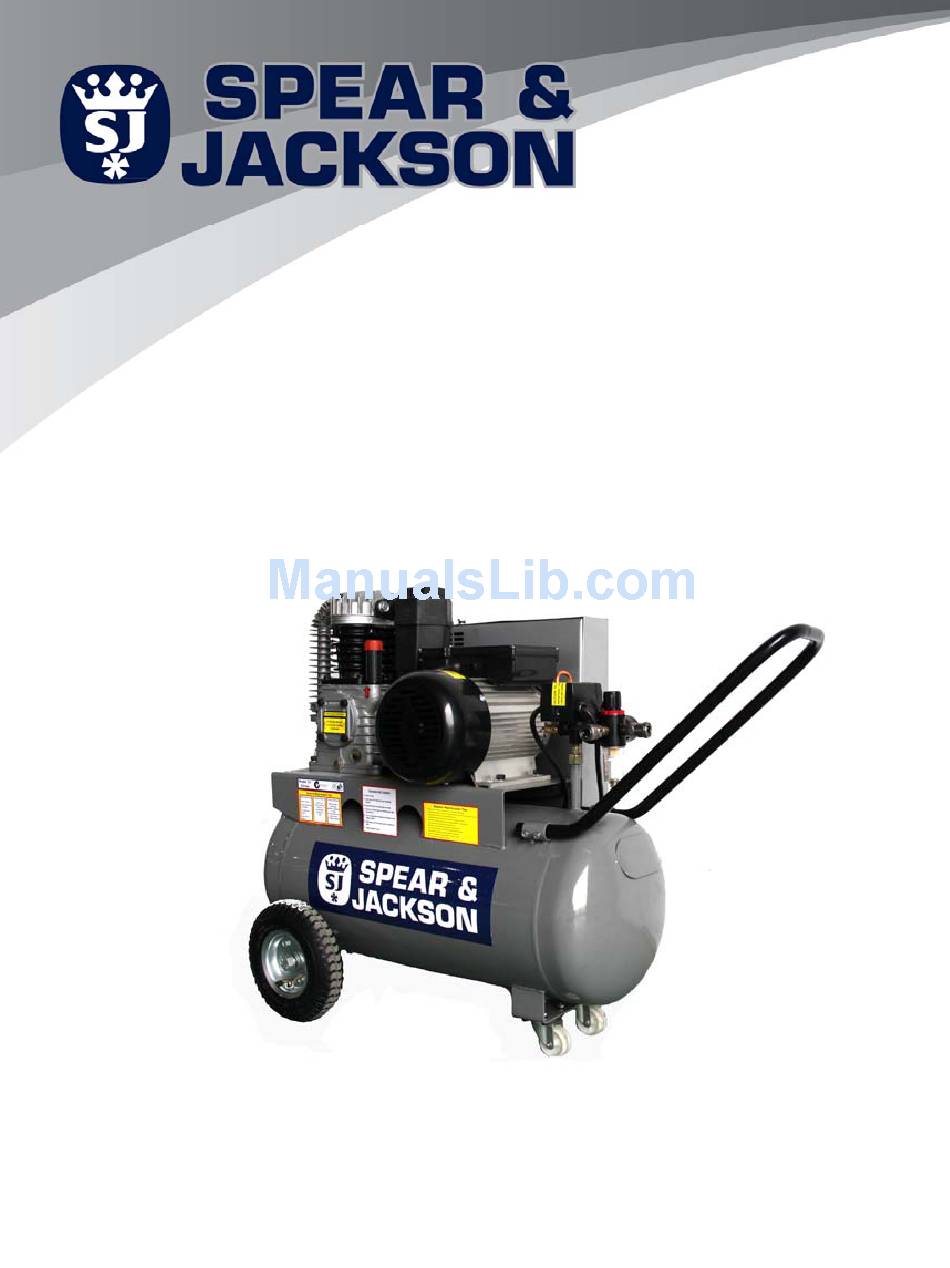

  • Page 1 2.5HP 50 Litre Belt Drive Air Compressor Instruction Manual...
  • Page 2: Table Of Contents

    Index Introduction Environmental Responsibilities General Safety Instructions Electrical Safety Use of Extension Cords Additional Safety Instructions The Compressor & Its Components Assembly & Operating Instructions Automatic On/Off Switch Overload Protection / Reset Procedure Pressure Gauges Pressure Regulator Safety Valve Compressor Set-Up Shutting Down Your Compressor Maintenance Trouble Shooting...
  • Page 3: Introduction

    Introduction. Project Air Compressors have been manufactured under stringent Quality Standards to meet the performance criteria set by Spear & Jackson. After familiarization you will find this compressor both easy and safe to operate. Read the instruction manual completely before using your new Spear &Jackson Air Compressor.
  • Page 4: Electrical Safety

    Electrical Safety Instructions This product should only ever be connected to a properly manufactured, fitted and earthed power outlet that complies with National and regional electrical authority regulations and requirements. Extension cables or generators are not to be used with this product, as it may cause damage to the Compressor.
  • Page 5: The Compressor & Its Components

    Additional Safety Instructions 14.Do not ever directly inhale compressed air. Serious injury could occur. 15.Do not use the air from the compressor for any re-breathing apparatus. 16.Never apply the outlet air of this compressor directly on to any part of a person’s body. Do not attempt to block the air outlet with your finger or any part of your body.
  • Page 6: Assembly & Operating Instructions

    Assembly & Operating Instructions 1. The compressor is supplied with wheels, axles and a handle. Please remove unit from the box and check for any damage. Please attached the handle and the wheels using the hardware provided. 2. The unit is supplied with oil already in the pump. Please add sufficient oil from the bottle supplied until the marker in the sight glass is level with the red indicator line.
  • Page 7: Automatic On/Off Switch

    Automatic On / Off The compressor is equipped with a pressure activated on/off switch. The compressor will only run when the switch is in the “I” or ON position (as per previous page). Once the tank has reached the maximum preset pressure (125 PSI), the pump will automatically shut off.
  • Page 8: Pressure Gauges

    Pressure Gauges The Tank Pressure Gauge supplies the reading of the air pressure inside the tank. Pressure Regulator This compressor is fitted with an Air Pressure Regulator. It allows regulation of the output air pressure. Some air tools require a higher operating pressure than others. Please refer to the air pressure requirements of your tools for the proper settings for the regulator.
  • Page 9: Shutting Down Your Compressor

    Shutting Down Your Compressor When you have finished using your compressor, follow these steps:- 1. Close the air outlet taps. 2. Switch off the compressor. 3. Disconnect unit from power outlet (power point). 4. Disconnect tools and / or Accessories from the air hose.
  • Page 11: Supplier Contact Details

    Warranty Responsibilities under this warranty: Warranty Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and for compensation for any other reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a major failure.
  • Page 12: Warranty Details

    Warranty What is not covered under this Warranty Any failure that results from an accident, purchaser’s abuse, neglect or failure to operate Product in accordance with instructions provided in the owner’s manual(s) supplied with the Product. Pre-delivery service, i.e. assembly, oil or lubricants, and adjustment. Items or service that are normally required to maintain the product, i.e.
  • Page 13 Warranty Before returning this product for a Warranty Claim or any other reason Please Call: 1300 731 818 (Australia) 0800 652 652 (New Zealand) The Helpline operates from 8am to 7pm, 5 days a week (EST). This allows you to contact Spear & Jackson directly with any queries and technical questions you have regarding our products.
