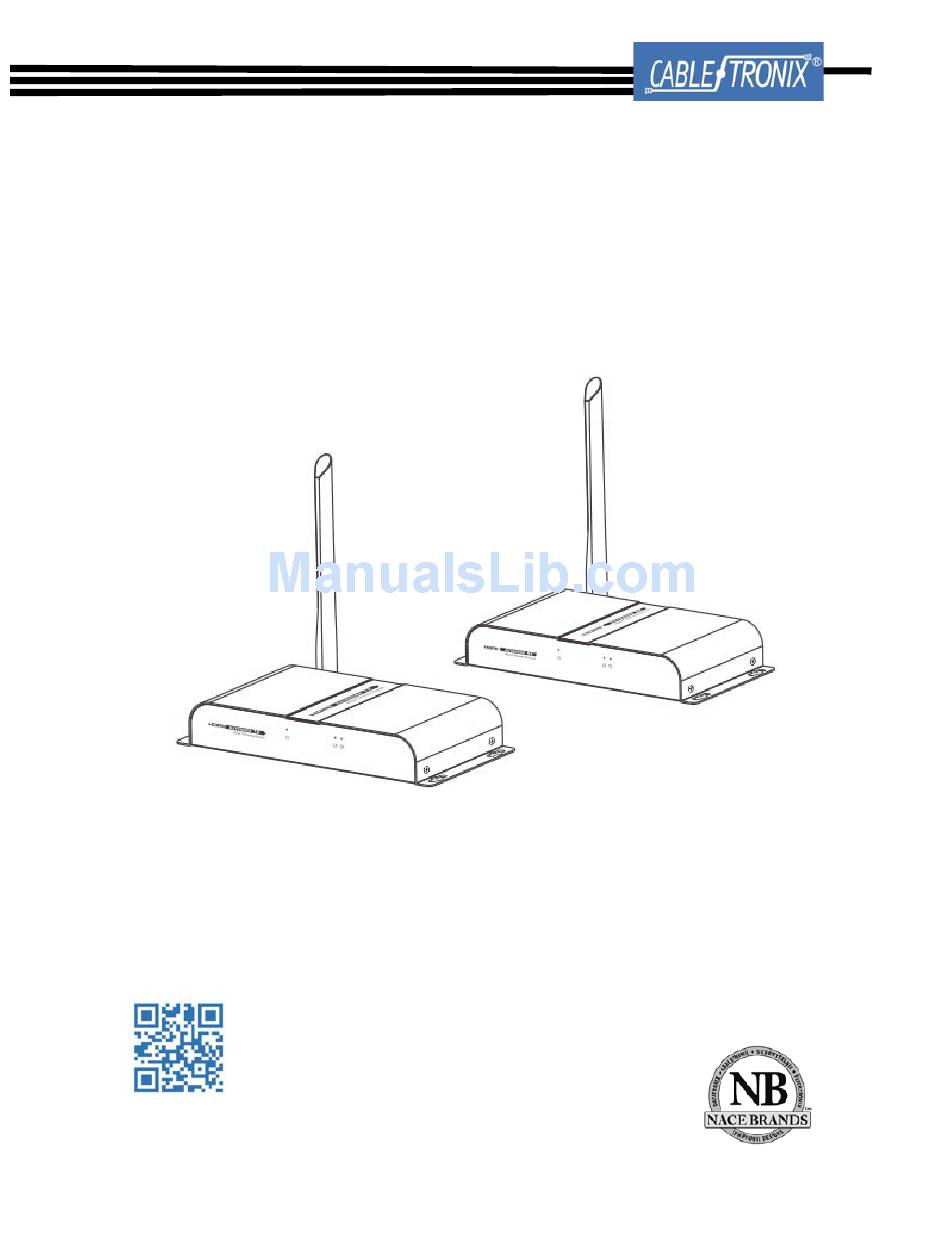

- Page 1 Wireless HDMI Extender Kit CT-HDVD-HDWR-KIT User Manual www.cabletronix.com www.nacebrands.com ...
- Page 2 Thank you for purchasing this product. For optimum performance and safety, please read the instructions carefully and keep the manual for future reference. Important safety notice Please read safety instructions carefully before installation and operation: Please pay attention to warnings and instructions for this device. ...
-
Page 3: Package Contents
3. Package contents HDMI wireless transmitter *1pcs HDMI wireless receiver *1pcs DC5V2A power adapter*2pcs IR emitter cable*1pcs IR receiver cable*1pcs User manual*1pcs 4. Installation Requirement 1. HDMI source devices (DVD, PS4, Set top box, PC etc.) 2. HDMI display devices (HDTV, projector with HDMI port, A/V processor, etc.) 5. Panel description HDMI Extender TX 1 Power led LED is lit when powered 2 Data transmission led Led blinks slowly when establishing connection Led blinks fast when it is successfully connected and transmitting data. - Page 4 2. HDMI extender RX 1 Power led LED is lit when powered 2 Data transmission led Led blinks slowly when establishing connection Led blinks fast when it is successfully connected and transmitting data. 3 Connection led LED is lit when wireless signal is connected. 4 Power input Connect with DC5V2A power supply 5 Reset...
- Page 5 7. Specification Items Specification HDMI signal Fully compatible with HDCP Transport protocol HDbitT Support resolution 480i@60Hz, 480p@60Hz, 576i@50Hz, 576p@50Hz, 720p@50/60Hz, 1080i@50/60Hz, 1080p@50/60Hz IR remote control Support 20~60kHz IR remote device Transmit distance 400 ft. line of sight at 1080p@60Hz Working temperature 0℃～60℃...
- Page 6 CABLETRONIX 1-Year Limited Warranty CABLETRONIX (the "Company") warrants to the Original Purchaser that the item purchased is free from defects in workmanship or material under normal use. This warranty starts on the date of shipment of the hardware to the Original Purchaser. During the warranty period, the Company agrees to repair or replace, at its sole option, without charge to Original Purchaser, any defective component. To obtain service, the Original Purchaser must return the item to the Company properly packaged for shipping. All defective products must be returned to the Company within thirty (30) days of failure. Products must be returned with a description of the failure and Return Merchandise Authorization (RMA) number supplied by the Company. To receive a RMA number and a return shipping address ...
