Space Pak ESP-G SYSTEM Installation, Operation & Maintenance Manual page 14

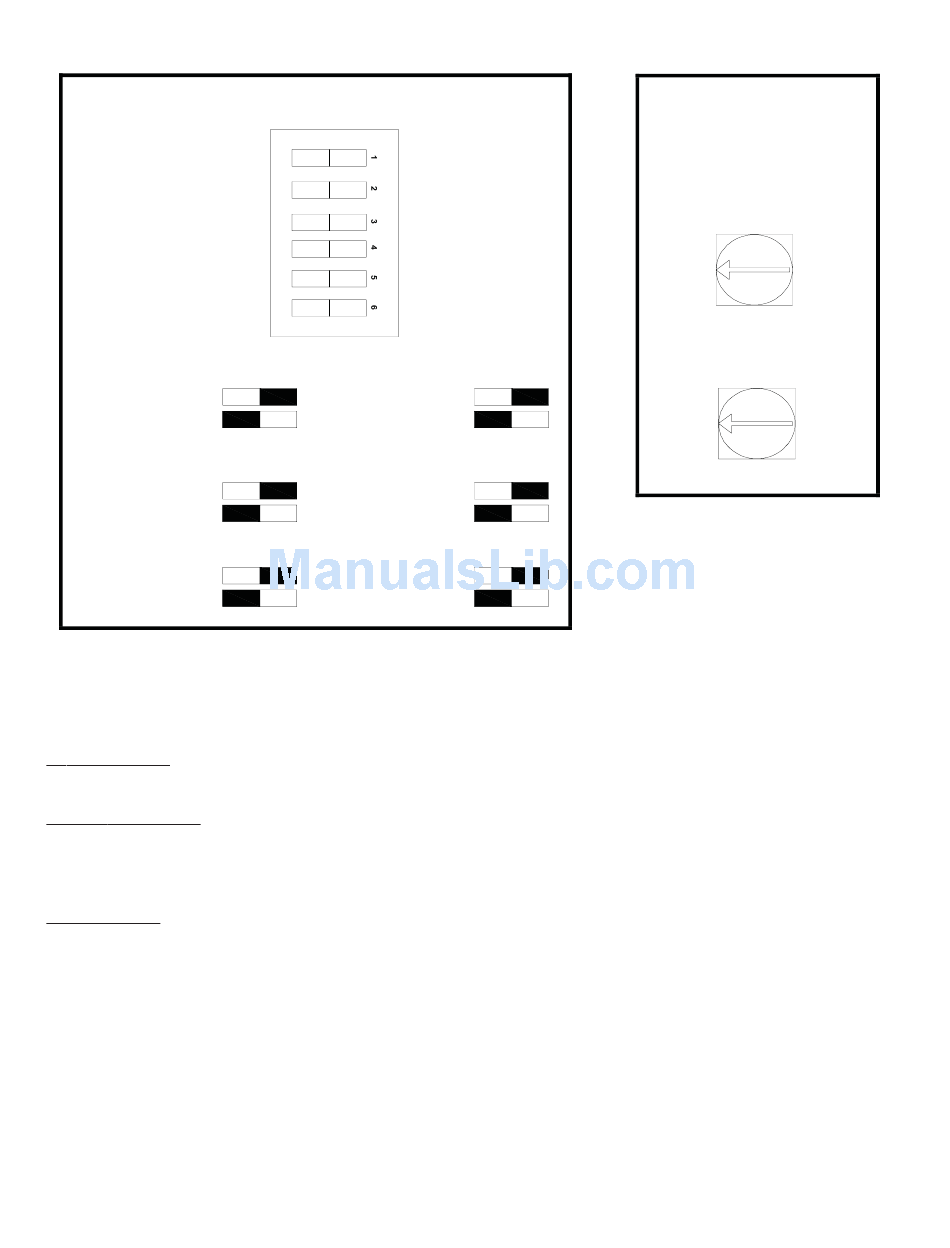

SpacePak G Series Control Dip Switch Settings
Cooling Water Coil Settings
Switch 1
Cooling Water Coil Present
No Cooling Water Coil Present
Heat Pump Settings
Switch 3
Heat Pump Present
No Heat Pump Present
Potable Water Circulation Settings
Switch 5
ON
OFF
SpacePak G Series Control Indicator LEDs
Power Indicator
The Power indicator will blink to indicate that the control is operational.
Fan Prove Indicator
The Fan Prove indicator will illuminate when there is power to the fan and the optional damper is in the open position.
Note: The Fan Prove Terminal will also energize with 24VAC when the above conditions are met.
Fault Indicator
Fault Flash Codes:
Float Switch
Anti-Frost Switch
Fan Prove Fault
Note: All Flash Codes are latched until power is cycled, even if the fault is cleared. The Float Switch requires power
to be cycled to resume operation.
CWC
HWC
HP
OB
PWC
FC
Heating Water Coil Settings
Heating Water Coil Present
No Heating Water Coil Present
Changeover Valve Settings
Energized in Cooling Mode
Energized in Heating Mode
Fan Circulation Settings
1 Flash
2 Flashes
3 Flashes
Switch 2
Switch 4
Switch 6
ON
OFF
14
SpacePak G Series
Control Variable
Time Delay Settings
Fan On Delay for
Water Coil Heat Demands
Adjustable from
0 - 2 Minutes
0 2
Fan Off Delay for ALL
Heating and Cooling Cycles
Adjustable from
0 - 2 Minutes
0 2
