Summary of Contents for Orchid CD100

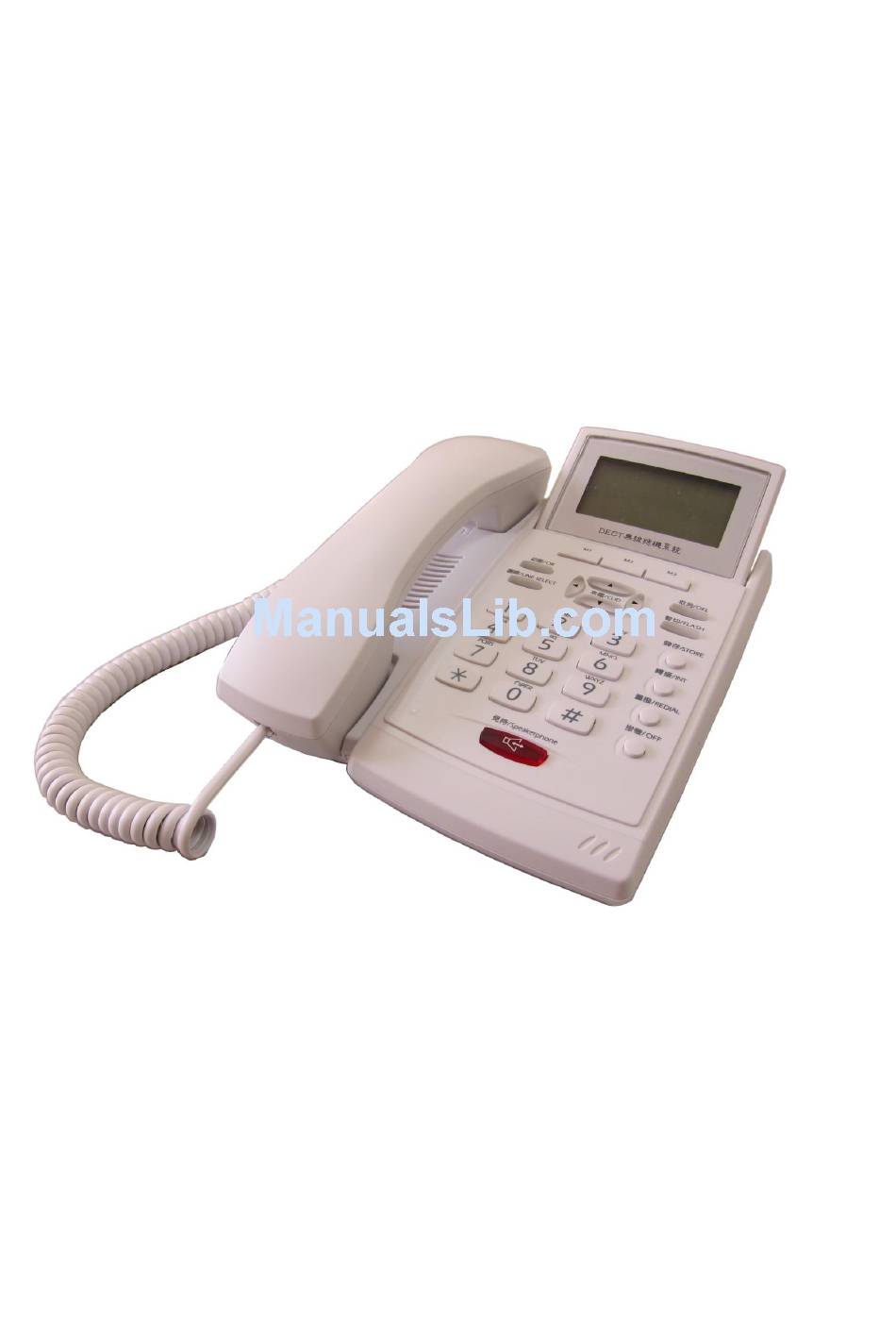

- Page 1 User Guide Model：CD100 Desktop DECT Phone...
-
Page 2: Table Of Contents
Contents Installation............Registering your handset........... 3 Key Lay out.............. Standby mode............... 5 Answering a call............5 Make an external call............5 Pre-Dialling............... 5 Selecting a Line............5 Redial………………………..........Make an internal call ............ 5 Answer and internal call…..........5 Accepting an external call during an internal call......5 Calling an internal extension during an external all....... -
Page 3: Installation
5. Press OK key to confirm, LCD will now display ‘PIN’ 6. Enter 0000 (factory default PIN code) then press the OK key 7. After 5-10 seconds your CD100 extension number will appear in the top right corner of the LCD display. -
Page 4: Key Lay Out
Desktop phone front Handset Upper/incoming call Memo key Down/outgoing... -
Page 5: Standby Mode
Standby mode When first in standby mode (at the end of a call) the CD100 will display your extension number on the LCD and antenna icon After one minute the analogue clock will be displayed. Answer a call When the phone rings the LCD will display the incoming phone number (subject to your network connection/ call provider). -
Page 6: Calling An Internal Extension During An External All
Calling an internal extension during an external call During an external call, press INT key to hold the call. Enter the extension number of the phone you wish to call, the call is established once answered. Press the INT key to toggle between the external call and the internal call, This does not create a conference call –... -
Page 7: Alphanumeric Keys
Alphanumeric keys Calling from the phonebook Press OK key to enter the menu Press upper/down key to select ‘phone book’ Press OK key to confirm ‘view entry’ is displayed Press OK key to view contact information, and press the upper/down key to select the desired contact Lift the handset or press key to call the phone number displayed Editing the phone book... -
Page 8: Caller Id Functions
Caller ID function (Subject to your service provider) The desktop phone LCD will display incoming call numbers before you answer phone also the time and date of the call are saved . Calling from the incoming call list Press OK key to enter the menu Press up/down key to select ‘incoming call’... -
Page 9: Language Settings
Press OK to confirm now LCD display’s ‘melody’ Press the down key to reduce the volume, or the up key to increase the volume. Press OK key to confirm Press OFF key to exit Desktop phone language setting (Languages available: English, French, Italian, German, Chinese, Dutch & Portuguese) Press Ok key to enter the menu mode Press up/down key to select ‘HS setting’... -
Page 10: One Touch Memories M1, M2 & M3
Press OFF key to exit One Touch Memories ( M1,M2,M3 ) There are 3 memory keys, to program a number into any of them: Press Store key Enter the number you want to store Press Store key again Select M1(or M2 or M3) and press store again. LCD will display the stored number To dial a one touch memory (M1, M2 or M3) Press M1(or M2or M3) LCD will display the stored number... -
Page 11: Dect Specification
Press OK key to confirm Press up/down key to select ‘Call Waiting tone’ Press OK key to confirm. Off will be displayed indicating that call waiting tone is turned off Press the up/down key to set the call waiting tone On or Off Press OK key to confirm Press OFF key to exit DECT SPECIFICTION...
