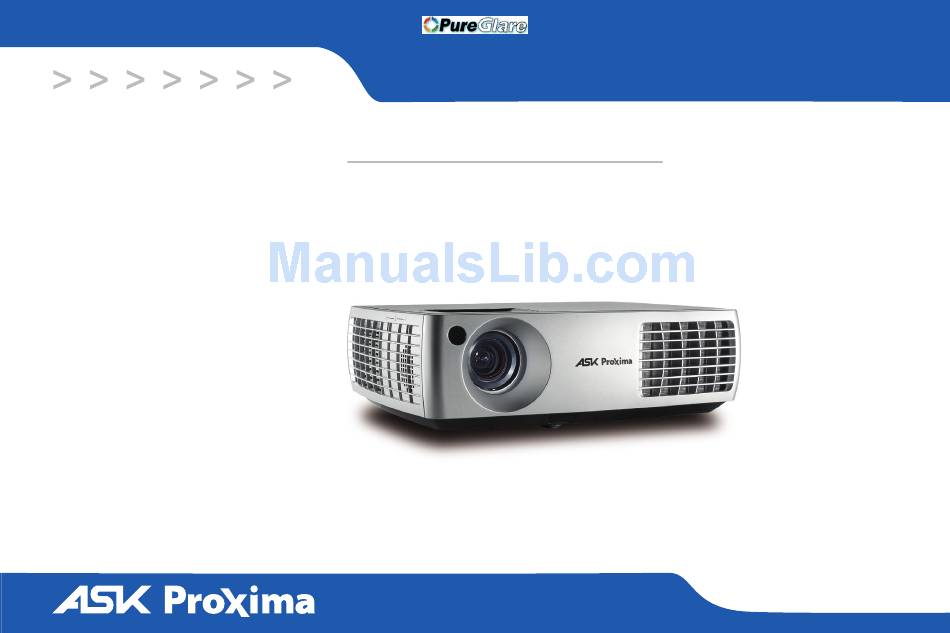

- Page 1 A3100 A3200 A3300 Regulatory models W3220, W3240 and W3260 http://www.pureglare.com.au...
- Page 2 Declaration of Conformity FCC Warning Manufacturer: InFocus Corporation, 27500 SW Parkway Ave. Wilsonville, Note: This equipment has been tested and found to comply with the limits Oregon 97070 USA for a Class B digital device, pursuant to part 15 of the FCC Rules. These European Office: Louis Armstrongweg 110, 1311 RL Almere, The limits are designed to provide reasonable protection against harmful Netherlands...
-
Page 3: Table Of Contents
Table of Contents Important Operating Considerations for Safety Introduction • Place the projector in a horizontal position no greater than 15 degrees Positioning the projector off axis. Projector and device connector guide • Locate the projector in a well-ventilated area without any obstructions Connecting a computer source to intake or exhaust vents. -
Page 4: Introduction
Your new digital projector is simple to connect, easy to use, and straightforward to maintain. It is a versatile projector that is flexible enough zoom (rear ring) for business presentations and home video viewing too. The A3100/A3200 touch keypad has native XGA 1024x768 resolution, and the A3300 has WXGA 1280x800 focus (front ring) resolution. - Page 5 Connector panel The projector provides both computer and video connection options, including: • VESA computer (2) composite HDMI for video • HDMI, for computer (1) and for video (1) monitor out video computer • S-video audio inj S-video • Composite video •...
-
Page 6: Positioning The Projector
Distance offset is 115% ; A3300 image offset is 112.4%. This means that if you (inches/m) (feet/m) have an image 10’ high, the bottom of the image will be 1.5' (A3100/ 60/1.5 7.3/2.2 6.5/2.0 A3200) and 1.24' (A3300) above the center of the lens. -
Page 7: Projector And Device Connector Guide
Projector and device connector guide The following illustration and table should help you find the connectors to use and obtain the best resolution possible from your input devices, such as computers, standard VCRs, DVD players (progressive and interlaced), HDTV sources (1080i, 1080p and 720p HDTV formats), TV and satellite tuners, camcorders, video games (progressive and interlaced), and laser disc players. - Page 8 Attach to Adapter Video If Your Device or Labeled Video Device For Setup Instructions, see Comments Compatibility Connector Is Connector on Projector Standard Broadcast TV (not NTSC, PAL, and Composite video Video 3 Composite video connection on Not for progressive HDTV) via: cable, digital SECAM formats or S-video...
- Page 9 Attach to Adapter Video If Your Device or Labeled Video Device For Setup Instructions, see Comments Compatibility Connector Is Connector on Projector 1080i, 1080p, 720p Computer 3 or VESA connection on page 13 Computer 2 Component 480i Component video Computer 3 or Component video connection on HDTV Computer 2 via...
-
Page 10: Connecting A Computer Source
Connecting a computer source Required computer connections (DisplayLink or VESA) connect USB cable If your computer has Windows XP SP2 or newer*, connect the USB cable between your computer's USB port and the projector's DisplayLink connector, then follow the instructions on the screen. See the DisplayLink Manager User's Guide for more information. -
Page 11: Displaying An Image
Displaying an image press Power button Touch the Power button. The Power button blinks green and the fans start to run. When the lamp comes on, the start up screen displays and the Power button is steady green. It can take a minute for the image to achieve full brightness. ? No start up screen? Get help on page 15. -
Page 12: Adjusting The Image
Adjusting the image adjust height If necessary, adjust the height of the projector by pressing the elevator foot release button to extend the foot. release button If necessary, rotate the leveling foot located at the rear of the projector. elevator Avoid placing your hands near the hot exhaust vent at the side of the foot projector. -
Page 13: Connecting A Video Device
Connecting a video device 4:3 screen 4:3 screen You can connect video devices such as VCRs, DVD players, camcorders, digital cameras, video game consoles, HDTV receivers, and TV tuners to the projector. You can connect the audio directly to the projector to get sound Do Not Use from the built-in speaker, or you can bypass the projector’s audio system mode... -
Page 14: Video Device Connections
Video device connections VESA connection If your video device has a 15-pin VGA output, plug one end of the included No video cables are provided with the projector. You can order cables from computer cable into the VGA connector on your video source. This InFocus or provide your own. -
Page 15: Shutting Down The Projector
Shutting down the projector The Status Indicator Panel on top of the projector indicates the state of the projector and can help you troubleshoot. The projector automatically displays a black screen after no active source is detected for 30 minutes. This black screen helps preserve the life of the projector. - Page 16 Problem Solution Result No start up screen Correct image Plug power cord into the projector press power button If your computer is using the projector's Computer image projected Only start up screen appears DisplayLink connector, see the DisplayLink User's Guide for troubleshooting information. Press the Source button activate laptop’s external port Restart laptop...
- Page 17 Problem Solution Result No computer image, just the words “Signal out Press the Auto Image button on keypad adjust Computer image projected computer refresh rate in Control Panel > Display > of range” Settings > Advanced > Adapter (location varies by operating system) You may also need to set a different resolution on your computer, as shown in the following problem, “image...
- Page 18 Problem Solution Result Image fuzzy or cropped Set your computer’s display resolution to the Image clear and not cropped native resolution of the projector (Start > Settings > Control Panel > Display > Settings tab) For a laptop, disable laptop monitor or turn-on dual- display mode...
- Page 19 Problem Solution Result Image not square Adjust Keystone on keypad Square image Image not sharp Adjust Sharpness in the Basic Picture menu Correct image Image does not fit 4:3 or 16:9 screen Change aspect ratio to 4:3 or 16:9 in Basic Correct image Picture>Aspect ratio menu http://www.pureglare.com.au...
- Page 20 Problem Solution Result Image upside down Turn off Ceiling Mount in Setup menu Correct image Image reversed left to right Turn off Rear Project in Setup menu Correct image Projected colors don’t match source Adjust color, tint, brightness, contrast in the Correct image Basic Picture menu COLOR...
- Page 21 Problem Solution Result The video embedded in my PowerPoint If your computer is using the projector's Embedded video plays correctly presentation does not play on the screen DisplayLink connector, see the DisplayLink User's Guide for video troubleshooting information. Turn off the internal LCD display on your laptop Lamp won’t turn on, Temperature light is on Make sure vents aren’t blocked, turn off the Lamp turns on...
- Page 22 Problem Solution Result Lamp turns on “Replace lamp” message appears at startup, Lamp must be replaced (see page 34) lamp won’t turn on, Lamp light is turned on lamp door Lamp light replace lamp Still need assistance? If you need assistance, visit our website at www.infocus.com/service or call us.
-
Page 23: Using The Remote Control
Using the remote control The remote uses two (2) provided AA batteries. They are easily installed by removing the cover from the remote’s back, aligning the + and - ends of the batteries, sliding them into place, and then replacing the cover. Caution: When replacing the batteries, be aware that using batteries other navigation than the type provided with the projector may risk severe damage to the... -
Page 24: Using The Audio
Using the audio connect audio cable Using the projector’s speakers When the computer is using the DisplayLink connector, both audio and video are sent over the USB cable to the projector and audio will play from the projector's speakers. For inputs other than DisplayLink, to use the projector's speakers, connect the audio source to the Audio In Computer or Video connectors. -
Page 25: Using The Keypad Buttons
Using the keypad buttons Most buttons are described in detail in other sections, but here is an overview of their functions: Power–turns the projector on and off (page 10). Auto Image–resets the projector to the source. Presets–cycles through the available preset settings (page 28). Keystone–adjusts squareness of the image (page 11). -
Page 26: Optimizing Computer Images
Optimizing computer images Presentation features Several features are provided to make giving presentations easier. Here is After the projector is running and the image is on the screen, you can an overview, details are found in the menu section. optimize the image using the onscreen menus. For general information on using the menus, see page 27. -
Page 27: Optimizing Video Images
Optimizing video images Customizing the projector After your video device is connected properly and the image is on the You can customize the projector for your specific setup and needs. See screen, you can optimize the image using the onscreen menus. For general page 30 to page 31 for details on these features. -
Page 28: Using The Menus
Using the menus keypad navigation To open the menus, press the Menu button on the keypad or remote. (The buttons menus automatically close after 60 seconds if no buttons are pressed.) Use the arrow buttons to move up and down to highlight the desired menu, then press the Select button. -
Page 29: Basic Picture Menu
Basic Picture menu To adjust the following settings, highlight the setting, press Select, use the up and down arrows to adjust the values, then press Select to confirm the changes. Brightness: changes the intensity of the image. Contrast: controls the degree of difference between the lightest and darkest parts of the picture and changes the amount of black and white in the image. -
Page 30: Advanced Picture Menu
Advanced Picture menu BrilliantColor™: produces an expanded on-screen color spectrum that delivers enhanced color saturation for bright, true-to-life images. Choose Normal Look for most video sources and Bright Look for most computer sources. White Peaking: (video sources only) increases the brightness of whites that are near 100%. -
Page 31: Setup Menu
Setup menu Auto Source: When this feature is On, the projector automatically finds the active source, checking the selected Power-up Source first. When this Language: allows you to select a language for the onscreen display. feature is Off, the projector defaults to the source selected in Power-up Source. - Page 32 Rear Project: reverses the image so you can project from behind a and re-enter it. If you mis-enter a number, you must enter 5 numbers and translucent screen. press the Select button in order to access the “Wrong PIN” message and re- enter the code.
-
Page 33: Status And Service Menu
Status and Service menu Source Info: a read-only display of current source settings. Projector Info: a read-only display of current projector settings. Reset Lamp Hours: resets the lamp hours used counter in the Projector Info menu to zero. Do this only after changing the lamp. Factory Reset: restores all settings to their default. -
Page 34: Maintenance
Maintenance Cleaning the lens Apply a non-abrasive camera lens cleaner to a soft, dry cloth. • Avoid using an excessive amount of cleaner, and don’t apply the cleaner directly to the lens. Abrasive cleaners, solvents or other harsh chemicals might scratch the lens. Lightly wipe the cleaning cloth over the lens in a circular motion. -
Page 35: Replacing The Projection Lamp
Replacing the projection lamp The lamp hours used timer in the Projector Info menu counts the number of hours the lamp has been in use. Twenty hours before the lamp life expires, the message “Change lamp” appears on the screen at startup. •... - Page 36 • Be extremely careful when removing the lamp housing. In the unlikely event that the lamp ruptures, small glass fragments may be generated. loosen screw The lamp module is designed to contain most of these fragments, but use caution when removing it. Before replacing a ruptured lamp, clean the lamp compartment and dispose of cleaning materials.
- Page 37 INDEX DVDs 28 Numerics Factory Reset 32 16x9 vs 4x3 12 focus 11 5 volt DC output 4 Force wide 29 Freeze Screen 30 AC Power On 30 Advanced menu 29 Gamma 29 Apply Preset 28 Aspect Ratio 12, 28, 30 HDMI 1.3 connection 13 Audio In Computer connector 9 HDMI DDC 30...
- Page 38 Service 32 Phase 29 Service Code 32 Picture menu 28 Sharpness 28 Power connector 9 shutting down the projector 14 power cord 9 Source 30 Power Sounds 30 Source Info 30 Power-up Source 30 speakers, connecting external 23 Presentation features 25 Startup Screen 31 Projection distance 5 Status indicator panel 14...
