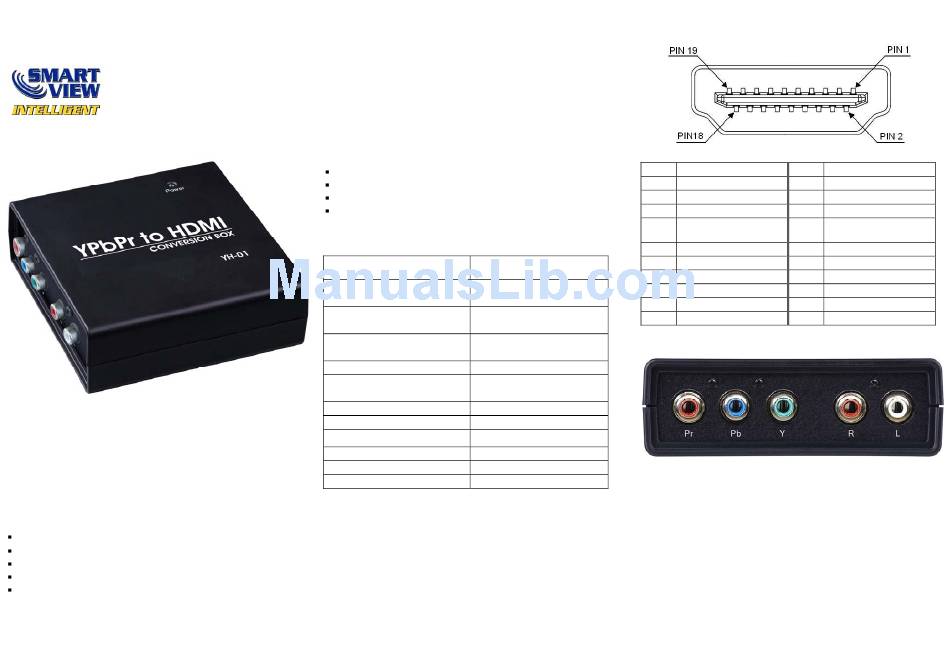

C&C TECHNIC YH-01 User Manual

YPbPr to HDMI
Conversion Box
(YH-01)
U M
SER ANUAL
YH-01
Package Contents-
1 YH-01
1 user manual
1 power adapter DC 5V
1 1.2m component (Video) Cable
1 1.2m Audio R/L Cable
Any thing missed, please contact with your vendor.

Introduction

The YH-01 Component Video (YPbPr) to HDMI
Converter transforms HD component video (YPbPr) and
Audio (R/L) signal to HDMI output. The converter
changes your input analog signal to digital graphic
signal, so that digital display device or projector can be
connected to your analog output easily and conveniently
by HDMI.

Features

Use PanelLink digital technology.
Compliant with the specification of HDMI 1.3.
Support 480i, 480p, 576i, 576p, 720p, 1080i, 1080p.
Support Audio Sample rate 96KHz.

Specifications

Function
Video Input Connector
(Female)
Audio Input Connector
(Female)
Video Output Connector
(HDMI Female)
Max. Resolution
Cable Distance
(Single end)
Input Signal Type
Output Signal Type
Power Adapter (Min.)
Housing
Weight
V1.0
Dimensions (LxWxH)
Note:
Different cable qualify might effect upon the maximum
resolution and cable distance.

Technical Specifications

Input/Output Signal
Pin #
YH-01
1 Set RCA(YPbPr)
1 Set RCA(R/L)
1
1080p
10 m (Max.)
Standard YPbPr Signal
Standard HDMI Signal
DC 5V
Plastic
130g
95*91*31mm
-1-
Signal Pin #
1 TMDS Data 2+ 11 TMDS Clock Shield
2 12
TMDS Data 2 Shield TMDS Clock -
3 13
TMDS Data 2- CEC
Reserved
4 14
TMDS Data 1+
(N.C. on device)
5 15
TMDS Data 1 Shield SCL
6 16
TMDS Data 1- SDA
7 17
TMDS Data 0+ DDC/CEC Ground
8 TMDS Data 0 Shield 18 +5 Power
9 TMDS Data 0- 19 Hot Plug Detect
10 TMDS Clock+
FRONT VIEW
1. "YPbPr In" Port
2. "Audio In" Port
-2-
Signal
