Sunbather SunSwitch Operating Instructions

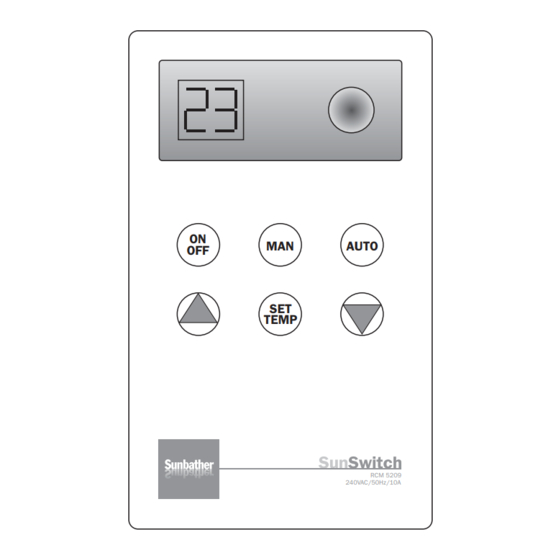

Sunbather SunSwitch
Operating Instructions
ON
MAN AUTO
OFF
SET
TEMP
RCM 5209
240VAC/50Hz/10A
PRIMARY FUNCTIONS PRIMARY FUNCTIONS
Display Display
ON ON
MAN MAN AUTO AUTO
OFF OFF
SET SET
TEMP TEMP
To Switch ON: To Switch ON:
Push the ON/OFF button once to switch the unit Push the ON/OFF button once to switch the unit
ON (pool temperature reading will then display). ON (pool temperature reading will then display).
For Automatic Operation: For Automatic Operation:
Press the AUTO button once for fully automatic Press the AUTO button once for fully automatic
operation (status light will then display). operation (status light will then display).
In this mode the controller automatically In this mode the controller automatically
switches the solar pump to heat the pool when switches the solar pump to heat the pool when
weather conditions are favourable. weather conditions are favourable.
The status light pulses when the pump is on The status light pulses when the pump is on
standby and remains on when the pump is standby and remains on when the pump is
running. running.
SECONDARY FUNCTIONS: SECONDARY FUNCTIONS:
Manual: Manual:
Press the MAN button to run the solar pump at anytime Press the MAN button to run the solar pump at anytime
(flashing status light indicates Manual mode). (flashing status light indicates Manual mode).
Press AUTO button to exit Manual mode or wait 30 minutes Press AUTO button to exit Manual mode or wait 30 minutes
for unit to revert back to Auto mode. for unit to revert back to Auto mode.
For continuous Manual operation, hold the MAN button down for For continuous Manual operation, hold the MAN button down for
Status Status
10 seconds. CO will appear in the display. Press AUTO to revert 10 seconds. CO will appear in the display. Press AUTO to revert
back to the Auto mode. back to the Auto mode.
Winter Mode: Winter Mode:
Hold ON/OFF button for 5 seconds (W will appear in the display). Hold ON/OFF button for 5 seconds (W will appear in the display).
The solar pump will run for a 10 minutes period each day The solar pump will run for a 10 minutes period each day
beginning from the time of setting. beginning from the time of setting.
Press the ON/OFF button again to exit winter mode. Press the ON/OFF button again to exit winter mode.
To Read Roof Temperature: To Read Roof Temperature:
Hold the Up Arrow button for 3 seconds. Hold the Up Arrow button for 3 seconds.
This displays the roof sensor temperature for 5 seconds. This displays the roof sensor temperature for 5 seconds.
Heat and Cool Mode: Heat and Cool Mode:
Hold the AUTO button for 10 seconds (display pulses
Hold the AUTO button for 10 seconds (display pulses
continuously when in Heat and Cool mode). continuously when in Heat and Cool mode).
Push AUTO button again to revert to normal operation. Push AUTO button again to revert to normal operation.
SERVICE FUNCTIONS: SERVICE FUNCTIONS:
Start-up Diagnostic: Start-up Diagnostic:
All lights, displays and non-volatile memory are checked on All lights, displays and non-volatile memory are checked on
start-up. "EE" will flash in the display if a fault is found. start-up. "EE" will flash in the display if a fault is found.
Sensor Fault Diagnosis: Sensor Fault Diagnosis:
A flashing "Er" display indicates a faulty roof sensor. A flashing "Er" display indicates a faulty roof sensor.
A non-flashing "Er" display indicates a faulty pool sensor. A non-flashing "Er" display indicates a faulty pool sensor.
Both sensors are non-polar 4.7K Ohm at 25°C thermistors with Both sensors are non-polar 4.7K Ohm at 25°C thermistors with
these temp/resistance ohm readings: 10°C - 9535, 20°C - 5902, these temp/resistance ohm readings: 10°C - 9535, 20°C - 5902,
30°C - 3770, 40°C - 2480, 50°C - 1673, 60°C - 1156. 30°C - 3770, 40°C - 2480, 50°C - 1673, 60°C - 1156.
Electrical Specifications: Electrical Specifications:
T on 6°C. T on 6°C. T off at 2°C. Maximum relay overload 230V - 10A. T off at 2°C. Maximum relay overload 230V - 10A.
Readout Calibration: Readout Calibration:
To fine tune the temperature readings hold TEMP SET To fine tune the temperature readings hold TEMP SET
button down for 10 seconds until the display flashes. button down for 10 seconds until the display flashes.
Pressing the up or down arrow buttons will change the Pressing the up or down arrow buttons will change the
units base settings one degree each press. units base settings one degree each press.
While in standby, the display reads the last recorded temperature. While in standby, the display reads the last recorded temperature.
Service Lock-Out Mode: Service Lock-Out Mode:
Hold AUTO & MAN buttons down for 10 seconds (LO appears in Hold AUTO & MAN buttons down for 10 seconds (LO appears in
display). Controller will remain in Lock-Out for 2 hours before display). Controller will remain in Lock-Out for 2 hours before
reverting to normal automatic operation. reverting to normal automatic operation.
SUNBATHER POOL TECHNOLOGIES SUNBATHER POOL TECHNOLOGIES
P . O. BOX 107 HASTINGS, VICTORIA AUSTRALIA 3915 P . O. BOX 107 HASTINGS, VICTORIA AUSTRALIA 3915
Ph: 03 5979 5777 Ph: 03 5979 5777
www.sunbather.com.au www.sunbather.com.au
Fx: 03 5979 3577 Fx: 03 5979 3577
