WARNING: If the information in this manual
is not followed exactly, a fire or explosion may
result causing property damage, personal in-
jury or loss of life.
— Do not store or use gasoline or other flam-
mable vapors and liquids in the vicinity of
this or any other appliance.
— WHAT TO DO IF YOU SMELL GAS:
• Do not try to light any appliance.
• Do not touch any electrical switch; do not
use any phone in your building.
• Immediately call your gas supplier from a
neighbor's phone. Follow the gas supplier's
instructions.
• If you cannot reach your gas supplier, call
the fire department.
— Installation and service must be performed
by a qualified installer, service agency or
the gas supplier.
Advertisement
Table of Contents
Related Manuals for Carrier 58GFA
Summary of Contents for Carrier 58GFA

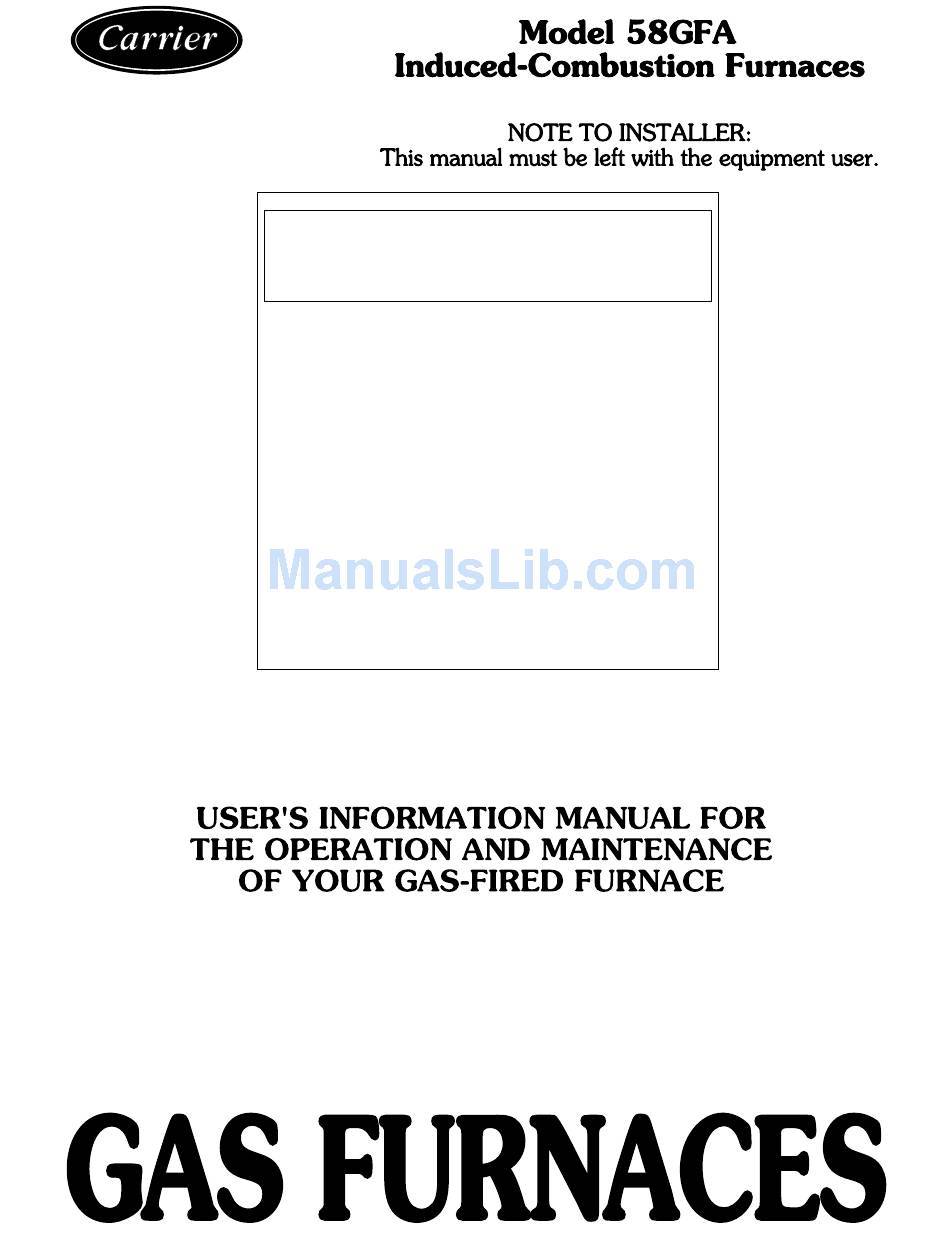

- Page 1 ® WARNING: If the information in this manual is not followed exactly, a fire or explosion may result causing property damage, personal in- jury or loss of life. — Do not store or use gasoline or other flam- mable vapors and liquids in the vicinity of this or any other appliance.
-
Page 2: Welcome To A New Generation Of Comfort
Years went into the development of your new furnace. Take a little time now to assure its most efficient operation for years to come. MODEL 58GFA UPFLOW FURNACE FURNACE IDENTIFICATION For your convenience, record the product and serial numbers of your new furnace on the form below. - Page 3 UPFLOW FURNACE COMPONENTS Relief Box Gas Valve Control Knob (On, Pilot, Off) Gas Valve Gas Burner Pilot Burner and Thermocouple Blower Door Safety Switch Blower and Blower Motor Draft Safeguard Tube and Switch Rating Plate (Behind Junction Box) Gas Manifold Filter Retainer Air Filter...
-
Page 4: Important Facts
IMPORTANT FACTS Recognize safety information: This is the safety-alert symbol . When you see this symbol on the furnace and in instructions Your furnace must have adequate airflow for efficient combus- or manuals, be alert to the potential for personal injury. tion and safe ventilation. - Page 5 NOTE: If pilot does not stay lit, repeat steps 5 through 9; how- ever, hold the button down for a longer period of time (at least 4. Remove the furnace access door(s). (See Fig. 7.) 90 sec). If the pilot flame is extinguished after this second at- tempt, the thermocouple should be checked for a possible mal- NOTE: The blower door must be installed to permit furnace function.
-
Page 6: Performing Routine Maintenance
Some thermostats have a “fan” switch with 2 selections: AUTO PERFORMING ROUTINE MAINTENANCE or ON. When set on AUTO, the furnace blower cycles on and With the proper maintenance and care, your furnace will operate off, controlled by the thermostat. In the ON position, the furnace economically and dependably. -
Page 7: Combustion Area And Vent System
7. Reinstall the clean filter with its cross-mesh binding side 1. Turn off the electrical supply to the furnace and remove the facing the furnace blower. access doors. (See Fig. 6 and 7.) 8. Put filter retainer back in the bracket opening and lock it in 2. - Page 8 Have available the Model No., Series Letter & Serial No. of your equipment to insure correct replacement part. Carrier Corporation Syracuse, New York 13221 Manufacturer reserves the right to discontinue, or change at any time, specifications or designs without notice and without incurring obligations . Copyright 1995 Carrier Corporation Form: OM58-73 Replaces: OM58-56 Printed in the U.S.A.
