User Manual
H.264 4/8/10/16-Channel High-Definition DVR
Quick Start Guide
Products: BLK-HD4D, BLK-HD8D, BLK-HD10D, BLK-HD16D

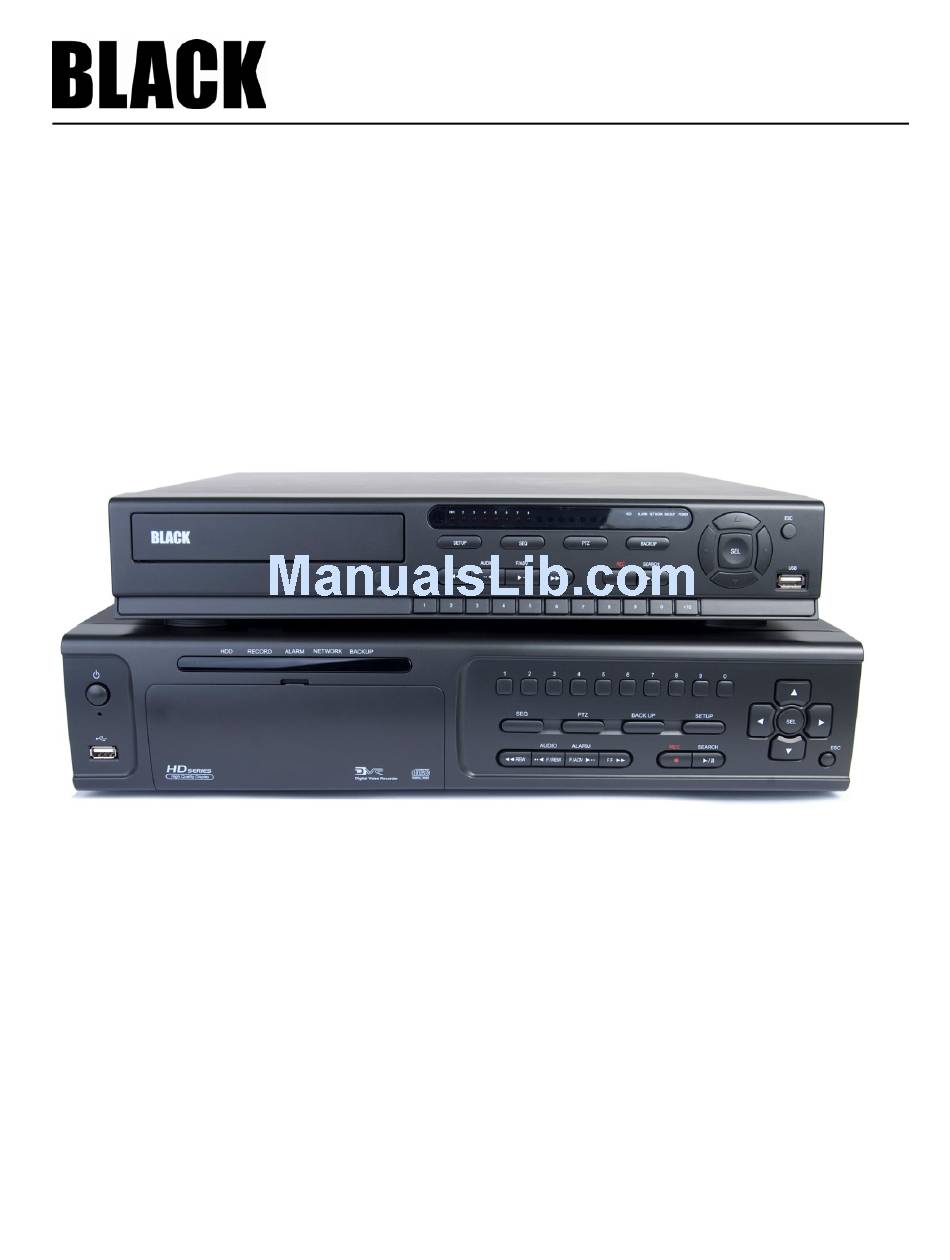

BLK-HD4D (4 channels) and BLK-HD8D (8 channels)(upper)
BLK-HD10D (10-channel hybrid) and BLK-HD16D (16 channels)
PLEASE READ THIS GUIDE BEFORE USING YOUR RECORDER, and always follow
the instructions for safety and proper use. Save this guide for future reference.
BLK-HDxxD_RQ
© 2012 Observint Technologies, Inc.
Advertisement
Table of Contents
Related Manuals for Black BLK-HD4D,=
Summary of Contents for Black BLK-HD4D,=
-
Page 1: Quick Start Guide
H.264 4/8/10/16-Channel High-Definition DVR Quick Start Guide Products: BLK-HD4D, BLK-HD8D, BLK-HD10D, BLK-HD16D BLK-HD4D (4 channels) and BLK-HD8D (8 channels)(upper) BLK-HD10D (10-channel hybrid) and BLK-HD16D (16 channels) PLEASE READ THIS GUIDE BEFORE USING YOUR RECORDER, and always follow the instructions for safety and proper use. Save this guide for future reference. BLK-HDxxD_RQ ©... -
Page 2: Specifications
Specifications* ITEM BLK-HD4D BLK-HD8D BLK-HD10D BLK-HD16D Analog: D1 realtime 720p x 48 fps / 720p x 120 fps / 720p x 192 fps / Recording performance HD: 720p x 60 fps / 1080p * 20 fps 1080p * 40 fps 1080p x 80 fps 1080p x 30 fps Channels... - Page 3 ITEM BLK-HD4D BLK-HD8D BLK-HD10D BLK-HD16D eSATA USB Port 2 (front 1, rear 1) USB flash drive Video and still image USB external Backup Video and still image Network Video and still image Menu Display User I/F Input Method Front panel buttons, remote control, mouse, keyboard Console (RS-232C) Serial PTZ control...
-
Page 4: Product Components
Product Components The package contains the DVR unit and the components shown below. BLK-HD4D, BLK-HD8D DVR Unit BLK-HD10D, BLK-HD16D Client Software CD Remote Control Battery1.5V (AAA x 2EA) Quick Guide (User Guide as PDF on Client Software CD) Data Power Cable Mounting Bracket &... -
Page 5: Front Panel Buttons
BLK-HD4D, BLK-HD8D Front panel indicators and controls Front Panel LEDs Name Description CH1~4, 8 Indicates that the channel is being recorded. Indicates that the system is accessing the hard disk. ALARM Indicates that sensor(s) is/are triggered or motion is detected. NETWORK Indicates that a network client is connected Indicates that a USB or DVD-RW device contains stored data... - Page 6 Name Description In playback mode, press to play/pause the footage. Press to open the SETUP menu. Enable/disable the automatic sequence of display of channels in full screen, quad, 9-split display mode. Press to control Pan/Tilt/Zoom operations. Press to capture video in jpeg format in live or playback mode. Press to move left or to change the values in Setup mode.
-
Page 7: Blk-Hd8D Back Panel Connectors
Name Description RS-232 interface Used for testing only. Connector for a VGA monitor. eSATA port Connector for external storage ETHERNET RJ-45 connector for LAN connection. Use with a USB flash drive to archive still images and videos, and upgrade firmware, or use to connect a USB mouse to the DVR RS-485, sensor and alarm terminations RS-485 PTZ camera control terminals. - Page 8 BLK-HD10D, BLK-HD16D Front panel indicators and controls Front Panel LEDs Name Description Indicates that the system is accessing the hard disk. Indicates that the system is recording video. RECORD Indicates when a sensor is triggered or motion is detected. ALARM Indicates that a network client is connected.
-
Page 9: Blk-Hd10D Back Panel Connectors
Description Name (LEFT) Press to move left or to change the values in Setup mode. When entering a password, it inserts a 4. Press to select the highlighted menu item or store the setup value. Press for temporary storage of the changed value or to return to the previous menu screen. Use with a USB flash drive to archive still images and videos and upgrade firmware, or use to connect a USB USB Port mouse to the DVR. -
Page 10: Blk-Hd16D Back Panel Connectors
BLK-HD16D back panel connectors BLK-HD16D back panel connectors Description Name VIDEO IN HDCCTV 1.0 video input. Channels 1 - 8, 9 - 16. AUDIO IN Audio input. Channels 1 - 4, 5 - 16 1 channel audio out AUDIO OUT SENSOR IN Sensor in terminations VIDEO OUT... -
Page 11: System Installation And Setup
Description Name During playback - To move the playback position 60 seconds forward. F/ADV During pause - To move the playback position 1 frame forward. To rewind the recording. Press again to increase the rewind speed. PLAY/PAUSE To play or to pause the footage in playback mode. To fast forward the recording. - Page 12 In the DAYLIGHT SAVING window, use the mouse to open the dropdown menus and select the DLS region, date and time. When the correct date and time is shown, click Next. NOTE: The date and time setup in the DVR is used to timestamp recorded video recordings.
-
Page 13: Network Connections
Network Connections LAN Connection – Using a crossover cable without a switching hub Connect to the system directly using a crossover type network cable. LAN Connection – Using a switching hub Connect to the system using a hub (switching hub) and an Ethernet cable (10BASE-T/100BASE-TX CAT 5 LAN cable). Page 13... -
Page 14: Smartphone Access
Internet (ADSL) Connection Connect to the system using a router or ADSL modem and an Ethernet cable (10BASE-T/100BASE-TX CAT 5 LAN cable). Smartphone Access When your DVR is configured for access across the Internet, you can remotely monitor and control you video security using the free smartphone app Blackhawk.
