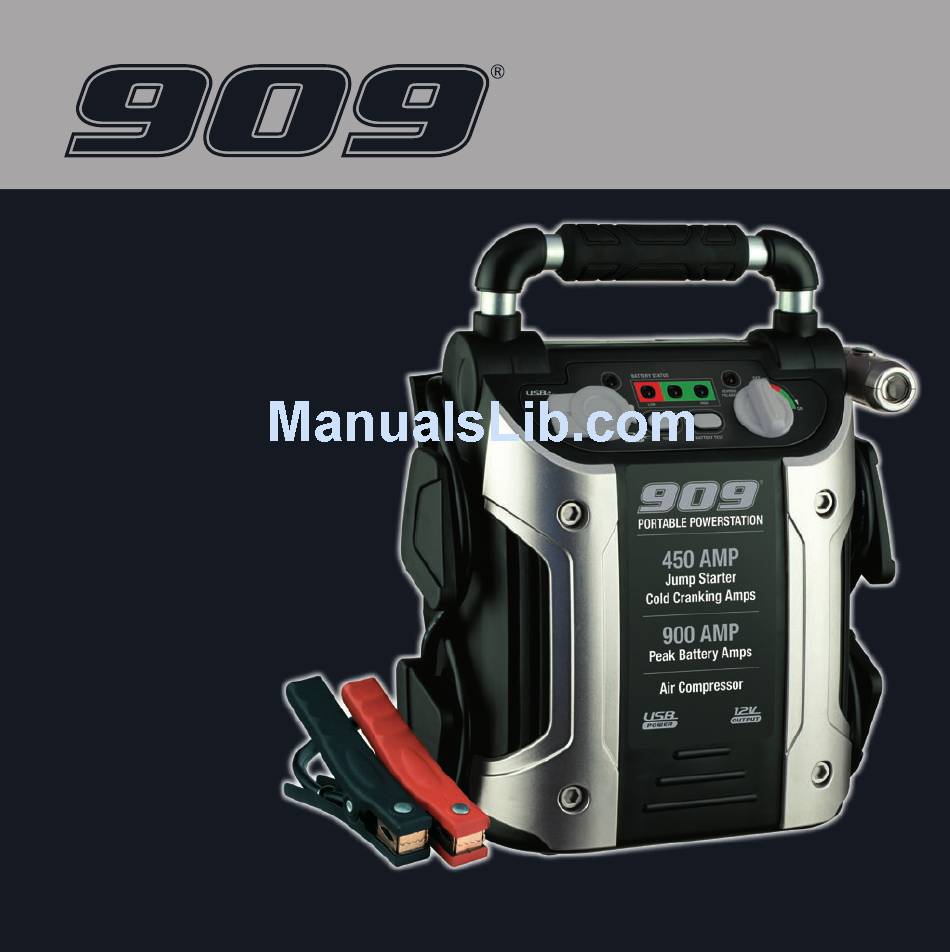

INSTRUCTION MANUAL
RP8242-AUOXY
900 AMP
Portable
Powerstation
Jump Starter
Battery Booster
Air Compressor

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the RP8242-AUOXY and is the answer not in the manual?

Questions and answers

Summary of Contents for 909 RP8242-AUOXY

  • Page 1 INSTRUCTION MANUAL RP8242-AUOXY 900 AMP Portable Powerstation Jump Starter Battery Booster Air Compressor...
  • Page 2: Table Of Contents

    CONTENTS Warranty Warranty For full details please visit us at www.909.com Introduction Environmental protection Specifications General safety warnings and instructions Important safety instructions Specific safety instructions for charging this unit Specific safety instructions for jump starters Specific safety instructions for compressors...
  • Page 3: Introduction

    12 Vdc, 5 A Max special care to heed the Cautions and Warnings. Charger Plug Pack Input: 230–240 Vac Your 909 appliance has many features that will make your job faster and easier. Safety, performance, and Output: 12 Vdc, 500 mA...
  • Page 4: General Safety Warnings And Instructions

    General safety warnings and instructions Avoid dangerous environments. Don’t use appliances • in damp or wet locations. Don’t use appliances in the rain. Read all instructions Keep children away. All visitors should be kept at a • WARNING: Read all instructions before operating jump distance from work area.
  • Page 5: Specific Safety Instructions For Charging This Unit

    Stay alert. Watch what you are doing. Use common CAUTION: to reduce the risk of injury or property • damage: Remove 240 Vac charger plug pack from the sense. Do not operate appliance when you are tired. household power point by grasping the plug pack itself and Check for damaged parts.
  • Page 6 or another common metal conductor — this could cause CAUTION: To Reduce the Risk of Injury damage to the unit and/or create a sparking/explosion or Property Damage: hazard. Never attempt to jump start or charge a frozen • a) For negative-grounded systems, connect the POSITIVE battery.
  • Page 7: Specific Safety Instructions For Compressors

    for a vehicular battery. Do not attempt to operate a vehicle that does not have a battery installed. • Excessive engine cranking can damage a vehicle’s starter motor. If the engine fails to start after the recommended number of attempts, discontinue jump-start procedures and look for other problems that may need to be corrected.
  • Page 8: Know Your Product

    Know your product 1. USB Power Button 2. USB Charging Port (under protective cover) 3. 12 Volt DC Accessory Outlet (under protective cover) 4. USB power indicator 5. Battery Status LED Indicators 6. Reverse Polarity Indicator 7. Jump-Starter Power Switch 8.
  • Page 9: Introduction

    Introduction 12 Volt DC Charging Method Charging the unit from an external 12 Vdc power source Congratulations on purchasing your new 450 Amp Jump requires the use of the 12 Vdc charging adapter. This Starter. Read this Instruction Manual and follow the adapter has a male DC connector at each end.
  • Page 10 9. Disconnect the negative (–) engine or chassis clamp first, 4. Procedure for jump-starting a NEGATIVE GROUNDED then disconnect the positive (+) battery clamp. SYSTEM (negative battery terminal is connected to chassis) (MOST COMMON) WARNING: to reduce the risk of injury or property damage: Connect positive (+) red clamp to vehicle battery’s positive terminal.
  • Page 11: Usb Power Port

    before the battery must be recharged. USB power port The inflator may be used by removing the air hose from the 1. Push the USB Power Button to turn the USB Port on and storage hatch and if required, fitting an appropriate nozzle the USB power indicator will light.
  • Page 12: Battery Replacement/Disposal

    WARNING: TO REDUCE THE RISK OF INJURY 12 volt DC charger plug fuse replacement OR PROPERTY DAMAGE: FOLLOW ALL SAFETY The fuse in the plug end of the 12 Volt DC charger protects INSTRUCTIONS FOUND IN THE “SPECIFIC SAFETY the adapter’s charging circuit. If the 240 Vac charger plug INSTRUCTIONS FOR INFLATORS”...
  • Page 13: Accessories

    Check that Jump-Starter has a full charge. Recharge unit • if necessary. • Make sure connector is pushed to valve stem and thumb latch is closed when attempting to inflate tires; or nozzle (adapter) is securely inserted into connector (chuck) on all other inflatables.

This manual is also suitable for:

Rp82461-auoxy
