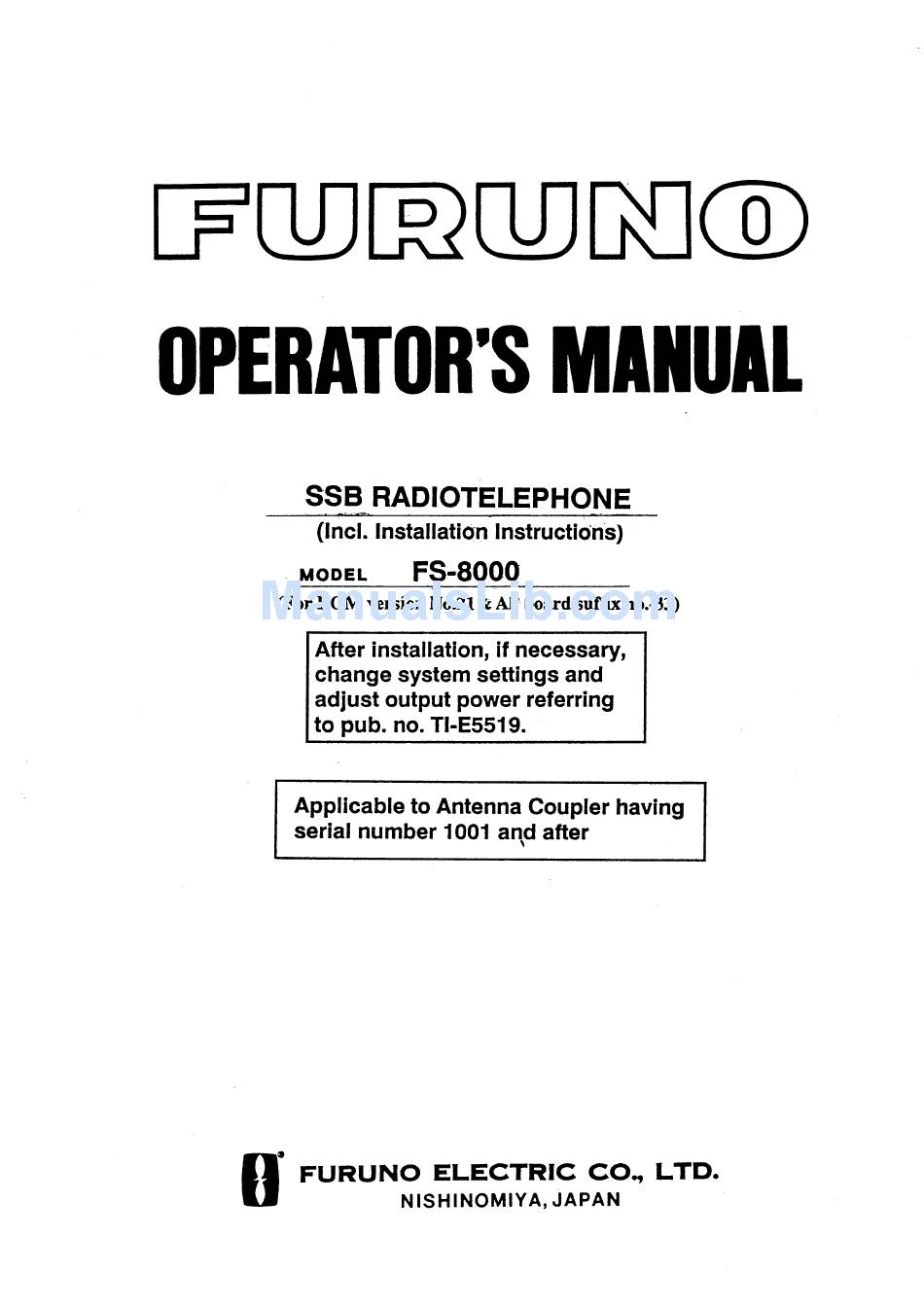

Furuno FS-8000 Operator's Manual
Ssb radiotelephone
Hide thumbs
Also See for FS-8000
:
Operator's manual
(1 page)
,
Service manual
(181 pages)
,
Manual
(493 pages)
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
Table Of Contents
151
page
of
151
Go
/
151
Contents
Table of Contents
Troubleshooting
Bookmarks
Table of Contents
Safety Instructions
Safety Information for the Operator
Table of Contents
Operator's Guide
User Channel
ITU/DSC Channel
2182 Khz Distress Calling
DSC Distress Calling
When DSC Terminal with Frequency Remote Control
In the Event of Antenna Coupler Failure
Antenna Coupler
Transceiver Unit
Control Unit
Introduction
Specifications
Miscellaneous Functions
Compass Safe Distance
Precautions
System Configuration
Operation
Front Panel Controls & Indications
Controls
TX Block Keys
RX Block Keys
Frequency Control Block Keys
Channel Change by Curs & Tune Keys
Class of Emission/Time Setting Block Keys
Recommended AGC Curve
Standard Bandwidth for each Class of Emission
Basic Operation
Turning the Power on and off
Setting Date & Time
Setting the Wake-Up Timer
Class of Emission Selection
Frequency Selection
Conventions
Viewing the Contents of User CH.
Receiving
S Meter Indication
Scan Receiving
Setting Scan Parameters
Viewing Scan Parameters
Sweep Receiving
Setting Sweep Parameters
Viewing Sweep Parameters
Transmitting
Changing Factory Set Tones
Test Tone Frequency
Side Tone Frequency
Change of Specifications
Operator-Changeable Specifications
Operation of Intercom
Control Unit Priority
Testing the Transmitter by Dummy Antenna
Maintenance
General
Cleaning
Regular Maintenance
Self Tests
Control Unit & Transceiver Unit
Troubleshooting
Transceiver Unit Inside View
Rectifier Unit, Cover Opened
Control Unit, Inside View
Error Messages
Error Messages for Self Tests
PCB Locations
Installation
Installation & Communication
Duplex Communication
Connection Method for Simplex Communication
Simplex Communication
Connections Required for Duplex Communication
BK Relay in the Transceiver Unit
MF Two-Frequency Communication
Antenna BK Relay
Antenna
Transmitting Antenna
Receiving Antenna
Mounting the Control Unit
Mounting Considerations
Location of Front Panel Fixing Screws
Separating the Top and Bottom Chassis
Wiring
Hardware for Mounting the Control Unit
Location of Parts Inside the Control Unit
How to Use the Terminal Opener
MIC Input Terminal
Optional Equipment
Ground Connection
Cable Entries for the Handset
Mounting the Transceiver Unit
Mounting Dimensions of the Transceiver Unit
In the Upper Unit
In the Lower Unit
Optional Supply of Connector Block Assembly
Installation of R. Ant Sel Board
Wiring on the Interface Board
Making the Ground Connection on the Transceiver Unit
Mounting the Antenna Coupler
Outdoor Installation
Indoor Installation
Mounting Dimensions
Anti-Moisture Measure
Mounting the Coupler Indoors
Antenna Coupler, Front Cover Opened
Connections on the Coupler Board
Grounding the Antenna Coupler
Selection of Input Voltage
Ground
Post Installation Checks and Adjustments
Visual Checks
Input Voltage Check
Control Unit Check
Receiver Check
Transmitter Check
Adjustment of Noise Blanker Level
Manual 2182Khz Tuning Preset
Alteration of Supply Voltage Setting
Checking Voltage
Modification of Interface Board
Installation of Optional Equipment
Dummy Load
Antenna Coupler, Top Cover Removed
Dummy Load & Antenna BK Relay
Connection of External Equipment
BK Connection
Interface Board
Minus BK Line Control
CIF/NMEA Connection
NBDP Terminal, DSC Terminal, Intership FAX & Selcall
Remarks on Connection to NBDP
RB-500 Connection
Equipment List
Complete Set
Optional Supply
Installation Materials
Accessories
Wire Antenna Materials
Antenna Lead-In Kit
Optional Installation Materials
Installation Materials for Control Unit
Optional Accessories
List of Schematic Diagrams
Frequency Tables
DSC & Distress Frequencies
MF Band ITU Telex Frequency Table
MF Band ITU SSB Frequency Table
Digital Interface (IEC 61162-1 Edition 2)
Input Sentences
Gga, Gll, Rma, Zda, Rmc
GGA - Global Positioning System (GPS) Fix Data
GLL - Geographic Position - Latitude and Longitude
RMA - Recommended Minimum Navigation Information - Loran C Data
RMC - Recommended Minimum Specific GPS/TRANSIT Data
ZDA - Data and Time
Advertisement
Quick Links
Download this manual
See also:
Service Manual
Table of
Contents
Previous
Page
Next
Page
1
2
3
4
5
Advertisement
Table of Contents
Related Manuals for Furuno FS-8000
