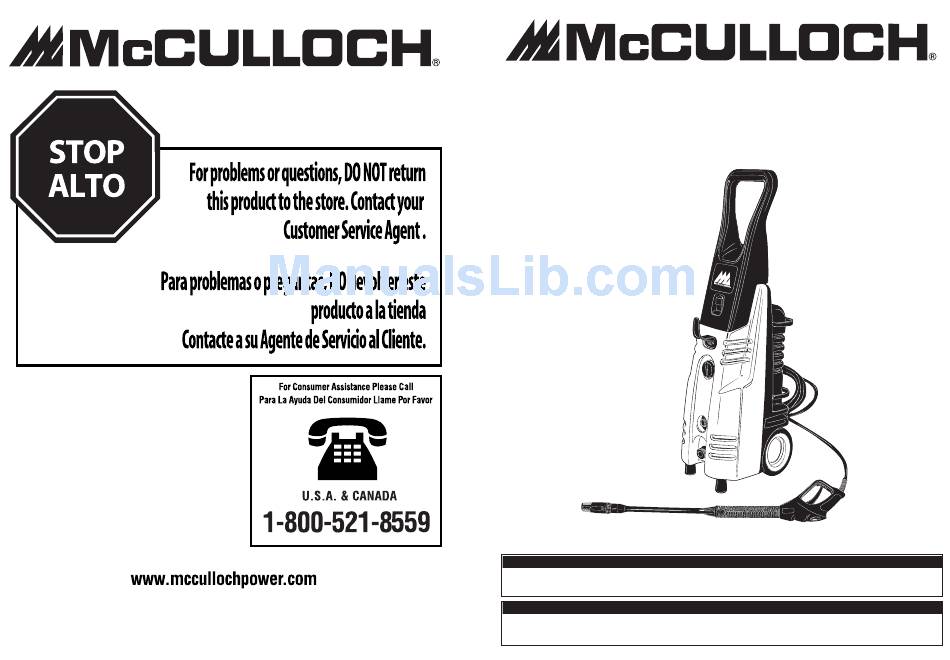

USER MANUAL

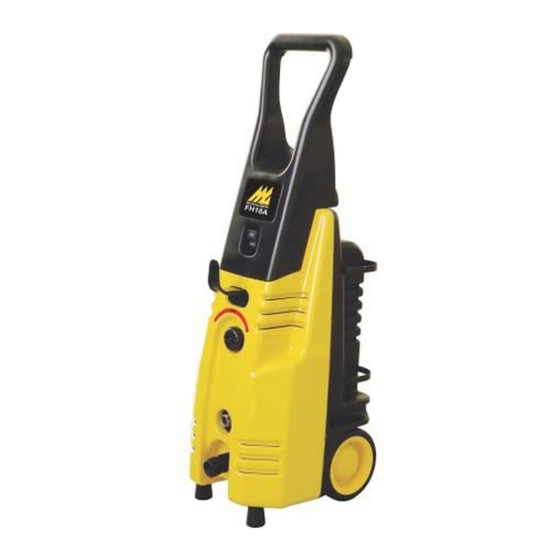

High Pressure Jet Washer
MANUAL DEL USUARIO
Model No.
FHH18A/FHH20C
SAFETY
OPERATION
MAINTENANCE
SEGURIDAD
OPERACION
MANTENIMIENTO
WARNING • PLEASE READ
For your own safety please read this manual before attempting to operate your new unit. Failure to follow instructions
can result in serious personal injury. Spend a few moments to familiarize yourself with your Pressure Washer before
each use.
ADVERTENCIA • FAVOR DE LEER
Para su propia seguridad, favor de leer este manual antes de intentar operar su unidad nueva. Si no se siguen estas
instrucciones se pueden provocar serias heridas personales. Dedique unos cuantos momentos a familiarizarse con
su limpiador a presión antes de cada uso.
PN 7096-H18A01
Limpiadoras de Alta Presion
ON
OF F
© 2006 McCulloch Motors, • Printed in China
Advertisement
Table of Contents
Related Manuals for McCulloch 7096-H18A01
Summary of Contents for McCulloch 7096-H18A01
- Page 1 WARNING • PLEASE READ For your own safety please read this manual before attempting to operate your new unit. Failure to follow instructions can result in serious personal injury. Spend a few moments to familiarize yourself with your Pressure Washer before each use.
-
Page 2: Specifications
Todo el servicio que no sea el mantenimiento del usuario se llevará a cabo en un Centro de Servicio Autorizado McCulloch. Los daños o las condiciones que hagan inoperable este producto debido a las prácticas inadecuadas de mantenimiento anularán la garantía del fabricante. - Page 3 1 - GENERAL INFORMATION - RENSEIGNMENTS GENERAUX - INFORMACION GENERAL Handle Mango de Pistola Disparadora On-Off Switch Trigger Switch Interruptor Conectado-Desconectado Hose Hook Sostenedor de la manguera High Pressure Outlet Salida de Presión Alta Water Inlet (water inlet filter#13 inside) Entrada de agua High Pressure Hose Manga de Presión Alta...
-
Page 4: Warning / Caution
4. The water supply temperature must not exceed 104˚F/60˚C. 5. Never use the pressure washer to draw in water contaminated with solvents, e.g. paint thinners, gasoline, oil, etc. 6. Always prevent debris from being drawn into the unit by using a clean water source. -
Page 5: Technical & Consumer Information
Centro de Servicio Autorizado McCulloch. Los daños o condiciones causadas por practicas de mantenimiento inadecuadas, las cuales hagan que el producto sea inoperable invalidarán la garantía del fabricante. Ñ 4. PARA LA GARANTIA O EL SERVICIO contacte al Centro de Servicio Autorizado McCulloch más cercano Por favor llame 1-800-521-8559. 1-5. SIMBOLOS INTERNACIONALES 1. -
Page 6: Operating
ASSEMBLY AND START UP Ensure pressure washer is at least 19 feet (6 meters) away from explosive vapors and combustible materials. Insert the lance extension (A) into the trigger gun (B). Turn the lance extension (A) clockwise until tight. (Fig. 4- Connect the high pressure hose (C) to high pressure outlet (D). - Page 7 7- ASSEMBLY INSTRUCTIONS -INSTRUCCIONES DE ENSAMBLE • CLEANING AND MAINTENANCE Before performing any work on the machine, ensure it is unplugged from the main electrical supply. Close the water tap and operate the trigger to relieve pressure in the machine and hose. Irregular or too high water pressure indicates clogging or calcium accumulation in the nozzle.
