USER MANUAL
MANUEL DE UTILISATION
MANUAL DEL USUARIO
MODELS / MODÉLES / MODELOS
MS0815P, MS1015P
DOUBLE INSULATED
DOUBLE ISOLATION
DOBLEMENTE AISLADA
Beware of kickback. Hold chain saw firmly with both hands when using. For your own safety, please read and follow
the safety precuations in this manual before attempting to operate your chain saw. Improper use can cause serious
injury.
Attention aux rebonds. Tenez toujours la tronçonneuse fermement et des deux mains. Pour votre propre sécurité,
veuillez lire attentivement ce manuel et suivre toutes les mesures de précautions indiquées avant de vous servir de
la tronçonneuse. Utilisé incorrectment, cet outil peut causer des dommages matériels et/ou coproels graves.
Cuídese del contragolpe. Siempre sostenga la sierra de cadena firmemente con ambas manos cuando la esté usan-
do. Por su propia seguridad, por favor lea y siga las precauciones de seguridad en este manual antes de intentar
operar su sierra de cadena. Uso impropio puede causar serias lesiones.
PN 6096-210804

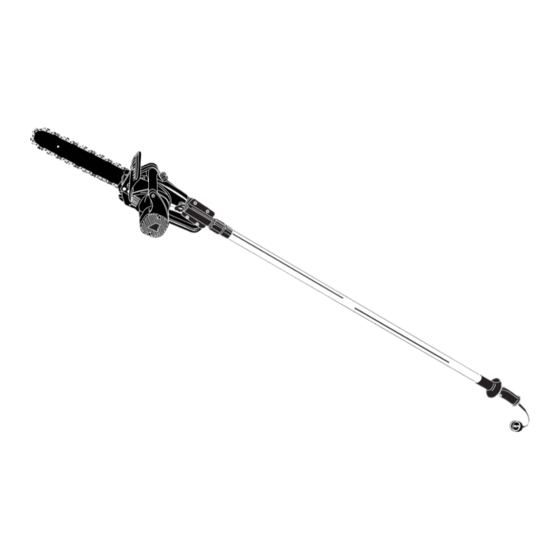

Electric Pole Saw
Perche Élagueuse Électrique
Sierra Telescopia Electrica
WARNING • PLEASE READ
AVERTISSEMENT • LIRE ATTENTIVEMENT
ADVERTENCIA • FAVOR DE LEER
© 2003 McCulloch Motors • Printed in Taiwan

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MS1015P and is the answer not in the manual?

Questions and answers

Ben Ladky
March 19, 2025

Oiler not working for the chain on my 101

0
1 comments:
Mr. Anderson
March 19, 2025

The oiler on your McCulloch MS1015P may not be working due to several possible reasons:

1. Oil Level is Low – Check the oil sight level hole on the left side of the saw to ensure there is enough oil.
2. Oil Cap Not Pressed – You need to press the oil cap to feed oil onto the guide bar and chain.
3. Oil Port is Clogged – The oil discharge hole at the base of the saw may be blocked. Clean it using a small wire to ensure proper lubrication.
4. Guide Bar Rails Are Dirty – Residue buildup in the guide bar rails can prevent oil from reaching the chain. Clean the rails using a screwdriver, knife, or wire brush.

Ensuring proper maintenance and regular cleaning should help restore the oiler’s function.

This answer is automatically generated

0

Related Manuals for McCulloch MS1015P

Summary of Contents for McCulloch MS1015P

  • Page 1 Uso impropio puede causar serias lesiones. PN 6096-210804 Electric Pole Saw Perche Élagueuse Électrique Sierra Telescopia Electrica WARNING • PLEASE READ AVERTISSEMENT • LIRE ATTENTIVEMENT ADVERTENCIA • FAVOR DE LEER © 2003 McCulloch Motors • Printed in Taiwan...
  • Page 2 Dear Customer, Thank you for purchasing a McCulloch product. With proper operation and maintenance, it will provide you with years of service. In order to make the best use of your investment, be CERTAIN to familiarize yourself with the contents of the ENTIRE user manual before attempting to operate and maintain your unit.
  • Page 3 1 - GENERAL INFORMATION - GENERALITES INFORMACION GENERAL Input ........120V~, 60Hz, 8Amp Output .
  • Page 4 1 - GENERAL INFORMATION - RENSEIGNMENTS GENERAUX - INFORMACION GENERAL 1. Saw Chain 2. Guide Bar 3. Front Handle 4. Handle Bracket 5. Inner Pole 6. Power Cord 7. Coupling Nut 8. Outer Pole 9. Lock-off Switch 10. Trigger Start/ Stop Switch 11.
  • Page 5 1-2. SAFETY FEATURES Numbers preceding the descriptions correspond with the numbers on preceding page to help you locate the safety feature. 1 LOW-KICKBACK CHAIN helps significantly reduce kickback, or the intensity of kickback, due to specially designed depth gauges and Guard links. LOCK / OFF BUTTON prevents accidental acceleration of the saw motor.
  • Page 6 (ANSI B175.1-1991, Annex C) (CAN3-Z62.1-M85 FEB85, Appendices A, B) Su Sierra de Cadena McCulloch esta proveída con una etiqueta de seguridad localizado en la manija del . Esta etiqueta, junto con las instrucciones de seguridad en estas páginas, deberán ser leídas antes GUARDAMANOS de intentar operar estas unidades.
  • Page 7 WARNING (Figure 2-1A) 1. Beware of kick back. 2. Do not attempt to hold saw with one hand. 3. Avoid bar nose contact. WARNING DANGER! BEWARE OF KICKBACK! Kickback can lead to dangerous loss of control of the chain saw and result in serious or fatal injury to the saw oper- ator or to anyone standing close by.
  • Page 8 2-2A BEWARE OF: ROTATIONAL KICKBACK (Figure 2-2A) A = Kickback path B = Kickback reaction zone KICKBACK may occur when the NOSE or TIP of the guide bar touches an object, or when wood closes in and pinch- es the saw chain in the cut. Tip contact in some cases may cause a lightning-fast reverse reaction, kicking the guide bar up and back toward the operator.

  • Page 9: Important Safety Instructions

    IMPORTANT SAFETY INSTRUCTIONS WARNING When using an electric chain saw, basic safety precautions should always be followed to reduce the risk of fire, elec- tric shock, and injury to persons, including the following: READ ALL INSTRUCTIONS 1. Double insulated - No Serviceable Parts Inside. 2.
  • Page 10 6. CONSIDER THE WORK AREA ENVIRONMENT: Use extreme caution when cutting small sized brush and sapling, as slender material may catch the saw chain and be whipped toward you or pull you off balance. Do not operate a chain saw in a tree unless you are specifically trained to do so. When cutting a limb that is under ten- sion, be alert for spring back so that you will not be struck when the tension in the wood fibers is released.
  • Page 11 13. STAY ALERT: Watch what you are doing. Use common sense. Do not operate the chain saw when you are tired. Keep all parts of your body away from the saw chain when the motor is operating. Before you start the saw, make sure the saw chain is not contacting anything.
  • Page 12 18. CARRYING THE SAW: Carry the saw by the front handle with the saw stopped. Keep your finger off the switch, and make sure that the guide bar and saw chain are to the rear. 19. GUARD AGAINST KICKBACK: WARNING: when the wood closes in and pinches the saw chain in the cut.
  • Page 13 G. Use only replacement bars and chains specified by the manufacturer or the equivalent. H. There are no other replacement components for achieving kickback protection in accordance with CSA Z62.3. 20. POWER SUPPLY: Connect the chain saw to correct voltage; be sure that the voltage supplied is the same as that specified on the nameplate of the tool.
  • Page 14 31. EXAMINE THE ELECTRICAL SWITCHES. Do not use the chain saw if the switches do not properly turn on and off. Do not attempt to make any repairs to the electric switches. Take your saw to a McCulloch Authorized Service Center.

  • Page 15: Pole Saw Trimming Precautions

    N'UTILISER AUCUN AUTRE ACCESSOIRE OU ACCESSOIRE DE COUPE. Utilisez exclusivement les accessoires et pièces de rechange McCulloch, qui ont été spécifiquement concus pour des performanc- es et pour une sécurité optimales lors de l'utilisation de nos produits. Faute de quoi, vous risquez d'obtenir des performances réduites, voire de vous mettre en danger.
  • Page 16 (close to saw end) • keep guide bar and chain to rear 11. Do not cut small brush and saplings with the pole saw. Use the chain saw only, with extreme care. Slender mat- ter may catch in the chain and be whipped toward you. This could also pull you off balance.
  • Page 17 15. Do not use the pole saw to cut limbs larger in diameter than 4” (10 cm) in diameter. (See Fig. 2-3B) 16. Keep other persons away from cutting end of pole saw and at a safe distance from work area. (See Fig. 2-3C) 17.
  • Page 18 3-3. ASSEMBLY REQUIREMENTS Your new pole saw will require adjustment of chain and filling the oil tank with lubricating oil before the unit is ready for operation. Do not start the saw motor until the unit is properly prepared.
  • Page 19 3-4. GUIDE BAR / SAW CHAIN REPLACEMENT INSTALLATION WARNING Whenever handling the saw chain, wear work gloves for pro- tection against sharp cutting edges. 1. Remove bar nuts, push bar bolts in and slide sprocket sup- port down. (See Fig. 3-4A) 2.

  • Page 20: Saw Chain Tension Adjustment

    3-5A 3-5. SAW CHAIN TENSION ADJUSTMENT Proper tension of the saw chain is extremely important and must be checked before starting, as well as during, any cutting operation. Taking the time to make needed adjustments to the saw chain will result in improved cutting per- formance and prolonged chain life.
  • Page 21 Holding the nose in upper position, securely tighten the bar retaining nuts (70 inch lbs.) 3-6. ASSEMBLY OF POLE SAW Make sure the unit is unplugged from power source. Slip handle bracket (A) over chain saw handle from the right side (See Fig. 3-6A). NOTE: The trigger must be depressed before the bracket will go onto the handle.

  • Page 22: Adjusting Pole Length

    To oil chain, press oil cap. Oil will feed onto guide bar and chain. Press oil cap at least once before each cut. Always check oil level before using pole saw. check oil level often by looking at oil sight level hole. Oil sight level hole is on left side of saw, between front handle and front hand guard.
  • Page 23 (sideways movement) of saw. Guide pole saw using light pressure. Do not force pole saw. The motor will overload and can burn out. It will do the job better and safer at the rate for which it was intended.

  • Page 24: Filling Oil Tank

    3-10. FILLING OIL TANK Using a funnel, fill oil tank with McCulloch Chain, Bar and Sprocket oil. Wipe up any spills. Make sure no dirt gets into the oil tank. 3-11. SELECTING SAW MODEL Saw Model FR1015P 1. When using the appliance, an extension cord of adequate size must be used for safety and to prevent loss of power and overheating.
  • Page 25 4 - OPERATING INSTRUCTIONS - FUNCTIONMENT - INSTRUCCIONES DE OPERACION 4-1. TO START SAW PLEASE READ ALL WARNINGS. Make sure oil reservoir is full. WARNING Ensure the extension cord is of the proper size and type for your saw. 3. Plug the cord (A) into the appropriate size extension cord (B) (see Figure 3-11). Plug the extension cord into a 110/120 volt AC, 15 AMP receptacle (Figure 4-1A).
  • Page 26 5. With your RIGHT THUMB, depress the LOCK/OFF button (C) on the side of the rear handle, and at the same time squeeze the trigger. To stop the saw, release the trigger (Figure 4-1C). NOTE: It is not necessary to maintain pressure on the LOCK/OFF button once the trigger is squeezed and the motor is running.

  • Page 27: Extension Cords

    CAUTION Never starve the bar and chain of lubrication oil. Running the saw DRY or with TOO LITTLE OIL will decrease cutting efficiency, shorten chain saw life, and cause rapid dulling of the chain and excessive wear of the bar from overheat- ing.
  • Page 28 CAUTION A cord that is hot to the touch is overloaded. 1. When using the appliance, an extension cord of adequate size must be used for safety and to prevent loss of power and overheating. 2. The extension cord must be specifically intended for outdoor use and marked SW-A, SOW-A, STW-A, STOW-A, SJW-A, SJOW-A, SJTOW-A, STJW, or SJTW.
  • Page 29 WARNING Your double insulated appliance has no serviceable parts inside. Do not attempt to repair it yourself. For service infor- mation, contact the McCulloch Product Service Department toll-free number listed on the back cover of this manual. CONSERVER CES INSTRUCTIONS DOUBLE ISOLATION Ne pas utiliser si le prolongateur ou la prise est endommagé.
  • Page 30 Avoid kickback. Kickback can result in severe injury or death. See Kickback, page 6, to avoid risk of kickback. Do not operate pole saw while in a tree, on a ladder or any other unsta- ble work surface, or in any awkward position. You may lose control of pole saw causing severe injury.
  • Page 31 5-2. FELLING Felling is the term for cutting down a tree. Small trees up to 6-7” (15- 18cm) in diameter are usually cut in a single cut. Larger trees require notch cuts. Notch cuts determine the direction the tree will fall. FELLING A TREE: WARNING A retreat path (A) should be planned and cleared as necessary...
  • Page 32 WARNING Do not cut down a tree during high or changing winds or if there is a danger to property. Consult a tree professional. Do not cut down a tree if there is a danger of striking utility wires; notify the utility company before making any cuts. GENERAL GUIDELINES FOR FELLING TREES: Normally felling consists of 2 main cutting operations, notching (C) and making the felling cut (D).
  • Page 33 Never saw completely through the trunk. Always leave a hinge. The hinge guides the tree. If the trunk is completely cut through, control over the felling direction is lost. Insert a wedge or felling lever in the cut well before the tree becomes unstable and starts to move. This will prevent the guide bar from binding in the felling cut if you have misjudged the falling direction.
  • Page 34 5-3A WARNING As the felling cut gets close to the hinge, the tree should begin to fall. When tree begins to fall, remove saw from cut, stop engine, put chain saw down, and leave area along retreat path (Figure 5-2A). 5-3.
  • Page 35 5-4A 5-4. BUCKING Bucking is cutting a fallen log into lengths. Make sure you have a good footing and stand uphill of the log when cut- ting on sloping ground. If possible, the log should be supported so that the end to be cut off is not resting on the ground.
  • Page 36 5-5. BUCKING USING A SAWHORSE For personal safety and ease of cutting, the correct position for vertical bucking is essential (Figure 5-5A). VERTICAL CUTTING: A. Hold the saw firmly with both hands and keep the saw to the right of your body while cutting. B Keep the left arm as straight as possible.
  • Page 37 6 - BAR / CHAIN MAINTENANCE - ENTRETIEN DU GUIDE-CHAINE ET DE LA CHAINE - MANTENIMIENTO DE LA BARRA / CADENA 6-1. GUIDE BAR MAINTENANCE WARNING Ensure that the power cord is disconnected before performing any maintenance on your saw. Proper maintenance of the guide bar, as explained in this section, is essential to keep your saw in good working order.
  • Page 38 BAR GROOVES - Bar grooves (or rails which support and carry the chain) should be cleaned if the saw has been heavily used or if the saw chain appears dirty. Rails should always be cleaned every time the saw chain is removed. OIL PASSAGES - Oil passages at bar pad should be cleaned to ensure proper lubrication of the bar and chain dur- ing operation.
  • Page 39 A low-kickback saw chain should always be used in conjunction with other kickback protection devices such as the Hand Guard furnished with your unit. Always use a replacement saw chain designed as “low-kickback” or a saw chain which meets the low-kickback per- formance.
  • Page 40 STRETCH. This is normal. When it is no longer possible to obtain correct chain tension adjustment, a link will have to be removed to shorten the chain. See your McCulloch Authorized Service Center to have this repair performed. WARNING / CAUTION Never have more than 3 links removed from a loop of chain this could cause damage to the sprocket.
  • Page 41 7- PREVENTIVE MAINTENANCE - ENTRETIEN PREVENTIF - INSTRUCCIONES DE MANTENIMIENTO 7-1. PREVENTATIVE MAINTENANCE WARNING SERVICING A DOUBLE INSULATED APPLIANCE In this double insulated appliance, 2 systems of insulation, instead of grounding, are provided. No grounding means is provided on a double insulated appliance, nor should a means for grounding be added to the appliance. No serv- iceable parts are inside.
  • Page 42 été déclenché. Si la tronçonneuse ne fonctionne toujours pas, contacter le Service Après-Vente McCulloch dont le numéro à appel gratuit se trouve au dos de ce manuel. Ne pas essayer de faire la réparation soi-même. Aucune pièce interne n’est réparable par l’opérateur.
  • Page 44 STOP ARRÊT ALTO NE PAS retourner ce produit au point de vente. S'adresser Para problemas o preguntas, NO devolver este producto a la tienda U.S.A. Imported by: MTD LLC P.O. Box 361131 Cleveland, OH 44136-0019 Canada Imported by / Importé par: MTD PRODUCTS LIMITED 97 Kent Avenue Kitchener, ON...
