TFD 1430
4 Wire Optical Smoke Detector
TFD 1450
4 Wire Optical Smoke + Heat Detector
Installation and User Manual
Publish Date: 15/4/2011
Between 0°C and +55°C
%95 at +40°C
Below 600 meters/min

INSTALLATION AND CONNECTION

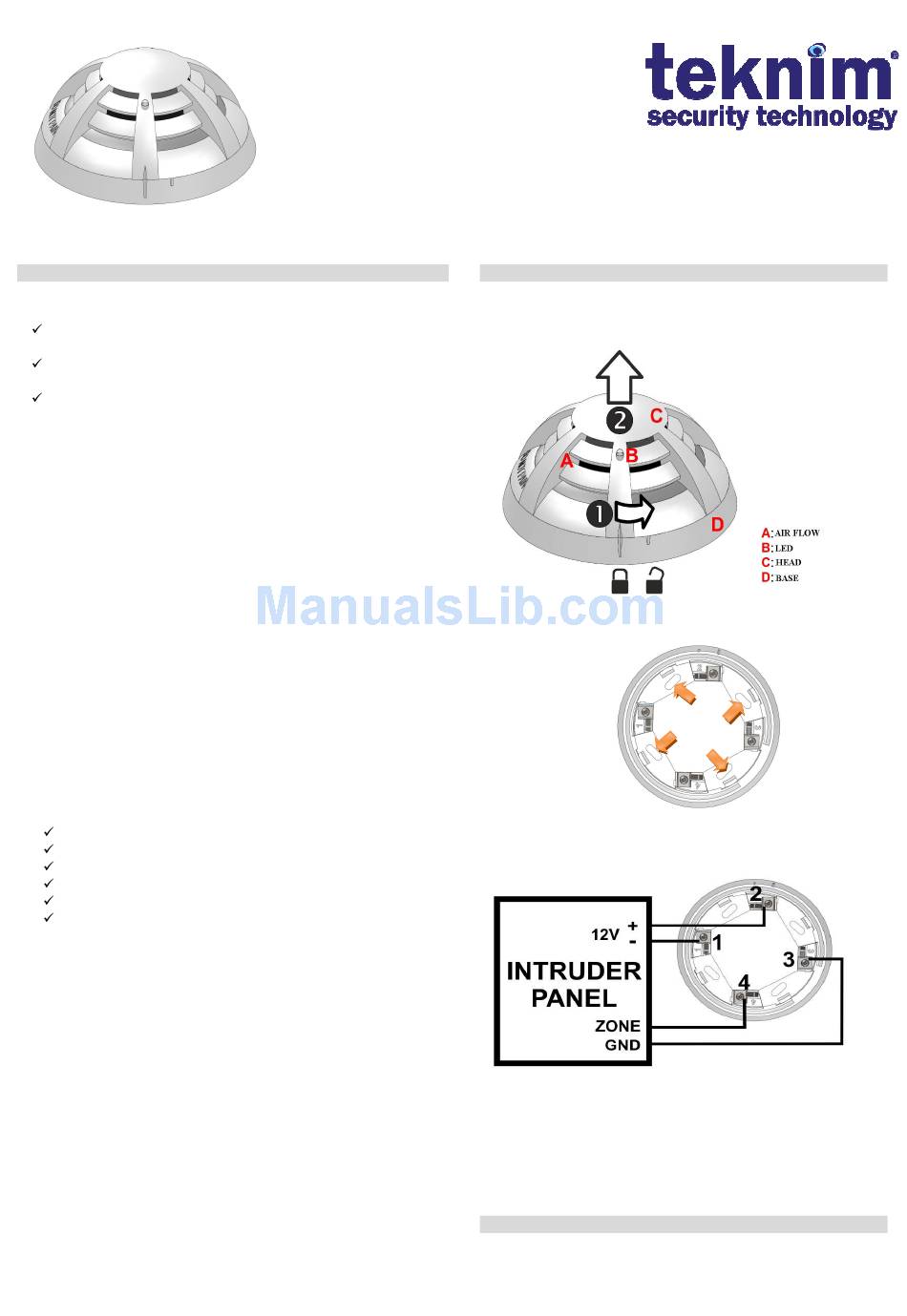

1. Remove the head of the detector attached to base by
turning it counter clock wise until you reach the short line
on the base(1),then pull it off(2).
2. Use at least 2 opposite ones from 4 of the screw holes
on the base to fasten it.
3. Do the wiring according to schematic shown below. The
order of cables do not make any difference. There is no
(+/-).
4. Place the detector head back. Make sure the short line
on head fits with long one on the base.
5. Energise the detector. If there is no alarm condition the
LED on detector flashes once every 10 secs to show it is
working at that moment. .

TEST
