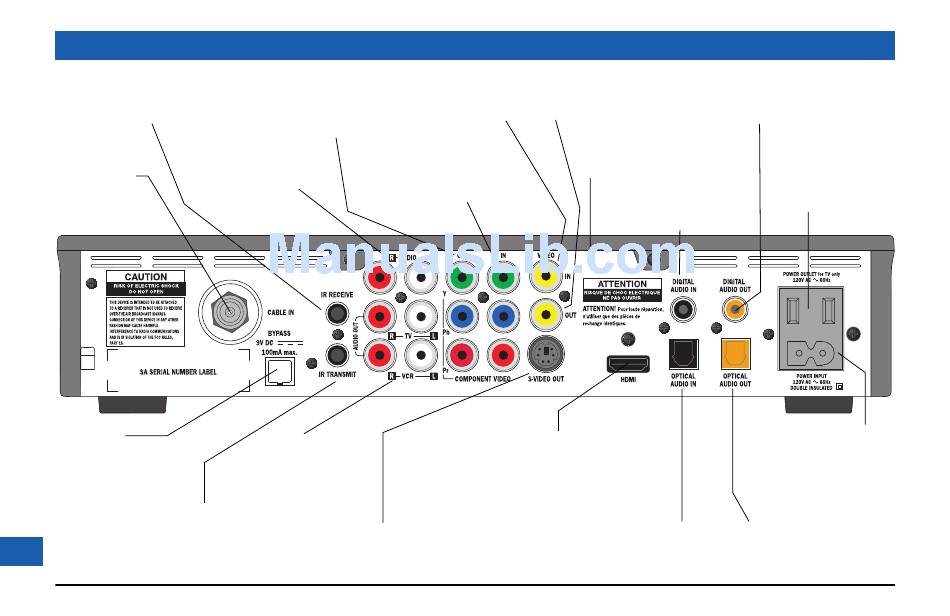

REAR PANEL

IR RECEIVE
Infra-red input from
a remote "eye"
AUDIO IN
CABLE IN Audio baseband input
(stereo, L and R)
From cable
service-provider
BYPASS
For optional RF-
bypass module
IR TRANSMIT
Infra-red output to
control a VCR
8
COMPONENT VIDEO OUT
Component video output
for analog HDTV
COMPONENT VIDEO IN
Component analog video input
AUDIO OUT
Two pairs of audio
baseband outputs
(stereo, L and R)
S-VIDEO OUT
S-video output
VIDEO OUT
VIDEO IN
Video baseband output
Video baseband input
HIGH-DEFINITION MULTI-
MEDIA INTERFACE (HDMI)
Video and audio output for
digital HDTV
OPTICAL AUDIO IN
Optical S/PDIF audio input
DIGITAL AUDIO OUT
Electrical S/PDIF audio output
1394 (not fitted on all units)
Two connections to
1394-compatible devices
DIGITAL AUDIO IN
Electrical S/PDIF audio
OPTICAL AUDIO OUT
Optical S/PDIF audio output
POWER OUTLET
(500 W max.)
POWER INPUT
(Make this
connection
last of all)
