Orion 7832 Manual

Orion TrueTrack Dual-Axis DC Motor Drive System
#7832
T
hank you for your purchase of an Orion TrueTrack motor drive system. The TrueTrack allows convenient
hands-free sidereal tracking of the night sky for SkyView Pro mounted telescopes. The motor drive sys-
tem also features a push button hand controller that can move the telescope along the right ascension
(R.A.) and declination (Dec.) axes at speeds of 2x, 4x and 8x the sidereal rate. This provides an easy way
to center objects in the eyepiece.
The Dual-Axis motor drive system is also necessary for doing long-exposure astrophotography. The elec-
tronic hand controller allows positional corrections to be made to both the R.A. and Dec. axes of the
mount during an astrophotographic exposure.

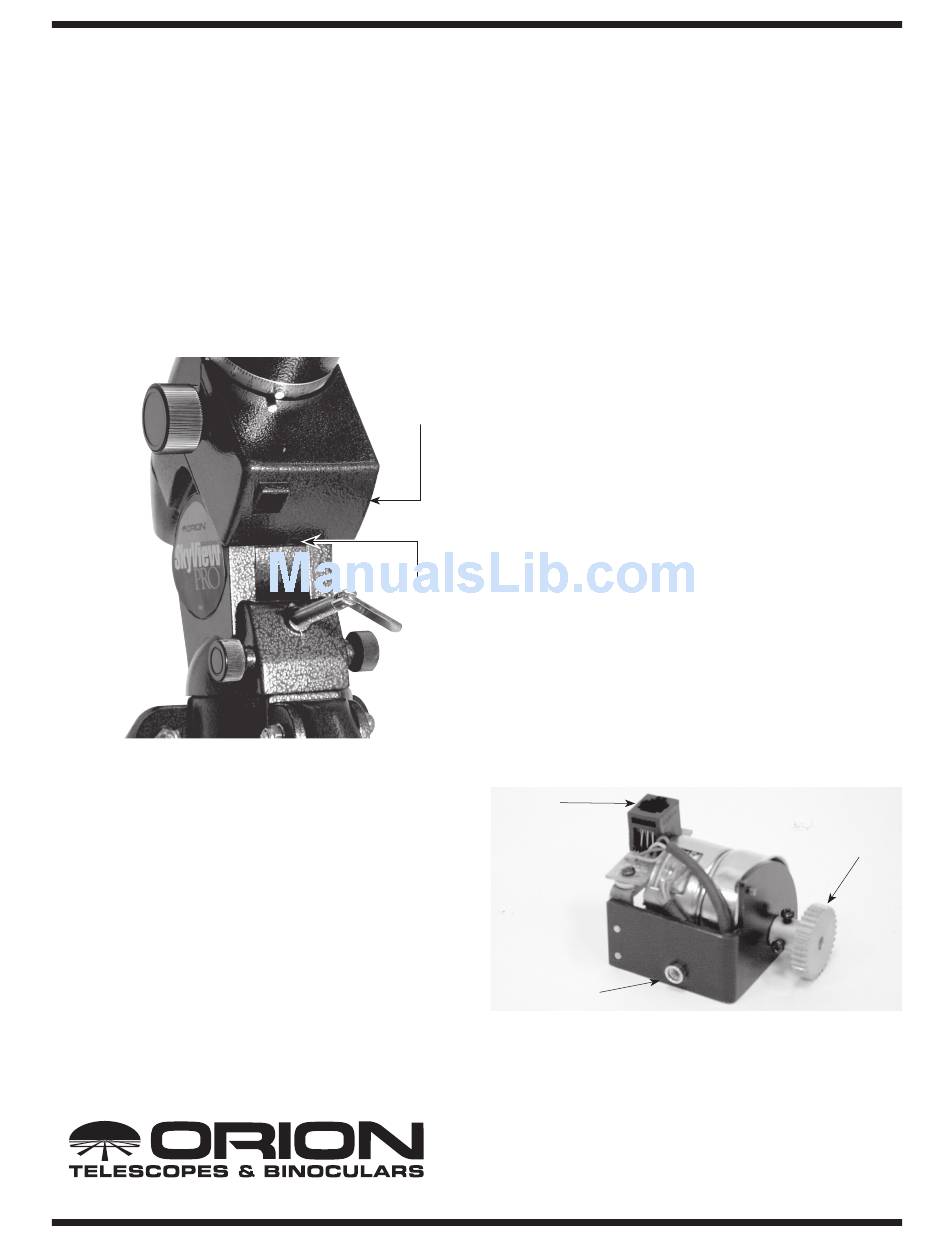

Figure 1.
The R.A. motor cover.

Parts List

1 R.A. motor assembly
1 Dec. motor assembly
2 Manual clutch assemblies (brass gears)
1 Hand controller
1 Battery pack
1 4mm Socket-head cap screw
1 5mm Socket-head cap screw
2 Velcro strips (1 "hook" strip, 1 "loop" strip)
Providing Exceptional Consumer Optical Products Since 1975
Attaching the R.A. Motor
R.A. motor Drive
cover
Remove the telescope tube, counterweight, and counter-
weight shaft from the mount before attaching the motor
drives.
1. Remove the R.A. motor cover from the mount by loosening
the Phillips head screw on the bottom of the cover (Figure
1). Slide the cover off the mount.
2. The R.A. motor assembly is identified by its silver colored
cylindrical body (Figure 2). It will be attached to the mount
Phillips-head
by a socket-head cap screw that goes through the hole in
screw
the rear of the equatorial mount, just above the rear lati-
tude adjustment L-bolt (Figure 3). Attach the 4mm
socket-head cap screw to the end of a 4mm hex key and
push it up through the hole in the rear of the equatorial
mount. Hold the R.A. drive in your hand so that its threaded
hole meets up with the screw as it comes out the other end
of the hole. Thread the screw into the threaded hole of the
R.A. motor assembly until secure, but do not overtighten.
Modular
jack
Threaded hole
Figure 2.
Customer Support (800) 676-1343
E-mail: support@telescope.com
Corporate Offices (831) 763-7000
89 Hangar Way, Watsonville, CA 95076
The R.A. motor assembly.
Brass gear
IN 197 Rev. B 02/09
