Orion 7338 Manual

Deluxe 100mm f/6 refractor

Download this manual

Orion

Dust cap

Dew shield

(retracted)

1/4"-20 Mounting block

customer support (800) 676-1343 • E-mail: support@telescope.com

Corporate Offices (831) 763-7000 • 89 Hangar Way, Watsonville, CA 95076

i n s t r u c t i o n M a n u a l

Deluxe 100mm f/6

Refractor

#7338

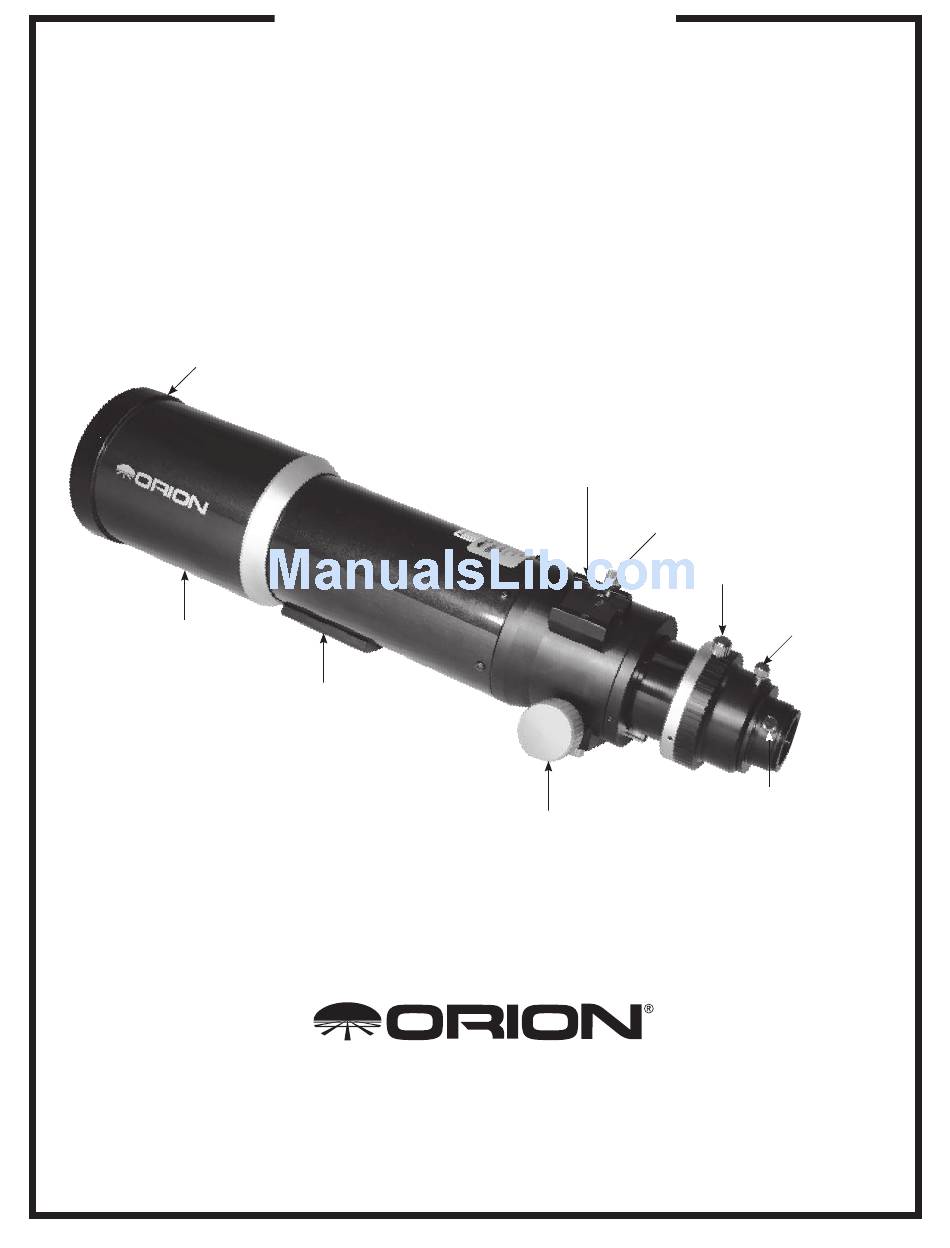

Figure 1:

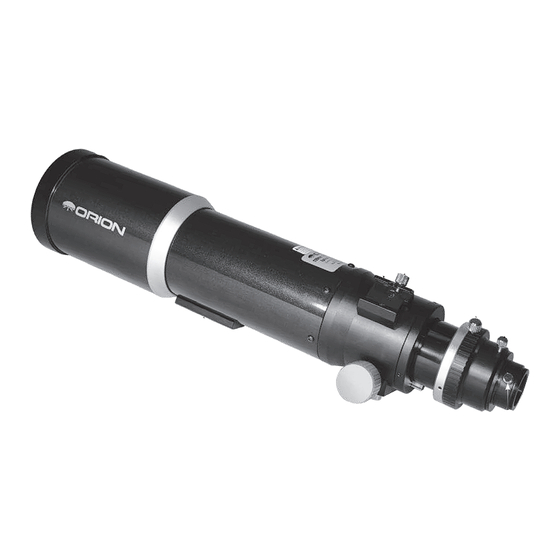

The Deluxe 100mm f/6 refractor optical tube.

Providing Exceptional Consumer Optical Products Since 1975

OrionTelescopes.com

Dovetail base

for finder

Finder scope

lock knob

Focuser rotation

lockscrew

Focus knob

2" accessory

thumbscrew

1.25" accessory

thumbscrew

IN 392 Rev. A 05/10

Need help?

Do you have a question about the 7338 and is the answer not in the manual?

Page 1 The Deluxe 100mm f/6 refractor optical tube. Providing Exceptional Consumer Optical Products Since 1975 OrionTelescopes.com customer support (800) 676-1343 • E-mail: support@telescope.com Corporate Offices (831) 763-7000 • 89 Hangar Way, Watsonville, CA 95076 © 2008-2010 Orion Telescopes & Binoculars IN 392 Rev. A 05/10...
Page 2: Getting Started
Please keep the original shipping box. In the unlikely event About the 2" Linear Bearing Dual-Speed Crayford you need to ship the telescope back to Orion for warranty Focuser repair service, you should use the original packaging. The box also makes a very good container for storing the telescope The Deluxe 100mm f/6 comes equipped with a 2"...
Page 3 Tube rings with an inner the illuminated eyepiece. diameter of 100mm (3.9"), such as Orion item #7371, are needed. If you are using tube rings, you should first attach Photography with the Deluxe 100mm f/6...
Page 4 (such as a copy of the original receipt) is required. telescope’s objective lens as well as the lenses of the eye- This warranty does not apply if, in Orion’s judg- pieces and finder scope. Never use regular glass cleaner or ment, the instrument has been abused, mishan- cleaning fluid designed for eyeglasses.
