Leviton EVB16 User Manual

WARNINGS AND CAUTIONS:
• Carefully read these instructions and the charging instructions in your vehicle owner's manual before charging your electric vehicle.
FAILURE TO DO SO MAY RESULT IN PROPERTY DAMAGE, INJURY OR DEATH.
• To be installed by an electrician and be used in accordance with appropriate electrical codes and regulations.
• The Charging Station is used to charge electric vehicles equipped with an SAE J1772™ compliant charge port ONLY. Refer to the
vehicle owner's manual to determine if the vehicle is equipped with an SAE J1772™ compliant charge port.
• DO NOT use the Charging Station with a damaged AC receptacle.
DO NOT use an extension cord to provide power to the Charging Station.
•
NOTE FROM THE EVSE MANUFACTURER
This user guide includes the latest information at the time of
printing. Leviton reserves the right to make changes to this
product without further notice. Changes or modifications to this
product by other than an authorized service provider could void
the product warranty. If you have questions about the use of this
product, contact your Customer Service Representative (refer to
the Customer Support section located in this user guide) or visit
www.leviton.com/toyota.
ELECTRIC VEHICLE COMPATIBILITY
The Level 2 – Electric Vehicle Charging Station is listed by
Underwriters Laboratories (UL) under Electric Vehicle Supply
Equipment (EVSE). The compact physical design of your
Charging Station takes up a minimum amount of wall space,
providing the greatest flexibility for mounting locations. This
device incorporates multiple levels of safety for the user, the
vehicle and the charging equipment. It conforms to all industry
standards and recommended practices.
FEATURES
• SAE J1772 TM Compliant - Ensures compatibility with all
battery electric vehicles (BEV) or plug-in hybrid electric
vehicles (PHEV) conforming to this standard.
• Self-Testing Sequence - Upon plugging the Charging
Station into the wall outlet, a self-test will occur to ensure
that the unit is working properly. This sequence will also
occur each time the Charge Connector is plugged into
the vehicle to ensure a proper connection, prior to
initiating charging.
• Auto-Restart - Allows charging to reinitiate after fault
condition, up to 3 times at 15 minute intervals. If fault
condition clears, no user intervention is required.
• Ground Monitoring Circuit - Checks for presence of
proper safety ground during self-testing sequence.
• Contactor Monitoring Circuit - Constantly checking the
integrity of AC charging path.
• Cold Load Pickup - Time delayed and randomized
(2-15 minutes) re-energizing of Charging Station following
power outage. This feature protects electrical grid from
overload from simultaneous re-energizing of chargers.
Charging will automatically resume after the randomized delay.
• Excessive Cord Strain Detection - A safety feature that
de-energizes the Charge Cord if excessive pull is placed upon
it (see Troubleshooting - contact Customer Support).
• NEMA Type 4 Enclosure - Protects electronics against
exposure to weather. Outdoor rated to be water-tight,
dust-tight, and sleet resistant.
• UL and cUL Listed.
Level 2 - Electric Vehicle Charging Station
Cat. No. EVB16 - 16A
Cat. No. EVB30 - 30A
Cat. No. EVB40 - 40A

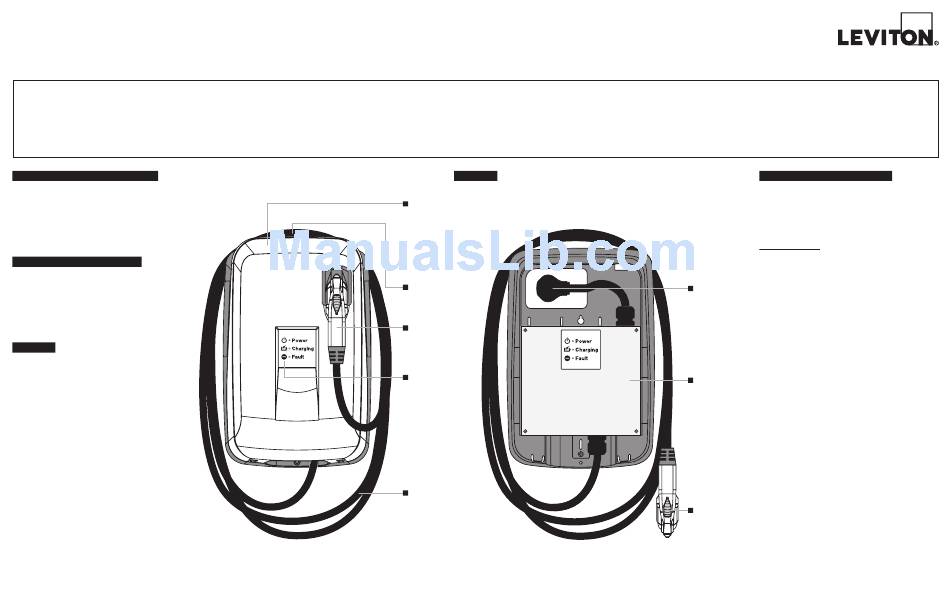

FRONT VIEW - CLOSED
Removable Door
The Enclosure
Door can be
easily removed
to facilitate
installation.
Cord Management
Easy "wrap-around"
system for quick and
easy storage.
Charge Connector
SAE J1772
Charge Connector
delivers power to
vehicle when charging.
Status Indicators
Lights indicate Power,
Charging and Fault
status.
Charge Connector Cord
UL recognized Type EV
cable suitable for charging
electric vehicles.
User Guide
• DO NOT operate the Charging Station with a visibly damaged AC Supply Cord/Plug or Charge Cord/Connector. Inspect equipment before each use. If any
damage is detected, contact a Customer Service Representative (refer to Customer Support section).
• Ensure that the Charge Connector Cord is positioned so it will not be stepped on, tripped over, or otherwise subjected to damage or stress. Always stow
Charge Cord and Connector by wrapping the Charge Cord around the Charging Station when not in use (as shown below).
• DO NOT attempt to repair or service the Charging Station yourself. Opening the inner electronics access panel will void the warranty. Refer to the Customer
Support section for service information.
• Retain this guide for future reference.
OVERVIEW
FRONT VIEW - OPENED
TM compliant
POWERING THE CHARGING STATION
Using the Level 2 – Electric Vehicle Charging Station to charge
your electric vehicle is as simple as plugging in any appliance.
Reference Installation Instructions to ensure the Charging
Station has been properly installed. NOTE: If the Charging
Station Power LED is not illuminated, ensure the AC Supply
Cord is plugged in or reset circuit breaker to start power up
sequence.
Power Up Sequence
• Upon plugging in the unit, the Power, Charging and Fault
LEDs will all illuminate momentarily, followed by just the
Power LED illuminating. After 6 seconds a self-testing
sequence will start where the Power LED will flash for
approximately 3 seconds. Following the self-test, if no fault
AC Supply Plug
is detected, the Power LED will illuminate solid green,
UL recognized cord
indicating that the Charging Station is now ready for use.
with a NEMA 6-20P
NOTE: DO NOT plug the Charge Connector into the vehicle
configuration for
prior to the self-test; this may cause the Charging Station
EVB16; NEMA 6-50P
to go into Cold Load Pick-up (see Features section), and
configuration for
delay charging.
EVB30 and EVB40.
Enclosure
Water-tight,
dust-tight and
sleet resistant.
Charge Connector
Release Button
To disconnect
Charge Connector
from vehicle
charge port.
