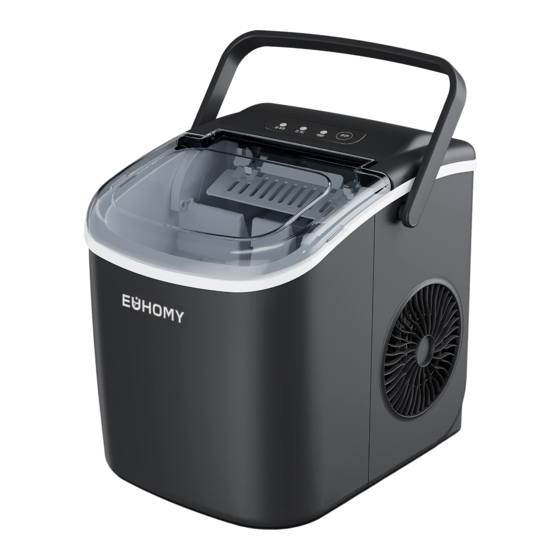

- Page 1 Ice Maker Instruction Manual SKU：IM-06D Email：support@euhomy.com Facebook：@Euhomy.Official...
- Page 3 Email: support@euhomy.com Facebook: @Euhomy.Official The Euhomy team is available 24/7 to address your questions, comments, and concerns. Your satisfaction is our ultimate goal. We want to make everything right so you'll share your positive experience with other shoppers on Amazon.
- Page 4 It may be that the PVA tube inside the machine fell off during shipping. You can remove the back cover of the machine and reconnect it yourself. If you don't know how to do this, please contact the Euhomy team. We will send you a professional video to help you solve the problem.
-
Page 5: Table Of Contents
Contents Safety precautions 02-04 Operation & Installation 05-09 Maintenance & Tips Technical Parameters & Circuit Diagram Packing List Warranty Troubleshooting: support@euhomy.com... -
Page 6: Safety Precautions
Safety Precautions Important Safety Instructions / For Household Use Only Your safety and the safety of others are very important. We have provided many important safety messages in this manual and on your appliance. Always read and obey all safety messages. This is the safety alert symbol: All safety messages are preceded by the safety alert symbol and the word "DANGER"... - Page 7 Safety Precautions When using electrical appliances, basic safety precau- tions should be followed to reduce the risk of fire, electric shock, and injury to persons or property. Read all instructions before using this or any appliance. Do not operate this or any other appliance with a damaged cord. If the power cord is damaged, it must be replaced by the manufacturer, its service agent, or a similarly qualified individual to prevent a hazard.
- Page 8 Safety Precautions WARNING: This appliance must be grounded. DANGER - Risk of fire or explosion. Flammable refrigerant used. Do not use mechanical devices to defrost ice maker. Do not puncture refrigerant tubing. DANGER - Risk of fire or explosion. Flammable refrigerant used. To be repaired only by trained service personnel.
-
Page 9: Operation & Installation
Operation & Installation MAIN UNIT CONSTRUCTION 1. Ice scoop 2. Ice Full sensor 3. Ice basket 4. Top cover with transparent window 5. Air exhaust 6. Water drain cap: at bottom front of the unit 7. Maximum water level indicator: ——▲—— Remove the ice basket to see the water level mark. - Page 10 Operation & Installation EXPLODED-VIEW DRAWING Qty/ Qty/ Qty/ Part description Part description Part description Power cord Ice shove Stainless wire Plastic clip Evaporator Water supply pipe Back panel Micro switch Synchronous motor Plate back support Condenser Inner tank bracket, LH DC water pump Back bottom panel DC fan motor...
- Page 11 Operation & Installation POSITION & FUNCTIONS OF CONTROL PANEL Control panel: Easy-to-use, easy-to-read touch display. A. Power ON/OFF button B. Power indicator C. Ice Full indicator D.Add Water indicator...
- Page 12 Operation & Installation UNPACKING YOUR ICE MAKER Remove the exterior and interior packaging. Check if ice basket and ice scoop inside. If any parts are missing, please contact our customer service. Remove the tape securing the ice shovel, ice basket, and ice scoop. Clean the tank and ice basket.
- Page 13 Operation & Installation CONNECTING YOUR ICE MAKER DANGER: Improper use of the grounded plug can result in electric shock. If the power cord is damaged, please call our customer service. This unit should be properly grounded for your safety. The power cord of this appliance is equipped with a three-prong plug which mates with standard three-prong wall outlets to minimize the possibility of electric shock.
-
Page 14: Maintenance & Tips
Maintenance & Tips CLEANING AND MAINTAINING YOUR ICE MAKER Before using your ice maker, it is strongly recommended to clean it thoroughly. Take out the ice basket. Clean the interior with warm, soapy water and a soft cloth. Use a mild dishwashing liquid or liquid hand soap for this purpose. -
Page 15: Technical Parameters & Circuit Diagram
Technical Parameters & Circuit Diagram TECHNICAL PARAMETERS Model IM-06D Protection Type Power 115V/60Hz Ice-Making Current 1.5A Ice-Harvest Current 1.8A R600a, 0.74oz/21g Refrigerant Design Pressure, High Side 290psig Low Side 88psig Vesicant Net Weight 6.2kg Dimensions 222x294x290mm Enclosure Plastic CIRCUIT DIAGRAM... -
Page 16: Packing List
Packing List ADDITIONAL ACCESSORIES Ice Basket Ice Scoop Description Quantity Manual 1 pc Ice Basket 1 pc Ice Scoop 1 pc Handle 1 pc... -
Page 17: Warranty
If you have an issue with a Euhomy product, please contact us (support@euhomy.com), and we will do our best to resolve it... -
Page 18: Troubleshooting: Support@Euhomy.com
Troubleshooting (support@euhomy.com) Problem Possible Cause Solution Power off the ice maker. Add Add Water Lack of water. water. Press the Power button indicator is on. again to restart the unit. Remove ice from ice basket. Ice Full Ice basket is full. - Page 20 Email：support@euhomy.com Facebook：@Euhomy.Official...
