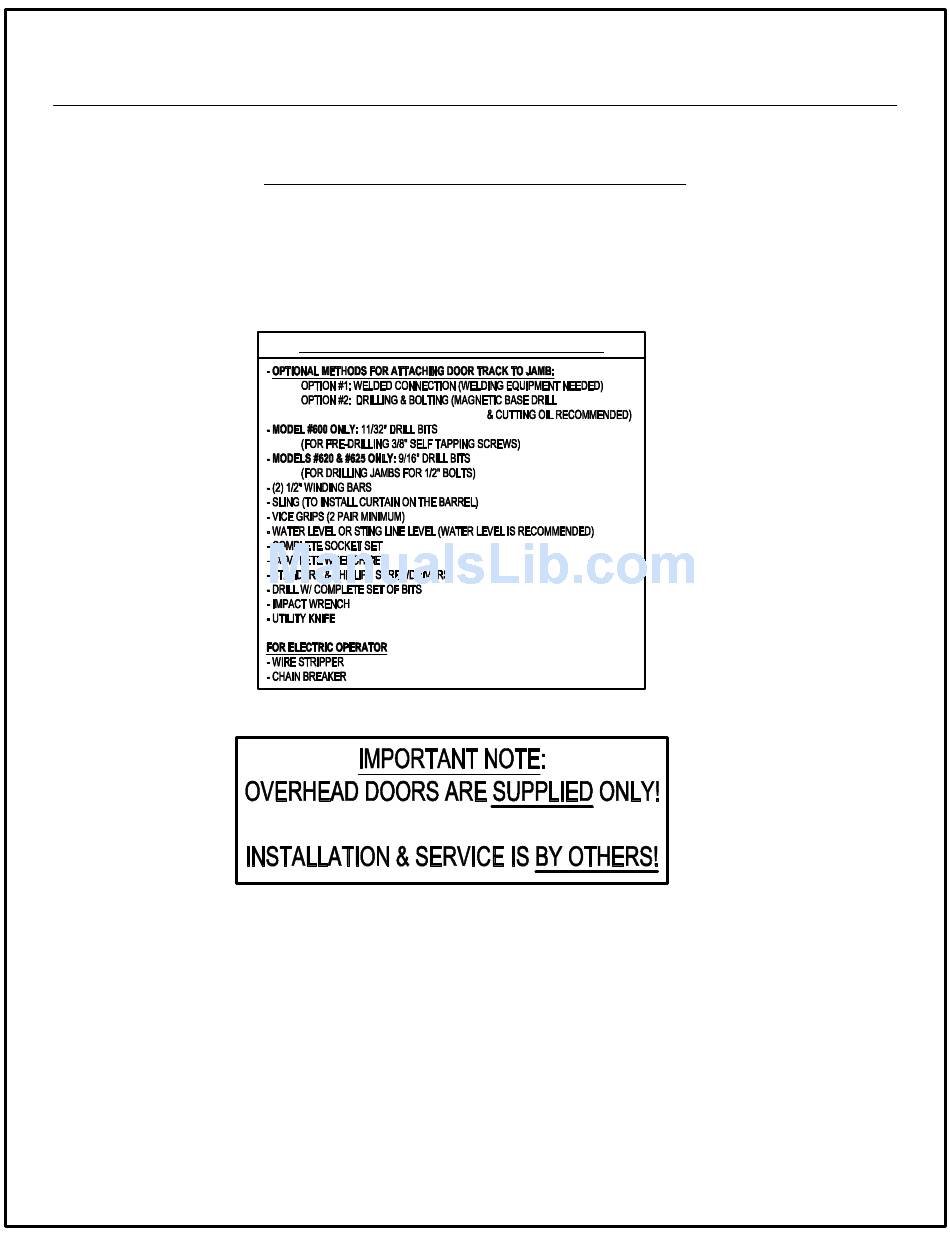

- Page 1 ROLL-UP DOOR INSTALLATION INSTRUCTIONS ROLL-UP DOOR INSTALLATION TOOLS...
- Page 6 READ COMPLETE INSTRUCTIONS BEFORE INSTALLING DOORS. This document also refers to the following other documents or specifications; Expansion Anchor Requirements 307390 Installation Instructions, Cast Gear Drive Chain Hoist 308042 Chain Hoist Assemblies and Operation 300951 Rev 4/09/2013 www.overheaddoor.com ©2013 300922-0010 Overhead Door Corporation...
-
Page 7: Safety Information
Could result in Death Installations, repairs and adjustments must be done by a trained door system technician using proper tools and or Serious Injury instructions. HIGH SPRING TENSION Rev 4/09/2013 www.overheaddoor.com ©2013 300922-0010 Overhead Door Corporation... - Page 8 Right hand door is illustrated. In a left hand door the barrel and both brackets are reversed. Guides for masonry jambs shown. Fig 1 Please note that components and component locations are shown here for REFERENCE ONLY. Your unit installation and component locations may be different. Rev 4/09/2013 www.overheaddoor.com ©2013 300922-0010 Overhead Door Corporation...
- Page 9 "Door Installation Data" sheet. See Figure 2. Factory order number on door components must match with factory order number on the "Door Installation Data" sheet. Each door has it’s own individual sheet. Fig 2 Rev 4/09/2013 www.overheaddoor.com ©2013 300922-0010 Overhead Door Corporation...
- Page 10 10 after the curtain installation is complete. The Guide Gap must be set to the dimension shown on the "Door Installation Data" sheet. See Figure 6. Fig 5 Fig 6 "Z" Guide "E" Guide Rev 4/09/2013 www.overheaddoor.com ©2013 300922-0010 Overhead Door Corporation...
- Page 11 Fig 8 using electrodes E6010, E6011 or E7014. (Fig 8 is shown without the middle and outside angles attached.) NOTE: When steel jamb does not extend above the opening, use three thru-bolts to Fig 8 fasten each wall angle above the opening. See Figure 7. Rev 4/09/2013 www.overheaddoor.com ©2013 300922-0010 Overhead Door Corporation...
- Page 12 Right Hand Drive shown; Left Hand Drive is opposite. See Figure 10. Fig 9 STEP 4 GEAR DRIVE HEADPLATE: NOTE: Install gear hoist mounting bolts in headplate AT THIS TIME; see Overhead Door instructions 308042. STEP 5 IDENTIFY BARREL ASSEMBLY DRIVE END Right hand drive shown in Figure 11;...
- Page 13 Complete the installation of drive components. See Overhead Door 308042 for gear drive. Fig 14 See Overhead Door 300951 for chain and sprocket. WARNING The use of electric operator during installation of the door could result in death or serious injury. Do not connect power to electric operator until door installation is complete including hood and covers.
- Page 14 Place locking pliers on LH & RH guides at 2 to 3 inches below the top of the guides as shown in Fig 18. • Create enough slack in the sling/rope so the curtain can be lowered into the guides and rest on the locking pliers. Locking Pliers Fig 18 Guide Rev 4/09/2013 www.overheaddoor.com ©2013 300922-0010 Overhead Door Corporation...
- Page 15 Large doors may require a 35 lbs. pull to raise with hand chain. A chain pull of up to 35 lbs. is permissible. NOTE: Instruct customers to use both hands to control both hand chains during the closing operation. Fig 20 Rev 4/09/2013 www.overheaddoor.com ©2013 300922-0010 Overhead Door Corporation...
- Page 16 7/32" hole through hood and band. Then secure with 1/4" dia. x 3/8" long self- tapping screws (four per bracket and four per support). See Figures 21 and 22. Fig 22 Rev 4/09/2013 www.overheaddoor.com ©2013 300922-0010 Overhead Door Corporation...
- Page 17 Do NOT remove, cover, or paint over label. Product user should inspect this label periodically for legibility, and should order a replacement label from the door manufacturer as 04/08/2013 308126-0001 needed. 10/01/2008 301603-0002 Fig 23 Fig 24 Rev 4/09/2013 www.overheaddoor.com ©2013 300922-0010 Overhead Door Corporation...
