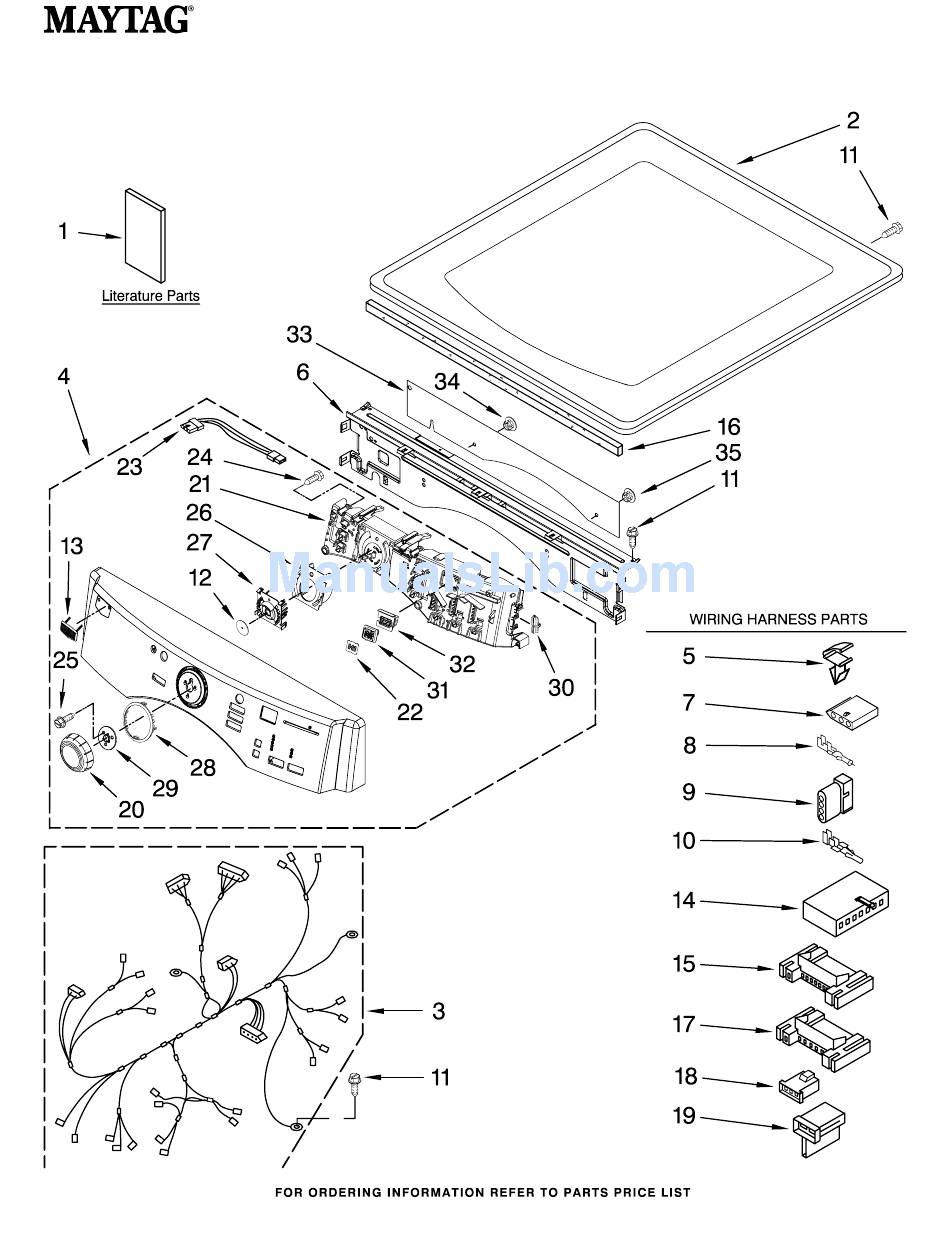

- Page 1 TOP AND CONSOLE PARTS 29" GAS DRYER For Models: MGDE900VW2 (White) 12−09 Printed in U.S.A. (MP)(bay) Part No. W10310687 Rev. A...
- Page 2 6 W10215656 Bracket, Console (Includes No. 16) 353424 Connector, Sensor 94614 Terminal 3936144 Plug, Terminal 94613 Terminal 3390647 Screw, 8−18 x 1/2 8572039 Seal, User Interface For Models: MGDE900VW2 (White) Illus. Part DESCRIPTION 13 W10177245 Medallion 3936150 Connector, 7−Circuit 3395683 Connector,...
-
Page 3: Cabinet Parts
CABINET PARTS For Models: MGDE900VW2 (White) W10310687... - Page 4 W10151499 Midnight Grey 3388672 Pulley Assembly 3978776 Bracket, Gas Pipe 343641 Screw, 10−16 x 1/2 15 W10247569 Rear Panel 16 W10123956 Sound Panel CABINET PARTS For Models: MGDE900VW2 (White) Illus. Part DESCRIPTION 17 W10121334 Washer, Flat Plastic 18 W10128087 Assembly,...
- Page 5 BULKHEAD PARTS For Models: MGDE900VW2 (White) W10310687...
- Page 6 8575325 Shaft, L.H. Thread 690997 Ring, Tri 8536973 Roller, Support 8066224 Exhaust Pipe 22 W10253353 Outlet Housing Assembly Includes (Includes Item 6) BULKHEAD PARTS For Models: MGDE900VW2 (White) Illus. Part DESCRIPTION 489463 Screw, 8−18 x 5/8 24 W10181467 Complete Drum Assembly...
- Page 7 W10293911 BURNER ASSEMBLY For Models: MGDE900VW2 (White) USE WITH TYPE 1 − NATURAL, TYPE 2 − MIXED, AND TYPE 4 − LIQUEFIED PROPANE AND BUTANE GASES BA−159 W10310687...
- Page 8 W10293911 BURNER ASSEMBLY USE WITH TYPE 1 − NATURAL, TYPE 2 − MIXED, AND TYPE 4 − LIQUEFIED PROPANE AND BUTANE GASES For Models: MGDE900VW2 (White) Illus. Part DESCRIPTION 1 W10293911 Burner Assembly 60 Hz. (Type 1 & 2) 688617 Tube, Burner...
-
Page 9: Door Parts
Door Hinge 3400224 Screw, 8−18 x 5/8 8519356 Retainer−Window (Upper) 8519354 Retainer−Window (Lower) 7 W10193522 Handle Ring W10310687 DOOR PARTS For Models: MGDE900VW2 (White) Illus. Part DESCRIPTION 8 W10159996 Screw, 10−24 x 5/16 9 W10048910 Screw−Plug 8577819 Inner Door Complete Assembly 355515 Screw, 8−18 x 11/16... - Page 10 OPTIONAL PARTS (NOT INCLUDED) For Models: MGDE900VW2 Illus. Part DESCRIPTION PAINT, TOUCH−UP (1/2oz.) 72017 White PAINT, PRESSURIZED SPRAY (12 oz.) 350930 White 350938 Primer, Gray PAINT, BULK (1 qt.) 799344 White (Uncut) ACCESSORY PARTS 8529894 Hold Down Kit 8522199 Kit, Dryer...
