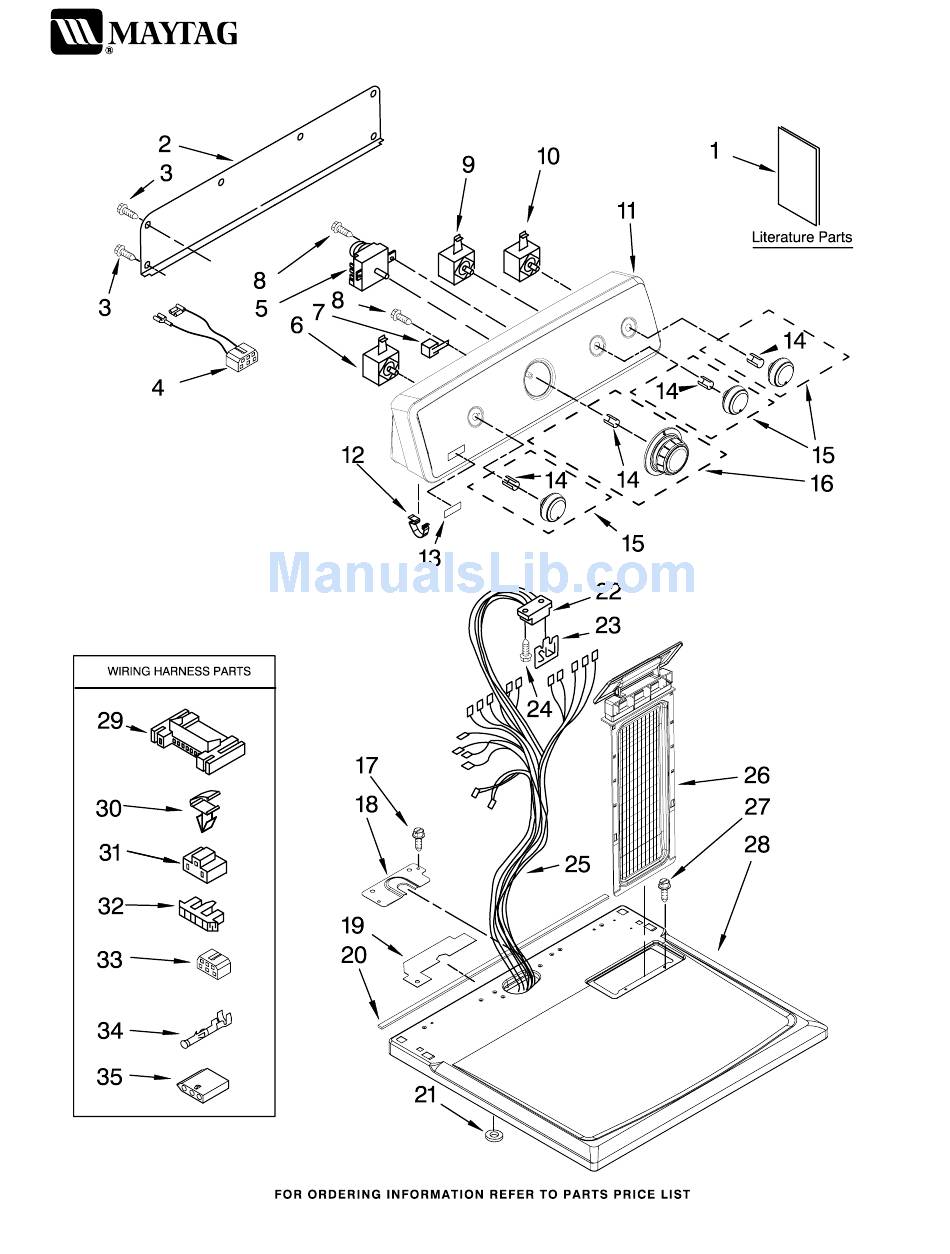

- Page 1 TOP AND CONSOLE PARTS 29"ELECTRIC DRYER For Model: MED5800TW0 (White) 8−07 Litho in U.S.A. (drd) Part No. W10118326 Rev. B...
- Page 2 8566184 Timer, 60 Hz. 3405156 Switch, Rotary Twist Mount 694419 Buzzer, Mini 8533971 Screw, 8−18 x 5/16 8578354 Switch, Temperature TOP AND CONSOLE PARTS For Model: MED5800TW0 (White) Illus. Part DESCRIPTION 10 W10117655 Switch, Push−To−Start 11 W10086711 Console & Shell Assembly (Includes Items 12 &...
-
Page 3: Cabinet Parts
CABINET PARTS For Model: MED5800TW0 (White) W10118326... - Page 4 Panel (2) 697773 Screw, 6−20 x 7/8 3406107 Switch, Door 98669 Lock, Front Top (2) 3403444 Panel, Front 98234 Clip, Ground CABINET PARTS For Model: MED5800TW0 (White) Illus. Part DESCRIPTION 685203 Clip, Felt Pad (3) 3406129 Seal & Bearing Assembly...
- Page 5 BULKHEAD PARTS For Model: MED5800TW0 (White) W10118326...
- Page 6 BULKHEAD PARTS For Model: MED5800TW0 (White) Illus. Part DESCRIPTION 348368 Lint Chute Assembly 487909 Screw, 8−15 x 1/2 3388703 Washer−Support 347139 Seal, Lint Chute 90767 Screw, 8−18 x 3/8 696302 Shield, Exhaust 3392519 Fuse, Thermal (91 C) 8318268 Thermostat, Internal−Bias 3977393 Thermal Cut−Off...
- Page 7 OPTIONAL PARTS (NOT INCLUDED) W10118326 For Model: MED5800TW0 (White) Illus. Part DESCRIPTION ACCESSORY PARTS 279948 Kit, Dryer Repair 3406839 Dry Rack 8522199 Kit, Dryer Vent Testing PAINT, TOUCH−UP (1/2oz.) 72017 White PAINT, PRESSURIZED SPRAY (12 oz.) 350930 White 350938 Primer, Gray PAINT, BULK (1 qt.)
