Maytag MED5707TQ0 Parts List

29" electric dryer white

Hide thumbs Also See for MED5707TQ0:

Download this manual See also: Use and Care Manual

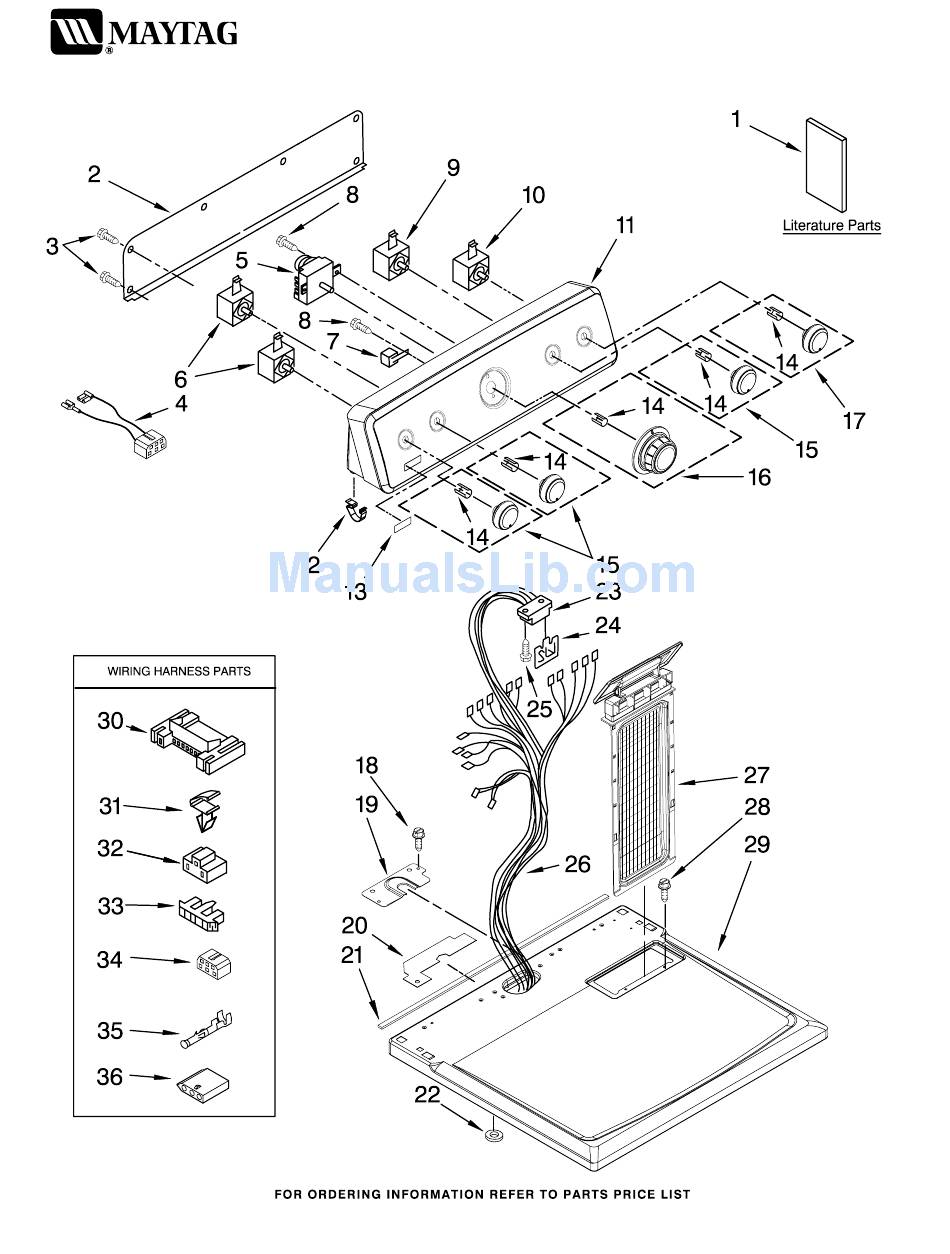

TOP AND CONSOLE PARTS

29"ELECTRIC DRYER

For Model: MED5707TQ0

(White)

9−07 Litho in U.S.A. (drd)

Part No. W10131679 Rev. C

Page 1 TOP AND CONSOLE PARTS 29"ELECTRIC DRYER For Model: MED5707TQ0 (White) 9−07 Litho in U.S.A. (drd) Part No. W10131679 Rev. C...
Page 2 TOP AND CONSOLE PARTS For Model: MED5707TQ0 (White) Illus. Part DESCRIPTION Literature Parts W10089177 Sheet, Cycle Feature W10088770 Use & Care Guide W10124168 Wiring Diagram 2 W10112576 Panel, Rear 693995 Screw, 8−18 x 3/8 4 W10124166 Wire, Jumper Buzzer On/Off 8566184 Timer, 60 Hz.
Page 3: Cabinet Parts
CABINET PARTS For Model: MED5707TQ0 (White) W10131679...
Page 4 3394083 Clip, Front Panel (2) 697773 Screw, 6−20 x 7/8 3406107 Switch, Door 98669 Lock, Front Top (2) 3403444 Panel, Front CABINET PARTS For Model: MED5707TQ0 (White) Illus. Part DESCRIPTION 98234 Clip, Ground 685203 Clip, Felt Pad (3) 3406129 Seal & Bearing...
Page 5 BULKHEAD PARTS For Model: MED5707TQ0 (White) W10131679...
Page 6 BULKHEAD PARTS For Model: MED5707TQ0 (White) Illus. Part DESCRIPTION 348368 Lint Chute Assembly 487909 Screw, 8−15 x 1/2 3388703 Washer−Support 347139 Seal, Lint Chute 90767 Screw, 8−18 x 3/8 696302 Shield, Exhaust 3392519 Fuse, Thermal (91 C) 8318268 Thermostat, Internal−Bias 3977393 Thermal Cut−Off...
Page 7 OPTIONAL PARTS (NOT INCLUDED) W10131679 For Model: MED5707TQ0 (White) Illus. Part DESCRIPTION ACCESSORY PARTS 279948 Kit, Dryer Repair 3406839 Dry Rack 8522199 Kit, Dryer Vent Testing PAINT, TOUCH−UP (1/2oz.) 72017 White PAINT, PRESSURIZED SPRAY (12 oz.) 350930 White 350938 Primer, Gray PAINT, BULK (1 qt.)
